Y-Motor Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J1301686 AC MOTOR Y-AXIS 1 P20B10100DXS00 2 J1301703 MOTOR PULLEY-Y 1 P26-5GT-BF (0135-631001) 3 J2102039 PLATE NUT-Y MOTOR 1 0135-631016-P1 4 J7054020B M…
Y Motor Ass’y
- 1 -

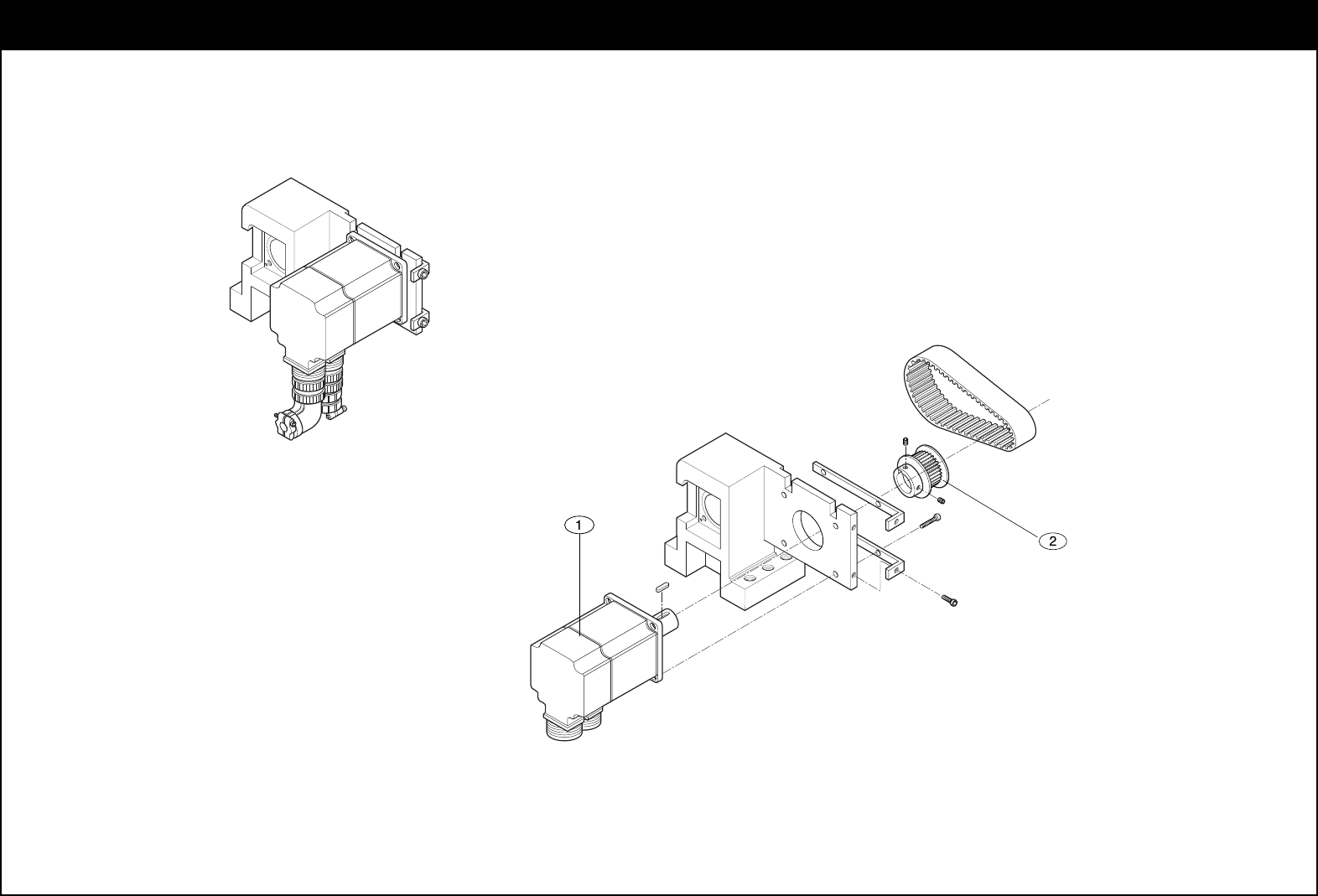

Y-Motor Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J1301686 AC MOTOR Y-AXIS 1 P20B10100DXS00
2 J1301703 MOTOR PULLEY-Y 1 P26-5GT-BF (0135-631001)
3 J2102039 PLATE NUT-Y MOTOR 1 0135-631016-P1
4 J7054020B MOTOR BKT-Y 1 J7054020B
