CP40配件说明 - 第39页
Y Ball Scre w Ass’y - 1 -
Y-Motor Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J1301686 AC MOTOR Y-AXIS 1 P20B10100DXS00
2 J1301703 MOTOR PULLEY-Y 1 P26-5GT-BF (0135-631001)
3 J2102039 PLATE NUT-Y MOTOR 1 0135-631016-P1
4 J7054020B MOTOR BKT-Y 1 J7054020B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 1 -

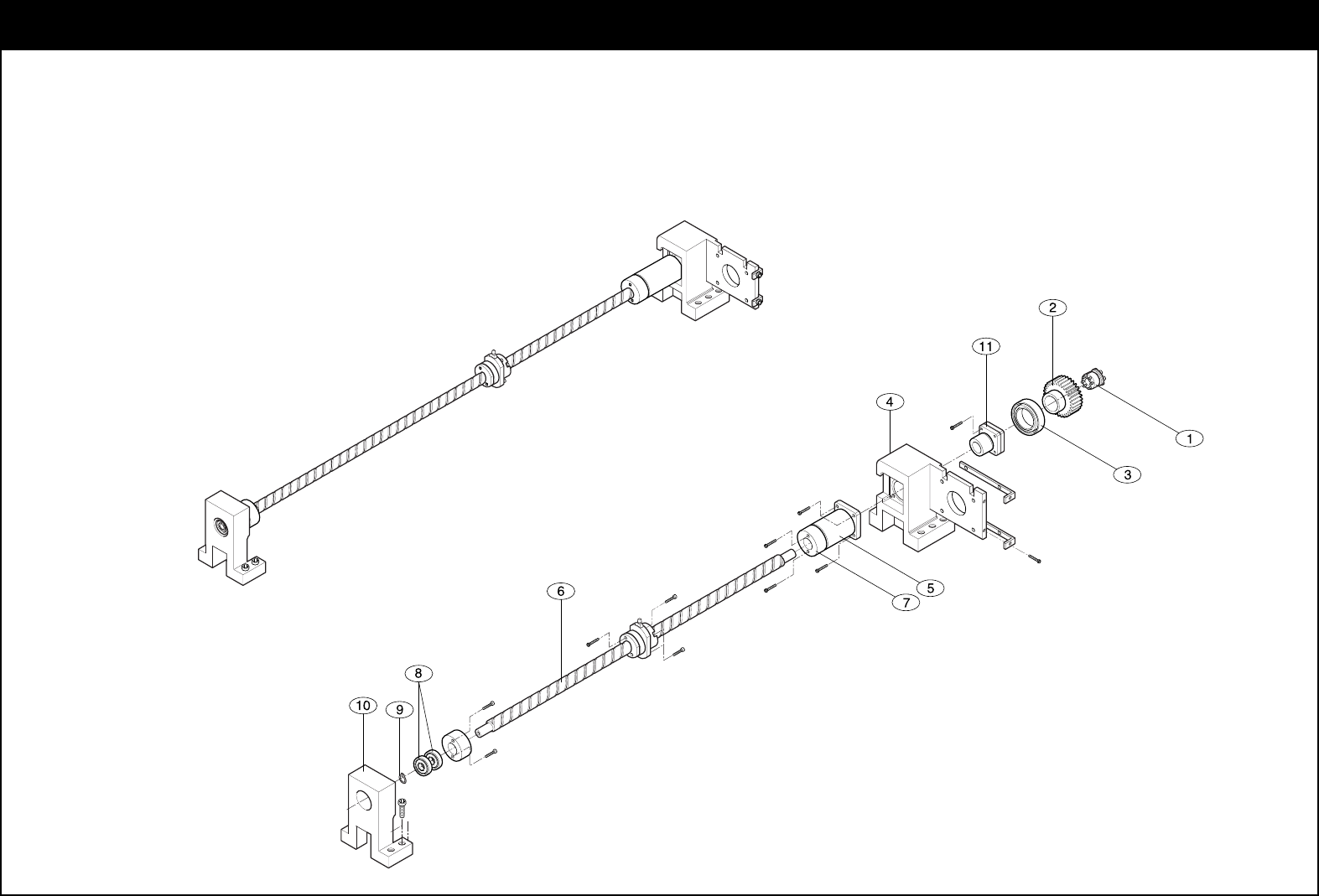

Y Ball Screw Ass’y
- 1 -
Y-Ball Screw Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J1300677 MECHA LOCK 1 MA12 (ISEL)
2
J1301349 SCREW PULLEY-Y 1 P52-5GT (0133-631002)
3
J1301204 BEARING 1 6009zz
4
J2102040 SCREW SUPPORT 1 0135-631019-P1
5
J2100131 SPACER CUSHION D 1 0131-631171
6 J1300563 BALL SCREW-Y 1
GH2040QS-HEFR (0131-631032-K1), KURODA
7
J1300648 CUSHION-X 2 ALX50-24
8
J1300510 BEARING 2 6002ZZ
9
J1300419 C-RING (SHAFT) 1 DIA 15
10
J2100083 SCREW SUPPORT-Y2 1 0131-631008-P1
11
J1301708 SUPPORT UNIT 1 FK15S1
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
