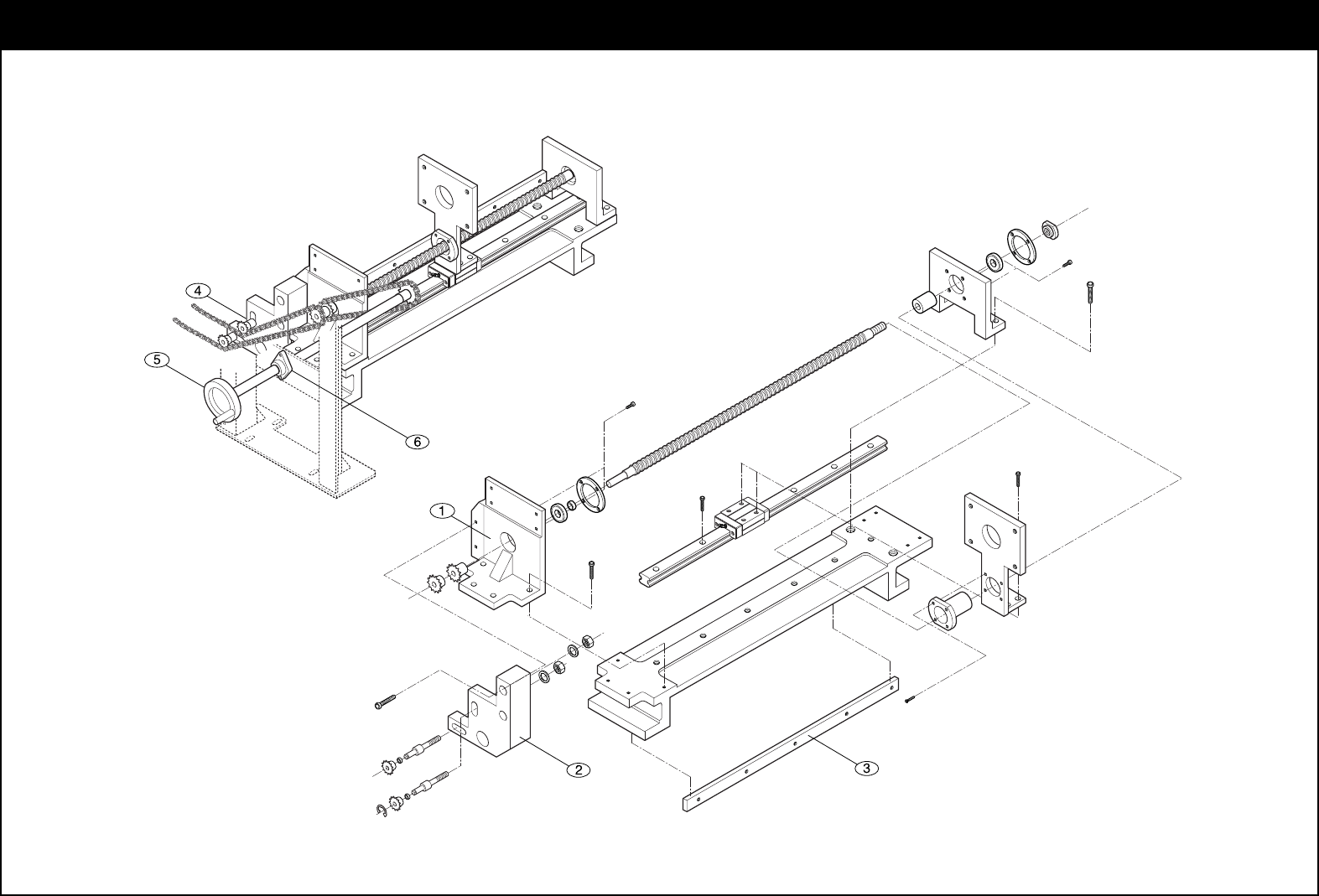

Conveyor 1 Ass'y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J2101744 SPROCKET 2 0135-641017-P1 2 J2101737 FIX STAND (LEFT) 1 0135-641010 3 J2101738 SUPPORT-WIDE ADJUST 2 0135-641011-P1 4 J7053016B MOVE STAND 2 J…
Conveyor1 Ass’y
- 1 -
Conveyor 1 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J2101744 SPROCKET 2 0135-641017-P1
2
J2101737 FIX STAND (LEFT) 1 0135-641010
3
J2101738 SUPPORT-WIDE ADJUST 2 0135-641011-P1
4
J7053016B MOVE STAND 2 J7053016B
5
J7053017B SCREW STAND 2 J7053017B
6
J2101742 BEARING COVER 4 0135-641015
7
J7053194A BEARING NUT 2 J7053194A
8
J2101745 SPROCKET 4 0135-641018
9
J2101746 SPROCKET SHAFT 4 0135-641019
10
J7053023C SPROCKET PLATE(L) 1 J7053023C
11
J2101749 LEAD SCREW (WIDTH) 2 0135-641022
12
J2102046 COVER SUPPORT 2 1 0135-641127
13
J2101751 STOPPER WIDTH 1 0135-641025
14
J6607025A LM GUIDE 2 SBG20-SL-1-460-N
15
J1300509 BALL BEARING 2 6000ZZ
16
J1301668 CHAIN 1 RS25*2354L
17
