Boar d 2 Ass’y - 2 -

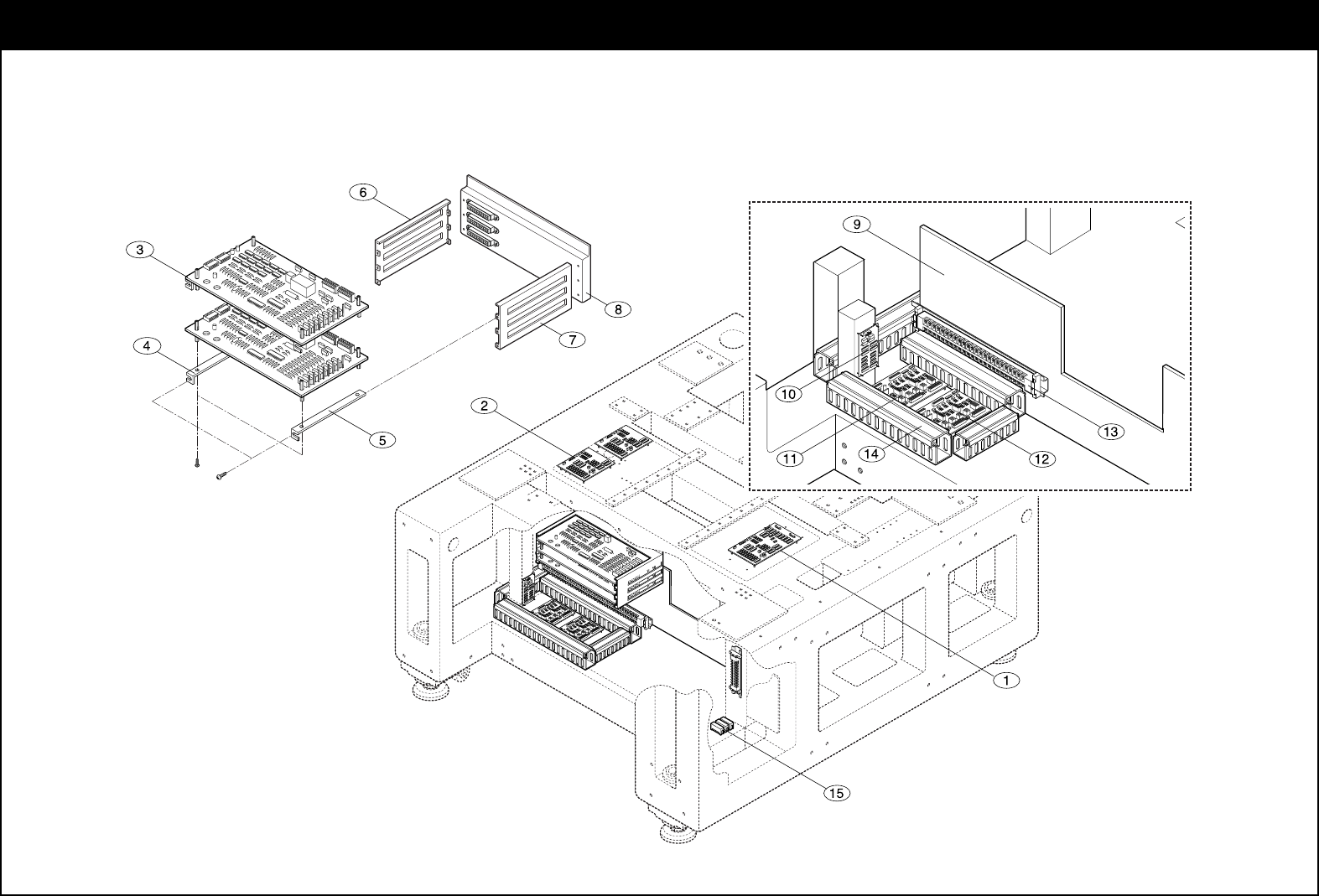

Board 2 Ass’y
- 2 -
Board 2 Ass’y
- 2 -
Board 2 Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J9800393 CONVEYOR I/F BOARD ASS'Y 1 C30-Z2-202-00-10/PS
2
J9800394 FEEDER I/F BOARD ASS'Y 2 C30-Z2-203-00-10/PS
3
J7061074A SCM BKT SUPPORT 1 J7061074A
4
J6309008A CARD GUIDE 6 TRCG-3.300
5
J7061076A SCM BOARD HOLDER 3 J7061076A
6
J9060068A SA SCM BOARD 3 J9060068A
7
8
9 J7061006C FRONT PANEL 1 J7061006C
10
J9800804 QA I/F BOARD ASS'Y 1 QA(30) I/F BOARD
11
J9800395 SUB I/F BOARD ASS'Y 1 C30-Z2-204-00-20/PS
12 J9801193 BOARD ASS'Y 1 LIGHT DRIVE
13
J1201040 TERMINAL BLOCK SHORT BAR [BNJ26FW 5 BNJ26FW 20A
J1201041 TERMINAL BLOCK [DTNN1] 1 DTNN1
J1201042 TERMINAL BLOCK RAIL [DTR1] 1 DTR1
J1201043 TERMINAL BLOCK SAFETY COVER 1 DTCN1
J1201044 TERMINAL BLOCK STOPPER [DTSN 1] 2 DTSN1
J1201045 TERMINAL BLOCK (MODULE TYPE) 60 DATB-400-15A
J1202015 TERMINAL BLOCK [DTAN 35] 6 DTAN35
14 J1500007 PVC DUCT (GRAY) 2 60W*80H
15
J1202115 FUSE 3 250V/3A (30mm)
16 J7061087A HUB BRACKET 1 J7061087A REAR OPREATIONS
17 J5501001A USB HUB 1 415UA REAR OPREATIONS
18
19
20
21
