Board 3 Ass'y NO. RART NO. RART NAME Q'TY TYPE REMARK 1 J1201030 CPU BOARD 1 MVME-162-220 2 J9060051A DSP BOARD 1 DSP BOARD REV 1.0 3 J9060052A ADDA BOARD 1 ADDA BOARD REV 1.0 4 J9060053A BASE BOARD 1 BASE BOAR…
Board 3 Ass’y
- 3 -

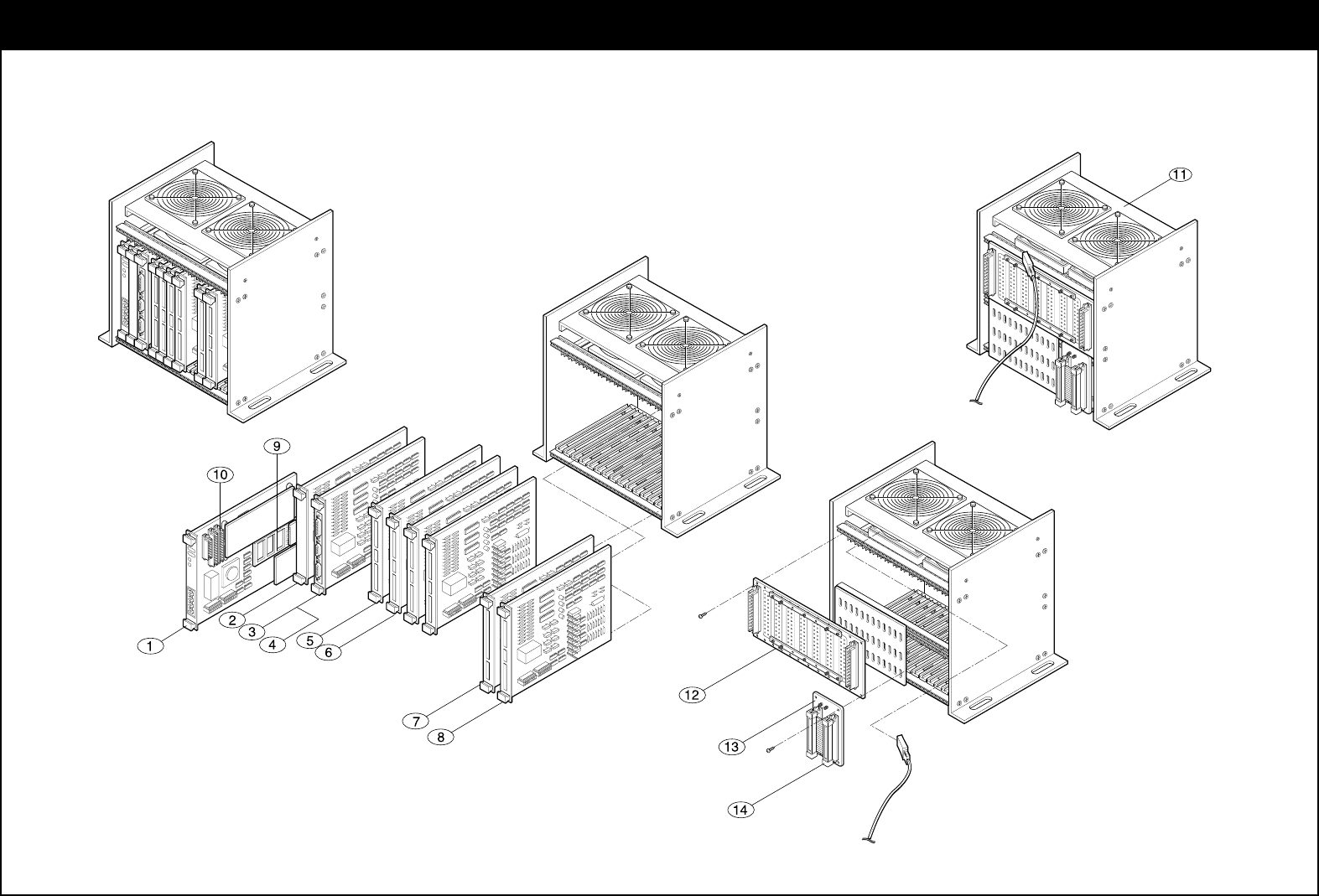

Board 3 Ass'y
NO. RART NO. RART NAME Q'TY TYPE REMARK
1
J1201030 CPU BOARD 1 MVME-162-220
2
J9060051A DSP BOARD 1 DSP BOARD REV 1.0
3
J9060052A ADDA BOARD 1 ADDA BOARD REV 1.0
4
J9060053A BASE BOARD 1 BASE BOARD REV 1.0
5
J9060058B AXIS(3) BOARD ASS'Y 1 REV 2.0
6
J9800388 VME AXIS(2) BOARD ASS'Y 3 C30-Z2-103-00-20/PS
7
J9801192 BOARD ASS'Y 1 LIGHT-CONTROL
8
J9800390 VME I/O DPRAM Ver.2 BOARD 1 C30-Z2-107-00-20/PS
9
J1200814 EPROM 1 TMS27C040-12
10
J1202055
RS232 MODULE
1 JP-OCTAL1232
11
J9801586 VME RACK 1 RACK-DEV-33L II
12
J1201601 PCB VME BACK PLANE 1 RBP-J112
13
J1201240
VME J2 BACK PLANE 3SLOT
1 KVME-3J2
14 J2100587 J2 DATA CABLE 1 CB-J2-DATA
15
16
17
18
19
20
21
22
23
24
25
26
27
