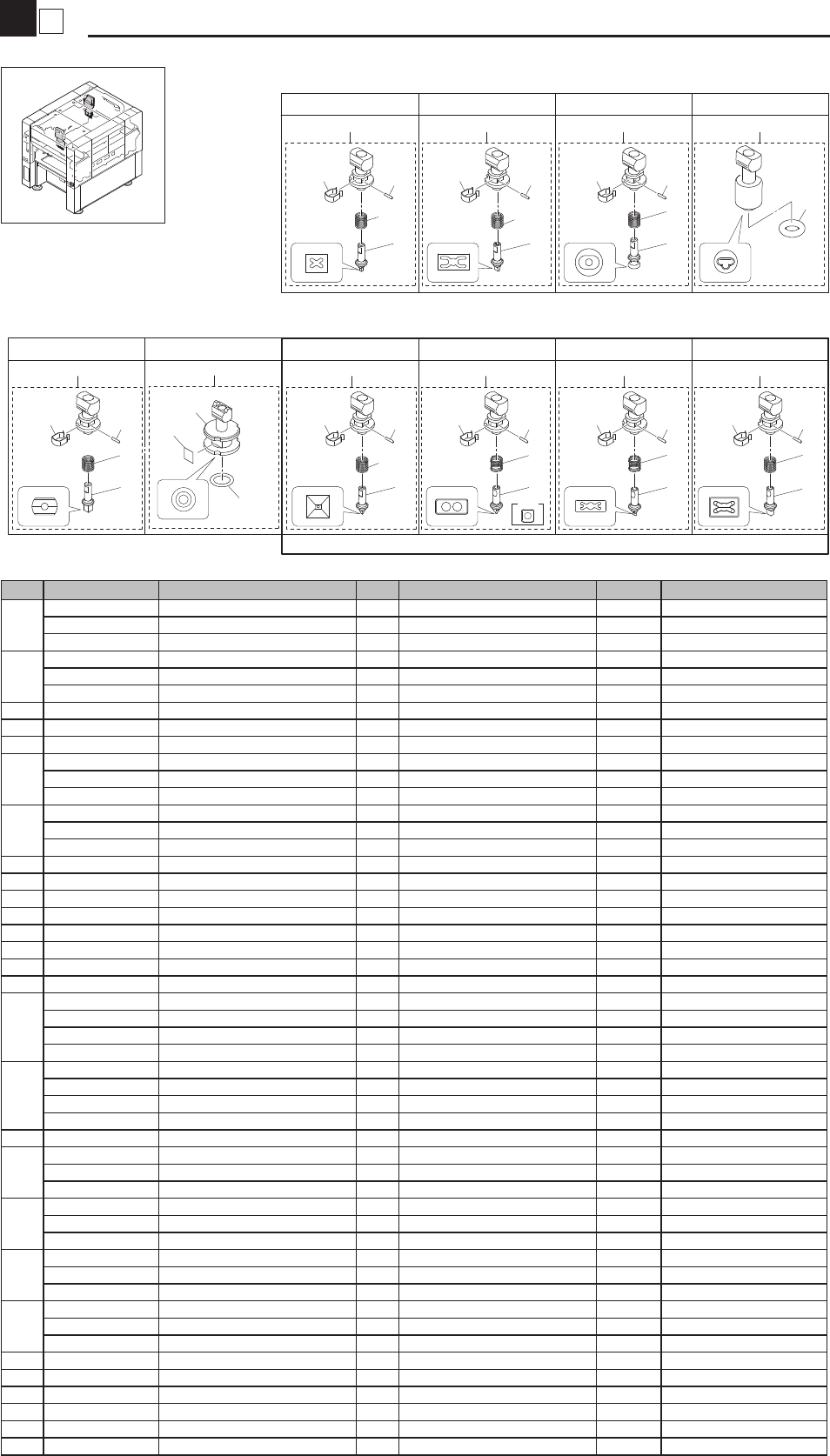

2 6 Nozzle Changer 1 (YS12P / Before Dec.2009 for YS12F ) Nozzle KKD/KKJ-1001 1 3 9 8 8 7 10 7 4 6 6 2 5 18 20 21 15 1 1 1 1 16 17 19 14 13 12 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KKD-M96…
1
6
Nozzle
Nozzle
KKD/KKJ-1201
11
1
3>27
5
2
4
14
5
15
4
16
18
5
17
4
19
18
5
20
4
21
3
5
22
4
6
3>28
5
7
4
8
10
3
5
9
4
12
3
5
13
4
NOZZLE 301A ASSY. NOZZLE 302A ASSY.
NOZZLE 303A/314A ASSY. NOZZLE 304A/315A ASSY.
NOZZLE 306A/317A ASSY. NOZZLE 307A/318A ASSY.
NOZZLE 310A ASSY.
NOZZLE 311A ASSY.
NOZZLE 312A ASSY.
NOZZLE 313A ASSY.
23
25
26
24
OLD
3>28
Narrow adjacent Type
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A OK MHX0059-2011/11/25
KHN-M7710-A3 NOZZLE 301A ASSY. 1 OK MG60126-2010/7/8
KHN-M7710-A2 NOZZLE 301A ASSY. 1
2
KHN-M7711-05 BODY,NOZZLE 301 1 OK MHX0059-2011/11/25
KHN-M7711-04 BODY, NOZZLE 301 1 OK MG60126-2010/7/8
KHN-M7711-03 BODY, NOZZLE 301 1
3
KHN-M7713-00 SPRING
1
Black
4 KHN-M7714-00 PIN 1
5 KHN-M7715-00 CLIP 1
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A OK MHX0059-2011/11/25
KHN-M7720-A2 NOZZLE 302A ASSY. 1 OK MG60126-2010/7/8
KHN-M7720-A1 NOZZLE 302A ASSY. 1
7
KHN-M7721-04 BODY, NOZZLE 302 1 OK MHX0059-2011/11/25
KHN-M7721-03 BODY, NOZZLE 302 1 OK MG60126-2010/7/8
KHN-M7721-02 BODY, NOZZLE 302 1
8 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
9 KHY-M7741-00 BODY, NOZZLE 303/314 1
10 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
11 90990-17J013 O-RING 5
12 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
13 KHY-M7771-00 BODY, NOZZLE 306/317 1
14 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A (Narrow adjacent Type)
15 KHY-M77A1-00 BODY, NOZZLE 310 1
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1
TYPE 311A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7710-A3 NOZZLE 311A ASSY. 1 OK MG60126-2010/7/8
KHY-M7710-A2 NOZZLE 311A ASSY. 1 NG MFX0107-2010/1/28
KHY-M7710-A1 NOZZLE 311A ASSY. 1
17
KHY-M7711-03 BODY, NOZZLE 311 1 OK MHX0059-2011/11/25
KHY-M7711-02 BODY, NOZZLE 311 1 OK MG60126-2010/7/8
KHY-M7711-01 BODY, NOZZLE 311 1 NG MFX0107-2010/1/28
KHY-M7711-00 BODY, NOZZLE 311 1
18 KHN-M7713-10 SPRING 1
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1
TYPE 312A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7720-A2 NOZZLE 312A ASSY. 1 OK MG60126-2010/7/8
KHY-M7720-A1 NOZZLE 312A ASSY. 1
20
KHY-M7721-02 BODY,NOZZLE 312 1 OK MHX0059-2011/11/25
KHY-M7721-01 BODY, NOZZLE 312 1 OK MG60126-2010/7/8
KHY-M7721-00 BODY, NOZZLE 312 1
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1
TYPE 313A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7730-A1 NOZZLE 313A ASSY. 1 OK MG60126-2010/7/8
KHY-M7730-A0 NOZZLE 313A ASSY. 1
22
KHY-M7731-02 BODY,NOZZLE 313 1 OK MHX0059-2011/11/25
KHY-M7731-01 BODY, NOZZLE 313 1 OK MG60126-2010/7/8
KHY-M7731-00 BODY, NOZZLE 313 1
23 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A
24 KHY-M7781-00 BODY, NOZZLE 307/318 1
25 KGS-M7742-00 LABEL,NOZZLE 1
26 90990-17J014 O-RING 5
27 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH30013-2011/3/9
28 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH90007-2011/9//7
2
6

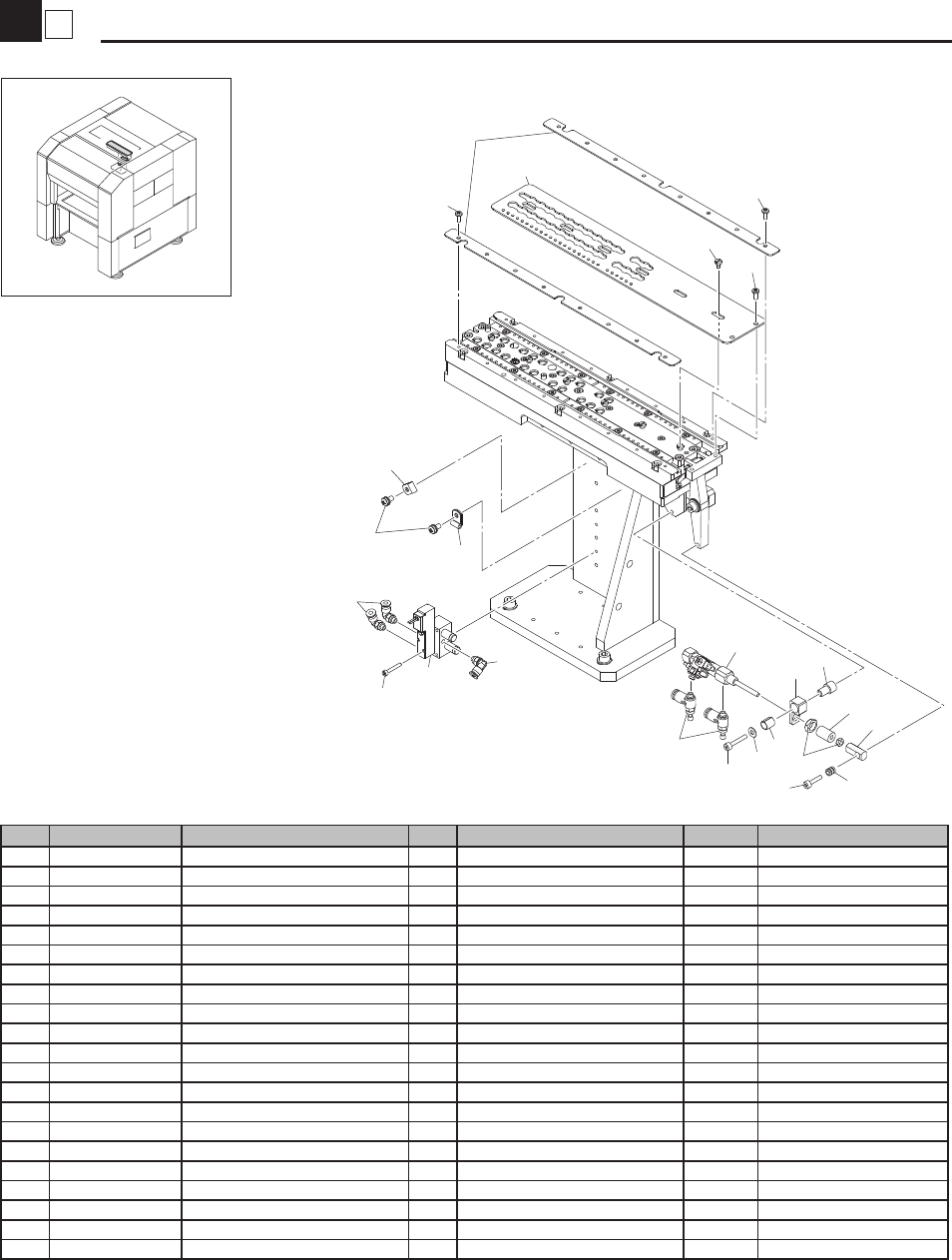

Nozzle Changer 1 (YS12P / Before Dec.2009 for YS12F )
Nozzle
KKD/KKJ-1001
1
3
9
8
8
7
10
7
4
6
6
2
5
18
20
21
15
11
11
16
17
19
14
13
12
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKD-M9607-00 PLATE,CLAMP 1
2 KHY-M9608-00 PIN,SLIDE 6
3 KHY-M9611-00 SHEET,GUIDE,CLAMP 2
4 91312-03020 BOLT,HEX.SOCKET HEAD 2
5 KHN-M9619-50 VALVE 1
6 $TL4-M5M JOINT 3
7 98902-03008 SCREW BINDING HEAD 16
8 $NK-2N NYLON CLIP 2
9 97602-04308 SCREW,PAN HEAD W/W 2
10 92012-04010 BOLT BUTTON HEAD 2
11 KHY-M652G-10 CYLINDER AMC ASSY 1
12 KHY-M9614-00 STOPPER,CYLINDER 1
13 KHY-M9631-00 COLLAR,FLOATING 1
14 KHY-M9632-00 BLOCK,FLOATING 1
15 KHW-M916E-00 BUSH 1
16 KHW-M916G-00 COLLAR, JOINT 1
17 KHW-M916H-00 JOINT, CYL. 1
18 $SC4-M5A SPEED CONTROLLER 2
19 91312-04016 BOLT HEX.SOCKET HEAD 1 M4X16
20 91312-04022 BOLT HEX.SOCKET HEAD 1 M4X22
21 92902-04200 WASHER PLAIN 3
3
6

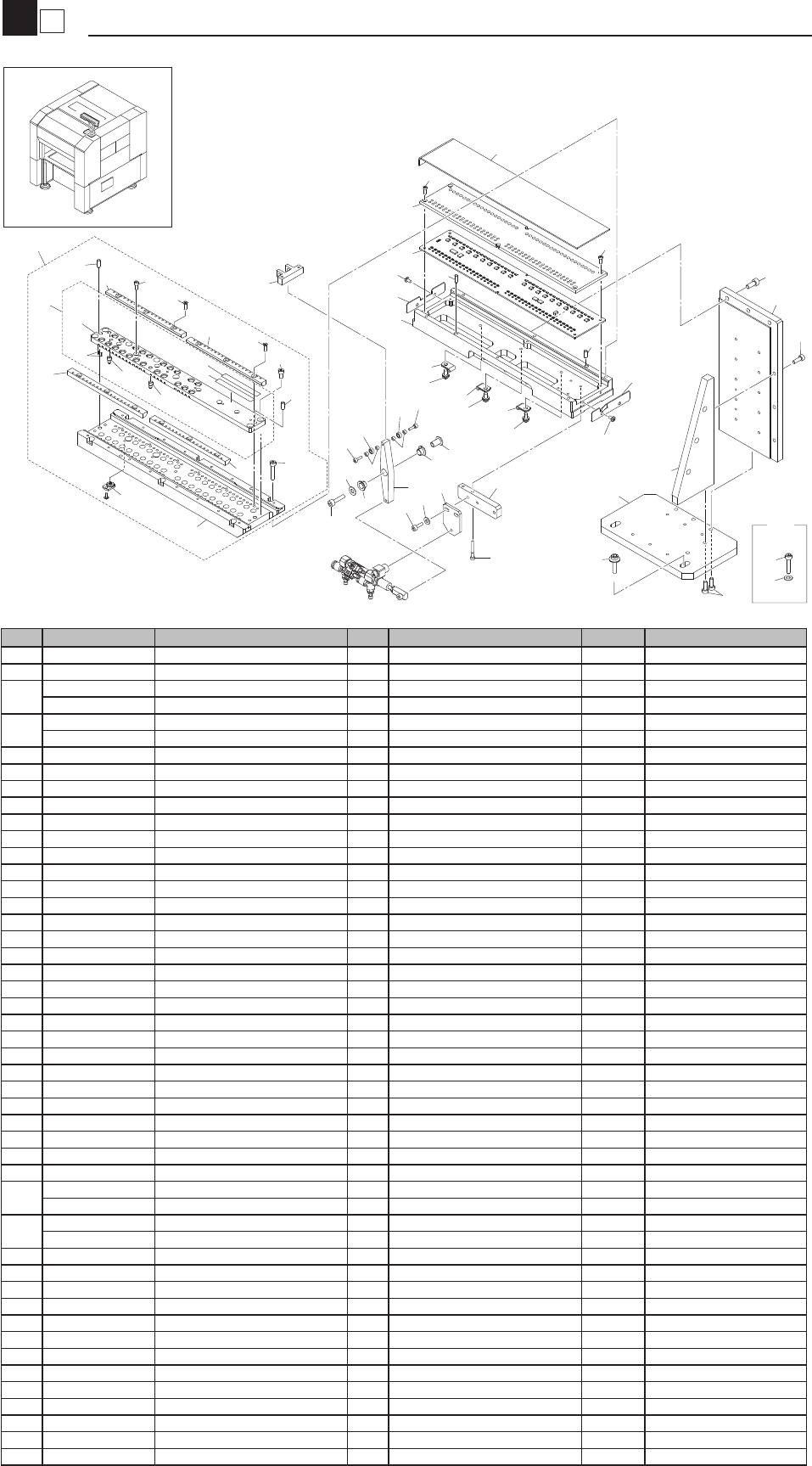

Nozzle Changer 2 (YS12P / Before Dec.2009 for YS12F )
Nozzle
KKD/KKJ-1002
3
25
25
26
26
26
27
27
27
5
4
28
3>45
20
20
6
7
8
24
29
30
15
15
16
23
23
17
19
18
9
10
20
20
11
13
12
12
18
21
21
14
40
40
36
35
42
54
41
34
33
37
44
43
37
38
39
39
38
31
32
18
18
2
1
31
22
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M9630-00 HOOK, BEARING 1
2 KHY-M9610-01 BOARD,CLEAR 1
3
KHY-M9612-00 SHEET,SIDE 1 OK MEY0039-2009/12/9
KHY-M9612-00 SHEET,SIDE 2
4
KHY-M9622-03 PLATE,SHIELD,LED 1 OK ME40047-2009/4/16
KHY-M9622-01 PLATE,SHIELD,LED 1
5 KHY-M9603-00 HOLDER,BOTTOM,IN. 1
6 KHY-M9616-01 PLATE,STAND,ANC 1
7 KHY-M9617-00 PLATE,RIB,ANC 1
8 KHY-M9618-00 PLATE,BASE,ANC 1
9 KKD-M9655-00 NOZZLE HOLDER ASSY. 1
10 KKD-M9601-00 NOZZLE HOLDER IN. 1
11 KKD-M9624-00 NOZZLE HOLDER 1
12 KHY-M9620-00 PIN,MARK 2
13 90990-19J004 NEEDLE PIN 44
14 91312-03008 BOLT HEX.SOCKET HEAD 6
15 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
16 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
17 KHY-M9602-01 BASE,NOZZLE HOLDER 1
18 KHY-M9606-00 MIRROR,SIDE 4
19 KHY-M9621-A0 BASE,NOZZLE D ASSY. 2
20 KHN-M9623-50 PIN 2
21 98702-03010 SCREW FLAT HEAD (+) 12
22 91312-04008 BOLT HEX.SOCKET HEAD 5 M4X8
23 90112-2AJ008 BOLT HEX.SOCKET HEAD 6
24 91312-04022 BOLT HEX.SOCKET HEAD 6 M4X22
25 98902-03006 SCREW BINDING HEAD 4
26 $NK-2N NYLON CLIP 3
27 97602-04308 SCREW,PAN HEAD W/W 3
28 KHY-M45BA-01 ANC CTRL BOARD ASSY 1
29 KKD-M9656-A0 LABEL,A.N.C.30X 1 STD
30 KKD-M9657-A0 LABEL,A.N.C.31X 1 Adjacent Nozzle
31
90990-32J005 BOLT,FLANGE 2 M6X20 OK MM10012-2015/3/16
91312-06020 BOLT HEX.SOCKET HEAD 2 M6X20
32
delete MM10012-2015/3/16
92902-06200 WASHER PLAIN 2
33 KHY-M9613-00 BLOCK,CYLINDER 1
34 KHY-M9615-00 PLATE,CYLINDER 1 H=41mm
35 KHY-M9627-00 BLOCK,LINK 1
36 KHY-M9628-00 COLLAR,LINK 1
37 KHW-M916A-00 BUSH 2
38 90933-02J063 BEARING 2
39 90990-41J129 COLLAR 4
40 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
41 91312-03025 BOLT HEX.SOCKET HEAD 2 M3X25
42 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
43 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
44 92902-05200 WASHER PLAIN 1
45 KKS-M9612-00 SHEET 2,SIDE 1
