KKD_KKJ_YS12P(F)_PL - 第18页
1 5 Head / V ision (YS12P / Before Dec. 2009 for YS12F) Head KKD/KKJ-1203 1 14 42 4 3 16 15 15 19 15 16 15 18 45 15 16 30 OLD 37 27 38 21 40 26 29 28 39 19 18 18 32 34 23 36 34 33 18 34 35 36 36 35 35 22 13 18 7 19 2 19 …
5
4
Y-axis 2
Moving-axis
KKD/KKJ-1203
36
34
43
40
40
38
37
43
38
39
41
42
39
42
35
12
26
9
9
10
10
8
8
17
25
17
25
26
12
31
32
33
11
29
18
14
28
23
1
2
2
1
22
15
21
5
21
15
21
15
3
21
21
15
21
15
21
13
19
1
1
27
27
27
16
20
27
16
20
24
29
18
14
28
23
22
15
21
5
3
4
13
19
24
4
7
6
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M264A-00 HOLDER SET,Y AXIS 2
2 KHY-M264L-00 SPACER,BRG.SET 2
3 KHY-M2671-00 BALL SCREW 2
4 KHY-M2676-S0 GUIDE SET,Y AXIS 1
5 KHY-M2666-00 HOLDER,NUT Y AXIS 2
6 KHY-M2678-00 GUIDE,CABLE Y AXIS 1
7 KHY-M260A-00 TAPE, Y AXIS 1
8 KHY-M260B-00 TAPE,Y DUCT 1
9 KHY-M260C-00 TAPE 2, Y DUCT 1
10 KHY-M260D-00 TAPE 3, Y DUCT 1
11 KHY-M2695-00 BRACKET GUIDE,Y AXIS 1
12 KHY-M2669-00 BRACKET,HARNESS 2
13
KHY-M224A-A0 SUPPORT UNIT 2 OK MG50155-2010/7/14
KHW-M224A-A0 SUPPORT UNIT 2
14 90990-26J008 BEARING 2
15 KHN-M22F5-00 WASHER,SWR05 16
16 KHN-M2651-00 NYLOCK BOLT (M12X45) 22
17 KV7-M2266-00 PLATE,NUT 2
18 KG2-M9173-00 LOCK NUT 2
19 KM0-M2220-00 COUPLING,X-AXIS 2
20 90201-124G9 WASHER,PLAIN 22
21 91312-05016 BOLT HEX.SOCKET HEAD 60 M5X16
22 91312-06018 BOLT HEX.SOCKET HEAD 8 M6X18
23 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
24 91312-06035 BOLT HEX,SOCKET HEAD 8 M6X35
25 98502-03004 SCREW,PAN HEAD 4
26 90990-01J032 BOLT HEX.SOCKET HEAD 8
27 90990-21J001 PIN 6
28 99480-05010 PIN,PARALLEL 2
29 92A08-04305 SET SCREW M4X5 2
30 KHY-M2657-00 BRACKET 1,HARNESS 1
31 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
32 91312-05010 BOLT HEX.SOCKET HEAD 14 M5X10
33 92902-05600 WASHER PLAIN 10
34 KHY-M26F1-01 FRAME 1 1
35 KHY-M26F2-01 FRAME 2 1
36 KHY-M26F4-01 DUCT,HARNESS 1
37 KHY-M2694-01 BRACKET 1,GUIDE 1
38 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
39 92902-06200 WASHER PLAIN 16
40 90172-00J040 WASHER,EXTL.TOOTHED 11
41 90172-00J060 WASHER,EXTL.TOOTHED 16
42 91312-06010 BOLT HEX.SOCKET HEAD 20 M6X10
43 92902-04200 WASHER PLAIN 31
1
5

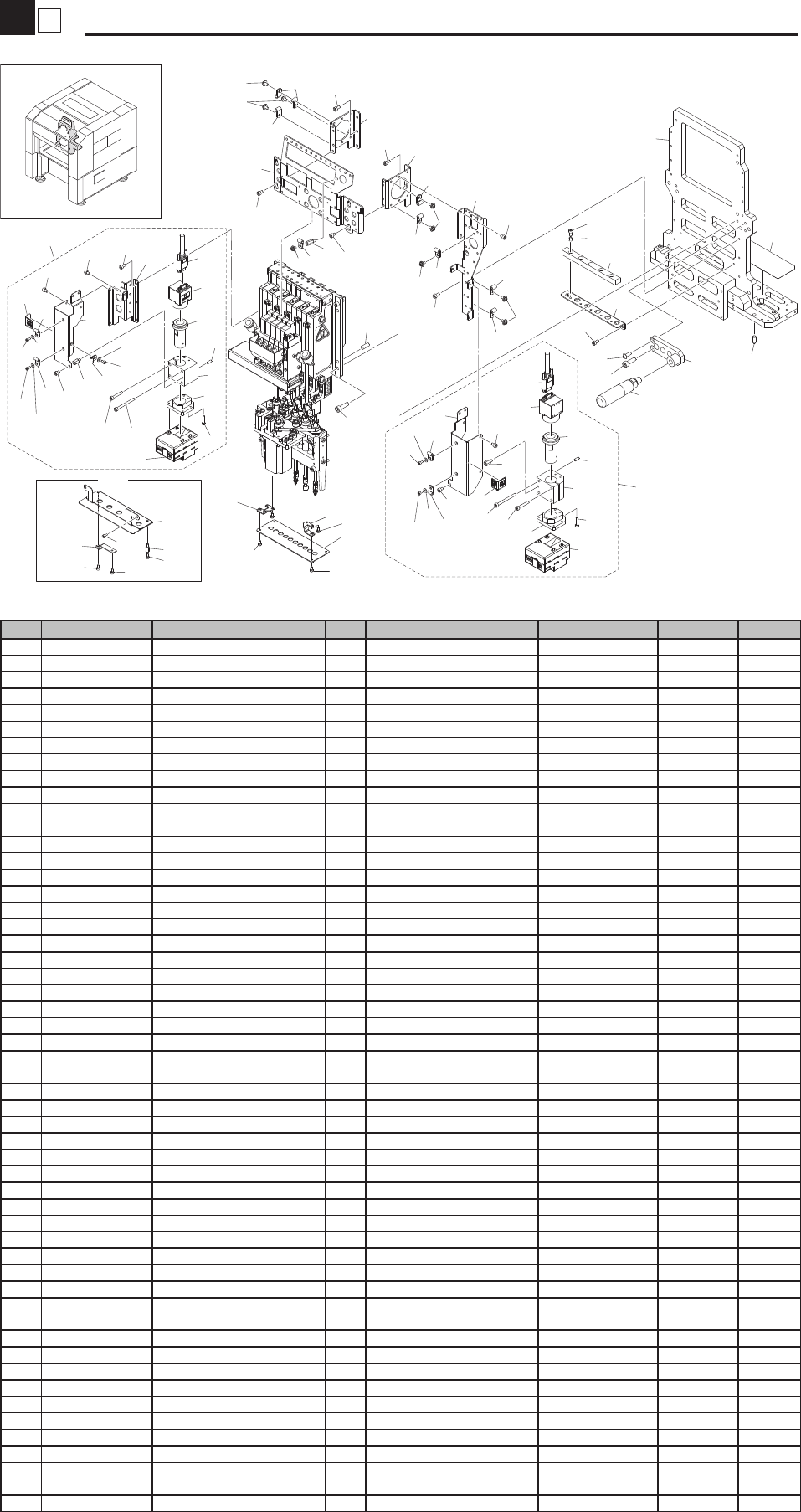

Head / Vision (YS12P / Before Dec. 2009 for YS12F)
Head
KKD/KKJ-1203
1
14
42
4
3
16
15
15
19
15
16
15
18
45
15
16
30
OLD
37
27
38
21
40
26
29
28
39
19
18
18
32
34
23
36
34
33
18
34
35
36
36
35
35
22
13
18
7
19
2
19
18
8
15
5
6
19
19
15
15
16
16
16
12
10
24
28
18
27
40
32
38
18
34
35
36
9
11
44
36
36
11
43
29
33
31
34
35
36
13
26
37
25
30
17
20
14
41
46
11
11
11
11
9
43
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7103-00 PLATE,HEAD 1
2 KHY-M7117-00 STOPPER 1
3 KHY-M7118-00 PLATE,STOPPER 1
4 KHY-M7141-00 STAY,HANDLE 1
5 KHY-M71C1-00 BRACKET,RIGHT 1
6 KHY-M71C2-00 BRACKET,LEFT 1
7
KKD-M71C3-00 STAY,EJECTOR
1
7-1 KHY-M71C3-01 STAY,EJECTOR 1 (2009/2/26) MF20098 OK
8 KHY-M71C5-00 BRACKET,CABLE 1
9 KKD-M7133-00 SHEET,SCREEN 1
9-1 KKD-M7133-10 SHEET,SCREEN 1 (2010/2/22) MG20040 OK
10 KGS-M2256-00 GRIP 1
11 90990-01J040 BOLT,HEX.SOCKET HEAD 2
11-1 90990-01J040 BOLT,HEX.SOCKET HEAD 4 (2010/2/22) MG20040 NG
12 90990-41J123 COLLAR 5
13 99480-04010 PIN PARALLEL: 4X10 6
14 99480-06014 PIN,PARALLEL 4
15 $NK-3N NYLON CLIP 11
16 90990-11J003 SCREW,PAN HEAD W/W 11
17 92012-05014 BOLT BUTTON HEAD 2 M5X14
18 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
19 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8
20 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
21 KHY-M71B0-L0 VISION ATTACHMENT L 1
22 KHY-M71C7-00 STAY,LEFT 1
23 KHY-M71C8-00 COVER,CAMERA L 1
23-1 KKS-M71C8-01 COVER,CAMERA L 1 H013716 NG
24 KHY-M66K3-00 HNS,FID1 CAMERA 1
25 KHY-M71B0-R0 VISION ATTACHMENT R 1
26 KHY-M71B1-00 HOLDER,CAMERA 2
27 KHY-M71B2-00 SATY,FID.LIGHT 2
28 KHN-M7210-01 CCD CAMERA 2
29 KHY-M7211-00 LENS FID. 2
30 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 2
31 KHY-M71C6-00 COVER,CAMERA R 1
31-1 KKS-M71C6-01 COVER,CAMERA R 1 H013716 NG
32 KV7-M7165-00 SEAL DON'T TOUCH 2
33 90563-04J100 SPACER BOLT 2
34 $NK-2N NYLON CLIP 5
35 92902-03200 WASHER PLAIN 5
36 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6
37 91312-03016 BOLT HEX.SOCKET HEAD 4 M3X16
38 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
39 KHY-M66K3-10 HNS,FID2 CAMERA 1
40 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
41 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
42 KHY-M7109-00 TAPE,PLATE 1
43 KKD-M7134-00 SHEET,SCREEN 2 1
43-1 KKE-M7134-00 SHEET,SCREEN 2 (2010/2/22) MG20040 OK
44 90563-03J100 SPACER BOLT 1
44-1 Delete (2010/2/22) MG20040
45 90563-04J150 SPACER BOLT 1
46 KKE-M7135-00 PLATE,SCREEN 2 (2010/2/22) MG20040 OK
2
5

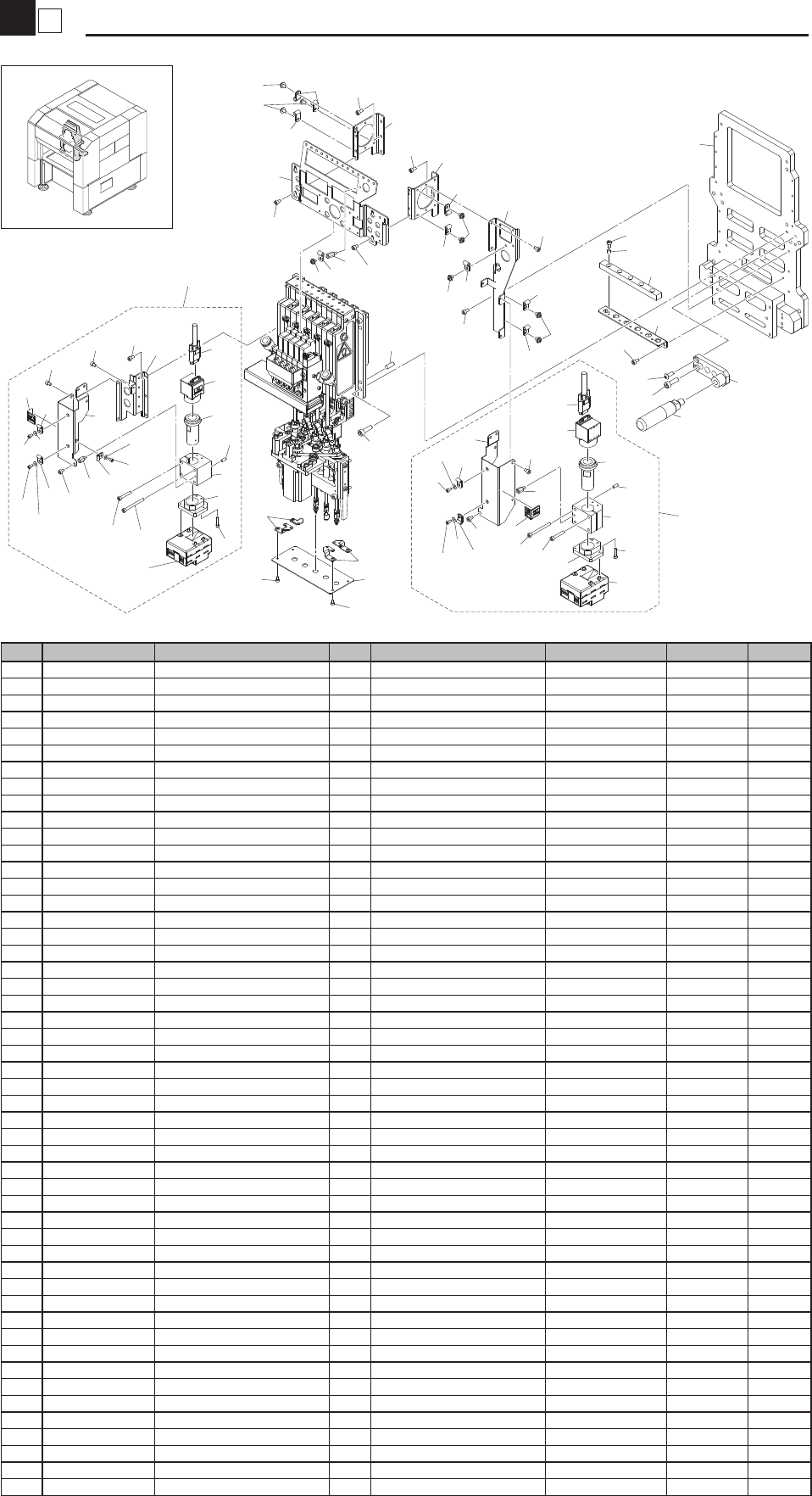

Head / Vision (After Jan. 2010 for YS12F:KKJ-100)
Head
KKD/KKJ-1203
1
4
3
16
15
15
19
15
16
15
18
45
15
16
30
37
27
38
21
40
26
29
28
39
19
18
18
32
34
23
36
34
33
18
34
35
36
36
35
35
22
13
18
7
19
2
19
18
8
15
5
6
19
19
15
15
16
16
16
12
10
24
28
18
27
40
32
38
18
34
35
36
9
11
43
11
46
29
33
31
34
35
36
13
26
37
25
30
17
20
14
41
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KKS-M7103-00 PLATE,HEAD 1 H013716 NG
2 KHY-M7117-00 STOPPER 1
3 KHY-M7118-00 PLATE,STOPPER 1
4 KHY-M7141-00 STAY,HANDLE 1
5 KHY-M71C1-00 BRACKET,RIGHT 1
6 KHY-M71C2-00 BRACKET,LEFT 1
7
KKD-M71C3-00
STAY,EJECTOR 1
7-1 KHY-M71C3-01 STAY,EJECTOR 1 (2009/2/26) MF20098 OK
8 KHY-M71C5-00 BRACKET,CABLE 1
8-1 KHY-M71C5-01 BRACKET,CABLE 1 (2010/1/8) MFY0063 NG
9 KKS-M7133-00 SHEET,SCREEN 1 H013716 NG
10 KGS-M2256-00 GRIP 1
11 90990-01J040 BOLT,HEX.SOCKET HEAD 2
12 90990-41J123 COLLAR 5
13 99480-04010 PIN PARALLEL: 4X10 6
14 99480-06014 PIN,PARALLEL 2 H013716 NG
15 $NK-3N NYLON CLIP 11
16 90990-11J003 SCREW,PAN HEAD W/W 11
17 92012-05014 BOLT BUTTON HEAD 2 M5X14
18 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
19 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8
20 91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
21 KKS-M71B0-L0 VISION ATTACHMENT L 1 H013716 NG
22 KHY-M71C7-00 STAY,LEFT 1
23 KKS-M71C8-01 COVER,CAMERA L 1
23-1 KHY-M71C8-01 COVER,CAMERA L 1 (2009/12/17) MFY0065 OK
24 KHY-M66K3-00 HNS,FID1 CAMERA 1
25 KKS-M71B0-R0 VISION ATTACHMENT R 1
26 KHY-M71B1-00 HOLDER,CAMERA 2
27 KHY-M71B2-00 SATY,FID.LIGHT 2
28 KHN-M7210-01 CCD CAMERA 2
29 KHY-M7211-00 LENS FID. 2
30 KHN-M7600-00 FIDUCIAL LIGHT ASSY. 2
31 KKS-M71C6-01 COVER,CAMERA R 1
31-1 KHY-M71C6-01 COVER,CAMERA R 1 (2009/12/17) MFY0065 OK
32 KV7-M7165-00 SEAL DON'T TOUCH 2
33 90563-04J100 SPACER BOLT 2
34 $NK-2N NYLON CLIP 5
35 92902-03200 WASHER PLAIN 5
36 91312-03006 BOLT HEX.SOCKET HEAD 5 M3X6
37 91312-03016 BOLT HEX.SOCKET HEAD 4 M3X16
38 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
39 KHY-M66K3-10 HNS,FID2 CAMERA 1
40 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
41 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
42
43 KKE-M7134-00 PLATE,SCREEN 2 2 H013716 NG
44
45 90563-04J150 SPACER BOLT 1
46 KKE-M7135-00 PLATE,SCREEN 2 H013716 NG
