KKD_KKJ_YS12P(F)_PL - 第21页

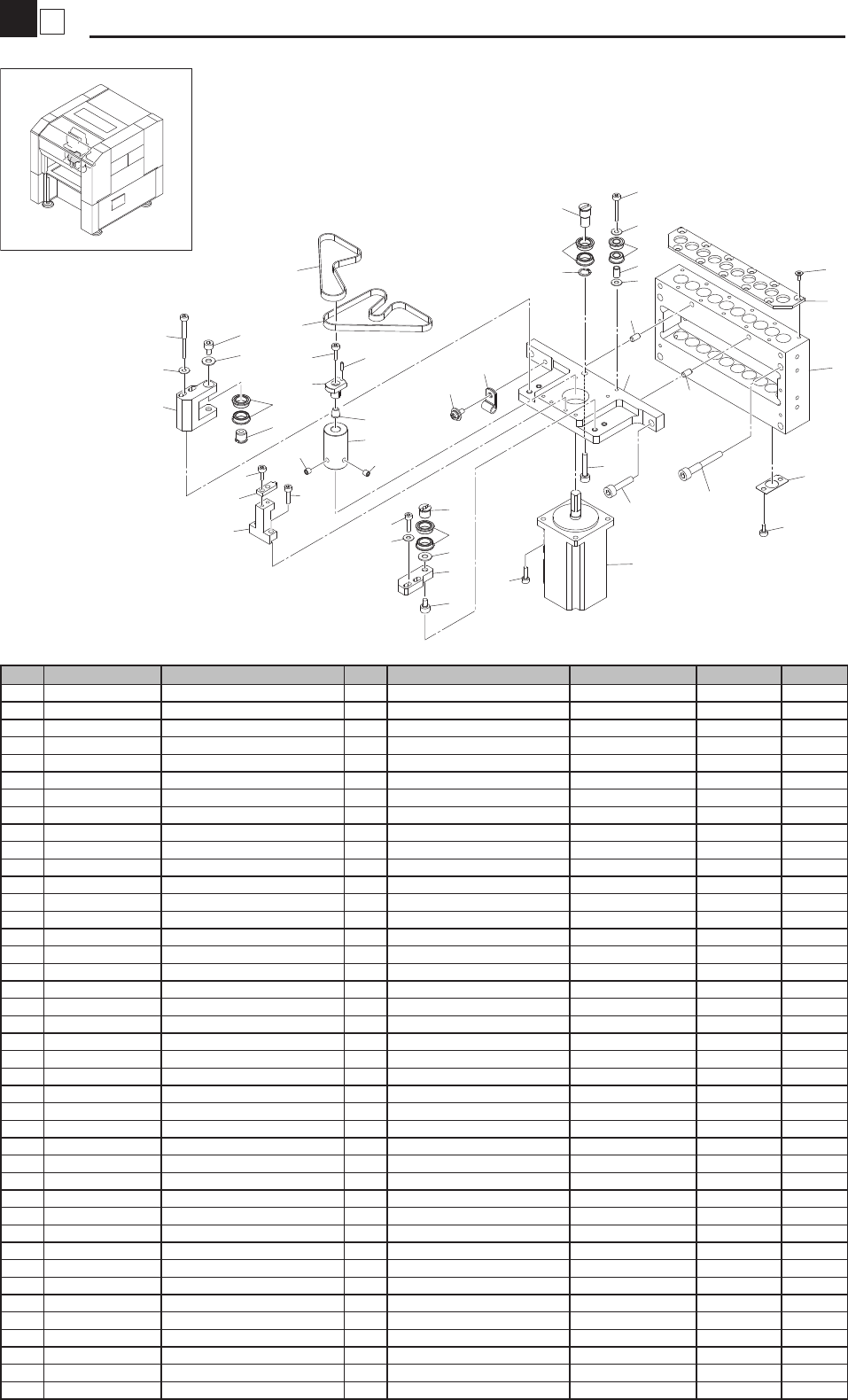

4 5 Shaft Head Sub Assy Head KKD/KKJ-1203 2 1 4 4 5 7 6 8 8 10 6 7 2 1 7 6 6 7 5 3 1 1,9 4 9 7 6 6 7 5 11 11 11 11 11 11 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KHY -M7106-A0 HEAD S…
3
5
Body Head Sub
Head
KKD/KKJ-1203
1
3
5
37
36
4
19
31
17
28
28
13
16
22
31
21
17
35
27
11
12
14
10
26
34
29
25
32
30
15
7
9
27
35
21
26
32
6
4
33
8
21
23
26
20
18
26
24
24
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M7101-00 HOUSING,HEAD 1
2 KHY-M7113-00 PLATE 2,BRG. 1
3 KHY-M7114-00 PLATE 3,BRG. 5
4 98702-03006 SCREW FLAT HEAD 11
5 91312-05035 BOLT HEX.SOCKET HEAD 4
6 KKD-M7102-00 PLATE,R MOTOR 1
7 KHY-M7125-00 BRACKET,STOPPER 1 BLACK
7-1 KHY-M7125-01 BRACKET,STOPPER 1 WHITE MF70027 SET
8 KHY-M7126-00 SHAFT 2,TENSION 1
9 KHY-M7128-00 BLOCK 2,ADJUST 1
10 KHY-M7129-00 BLOCK 3,ADJUST 1
11 KKD-M7131-00 BELT 1 1
12 KKD-M7132-00 BELT 2 1
13 KHN-M7131-00 PULLY R MOTOR 1
14 KHN-M7132-00 BLOCK1 STOPPER 1
15 KHN-M7139-00 STOPPER R 1
16 KGV-M7157-00 BLOCK2,STOPPER R 1
17 KV8-M7115-00 SHAFT 1,TENSION 2
18 KKD-M7135-00 SHAFT 1,TENSION 1
19 90K21-037511 AC SERVO MOTOR 1
20 90933-03J105 BEARING 2
21 90933-03J128 BEARING 6
21-1 90990-25J016 BEARING 6 (2011/10/28) MH00044 OK
22 90990-19J016 NEEDLE,PIN 1
23 99009-07800 CIRCLIP : 1
24 99480-04008 PIN,PARALLEL:4X8 2
25 $NK-3N NYLON CLIP 1
26 92902-03200 WASHER PLAIN 6
27 92902-04200 WASHER PLAIN 2
28 92A08-04304 SET SCREW M4X4 2
29 90990-11J003 SCREW,PAN HEAD W/W 1
30 91312-03008 BOLT HEX.SOCKET HEAD 2
30-1 Delete MF70027 SET
31 91312-03010 BOLT HEX.SOCKET HEAD 5
32 91312-03012 BOLT,HEX.SOCKET HEAD 4
32-1 91312-03012 BOLT,HEX.SOCKET HEAD 6 MF70027 SET
33 91312-03020 BOLT,HEX.SOCKET HEAD 1
34 91312-03035 BOLT,HEX.SOCKET HEAD 2
35 91312-04006 BOLT HEX.SOCKET HEAD 2
36 91312-04020 BOLT HEX.SOCKET HEAD 1
37 91312-05020 BOLT HEX.SOCKET HEAD 2
4
5
Shaft Head Sub Assy
Head
KKD/KKJ-1203
2
1
4
4
5
7
6
8
8
10
6
7
2
1
7
6
6
7
5
3
1
1,9
4
9
7
6
6
7
5
11
11
11
11
11
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KHY-M7106-A0 HEAD SHAFT 1 ASSY. 3 YS12P
KHY-M7106-A0 HEAD SHAFT 1 ASSY. 2 YS12F 2010/4/19 H014272
2 KHY-M7106-B0 HEAD SHAFT 1B ASSY. 2
3 KHY-M7116-00 SPRING,RETURN 6
4 $PF-M3 PLUG 1
5 $TSH4-M5M JOINT 1
6 KG7-M7137-A0 LEAF SPRING 2
7 90990-08J016 SCREW,PAN HEAD 4
8 KHY-M711S-A0 SHAFT 1 SPARE 1
9 KKY-M7106-A0 HEAD SHAFT 1 ASSY. 1 V-Groove YS12F 2010/4/19 H014272 NG
10 KKY-M711S-A0 SHAFT 1, SPARE 1 V-Groove YS12F 2010/8/16 H014751 NG
11 90990-25J026 BEARING 1 SPARE (2015/6/17) MM60004
5
5
Ejector
Head
KKD/KKJ-0903
15
7
1
4
4
5
3
2
6
8
9
12
13
10
13
11
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KKD-M7151-00 EJECTOR,RESIN 1
2 KHY-M4592-10 VAC5 SENS BRD ASSY 1
3 KKD-M71CA-00 COVER,VAC SENSOR 1
4 $TL10-01 JOINT 2
5 90563-23J060 SPACER 4
6 91312-03005 BOLT HEX.SOCKET HEAD 4
7
KHY-M8C04-10 EJECTOR SET 5 1 5 SET of parts numbers (2014/8/22) H019710 OK
KHY-M7152-02 EJECTOR 5 (2013/11/01) MK00121 OK
KHY-M7152-01 EJECTER 5
8 KHY-M7153-00 VALVE 5
9
KHY-M8C06-00 BIT SET 5 1 5 SET of parts numbers (2014/11/03) H020054
KHY-M7154-01 BIT 5
10 KHY-M7155-00 FILTER CAP 5
11 KHY-M7156-01 BIT CAP 5
12 K46-M8527-C0 FILTER 5
13 90990-17J010 ORING 10
14 KHY-M7158-00 BIT RETROFIT KIT 5 spare
15 KGS-M37P1-00 VALVE (SPARE PARTS) 1 spare
