KKD_KKJ_YS12P(F)_PL - 第22页
5 5 Ejector Head KKD/KKJ-0903 15 7 1 4 4 5 3 2 6 8 9 12 13 10 13 11 14 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KKD-M7151-00 EJECTOR,RESIN 1 2 KHY -M4592-10 V AC5 SENS BRD ASSY 1 3 K…
4
5

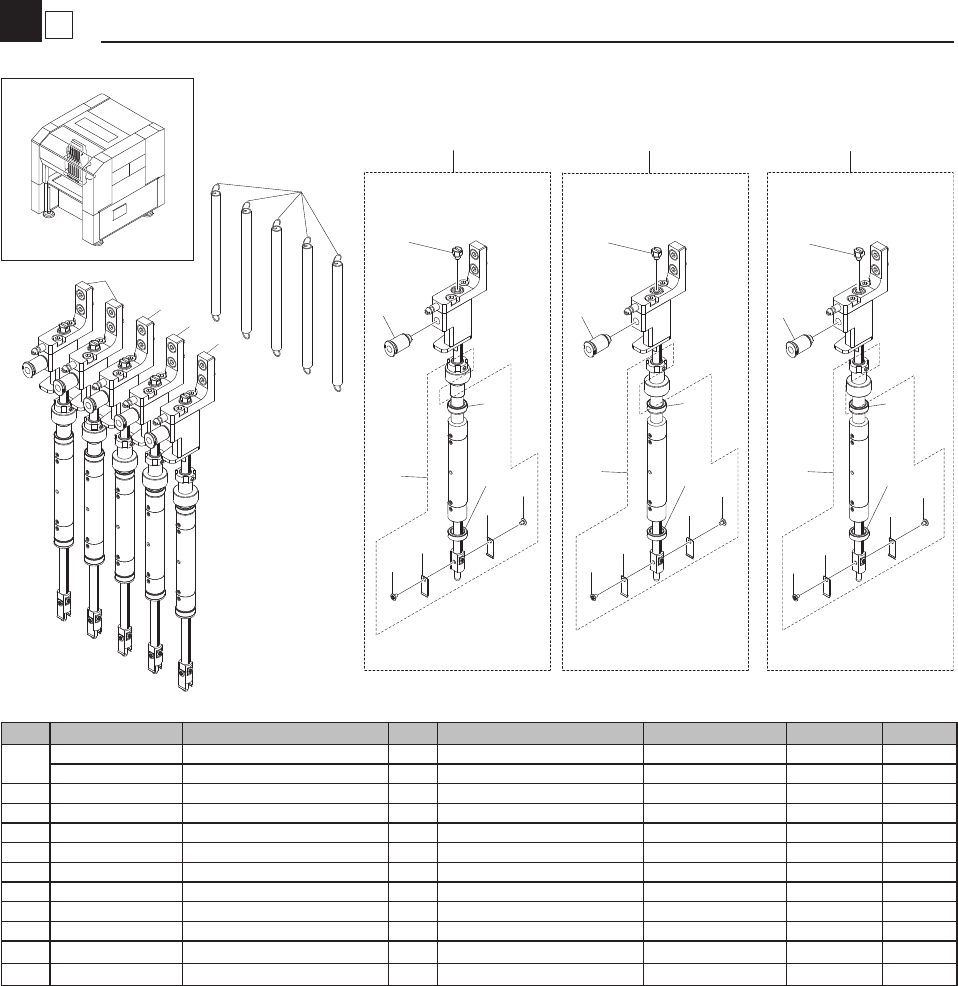

Shaft Head Sub Assy
Head
KKD/KKJ-1203
2
1
4
4
5
7
6
8
8
10
6
7
2
1
7
6
6
7
5
3
1
1,9
4
9
7
6
6
7
5
11
11
11
11
11
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KHY-M7106-A0 HEAD SHAFT 1 ASSY. 3 YS12P
KHY-M7106-A0 HEAD SHAFT 1 ASSY. 2 YS12F 2010/4/19 H014272
2 KHY-M7106-B0 HEAD SHAFT 1B ASSY. 2
3 KHY-M7116-00 SPRING,RETURN 6
4 $PF-M3 PLUG 1
5 $TSH4-M5M JOINT 1
6 KG7-M7137-A0 LEAF SPRING 2
7 90990-08J016 SCREW,PAN HEAD 4
8 KHY-M711S-A0 SHAFT 1 SPARE 1
9 KKY-M7106-A0 HEAD SHAFT 1 ASSY. 1 V-Groove YS12F 2010/4/19 H014272 NG
10 KKY-M711S-A0 SHAFT 1, SPARE 1 V-Groove YS12F 2010/8/16 H014751 NG
11 90990-25J026 BEARING 1 SPARE (2015/6/17) MM60004
5
5

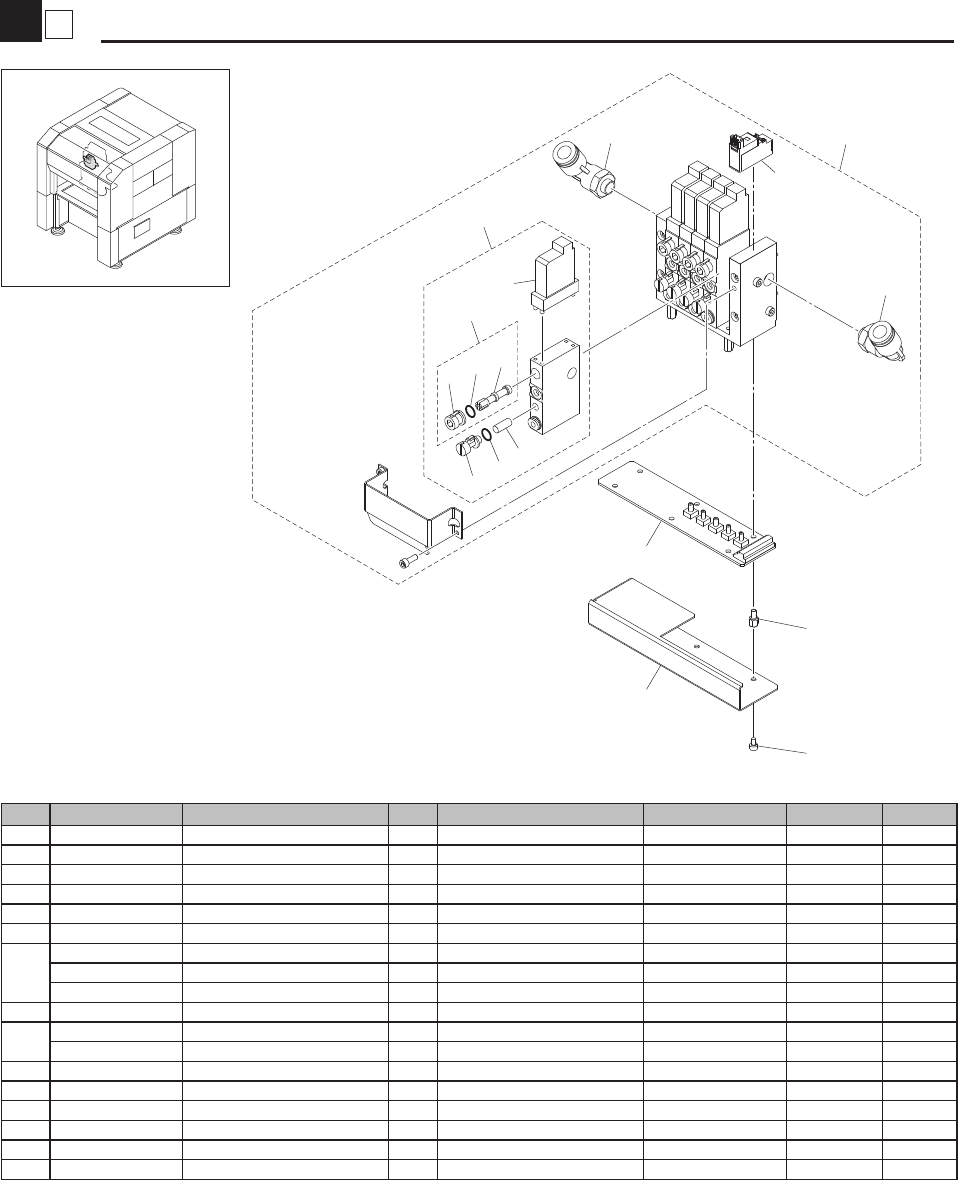

Ejector
Head
KKD/KKJ-0903
15
7
1
4
4
5
3
2
6
8
9
12
13
10
13
11
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KKD-M7151-00 EJECTOR,RESIN 1
2 KHY-M4592-10 VAC5 SENS BRD ASSY 1
3 KKD-M71CA-00 COVER,VAC SENSOR 1
4 $TL10-01 JOINT 2
5 90563-23J060 SPACER 4
6 91312-03005 BOLT HEX.SOCKET HEAD 4
7
KHY-M8C04-10 EJECTOR SET 5 1 5 SET of parts numbers (2014/8/22) H019710 OK
KHY-M7152-02 EJECTOR 5 (2013/11/01) MK00121 OK
KHY-M7152-01 EJECTER 5
8 KHY-M7153-00 VALVE 5
9
KHY-M8C06-00 BIT SET 5 1 5 SET of parts numbers (2014/11/03) H020054
KHY-M7154-01 BIT 5
10 KHY-M7155-00 FILTER CAP 5
11 KHY-M7156-01 BIT CAP 5
12 K46-M8527-C0 FILTER 5
13 90990-17J010 ORING 10
14 KHY-M7158-00 BIT RETROFIT KIT 5 spare
15 KGS-M37P1-00 VALVE (SPARE PARTS) 1 spare
6
5

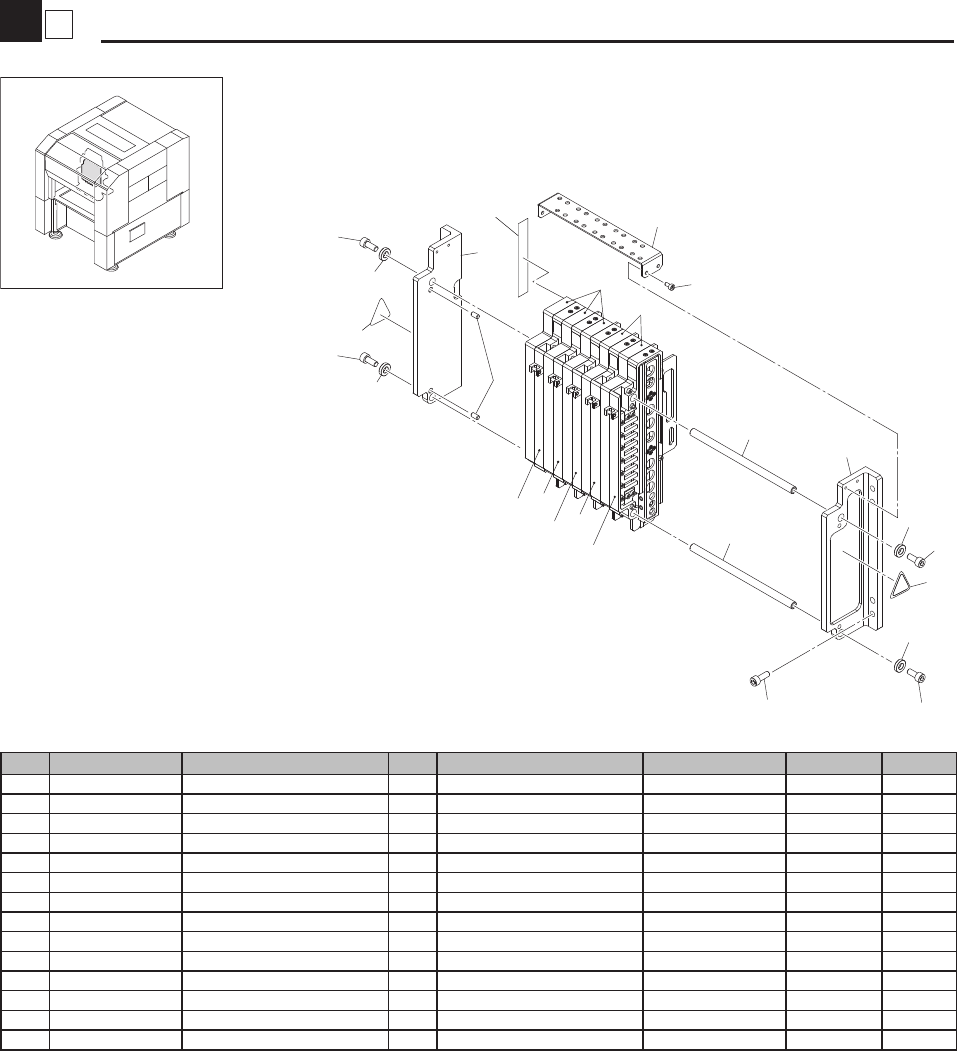

Z-axis
Head
KKD/KKJ-1203
7
10
1
1
1
3
3
2
2
4
6
9
9
6
5
9
9
12
11
13
13
8
11
11
11
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M71G5-A0 Z UNIT ASSY. 3
2 KHY-M71G5-A5 Z UNIT ASSY. 2
3 KKD-M71G7-A00 DUMMY BASE ASSY. 5
4 KHY-M71G1-00 SIDE PLATE,R 1
5 KHY-M71G2-00 SIDE PLATE,L 1
6 KHY-M71G3-00 SHAFT 1 2
7 KHY-M71G6-00 PLATE,HARNESS 1
8 KHY-M71H3-00 TAPE,Z-UNIT 5
8-1 K94-M220A-10 TAPE X-AXIS 5 (60mm) 2010/9/10 MG90026 OK
9 90990-28J078 WASHER,PLAIN 4
10 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
11 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
12 99480-04008 PIN,PARALLEL:4X8 2
13 90K41-000720 LABEL,ALERT 2
