7 5 Scan Camera Head KKD/KKJ-1203 1 8 6 7 9 3 5 6 4 2 22 1 1 18 19 12 10 20 23 23 23 23 22 24 24 24 14 21 17 21 15 21 13 16 22 25 OLD 9 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KKD-M…
6
5
Z-axis
Head
KKD/KKJ-1203
7
10
1
1
1
3
3
2
2
4
6
9
9
6
5
9
9
12
11
13
13
8
11
11
11
11
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M71G5-A0 Z UNIT ASSY. 3
2 KHY-M71G5-A5 Z UNIT ASSY. 2
3 KKD-M71G7-A00 DUMMY BASE ASSY. 5
4 KHY-M71G1-00 SIDE PLATE,R 1
5 KHY-M71G2-00 SIDE PLATE,L 1
6 KHY-M71G3-00 SHAFT 1 2
7 KHY-M71G6-00 PLATE,HARNESS 1
8 KHY-M71H3-00 TAPE,Z-UNIT 5
8-1 K94-M220A-10 TAPE X-AXIS 5 (60mm) 2010/9/10 MG90026 OK
9 90990-28J078 WASHER,PLAIN 4
10 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
11 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
12 99480-04008 PIN,PARALLEL:4X8 2
13 90K41-000720 LABEL,ALERT 2
7
5

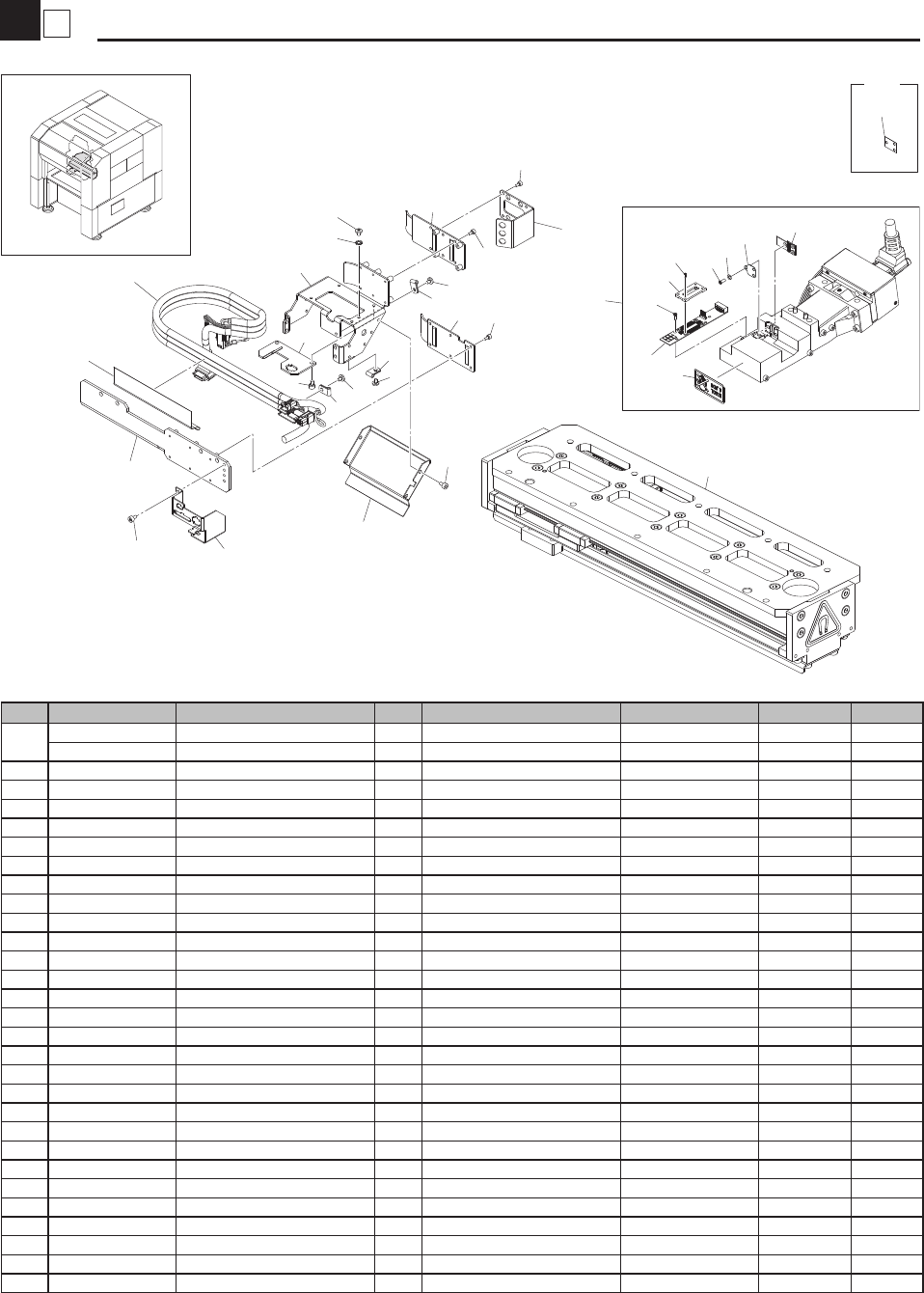

Scan Camera
Head
KKD/KKJ-1203
1
8
6
7
9
3
5
6
4
2
22
11
18
19
12
10
20
23
23
23
23
22
24
24
24
14
21
17
21
15
21
13
16
22
25
OLD
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KKD-M78C0-00 SCAN CAM. ASSY 1
KKD-M78C0-10 SCAN CAM. ASSY CX 1 in Coaxial (2010/11/18) MGX0027
2 KHY-M7554-02 OF.LIGHT BRD.ASSY. 1 6 poles
2-1 KHY-M7554-03 OF.LIGHT BRD.ASSY. 1 7 poles (2011/8/25) MH70010 NG
3 KHY-M7905-02 OF.SV.LIGHT BRD ASSY 1
3-1 KHY-M7905-13 OF.SV.LIGHT BRD ASSY 1 (2011/8/25) MH70010 NG
4 KV7-M7165-00 SEAL DON'T TOUCH 1
5 KHY-M7A13-01 DIFFUSER, MAIN 1
5-1 KHY-M7A13-02 DIFFUSER, MAIN 1 (2010/6/1) MG50114 OK
6 90990-08J020 SCREW,M2X5 7
7 90990-28J002 WASHER PLAIN 3
8 90990-08J026 SCREW, PAN HEAD 4
9 KHY-M7A34-00 DIFFUSER, SIDE 1
9-1 KHY-M7A34-01 DIFFUSER, SIDE 1 (2010/6/1) MG50114 NG
10 KHY-M7A57-01 BRACKET,DUCT 1
11 KHY-M7A65-01 PLATE,CABLE 1
12 KHY-M7A66-01 BRACKET,CONNECTOR 1
13 KHY-M7A92-00 BRACKET,CONNECTOR 1
14 KHY-M7A93-00 PLATE,CLAMP 1
15 KHY-M7A94-01 CLAMP,CABLE 1
16 KHY-M7A96-01 COVER,SENSOR 1
17 KHY-M7A97-00 COVER,CABLE 1
18 KHY-M7A98-00 TAPE,SCAN CABLE 1
19 KHY-M66JA-04 HNS,SCAN FLEX 1
20 90172-00J040 WASHER,EXTL.TOOTHED 1
21 91312-03006 BOLT HEX.SOCKET HEAD 16
22 91312-04006 BOLT HEX.SOCKET HEAD 8
23 98902-04005 SCREW BINDING HEAD 4
24 $NK-2N NYLON CLIP 3
25 KKD-M7850-00 SCAN AXIS ASSY 1
1
6
Nozzle
Nozzle
KKD/KKJ-1201
11
1
3>27
5
2
4
14
5
15
4
16
18
5
17
4
19
18
5
20
4
21
3
5
22
4
6
3>28
5
7
4
8
10
3
5
9
4
12
3
5
13
4
NOZZLE 301A ASSY. NOZZLE 302A ASSY.
NOZZLE 303A/314A ASSY. NOZZLE 304A/315A ASSY.
NOZZLE 306A/317A ASSY. NOZZLE 307A/318A ASSY.
NOZZLE 310A ASSY.
NOZZLE 311A ASSY.
NOZZLE 312A ASSY.
NOZZLE 313A ASSY.
23
25
26
24
OLD
3>28
Narrow adjacent Type
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHN-M7710-A4 NOZZLE 301A ASSY. 1 TYPE 301A OK MHX0059-2011/11/25
KHN-M7710-A3 NOZZLE 301A ASSY. 1 OK MG60126-2010/7/8
KHN-M7710-A2 NOZZLE 301A ASSY. 1
2
KHN-M7711-05 BODY,NOZZLE 301 1 OK MHX0059-2011/11/25
KHN-M7711-04 BODY, NOZZLE 301 1 OK MG60126-2010/7/8
KHN-M7711-03 BODY, NOZZLE 301 1
3
KHN-M7713-00 SPRING
1
Black
4 KHN-M7714-00 PIN 1
5 KHN-M7715-00 CLIP 1
6
KHN-M7720-A3 NOZZLE 302A ASSY. 1 TYPE 302A OK MHX0059-2011/11/25
KHN-M7720-A2 NOZZLE 302A ASSY. 1 OK MG60126-2010/7/8
KHN-M7720-A1 NOZZLE 302A ASSY. 1
7
KHN-M7721-04 BODY, NOZZLE 302 1 OK MHX0059-2011/11/25
KHN-M7721-03 BODY, NOZZLE 302 1 OK MG60126-2010/7/8
KHN-M7721-02 BODY, NOZZLE 302 1
8 KHY-M7740-A0 NOZZLE 303A/314A ASSY. 1 TYPE 303A/314A
9 KHY-M7741-00 BODY, NOZZLE 303/314 1
10 KHY-M7750-A0 NOZZLE 304A/315A ASSY. 1 TYPE 304A/315A
11 90990-17J013 O-RING 5
12 KHY-M7770-A0 NOZZLE 306A/317A ASSY. 1 TYPE 306A/317A
13 KHY-M7771-00 BODY, NOZZLE 306/317 1
14 KHY-M77A0-A0 NOZZLE 310A ASSY. 1 TYPE 310A (Narrow adjacent Type)
15 KHY-M77A1-00 BODY, NOZZLE 310 1
16
KHY-M7710-A4 NOZZLE 311A ASSY. 1
TYPE 311A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7710-A3 NOZZLE 311A ASSY. 1 OK MG60126-2010/7/8
KHY-M7710-A2 NOZZLE 311A ASSY. 1 NG MFX0107-2010/1/28
KHY-M7710-A1 NOZZLE 311A ASSY. 1
17
KHY-M7711-03 BODY, NOZZLE 311 1 OK MHX0059-2011/11/25
KHY-M7711-02 BODY, NOZZLE 311 1 OK MG60126-2010/7/8
KHY-M7711-01 BODY, NOZZLE 311 1 NG MFX0107-2010/1/28
KHY-M7711-00 BODY, NOZZLE 311 1
18 KHN-M7713-10 SPRING 1
19
KHY-M7720-A3 NOZZLE 312A ASSY. 1
TYPE 312A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7720-A2 NOZZLE 312A ASSY. 1 OK MG60126-2010/7/8
KHY-M7720-A1 NOZZLE 312A ASSY. 1
20
KHY-M7721-02 BODY,NOZZLE 312 1 OK MHX0059-2011/11/25
KHY-M7721-01 BODY, NOZZLE 312 1 OK MG60126-2010/7/8
KHY-M7721-00 BODY, NOZZLE 312 1
21
KHY-M7730-A2 NOZZLE 313A ASSY. 1
TYPE 313A (Narrow adjacent Type)
OK MHX0059-2011/11/25
KHY-M7730-A1 NOZZLE 313A ASSY. 1 OK MG60126-2010/7/8
KHY-M7730-A0 NOZZLE 313A ASSY. 1
22
KHY-M7731-02 BODY,NOZZLE 313 1 OK MHX0059-2011/11/25
KHY-M7731-01 BODY, NOZZLE 313 1 OK MG60126-2010/7/8
KHY-M7731-00 BODY, NOZZLE 313 1
23 KHY-M7780-A0 NOZZLE 307A/318A ASSY. 1 TYPE 307A/318A
24 KHY-M7781-00 BODY, NOZZLE 307/318 1
25 KGS-M7742-00 LABEL,NOZZLE 1
26 90990-17J014 O-RING 5
27 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH30013-2011/3/9
28 KHN-M7713-10 SPRING 1 White (Same as No.18) OK MH90007-2011/9//7
