KKD_KKJ_YS12P(F)_PL - 第30页
1 7 Push-Up Conveyor Unit KKD/KKJ-1002 41 36 1 1 16 23 37 46 46 19 23 36 37 36 41 46 39 22 37 2 15 34 20 10 43 33 42 44 4 39 44 40 38 45 5 29 14 25 27 21 34 18 48 30 6 8 28 9 24 44 31 17 37 26 34 3 32 35 34 21 27 25 14 2…
5
6

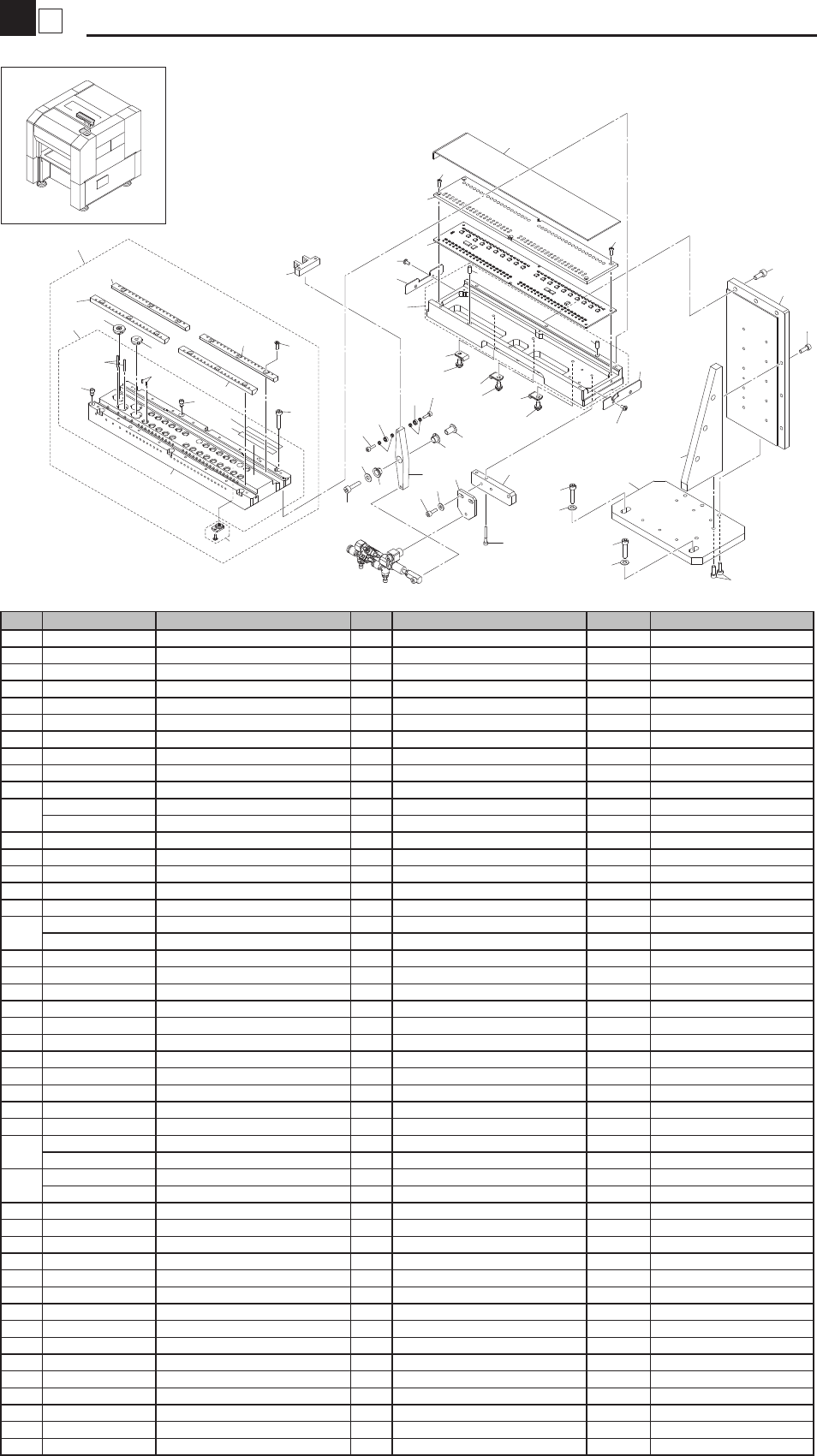

Nozzle Changer 4 (After Jan.2010 for YS12F )
Nozzle
KKD/KKJ-1111
3
25
29
30
25
26
26
26
27
27
27
5
4
28
45
20
20
6
7
8
24
15
15
16
23
23
11
19
18
9
10
13
12
12
22
17
14
18
40
40
36
35
42
54
41
34
33
37
44
43
37
38
39
39
38
31
32
18
18
2
1
31
32
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M9630-00 HOOK, BEARING 1
2 KHY-M9610-01 BOARD,CLEAR 1
3 KHY-M9612-00 SHEET,SIDE 1
4 KHY-M9622-03 PLATE,SHIELD,LED 1
5 KHY-M9603-00 HOLDER,BOTTOM,IN. 1
6 KHY-M9616-01 PLATE,STAND,ANC 1
7 KHY-M9617-00 PLATE,RIB,ANC 1
8 KHY-M9618-00 PLATE,BASE,ANC 1
9 KKS-M9655-00 CLAMP HOLDER ASSY. 1
10 KKS-M9601-00 NOZZLE HOLDER ASSY. 1
11
KKS-M9624-01 NOZZLE HOLDER 1 M3 type NG MFY0115-2009/12/25
KKS-M9624-00 NOZZLE HOLDER 1 M2 type
12 KHY-M9620-00 PIN,MARK 2
13 90990-19J004 NEEDLE PIN 44
14 KGS-M9622-A0 SPACER 1ASSY 1
15 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
16 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
17
KKS-M9622-A1 SPACER 3 ASSY 3 M3 type NG MFY0115-2009/12/25
KKS-M9622-A0 SPACER 3 ASSY 3 M2 type
18 KHY-M9606-00 MIRROR,SIDE 4
19 KHY-M9621-A0 BASE,NOZZLE D ASSY. 2
20 KHN-M9623-50 PIN 2
21 98702-03010 SCREW FLAT HEAD (+) 12
22 90990-19J009 NEEDLE PIN 8
23 90112-2AJ008 BOLT HEX.SOCKET HEAD 6
24 91312-04022 BOLT HEX.SOCKET HEAD 6 M4X22
25 98902-03006 SCREW BINDING HEAD 4
26 $NK-2N NYLON CLIP 3
27 97602-04308 SCREW,PAN HEAD W/W 3
28 KHY-M45BA-01 ANC CTRL BOARD ASSY 1
29
KKS-M9656-20 LABEL,A.N.C.30X 1 STD (V Nozzle) NG MG30172-2010/4/2
KKS-M9656-00 LABEL,A.N.C.30X 1 STD
30
KKS-M9656-30 LABEL,A.N.C.31X 1 Adjacent Nozzle (V Nozzle) NG MG30172-2010/4/2
KKS-M9656-10 LABEL,A.N.C.31X 1 Adjacent Nozzle
31 91312-06020 BOLT HEX.SOCKET HEAD 2 M6X20
32 92902-06200 WASHER PLAIN 2
33 KKS-M9613-00 BLOCK,CYLINDER 1
34 KKS-M9615-00 PLATE,CYLINDER 1 H=37mm
35 KHY-M9627-00 BLOCK,LINK 1
36 KHY-M9628-00 COLLAR,LINK 1
37 KHW-M916A-00 BUSH 2
38 90933-02J063 BEARING 2
39 90990-41J129 COLLAR 4
40 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
41 91312-03025 BOLT HEX.SOCKET HEAD 2 M3X25
42 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
43 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
44 92902-05200 WASHER PLAIN 1
45 KKS-M9612-00 SHEET 2,SIDE 1
1
7
Push-Up
Conveyor Unit
KKD/KKJ-1002
41
36
1
1
16
23
37
46
46
19
23
36
37
36
41
46
39
22
37
2
15
34
20
10
43
33
42
44
4
39
44
40
38
45
5
29
14
25
27
21
34
18
48
30
6
8
28
9
24
44
31
17
37
26
34
3
32
35
34
21
27
25
14
29
44
39
37
22
39
44
39
39
1
39
7
11
12
13
15
16
43
47
46
36
2
1
40
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGA-M921T-00 BOLT 4
2 KHW-M9215-00 PULLEY:P60-3GT 2
3 KHW-M9219-01 BRKT.,MOTOR 1
4 KHW-M921A-00 BRKT.,TENSIONER 1
5 KHW-M921B-00 STAY,ADJUST 1
6 KHW-M921C-00 SHAFT 1 1
7 KHW-M921K-00 BRKT.,SENSOR 1
8 KHW-M9222-00 POST 1
9 KHW-M9223-00 PULLEY:P40-3GT 1
10 KHY-M652E-00 SENSOR,PUORG ASSY 1
11
KHY-M920A-30 PLATE 1(510X460) 1
KJJ-M920A-01 PLATE 1(410) 1
12 KHY-M920B-00 STAY 1
13 KHY-M920D-00 PUSH UP PIN UNIT 9
14 KHY-M9211-00 HOUSING,BRG. 2
15 KHY-M9212-00 HOUSING 2
16 KHY-M9217-00 BALL BUSH & SHAFT 2
17 KHY-M921D-00 BELT 315-3GT-15 1
18 KHY-M921E-00 BELT 1086-3GT-15 1
19 KHY-M921G-01 BRKT.,DOG 1
20 KHY-M921H-01 PLATE,DOG 1
21
KHY-M921M-01 WASHER 2 OK MF40064-2009/4/14
KHY-M921M-00 WASHER 2
22 KHY-M921N-01 JOINT A 2
23 KHY-M9221-00 DAMPER 2
24 KHY-M9224-00 COVER,PU MOTOR 1
25 KHY-M9B00-00 BALL SCREW PU 2
26 KV7-M9205-01 PULLEY 1:P22-3GT 1
27 90440-01J090 CIRCLIP 2
28 90933-01J001 BEARING 2
29 90933-01J007 BEARING 4
30 90933-01J300 BEARING 2
31 90990-28J076 WASHER 1
32 90K63-331512 AC SERVO MOTOR 1
33 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
34 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
35 91312-04008 BOLT HEX.SOCKET HEAD 4 M4X8
36 91312-04010 BOLT HEX.SOCKET HEAD 12 M4X10
37 91312-04012 BOLT HEX.SOCKET HEAD 17 M4X12
38 91312-04020 BOLT HEX.SOCKET HEAD 1 M4X20
39 91312-05010 BOLT HEX.SOCKET HEAD 13 M5X10
40 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
41 91312-05016 BOLT HEX.SOCKET HEAD 8 M5X16
42 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
43 92902-04200 WASHER PLAIN 4
44 92902-05200 WASHER PLAIN 14
45 95302-04600 NUT HEXAGON 1
46 95602-10100 NUT U 4
47 99009-10400 CIRCLIP : 1
48 99009-12400 CIRCLIP : 1
2
7

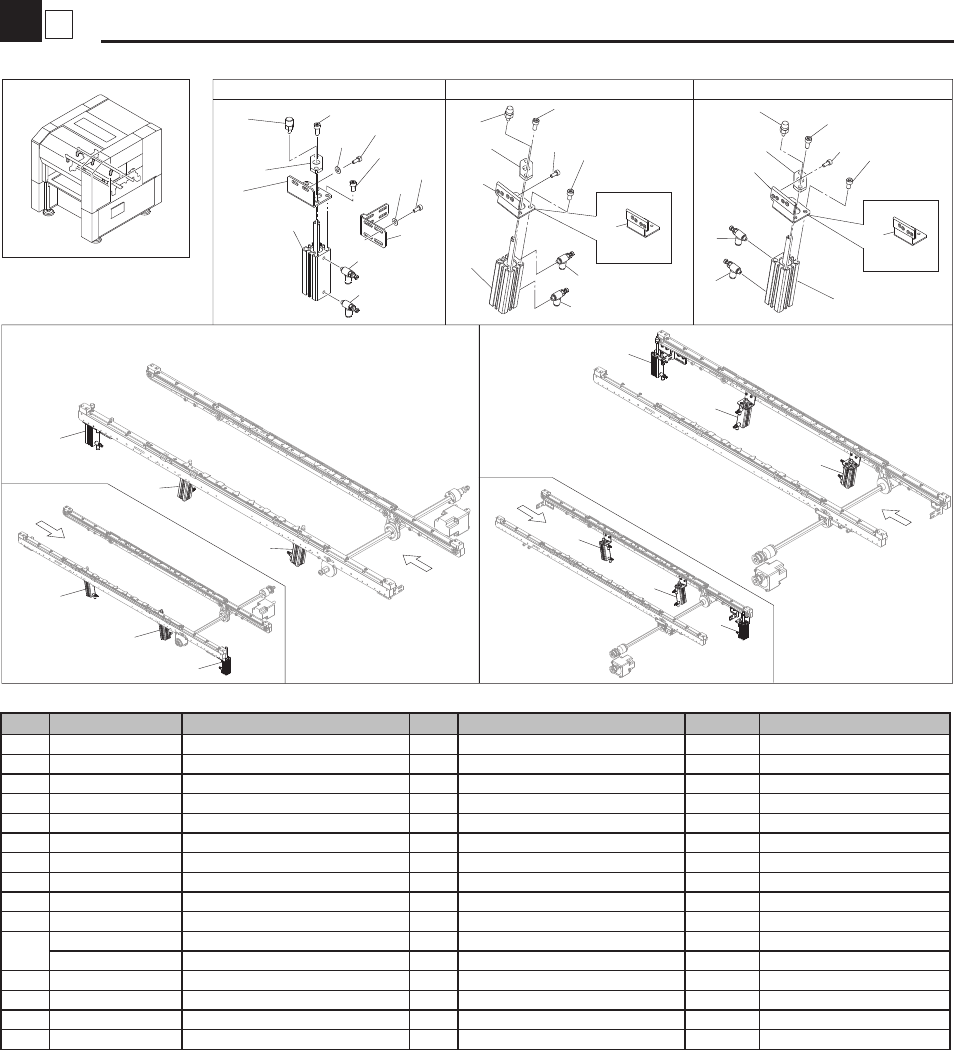

Stopper (Exit/Sub/Main)
Conveyor Unit
KKD/KKJ-1203
MAIN STOPPER
(
B
)
SUB STOPPER
(
C
)
EXIT STOPPER
(
A
)
7
6
7
9
1
2
4
14
7
8
3
9
6
5
5
1
6
8
7
9
3
5
10
11
12
13
15
15
8
R>L
L>R
Front STD
(C)
(B)
(A)
(C)
(B)
(A)
Rear STD
(C)
(B)
(A)
(C)
(B)
(A)
L>R
R>L
2
6
6
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M9281-01 BRKT.,CYLINDER 2 R>L
2 KHY-M9281-11 BRKT.,CYLINDER 2 L>R
3 KHW-M9282-00 STOPPER,SUB 2
4 KHY-M9166-A0 CYLINDER,MAIN ASSY. 1
5 KHY-M9284-00 PLATE,STOPPER 2
6 KHW-M9274-A0 SPEED CONTROLLER 2
7 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
8 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
9 91312-05012 BOLT HEX.SOCKET HEAD 2 M5X12
10 KHY-M9238-A0 CYLINDER,SUB.ASSY. 1
11
KHY-M912A-01 BRKT.,SENSOR 1 OK MG40138-2010/5/10
KHY-M912A-00 BRKT.,SENSOR 1
12 KHY-M9271-00 PLATE,STOPPER 1
13 KHW-M9272-00 STOPPER,EXIT 1
14 KHY-M9273-00 CYLINDER 1
15 92903-04200 WASHER PLAIN 4
