KKD_KKJ_YS12P(F)_PL - 第34页
5 7 Main Conveyor 2 Conveyor Unit KKD/KKJ-1203 37 41 41 5 42 41 4 20 40 33 36 16 36 29 36 1 32 39 32 2 33 21 43 35 3 12 19 18 21 43 38 17 36 42 20 14 13 14 33 41 41 37 5 32 39 32 28 8 31 44 44 48 1 1 1 1 7 6 26 32 32 36 …
4
7
Main Conveyor 1
Conveyor Unit
KKD/KKJ-1002
1
50
2
3
3
4
5
6
6
7
7
7
7
8
9
11
12
12
13
13
14
16
18
19
20
21
22
23
24
24
25
26
10
28
28
28
29
29
30
30
30
31
32
32
33
37
37
37
17
34
34
35
15
38
39
40
40
40
41
41
41
41
42
43
43
43
44
44
45
45
46
47
48
48
49
50
51
51
51
50
51
50
50
50
51
42
50
27
27
27
51
50
52
51
52
51
36
36
53
53
52
52
51
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M9101-01 STAY 1 1
2 KHY-M9102-01 STAY 2 1
3 KHY-M9103-01 STAY 3 2
4 KHY-M9104-00 PLATE 1A 1
5 KHY-M9105-00 PLATE 1B 1
6 KHY-M9106-00 BRKT.,GUIDE 2
7 KHY-M9107-01 STAY 1 4
8 KHY-M9109-01 BRKT.,MOTOR W 1
9 KHY-M9110-00 BRKT.,CONV.MOTOR 1
10 KG7-M9113-01 PULLEY 3 1
11 KHY-M9112-00 BRKT.,TENSION 1
12 KHY-M9115-01 PLATE 1,LINEAR 2
13 KHY-M9116-00 LM RALE&BLOCK 15,480 2
14 KHY-M9119-00 BRKT.2,SPLINE 1
15 90K55-4W476W AC SERVO MOTOR 1
16 KHY-M9120-00 BELT, W AXIS 1
17 KHY-M9134-00 COVER,PULLEY 1
18 KHY-M9150-00 DOG,ORIGIN 1
19 KHY-M9151-00 DAMPER A 1
20 KHY-M9152-00 SPACER 1
21 KHY-M9153-00 DAMPER B 1
22 KHY-M9154-00 SPACER 1
23 KKD-M9155-00 BRKT.,STOPPER 1 W=360
24 KHY-M9A00-00 BALL SCREW W(460) 2
25 KHY-M652H-01 SENSOR,W1ORG ASSY 1
26
27 92A08-04303 SET SCREW 8
28 90990-41J006 COLLAR 1
29 KGT-M912D-00 PULLEY 2
30 KH2-M9121-00 BEARING 3
31 KHW-M9137-00 COLLAR,BRG. 1
32 KHW-M9139-00 PLATE,BRG. 2
33 KHW-M9146-00 BELT(249-3GT-9) 1
34 90933-01J200 BEARING 2
35 90933-03J608 BEARING 2
36 92902-06200 WASHER PLAIN 8
37 90990-28J076 WASHER 2
38 91312-03008 BOLT HEX.SOCKET HEAD 2 M3X8
39 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
40 91312-04006 BOLT HEX.SOCKET HEAD 6 M4X6
41 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
42 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
43 91312-04014 BOLT HEX.SOCKET HEAD 17 M4X14
44 91312-04018 BOLT HEX.SOCKET HEAD 8 M4X18
45 91312-04020 BOLT HEX.SOCKET HEAD 8 M4X20
46 91312-04040 BOLT HEX.SOCKET HEAD 1 M4X40
47 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
48 91312-05014 BOLT HEX.SOCKET HEAD 4 M5X14
49 91312-05020 BOLT HEX.SOCKET HEAD 1 M5X20
50 91312-06016 BOLT HEX.SOCKET HEAD 22 M6X16
51 91312-06025 BOLT HEX.SOCKET HEAD 28 M6X25
52 92902-04200 WASHER PLAIN 5
53 92902-05200 WASHER PLAIN 5

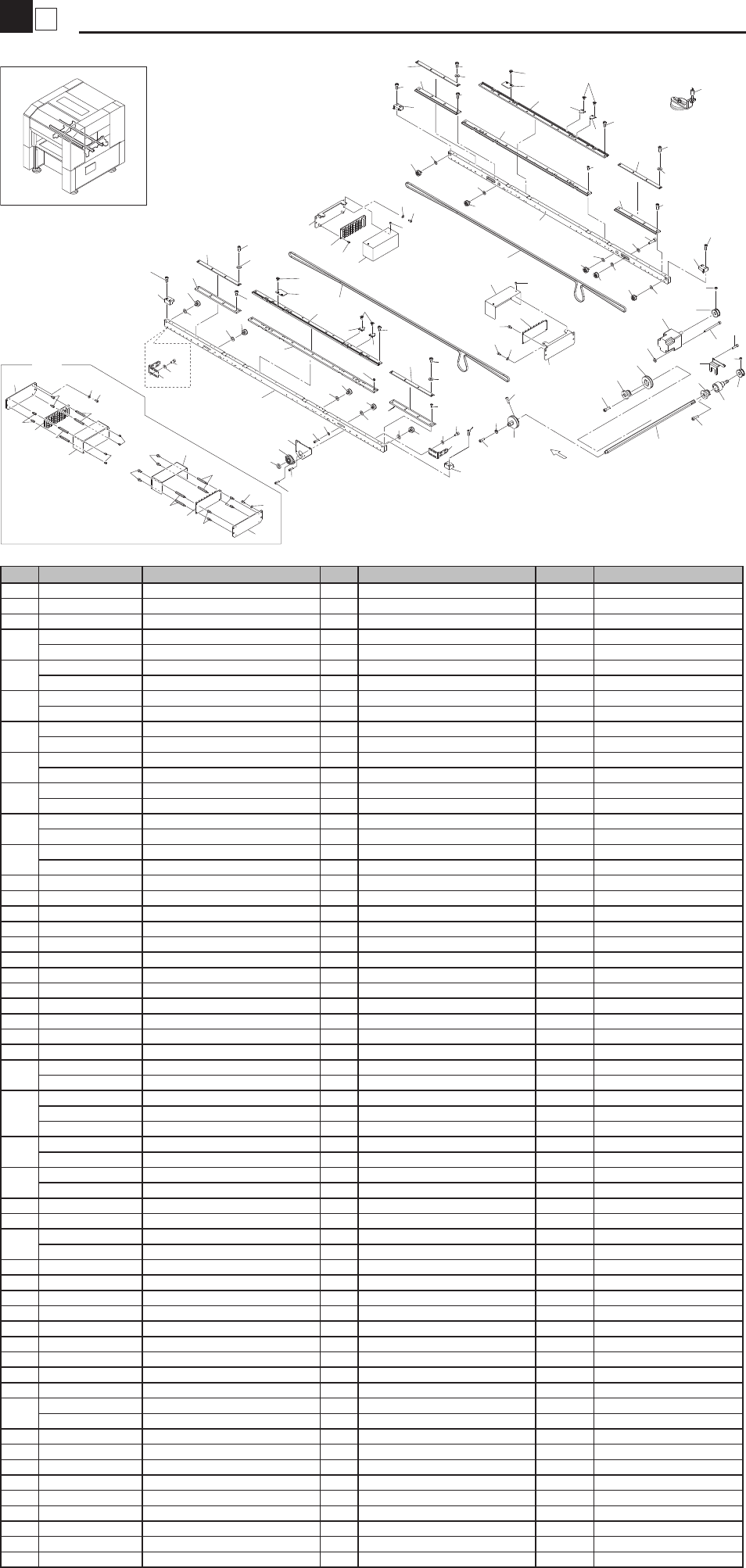

5
7
Main Conveyor 2
Conveyor Unit
KKD/KKJ-1203
37
41
41
5
42
41
4
20
40
33
36
16
36
29
36
1
32
39
32
2
33
21
43
35
3
12
19
18
21
43
38
17
36
42
20
14
13
14
33
41
41
37
5
32
39
32
28
8
31
44
44
48
11
11
7
6
26
32
32
36
42
20
39
22
41
4
9
9
7
44
31
8
11
11
26
6
22
41
22
20
42
17
5
8
32
39
36
32
8
5
10
45
46
35
29
15
41
22
23
23
R>L
16
33
40
10
L>R
24
47
30
49
25
34
40
24
25
30
34
40
24
47
26
26
27
27
30
30
25
34
40
24
25
26
26
27
27
30
30
34
40
47
47
49
44
48
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M9113-00 PULLEY 1,MOTOR 1
2 KHY-M9117-00 SPLINE 1 1
3 KHY-M9118-00 BRACKET F,COLLAR 1
4
KHY-M9121-00 FRAME,CONVEYOR 2 1250
KHY-M9121-10 FRAME,CONVEYOR 2 1460
5
KHY-M9123-00 GUIDE 1 4 1250
KHY-M9123-10 GUIDE 1 1 1460
6
KHY-M9124-00 PLATE 1,GUIDE 2 1250
KHY-M9124-10 PLATE 1,GUIDE 1 1460
7
KHY-M9125-00 PLATE 2,GUIDE 2 1250
KHY-M9125-10 PLATE 2,GUIDE 2 1460
8
KHY-M9126-00 GUIDE 1-1 4 1250
KHY-M9126-10 GUIDE 1-1 2 1460
9
KHY-M9129-00 BELT 1,CONVEYOR 2 1250
KHY-M9129-10 BELT 1,CONVEYOR 1 1460
10
KHY-M912A-01 BRKT.,SENSOR 1 OK MG40138-2010/5/10
KHY-M912A-00 BRKT.,SENSOR 1
11
KHY-M9135-00 PLATE,EDGE 2 14 OK MGX0072-2011/1/12
KHY-M9135-00 PLATE,EDGE 2 16
12 KHY-M9157-00 SHAFT,MOTOR 1
13 KG2-M9105-00 PULLEY 1,SPLINE 1
14 KG2-M9108-11 COLLAR,CONVEYOR 2
15 KHY-M9111-00 BRKT.1,SPLINE 1
16 KGA-M9113-00 GUIDE 1,END 2
17 KGA-M9114-00 GUIDE 2,END 2
18 KGK-M9170-00 DC MOTOR ASSY. 1
19 KGT-M9193-00 NUT PLATE 4
20 KGY-M9140-A0 PULLEY,CONV. ASSY 4
21 KH2-M9105-11 PULLEY,MOTOR:P30-3GT 2
22 KV1-M9140-A0 PULLEY CONV.ASSY. 4
23 KV7-M9140-A0 PULLEY CONV.ASSY. 2
24
KHY-M911G-01 COVER,TERMINAL 2 NG MH30093-2011/4/26
KHY-M911G-00 COVER,TERMINAL 2
25
KHY-M911Y-01 PLATE,TERMINAL 2 OK MH90069-2011/10/6
KJJ-M911Y-00 PLATE,TERMINAL 2 NG MH30093-2011/4/26
KHY-M911Y-00 PLATE,TERMINAL 2
26
Delete MH30093-2011/4/26
90563-03J100 SPACER BOLT 8
27
Delete MH30093-2011/4/26
90563-03J400 SPACER BOLT 8
28 KHY-M920D-00 PUSH UP PIN UNIT 9
29 90990-28J076 WASHER 2
30
91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5 MH30093-2011/4/26
91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
31 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
32 91312-03008 BOLT HEX.SOCKET HEAD 46 M3X8
33 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
34 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
35 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
36 91312-04012 BOLT HEX.SOCKET HEAD 10 M4X12
37 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
38 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
39 92902-03200 WASHER PLAIN 16
40
92902-04200 WASHER PLAIN 11 MH30093-2011/4/26
92902-04200 WASHER PLAIN 4
41 92902-05200 WASHER PLAIN 8
42 92902-05600 WASHER PLAIN 4
43 92A08-04303 SET SCREW 4
44 98702-03005 SCREW FLAT HEAD 32
45 KH2-M9121-00 BEARING 1
46 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
47 KJJ-M4554-00 TERMINAL BOARD ASSY 2
48 KHY-M9135-10 PLATE,EDGE 3 2 MGX0072-2011/1/12
49 97602-03304 SCREW, PAN HEAD W/W 4 MH30093-2011/4/26
6
7
Sensor
Conveyor Unit
KKD/KKJ-0903
2
5
9
2
8
10
7
3
4
8
7
6
6
5
4
2
3
7
8
8
10
7
7
10
9
1
1
1
1
1
2
1
1
1
1
1
1
1
7
10
L>R
R>L
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHM-M654C-01 SENSOR,FIBER 2 1
2 KHW-M9157-00 HOLDER,SENSOR 2
3 KHY-M652J-00 SENSOR,ENT ASSY 1
3-1 KHY-M652J-10 SENSOR,ENT ASSY 1 OK MNX0125-2017/1/12
4
KHY-M652K-00 SENSOR,WAIT ASSY 1 Fiber and AMP
KHY-M652K-A0 SENSOR AMP ASSY 1 AMP
5
KHY-M652L-00 SENSOR,POS.1 ASSY 1 Fiber and AMP
KHY-M652L-A0 SENSOR AMP ASSY 1 AMP
6 KHY-M652M-00 SENSOR,EXIT ASSY 1
6-1 KHY-M652M-10 SENSOR,EXIT ASSY 1 OK MNX0125-2017/1/12
7 91312-03004 BOLT HEX.SOCKET HEAD 6 M3X4
8 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
9 92A08-03303 SET SCREW M3X3 1
10 97602-03310 SCREW,PAN HEAD W/W 4
