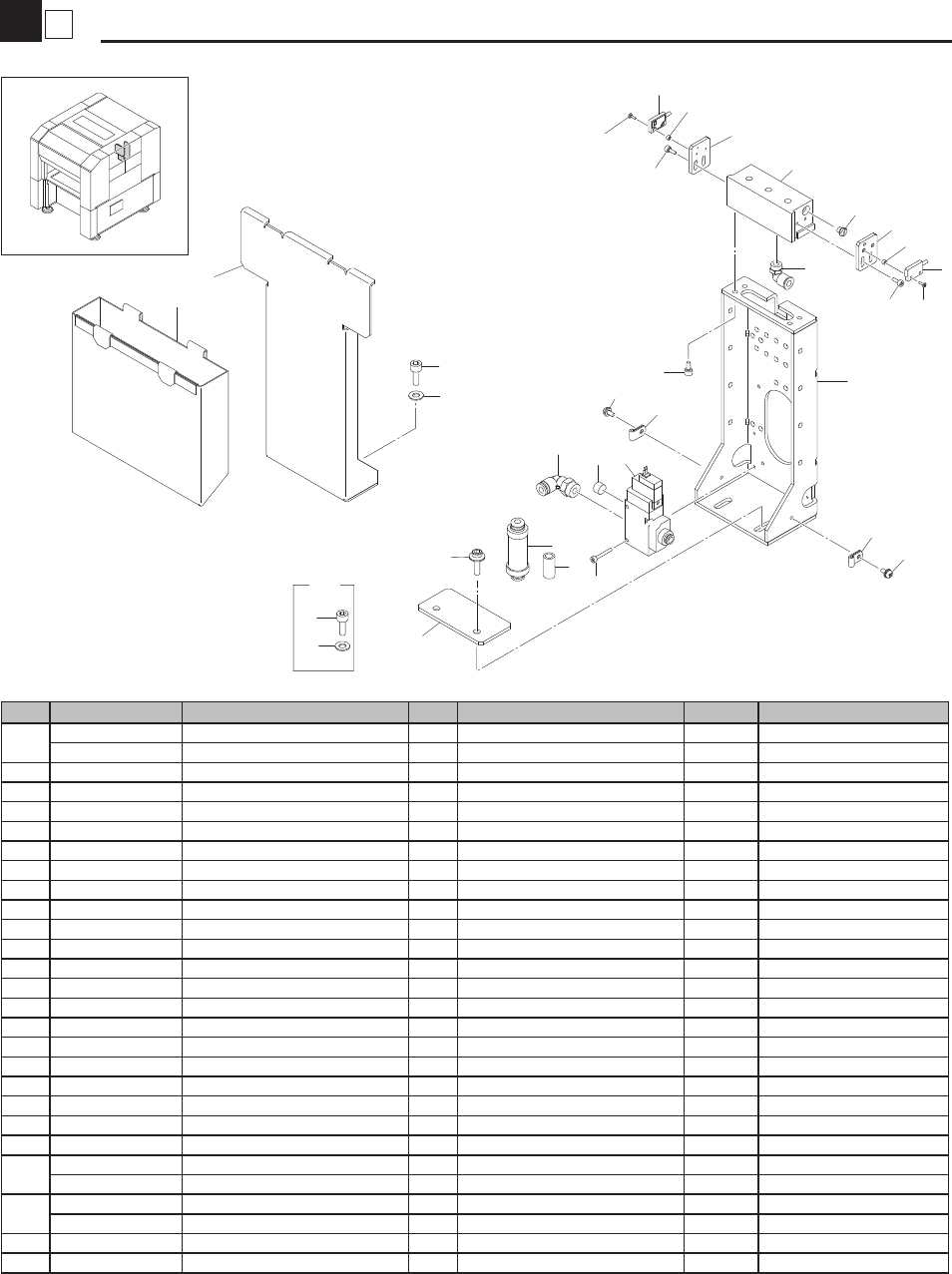

1 9 Blow Station (YS12P / Before Dec.2009 for YS12F ) Blow Station KKD/KKJ-0903 18 6 9 19 5 3 1 1 4 9 6 18 19 14 8 10 13 20 7 22 23 22 15 16 23 2 21 14 24 24 1 12 17 No. Part No. Part Name Q'ty Remarks Compati. Revi…
2
8
Multi Camera & Light Assy (YS12F)
Camera
KKD/KKJ-1203
1
41
40
2
3
26
36
32
37
32
30
30
30
34
35
30
31
29
27
28
33
33
4
4
OLD
12
17
18
23
12
12
12
10
10
5
11
7
21
22
6
20
8
38
39
24
25
19
14
15
16
9
20
13
24
25
OLD
32
42
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KKS-M73C0-50 C+L W50-H267-U/D 1 OK MFY0063-2010/1/8
KKJ-M73C0-50 C+L W50-H267-U/D 1
2
KKS-M7560-01 SIDE LIGHT ASSY 1 OK MFY0063-2010/1/8
KKJ-M7560-01 SIDE LIGHT ASSY 1 NG MFY0059-2009/12/15
KKJ-M7560-00 SIDE LIGHT ASSY 1
3
KJJ-M755S-A2 M.LIGHT BRD.SIDE SET 1 Brightness is diffrent NG MH10070-2011/1/28
KJJ-M755S-A1 M.LIGHT BRD.SIDE SET 1
4
KJJ-M755S-02 M.LIGHT BOARD SET 1 NG MF60260-2009/7/2
KJJ-M755S-01 M.LIGHT BOARD SET 1
5 KJJ-M7512-01 COVER,GLASS 1
6 KJJ-M7513-00 DIFFUSER,COAX 1
7 KJJ-M7516-01 COVER,LIGHT UNIT 1
8 KJJ-M7522-01 PLATE,COAX. 1
9 KJJ-M7525-00 SPACER 4
10 KJJ-M7526-01 PLATE,GLASS 4
11 KJJ-M7542-00 AR SHEET 1
12
Delete MFY0059-2009/12/15
KJJ-M7545-01 RUBBER,LIGHT 1 6
13
Delete MFY0059-2009/12/15
KJJ-M7546-00 RUBBER,LIGHT 2 2
14 KJJ-M66N2-00 HNS,M.LIGHT COAX. 1
15 KJJ-M66N9-01 HNS,M.LIGHT SUB CX. 1
16 KJJ-M66NA-01 HNS,M.LIGHT MAIN 1
17 KJJ-M7570-00 SPACER 12
18 98902-03004 SCREW BINDING HEAD 12 M3X4
19 98502-03004 SCREW PAN HEAD 4 M3X5
20 98502-03006 SCREW PAN HEAD 6 M3X6
21 98902-03006 SCREW BINDING HEAD 2 M3X6
22 98902-03010 SCREW BINDING HEAD 4 M3X10
23 KJJ-M7518-01 FRAME,MAIN LIGHT 1
24 90563-03J250 SPACER BOLT 4
25 90563-03J300 SPACER BOLT 2
26 KJJ-M7511-00 FRAME,SIDE LIGHT 1
27 KJJ-M7514-00 DIFFUSER,SIDE LIGHT 1
28 KJJ-M7515-01 COVER,SIDE LIGHT 1
29
KJJ-M7523-A2 CYLINDER ASSY 1 OK MJ10091-2012/2/6
KJJ-M7523-A1 CYLINDER ASSY 1
30
Delete MFY0059-2009/12/15
KJJ-M7531-00 RUBBER,SIDE 4
31 KJJ-M66N8-01 HNS,M.LIGHT SIDE 1
32
$SSF4-M5-A-P SPEED CONTROLLER 2 NG MFY0063-2010/1/8
$SC4-M5A SPEED CONTROLLER 2
33 90K41-000240 SEAL,DON'T TOUCH 2
34
98502-03003 SCREW PAN HEAD 8 M3X3 OK MFY0098-2009/12/22
98507-03003 SCREW PAN HEAD 8 M3X3
35
98502-04006 SCREW PAN HEAD 4 M4X5 OK MFY0098-2009/12/22
98507-04005 SCREW PAN HEAD 4 M4X5
36 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
37
91317-04020 BOLT HEX.SOCKET HEAD 2 M4X20 OK MFY0098-2009/12/22
91317-04020 BOLT HEX.SOCKET HEAD 2 M4X20
38 91312-06020 BOLT HEX.SOCKET HEAD 2 M6X20
39 92902-06200 WASHER PLAIN 2
40 KHW-M8582-40 VALVE 1
41 KKJ-M73C0-00 C+L W50-H267-NON 1 Non Side Light ASSY
42
KJJ-M655W-01 CYLINDER SENS ASSY 1 Rise edge
KJJ-M655W-11 CYLINDER SENS ASSY 1 Drop edge
1
9
Blow Station (YS12P / Before Dec.2009 for YS12F )
Blow Station
KKD/KKJ-0903
18
6
9
19
5
3
11
4
9
6
18
19
14
8
10
13
20
7
22
23
22
15
16
23
2
21
14
24
24
1
12
17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKD-M9901-00 BASE,B.STN. 1 H=214mm
2 KKD-M9902-00 PLATE,BASE 1
3 KKD-M9903-01 BLOCK,BLOW ST. 1
4 KGR-M9905-00 BRACKET R,SENSOR 1
5 KGR-M9906-00 BRACKET L,SENSOR 1
6 KHY-M652R-00 SENSOR,BLOW ST ASSY 1
7 KGR-M9934-01 INLINE FILTER 1
8 KHW-M9906-A0 VALVE 1
9 90990-41J066 COLLAR 4
10 K40-M8598-10 PLUG 1 1
11 $PF PLUG 1
12 $TL6-01M JOINT 1
13 $TL6-02 JOINT 1
14 $NK-2N NYLON CLIP 2
15 KJJ-M99D5-00 STAND,DUMP BOX 1
16 KGS-M99D0-00 DUMP BOX ASSY. 1
17 KGR-M9934-F0 FILTER, SPARE 1 SPARE
18 90169-02J206 SCREW BINDING HEAD 4
19 91312-03008 BOLT HEX.SOCKET HEAD 4
20 91312-03020 BOLT,HEX.SOCKET HEAD 2
21 91312-04008 BOLT HEX.SOCKET HEAD 4
22 91312-06016 BOLT HEX.SOCKET HEAD 4
23 92902-06200 WASHER PLAIN(N) 4
24 97602-04308 SCREW,PAN HEAD W/W 2
2
9
Blow Station (After Jan.2010 for YS12F )
Blow Station
KKD/KKJ-1111
18
6
9
19
5
3
11
4
9
6
18
19
14
8
10
13
20
7
25
22
15
16
23
2
21
14
24
24
1
12
17
22
23
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KKS-M9901-01 BASE,B.STN. 1 H=218mm OK MG30149-2010/3/25
KKS-M9901-00 BASE,B.STN. 1
2 KKD-M9902-00 PLATE,BASE 1
3 KKD-M9903-01 BLOCK,BLOW ST. 1
4 KGR-M9905-00 BRACKET R,SENSOR 1
5 KGR-M9906-00 BRACKET L,SENSOR 1
6 KHY-M652R-00 SENSOR,BLOW ST ASSY 1
7 KGR-M9934-01 INLINE FILTER 1
8 KHW-M9906-A0 VALVE 1
9 90990-41J066 COLLAR 4
10 K40-M8598-10 PLUG 1 1
11 $PF PLUG 1
12 $TL6-01M JOINT 1
13 $TL6-02 JOINT 1
14 $NK-2N NYLON CLIP 2
15 KJJ-M99D5-00 STAND,DUMP BOX 1
16 KGS-M99D0-00 DUMP BOX ASSY. 1
17 KGR-M9934-F0 FILTER, SPARE 1 SPARE
18 90169-02J206 SCREW BINDING HEAD 4
19 91312-03008 BOLT HEX.SOCKET HEAD 4
20 91312-03020 BOLT,HEX.SOCKET HEAD 2
21 91312-04008 BOLT HEX.SOCKET HEAD 4
22
91312-06016 BOLT HEX.SOCKET HEAD 2 MM10012-2015/3/16
91312-06016 BOLT HEX.SOCKET HEAD 4
23
92902-06200 WASHER PLAIN(N) 2 MM10012-2015/3/16
92902-06200 WASHER PLAIN(N) 4
24 97602-04308 SCREW,PAN HEAD W/W 2
25 90990-32J008 BOLT,FLANGE 2 OK MM10012-2015/3/16
