2 10 Main Cutter Assy 720 (After 2010 / Jun) T ape Cutter KKD/KKJ-1204 34 47 16 20 53 29 49 50 48 35 49 13 19 7 57 48 18 55 48 33 41 52 44 46 40 2 56 48 43 14 43 5 37 49 49 18 42 3 59 36 8 3 7 39 14 5 38 59 31 12 8 4 1 1…

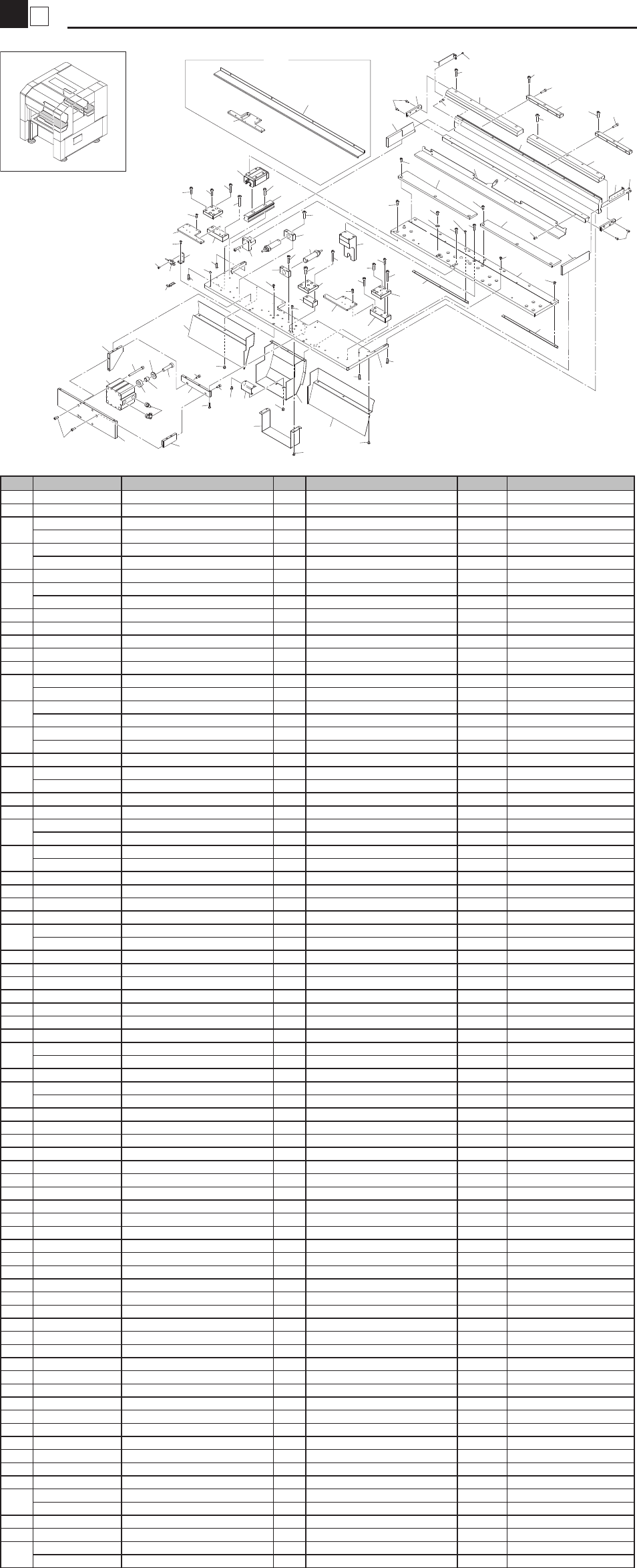

1
10
Main Cutter Assy 720 (Before 2010 / May)
Tape Cutter
KKD/KKJ-1002
55
65
56
68
35
66
12
12
61
45
18
63
49
34
30
42
55
66
31
30
66
49
39
57
40
24
25
23
68
20
37
38
67
51
50
17
49
49
45
1
34
36
12
58
31
51
51
65
47
66
65
56
55
35
43
27
62
13
19
22
16
28
62
52
46
59
44
53
54
32
53
44
44
14
6
6
50
50
10
45
48
7
29
56
60
3
4
26
51
54
56
26
51
54
60
48
8
29
11
45
33
33
OLD
9
2
62
21
64
45
15
35
5
45
41
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-15 BASE PLATE 1,720 1
2 KHY-M3T02-10 BASE PLATE 2,720 1
3
KHY-M3T05-11 CUTTER UPPER L,720 1 OK MF50021-2009/5/14
KHY-M3T05-10 CUTTER UPPER L,720 1
4
KHY-M3T05-21 CUTTER UPPER R,720 1 OK MF50021-2009/5/14
KHY-M3T05-20 CUTTER UPPER R,720 1
5 KHY-M3T06-13 BASE PLATE 3,720 1
6
KHY-M3T07-B2 CUTTER LOWER,720 1 OK MF50047-2009/5/14
KHY-M3T07-B1 CUTTER LOWER,720 1
7 KHY-M3T08-01 BAR,L 1
8 KHY-M3T08-11 BAR,R 1
9 KHY-M3T09-11 PLATE 4,720 1
10 KHY-M3T0A-01 SIDE BLOCK,L 1
11 KHY-M3T0A-11 SIDE BLOCK.R 1
12
KHY-M3T0B-11 FRONT STAY 4 2 NG MF70042-2009/7/22
KHY-M3T0B-10 FRONT STAY 4 2
13
Delete MFX0092-2009/11/19
KHY-M3T0H-30 CYL. COVER,L 1
14
Delete MFX0092-2009/11/19
KHY-M3T0H-40 CYL. COVER,R 1
15 KHY-M3T0M-00 STAY,COVER M 1
16
KHY-M3T0N-20 COVER M,12X60 1 OK MFX0092-2009/11/19
KHY-M3T0N-00 COVER M 1
17 KHY-M3T0P-00 CYL. COVER 1 1
18 KHY-M3T0U-00 SENSOR STAY 1
19
KHY-M3T0V-01 DOG.,SENSOR 1 OK MFY0009-2009/12/3
KHY-M3T0V-00 DOG.,SENSOR 1
20
KHY-M3T10-01 TAPE CUTTER CYL. 1 OK MF30039-2009/3/9
KHY-M3T10-00 TAPE CUTTER CYL. 1
21 KHY-M3T11-10 CYL. STAY 1 1
22 KHY-M3T12-01 CYL.BLOCK 1
23 KHY-M3T13-10 CYL. COLLAR 1 1
24 KHY-M3T13-20 CYL. COLLAR 2 1
25
KHY-M3T14-02 CYL. COLLAR 2 1 OK MF60124-2009/6/16
KHY-M3T14-00 CYL. COLLAR 2 1
26 KHY-M3T16-00 BACK STAY 2
27 KHY-M3T18-30 COVER L,720 1
28 KHY-M3T18-40 COVER R,720 1
29 KHY-M3T19-00 SIDE COVER 2
30 KHY-M3T22-00 SHOCK ABSORBERS 2
31 KHY-M3T23-00 DAMPER STAY 2
32 KHY-M3T24-00 DAMPER STOPPER 1
33
KHY-M3T26-30 CUTTER COVER,720 1 OK MFX0106-2009/11/30
KHY-M3T26-10 CUTTER COVER,720 1
34 KHY-M3T27-00 FRONT STAY 1 2
35
KHY-M3T28-02 FRONT STAY 2 3 OK MF00071-2009/10/20
KHY-M3T28-00 FRONT STAY 2 3
36 KHY-M3T29-00 FRONT STAY 3 1
37 KHY-M3T30-00 CYL. STAY 2 1
38 KHY-M3T31-00 CYL. STAY 3 1
39 KHY-M3T32-00 CYL. STAY 4 1
40 KHY-M3T33-00 BOLT,HEX.S.H. 1
41 KHY-M652U-00 SENSOR,F1 CUT CL ASSY 1 Front
42 90K73-7L0130 LM RAIL 4
43 90K80-025L00 LM BLOCK,HSR25-L 4
44 91312-04006 BOLT HEX.SOCKET HEAD 9 M4X6
45 91312-04008 BOLT HEX.SOCKET HEAD 22 M4X8
46 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
47 91312-04012 BOLT HEX.SOCKET HEAD 4 M4X12
48 91312-04016 BOLT,HEX.SOCKET HEAD 2 M4X16
49 91312-04018 BOLT HEX.SOCKET HEAD 12 M4X18
50 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
51 91312-05020 BOLT HEX.SOCKET HEAD 17 M5X20
52 91312-06014 BOLT HEX.SOCKET HEAD 16 M6X14
53 91312-06016 BOLT HEX.SOCKET HEAD 6 M6X16
54 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
55 91312-06022 BOLT HEX.SOCKET HEAD 10 M6X22
56 91312-06025 BOLT HEX.SOCKET HEAD 10 M6X25
57 91312-06065 BOLT HEX.SOCKET HEAD 4 M6X65
58 91312-08020 BOLT HEX.SOCKET HEAD 1 M8X20
59 92902-04600 WASHER PLAIN 2
60 98702-03006 SCREW FLAT HEAD 4
61 98902-03008 SCREW BINDING HEAD 2
62 98902-04008 SCREW BINDING HEAD 8
63 99480-04010 PIN PARALLEL: 4X10 4
64 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
65
91312-06035 BOLT HEX.SOCKET HEAD 4 M6X35 OK MF70083-2009/7/22
91312-06040 BOLT HEX.SOCKET HEAD 4 M6X40
66 91312-06030 BOLT HEX.SOCKET HEAD 6 M6X30
67 91312-04030 BOLT HEX.SOCKET HEAD 3 M4X30
68
$SLH6-02 JOINT 2 OK MF50054-2009/5/14
$TL4-02 JOINT 2

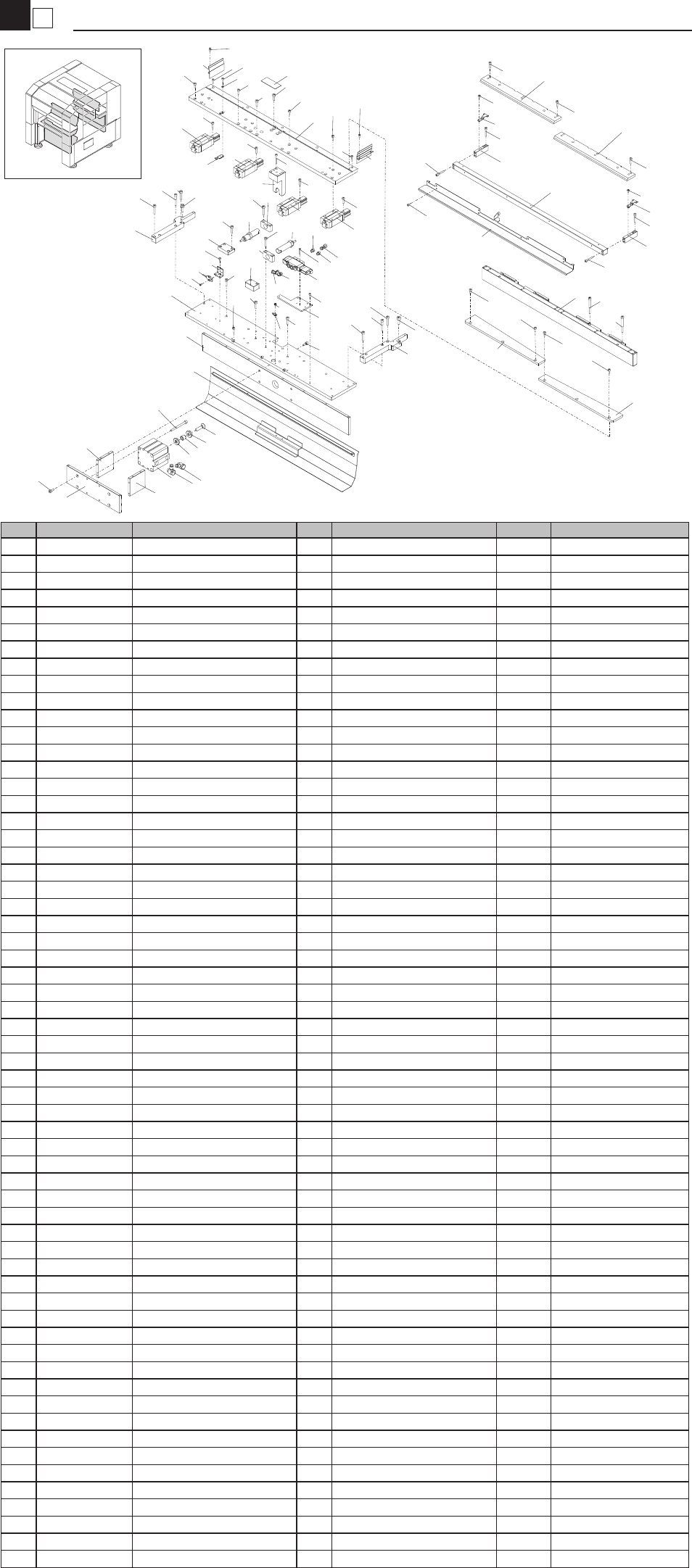

2
10
Main Cutter Assy 720 (After 2010 / Jun)
Tape Cutter
KKD/KKJ-1204
34
47
16
20
53
29
49
50
48
35
49
13
19
7
57
48
18
55
48
33
41
52
44
46
40
2
56
48
43
14
43
5
37
49
49
18
42
3
59
36
8
3
7
39
14
5
38
59
31
12
8
4
1
10
1
30
16
5
53
14
49
54
50
9
6
4
32
4
24
49
12
17
17
14
5
12
60
42
8
7
12
11
25
21
11
11
27
26
51
15
22
51
15
11
58
14
7
23
28
45
14
27
23
15
22
58
15
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $KM-10 MUFFLER 2
2 $NK-XN NYLON CLIP 2
3 $SL6-02 JOINT 2
4 $TL6-01M JOINT 3
5 90K80-020L00 LM BLOCK SR20-L 4
6 91312-03020 BOLT HEX,SOCKET HEAD 2
7 91312-04008 BOLT HEX,SOCKET HEAD 10
8 91312-04010 BOLT HEX,SOCKET HEAD 7
9 91312-04014 BOLT HEX,SOCKET HEAD 2
10 91312-04035 BOLT HEX,SOCKET HEAD 2
11 91312-05010 BOLT HEX,SOCKET HEAD 6
12 91312-05014 BOLT HEX,SOCKET HEAD 16
13 91312-05016 BOLT HEX,SOCKET HEAD 3
14 91312-05018 BOLT HEX,SOCKET HEAD 20
15 91312-05030 BOLT HEX,SOCKET HEAD 8
16 91312-06014 BOLT HEX,SOCKET HEAD 8
17 91312-06018 BOLT HEX,SOCKET HEAD 6
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHN-91AH-00 SENSOR 1
20 KHY-M3T01-20 BASE PLATE 1 1
21 KHY-M3T02-20 BASE PLATE 2 1
22 KHY-M3T03-02 STAY 60,AIR JOINT 2
23 KHY-M3T05-32 CUTTER UPPER,60 2
24 KHY-M3T06-20 BASE PLATE 3 1
25 KHY-M3T07-41 CUTTER LOWER L,720 1
26 KHY-M3T07-51 CUTTER LOWER R,720 1
27 KHY-M3T08-21 BAR 2
28 KHY-M3T09-22 PLATE 4,720 1
29 KHY-M3T0A-20 SIDE BLOCK,L 1
30 KHY-M3T0A-30 SIDE BLOCK,R 1
31 KHY-M3T0B-11 FRONT STAY 4 1
32 KHY-M3T0C-00 CUTTER VALVE 1
33 KHY-M3T0L-01 CYL. COLLAR 3 1
34 KHY-M3T0N-30 COVER M,60 1
35 KHY-M3T0U-10 SENSOR STAY 1
36 KHY-M3T0V-01 DOG.,SENSOR 1
37 KHY-M3T10-10 TAPE CUTTER CYL. 1
38 KHY-M3T11-20 CYL. STAY 1 1
39 KHY-M3T12-11 CYL.BLOCK 1
40 KHY-M3T13-00 CYL. COLLAR 1 1
41 KHY-M3T14-02 CYL. COLLAR 2 1
42 KHY-M3T19-10 SIDE COVER 2
43 KHY-M3T23-00 DAMPER STAY 2
44 KHY-M3T24-10 DAMPER STOPPER 1
45 KHY-M3T26-40 CUTTER COVER,720 1
46 KHY-M3T28-10 FRONT STAY 2
47 KHY-M3T30-11 CYL. STAY 2 1
48 91312-06022 BOLT HEX,SOCKET HEAD 17
49 91312-06030 BOLT HEX,SOCKET HEAD 10
50 91312-06040 BOLT HEX,SOCKET HEAD 2
51 91312-06060 BOLT HEX,SOCKET HEAD 4
52 91312-06070 BOLT HEX,SOCKET HEAD 4
53 91312-08020 BOLT HEX,SOCKET HEAD 2
54 92902-04600 WASHER,PLAIN 2
55 92B12-10035
SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP
1
56 97602-04308
SCREW PAN HEAD W/WASHER
2
57 98902-03008 SCREW BINDING HEAD 2
58 98902-04008 SCREW BINDING HEAD 4
59 KHY-M3T31-10 CYL. STAY 3 2
60 90K41-000800 LABEL,ALERT 1

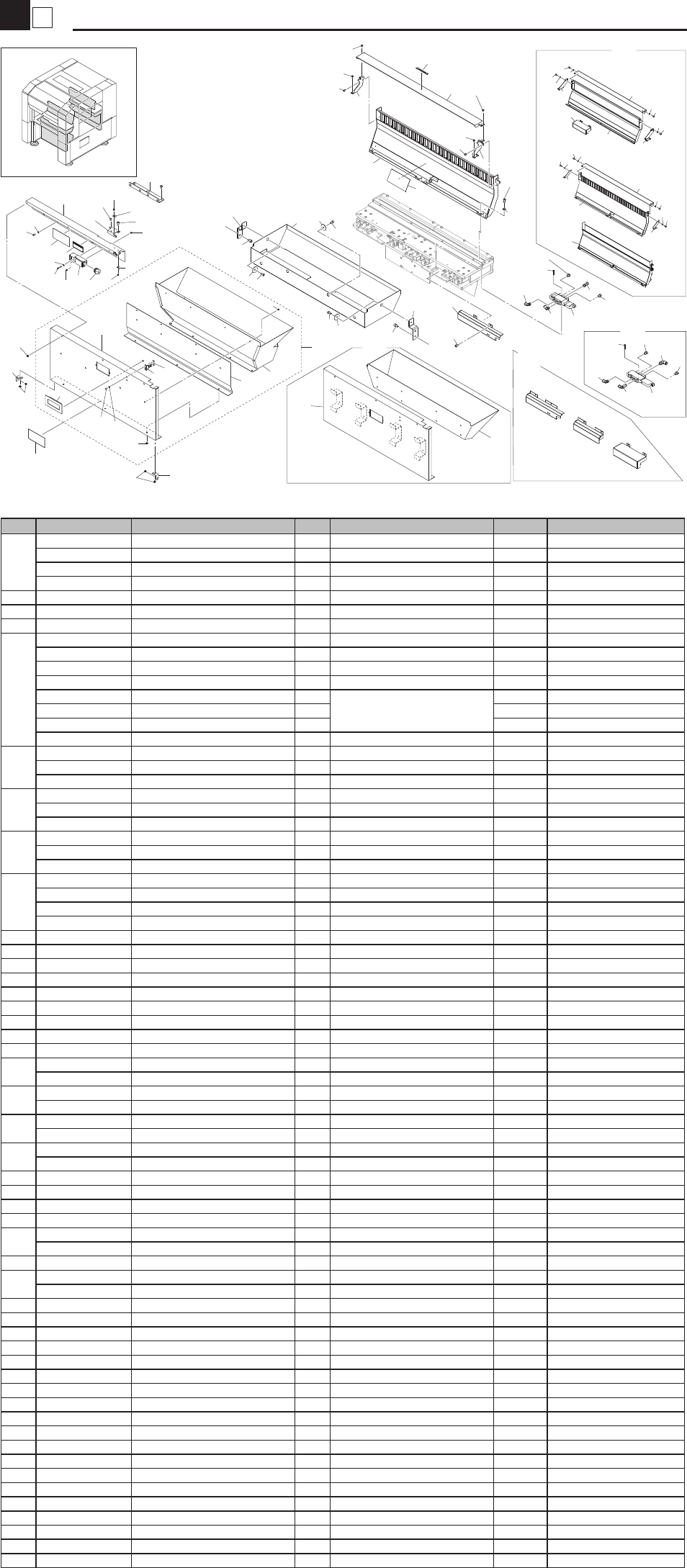

3
10
Cutter Valve/Slope/Safty Cover Assy (Before 2010 / May)
Tape Cutter
KKD/KKJ-1108
43
38
38
45
20
22
23
24
21
28
28
32
32
32
32
34
25
26
42
38
40
40
36
36
1
17
16
6
48
48
48
38
48
38
38
5
3
3
3
2
46
40
27
47
41
37
47
46
31
29
30
39
42
33
34
40
44
18
7
8
37
12
13
4
4
11
10
10
11
11
11
10
10
2
9
9
37
43
37
43
43
43
6
37
37
5
7
8
35
21
19
20
37
OLD
OLD
43
37
Fig.1
Fig.2
43
43
43
6
5
37
37
8
7
9
OLD
Fig.3
Fig.4
Fig.5
OLD
Fig.6
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHY-M11C1-15 DUCT 1 1 OK MF50061-2009/5/18
KHY-M11C1-14 DUCT 1 1 OK MF30092-2009/4/9
KHY-M11C1-13 DUCT 1 1 OK MF30136-2009/3/24
KHY-M11C1-12 DUCT 1 1
2 KHY-M11C3-00 BRKT.,DUCT 2
3 KHY-M11C5-00 WASHER 6
4 KHY-M3T0C-00 CUTTER VALVE 2
5
KHY-M3T53-20 UPPER COVER 1,720 1 NG MH20012-2011/2/17
KHY-M3T53-12 UPPER COVER 1, 720 1 Fig 6 Resin tape OK ML30057-2014/5/16
KHY-M3T53-11 UPPER COVER 1, 720 1 OK MJ10035-2012/3/30
KHY-M3T53-10 UPPER COVER 1, 720 1 NG MH30059-2011/3/17
KHY-M3T0E-61 UPPER COVER 1,720 1
Fig.2 type, but the dimensions are
different.
NG H014140-2010/3/17
KHY-M3T0E-60 UPPER COVER 1,720 1 NG MG10035-2010/1/13
KHY-M3T0E-50 UPPER COVER 1,720 1 NG MFX0106-2009/11/30
KHY-M3T0E-11 UPPER COVER 1,720 1 Fig.1
6
KHY-M3T51-20 UPPER COVER 2,720 1 NG MH20012-2011/2/17
KHY-M3T0S-30 UPPER COVER 2,720 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0S-11 UPPER COVER 2,720 1 Fig.1
7
KHY-M3T52-40 FIX STAY L 1 NG MH20012-2011/2/17
KHY-M3T0X-20 STAY L 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0X-00 STAY L 1 Fig.1
8
KHY-M3T52-50 FIX STAY R 1 NG MH20012-2011/2/17
KHY-M3T0X-30 STAY R 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0X-10 STAY R 1 Fig.1
9
KHY-M3T25-04 VALVE COVER 1 OK MH60104-2011/8/22
KHY-M3T25-03 VALVE COVER 1 Fig.5 NG MG10035-2010/1/13
KHY-M3T25-02 VALVE COVER 1 Fig.4 NG MF70042-2009/7/22
KHY-M3T25-01 VALVE COVER 1 Fig.3
10 $KM-10 MUFFLER 4
11 $TL6-01 JOINT 2
12 $TL6-01M JOINT 4
13 $TLL6-01M JOINT 1
14
15
16 90K41-000240 SEAL,DON'T TOUCH 1
17 90K41-000730 LABEL,ALERT 3
18 KHY-M1325-01 COVER 25 1
19
KHY-M11C6-A2 COVER 720,SUB ASSY 1 OK MF50125-2009/5/29
KHY-M11C6-A1 COVER 720,SUB ASSY 1
20
KHY-M11C2-42 DUCT 2 1 NG MF50125-2009/5/29
KHY-M11C2-41 DUCT 2,720 1
21
KHY-M11C6-02 COVER,TAPE CUTTER 1 NG MF50125-2009/5/29
KHY-M11C6-01 COVER,TAPE CUTTER 1
22
Delete MF50125-2009/5/29
KHY-M11C7-00 SLOPE,DUCT 1
23 KJJ-M11C9-00 PLATE,NUT 1
24 KJJ-M5127-00 SAFETY SWITCH KEY 1
25 KGS-M1360-00 BOLT 2
26 KHU-M1117-00 PULL 1
27
KJJ-M11CA-00 STAY,HNS. 1 OK MF80092-2009/9/1
KHY-M11C8-00 HNS. STAY 1
28 KJJ-M11C8-00 BRKT.,CUTTER COVER 2
29
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
30 KGS-M5126-02 SCREW (M3X8) 1
31 KW7-M643A-00 SC LOCK 1
32 90990-12J001 SCREW BIN.HEAD W/W 10
33 90K41-000350 LABEL,ALERT 1
34 90K41-000730 LABEL,ALERT 2
35 KHY-M3T40-00 STAY HARNSS 1
36 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20
37 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
39 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X24
40 91312-05008 BOLT HEX.SOCKET HEAD 10 M5X8
41 91312-08012 BOLT HEX.SOCKET HEAD 1 M8X12
42 92902-04200 WASHER PLAIN 4
43 92902-04600 WASHER PLAIN 15
44 92902-05600 WASHER PLAIN 4
45 98902-04006 SCREW BINDING HEAD 8
46 97602-04308 SCREW,PAN HEAD W/W 4
47 $NK-3N NYLON CLIP 4
48 98902-04008 SCREW BINDING HEAD 8 OK MH20012-2011/2/17
