3 10 Cutter V alve/Slope/Safty Cover Assy (Before 2010 / May) T ape Cutter KKD/KKJ-1 108 43 38 38 45 20 22 23 24 21 28 28 32 32 32 32 34 25 26 42 38 40 40 36 36 1 17 16 6 48 48 48 38 48 38 38 5 3 3 3 2 46 40 27 47 41 37 …
2
10
Main Cutter Assy 720 (After 2010 / Jun)
Tape Cutter
KKD/KKJ-1204
34
47
16
20
53
29
49
50
48
35
49
13
19
7
57
48
18
55
48
33
41
52
44
46
40
2
56
48
43
14
43
5
37
49
49
18
42
3
59
36
8
3
7
39
14
5
38
59
31
12
8
4
1
10
1
30
16
5
53
14
49
54
50
9
6
4
32
4
24
49
12
17
17
14
5
12
60
42
8
7
12
11
25
21
11
11
27
26
51
15
22
51
15
11
58
14
7
23
28
45
14
27
23
15
22
58
15
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $KM-10 MUFFLER 2
2 $NK-XN NYLON CLIP 2
3 $SL6-02 JOINT 2
4 $TL6-01M JOINT 3
5 90K80-020L00 LM BLOCK SR20-L 4
6 91312-03020 BOLT HEX,SOCKET HEAD 2
7 91312-04008 BOLT HEX,SOCKET HEAD 10
8 91312-04010 BOLT HEX,SOCKET HEAD 7
9 91312-04014 BOLT HEX,SOCKET HEAD 2
10 91312-04035 BOLT HEX,SOCKET HEAD 2
11 91312-05010 BOLT HEX,SOCKET HEAD 6
12 91312-05014 BOLT HEX,SOCKET HEAD 16
13 91312-05016 BOLT HEX,SOCKET HEAD 3
14 91312-05018 BOLT HEX,SOCKET HEAD 20
15 91312-05030 BOLT HEX,SOCKET HEAD 8
16 91312-06014 BOLT HEX,SOCKET HEAD 8
17 91312-06018 BOLT HEX,SOCKET HEAD 6
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHN-91AH-00 SENSOR 1
20 KHY-M3T01-20 BASE PLATE 1 1
21 KHY-M3T02-20 BASE PLATE 2 1
22 KHY-M3T03-02 STAY 60,AIR JOINT 2
23 KHY-M3T05-32 CUTTER UPPER,60 2
24 KHY-M3T06-20 BASE PLATE 3 1
25 KHY-M3T07-41 CUTTER LOWER L,720 1
26 KHY-M3T07-51 CUTTER LOWER R,720 1
27 KHY-M3T08-21 BAR 2
28 KHY-M3T09-22 PLATE 4,720 1
29 KHY-M3T0A-20 SIDE BLOCK,L 1
30 KHY-M3T0A-30 SIDE BLOCK,R 1
31 KHY-M3T0B-11 FRONT STAY 4 1
32 KHY-M3T0C-00 CUTTER VALVE 1
33 KHY-M3T0L-01 CYL. COLLAR 3 1
34 KHY-M3T0N-30 COVER M,60 1
35 KHY-M3T0U-10 SENSOR STAY 1
36 KHY-M3T0V-01 DOG.,SENSOR 1
37 KHY-M3T10-10 TAPE CUTTER CYL. 1
38 KHY-M3T11-20 CYL. STAY 1 1
39 KHY-M3T12-11 CYL.BLOCK 1
40 KHY-M3T13-00 CYL. COLLAR 1 1
41 KHY-M3T14-02 CYL. COLLAR 2 1
42 KHY-M3T19-10 SIDE COVER 2
43 KHY-M3T23-00 DAMPER STAY 2
44 KHY-M3T24-10 DAMPER STOPPER 1
45 KHY-M3T26-40 CUTTER COVER,720 1
46 KHY-M3T28-10 FRONT STAY 2
47 KHY-M3T30-11 CYL. STAY 2 1
48 91312-06022 BOLT HEX,SOCKET HEAD 17
49 91312-06030 BOLT HEX,SOCKET HEAD 10
50 91312-06040 BOLT HEX,SOCKET HEAD 2
51 91312-06060 BOLT HEX,SOCKET HEAD 4
52 91312-06070 BOLT HEX,SOCKET HEAD 4
53 91312-08020 BOLT HEX,SOCKET HEAD 2
54 92902-04600 WASHER,PLAIN 2
55 92B12-10035
SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP
1
56 97602-04308
SCREW PAN HEAD W/WASHER
2
57 98902-03008 SCREW BINDING HEAD 2
58 98902-04008 SCREW BINDING HEAD 4
59 KHY-M3T31-10 CYL. STAY 3 2
60 90K41-000800 LABEL,ALERT 1
3
10

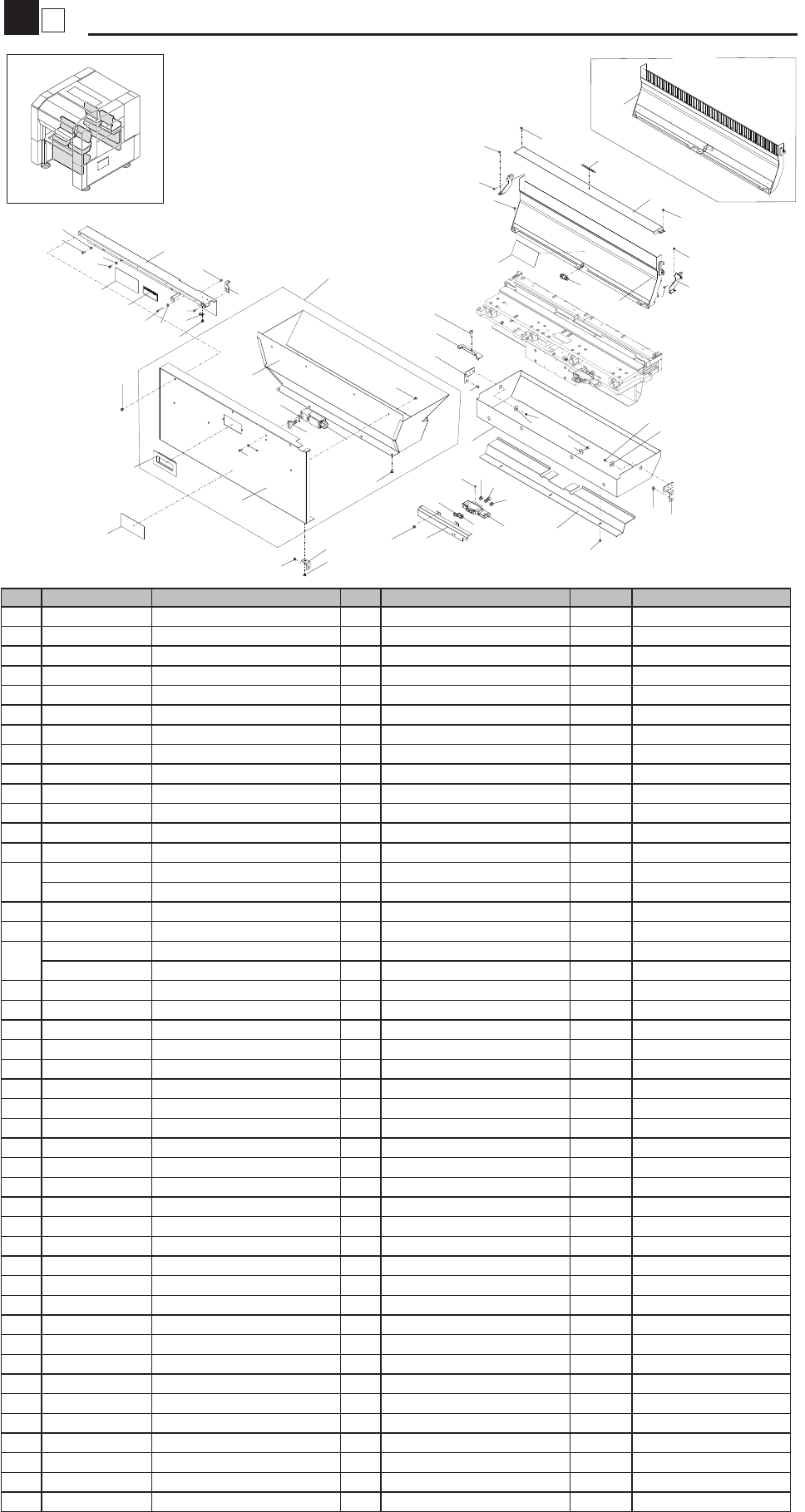

Cutter Valve/Slope/Safty Cover Assy (Before 2010 / May)
Tape Cutter
KKD/KKJ-1108
43
38
38
45
20
22
23
24
21
28
28
32
32
32
32
34
25
26
42
38
40
40
36
36
1
17
16
6
48
48
48
38
48
38
38
5
3
3
3
2
46
40
27
47
41
37
47
46
31
29
30
39
42
33
34
40
44
18
7
8
37
12
13
4
4
11
10
10
11
11
11
10
10
2
9
9
37
43
37
43
43
43
6
37
37
5
7
8
35
21
19
20
37
OLD
OLD
43
37
Fig.1
Fig.2
43
43
43
6
5
37
37
8
7
9
OLD
Fig.3
Fig.4
Fig.5
OLD
Fig.6
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHY-M11C1-15 DUCT 1 1 OK MF50061-2009/5/18
KHY-M11C1-14 DUCT 1 1 OK MF30092-2009/4/9
KHY-M11C1-13 DUCT 1 1 OK MF30136-2009/3/24
KHY-M11C1-12 DUCT 1 1
2 KHY-M11C3-00 BRKT.,DUCT 2
3 KHY-M11C5-00 WASHER 6
4 KHY-M3T0C-00 CUTTER VALVE 2
5
KHY-M3T53-20 UPPER COVER 1,720 1 NG MH20012-2011/2/17
KHY-M3T53-12 UPPER COVER 1, 720 1 Fig 6 Resin tape OK ML30057-2014/5/16
KHY-M3T53-11 UPPER COVER 1, 720 1 OK MJ10035-2012/3/30
KHY-M3T53-10 UPPER COVER 1, 720 1 NG MH30059-2011/3/17
KHY-M3T0E-61 UPPER COVER 1,720 1
Fig.2 type, but the dimensions are
different.
NG H014140-2010/3/17
KHY-M3T0E-60 UPPER COVER 1,720 1 NG MG10035-2010/1/13
KHY-M3T0E-50 UPPER COVER 1,720 1 NG MFX0106-2009/11/30
KHY-M3T0E-11 UPPER COVER 1,720 1 Fig.1
6
KHY-M3T51-20 UPPER COVER 2,720 1 NG MH20012-2011/2/17
KHY-M3T0S-30 UPPER COVER 2,720 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0S-11 UPPER COVER 2,720 1 Fig.1
7
KHY-M3T52-40 FIX STAY L 1 NG MH20012-2011/2/17
KHY-M3T0X-20 STAY L 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0X-00 STAY L 1 Fig.1
8
KHY-M3T52-50 FIX STAY R 1 NG MH20012-2011/2/17
KHY-M3T0X-30 STAY R 1 Fig.2 NG MFX0106-2009/11/30
KHY-M3T0X-10 STAY R 1 Fig.1
9
KHY-M3T25-04 VALVE COVER 1 OK MH60104-2011/8/22
KHY-M3T25-03 VALVE COVER 1 Fig.5 NG MG10035-2010/1/13
KHY-M3T25-02 VALVE COVER 1 Fig.4 NG MF70042-2009/7/22
KHY-M3T25-01 VALVE COVER 1 Fig.3
10 $KM-10 MUFFLER 4
11 $TL6-01 JOINT 2
12 $TL6-01M JOINT 4
13 $TLL6-01M JOINT 1
14
15
16 90K41-000240 SEAL,DON'T TOUCH 1
17 90K41-000730 LABEL,ALERT 3
18 KHY-M1325-01 COVER 25 1
19
KHY-M11C6-A2 COVER 720,SUB ASSY 1 OK MF50125-2009/5/29
KHY-M11C6-A1 COVER 720,SUB ASSY 1
20
KHY-M11C2-42 DUCT 2 1 NG MF50125-2009/5/29
KHY-M11C2-41 DUCT 2,720 1
21
KHY-M11C6-02 COVER,TAPE CUTTER 1 NG MF50125-2009/5/29
KHY-M11C6-01 COVER,TAPE CUTTER 1
22
Delete MF50125-2009/5/29
KHY-M11C7-00 SLOPE,DUCT 1
23 KJJ-M11C9-00 PLATE,NUT 1
24 KJJ-M5127-00 SAFETY SWITCH KEY 1
25 KGS-M1360-00 BOLT 2
26 KHU-M1117-00 PULL 1
27
KJJ-M11CA-00 STAY,HNS. 1 OK MF80092-2009/9/1
KHY-M11C8-00 HNS. STAY 1
28 KJJ-M11C8-00 BRKT.,CUTTER COVER 2
29
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
30 KGS-M5126-02 SCREW (M3X8) 1
31 KW7-M643A-00 SC LOCK 1
32 90990-12J001 SCREW BIN.HEAD W/W 10
33 90K41-000350 LABEL,ALERT 1
34 90K41-000730 LABEL,ALERT 2
35 KHY-M3T40-00 STAY HARNSS 1
36 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20
37 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
39 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X24
40 91312-05008 BOLT HEX.SOCKET HEAD 10 M5X8
41 91312-08012 BOLT HEX.SOCKET HEAD 1 M8X12
42 92902-04200 WASHER PLAIN 4
43 92902-04600 WASHER PLAIN 15
44 92902-05600 WASHER PLAIN 4
45 98902-04006 SCREW BINDING HEAD 8
46 97602-04308 SCREW,PAN HEAD W/W 4
47 $NK-3N NYLON CLIP 4
48 98902-04008 SCREW BINDING HEAD 8 OK MH20012-2011/2/17
4
10
Cutter Valve/Slope/Safty Cover Assy (After 2010 / Jun)
Tape Cutter
KKD/KKJ-1204
25
25
23
23
41
32
21
18
43
26
19
24
35
22
30
21
20
9
8
27
2
20
20
10
7
33
31
34
20
11
36
7
13
6
5
41
10
24
29
7
28
10
15
4
8
7
9
7
7
1
17
42
41
14
16
4
7
7
37
38
37
38
39
40
38
12
3
44
17
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $UK6 JOINT 3
2 KHY-M11C1-20 DUCT 1 2
3 90990-12J001 SCREW, BIN. HEAD W/W 2
4 91312-04006 BOLT HEX,SOCKET HEAD 2
5 91312-05010 BOLT HEX,SOCKET HEAD 4
6 91312-08012 BOLT HEX,SOCKET HEAD 1
7 98902-04006 SCREW BINDING HEAD 16
8 98902-05008 SCREW BINDING HEAD 4
9 KHY-M11C3-01 BRKT.,DUCT 2
10 KHY-M11C5-00 WASHER 6
11 KHY-M11C9-00 COVER,UNDER 1
12 KHY-M3T25-04 VALVE COVER 1
13 KHY-M3T40-00 STAY,HARNESS 1
14
KHY-M3T51-21 UPPER COVER 2,720 1 Slope step OK MK90021-2013/10/16
KHY-M3T51-20 UPPER COVER 2,720 1
15 KHY-M3T52-40 FIX STAY, L 1
16 KHY-M3T52-50 FIX STAY, R 1
17
KHY-M3T53-22 UPPER COVER 1,720 1 Resin tape OK ML20100-2014/3/13
KHY-M3T53-21 UPPER COVER 1,720 1
18
KHY-M11C6-A2 COVER 720,SUB ASSY 1
19 $NK-3N NYLON CLIP 2
20 90990-12J001 SCREW, BIN. HEAD W/W 11
21 91312-04006 BOLT HEX,SOCKET HEAD 4
22 91312-04025 BOLT HEX,SOCKET HEAD 2
23 91312-05008 BOLT HEX,SOCKET HEAD 4
24 92902-04200 WASHER,PLAIN 4
25 92902-05600 WASHER,PLAIN 4
26 97602-04308
SCREW PAN HEAD W/WASHER
2
27 98902-04006 SCREW BINDING HEAD 4
28 KGS-M1360-00 BOLT 2
29 KHU-M1117-00 PULL 1
30 KHY-M11C2-42 DUCT 2 5
31 KHY-M11C6-02 COVER,TAPE CUTTER 5
32 KHY-M1325-02 COVER 25 1
33 KJJ-M11C8-00 BRKT. ,CUTTER COVER 2
34 KJJ-M11C9-00 PLATE, NUT 1
35 KJJ-M11CA-00 STAY,HNS. 1
36 KJJ-M5127-00 SAFETY SWITCH KEY 1
37 $KM-10 MUFFLER 2
38 $TL6-01M JOINT 3
39 91312-03020 BOLT HEX,SOCKET HEAD 2
40 KHY-M3T0C-00 CUTTER VALVE 1
41 90K41-000730 LABEL,ALERT 3
42 90K41-000240 SEAL DON'T TOUCH 1
43 90K41-000350 LABEL,ALERT 1
44 KJJ-M5126-F0 SAFETY SW UNIT ASSY 1
