KKD_KKJ_YS12P(F)_PL - 第45页
6 10 Main Cutter Assy 288 (After 201 1 / Dec) T ape Cutter KKD/KKJ-1203 65 68 64 45 65 68 15 22 31 57 59 58 57 15 46 26 57 64 32 59 14 57 27 28 14 18 15 36 30 29 24 18 19 10 14 49 23 15 53 21 50 70 63 53 35 16 44 54 60 4…
5
10

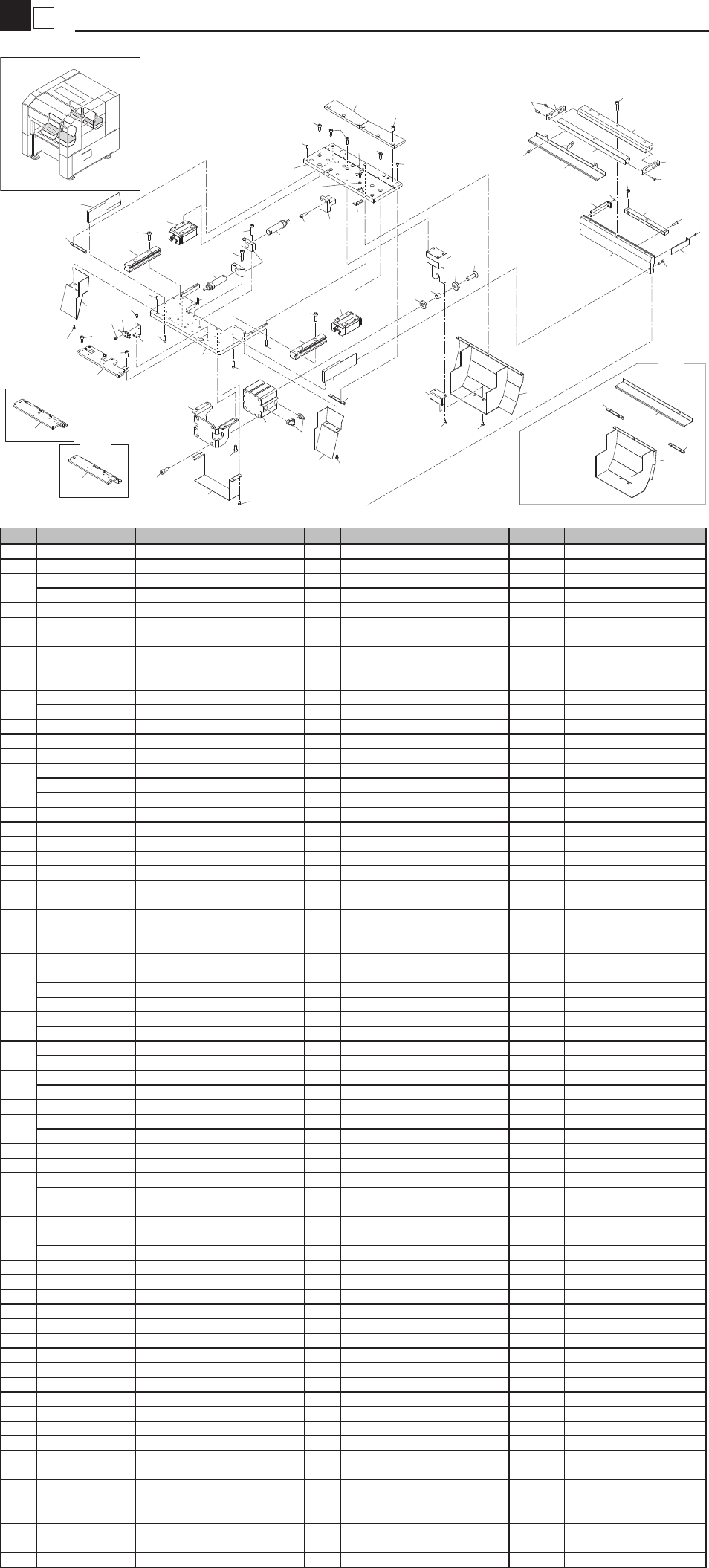

Main Cutter Assy 288 (Before 2011 / Dec)
Tape Cutter
KKD/KKJ-1002
22
25
15
51
45
45
24
24
55
31
38
41
33
48
34
41
18
19
18
47
20
32
52
39
45
37
42
5
45
46
44
4
41
41
1
50
38
30
45
10
9
56
51
16
26
25
26
23
33
48
34
12
13
27
53
11
29
29
51
38
28
38
6
49
3
7
38
8
21
21
OLD
fig.1
24
fig.2
38
54
17
47
14
2
54
43
17
40
35
36
36
44
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T01-04 BASE PLATE 1,288 1
2 KHY-M3T02-00 BASE PLATE 2,288 1
3
KHY-M3T05-01 CUTTER UPPER,288 1 OK MF50145-2009/5/29
KHY-M3T05-00 CUTTER UPPER,288 1
4 KHY-M3T06-03 BASE PLATE 3,288 1
5
KHY-M3T07-A2 CUTTER LOWER,288 1 OK MF50157-2009/5/9
KHY-M3T07-A1 CUTTER LOWER,288 1
6 KHY-M3T08-01 BAR,L 1
7 KHY-M3T08-11 BAR,R 1
8 KHY-M3T09-02 PLATE 4,288 1
9
KHY-M3T10-01 TAPE CUTTER CYL. 1 OK MF30039-2009/3/9
KHY-M3T10-00 TAPE CUTTER CYL. 1
10 KHY-M3T11-01 CYL. STAY 1
11 KHY-M3T12-01 CYL.BLOCK 1
12 KHY-M3T13-00 CYL. COLLAR 1 1
13
KHY-M3T14-02 CYL. COLLAR 2 1 OK MF60124-2009/6/16
KHY-M3T14-01 CYL. COLLAR 2 1 OK MF30099-2009/3/19
KHY-M3T14-00 CYL. COLLAR 2 1
14 KHY-M3T16-00 BACK STAY 1
15 KHY-M3T18-00 COVER L,288 1
16 KHY-M3T18-10 COVER R,288 1
17 KHY-M3T19-00 SIDE COVER 2
18 KHY-M3T22-00 SHOCK ABSORBERS 2
19 KHY-M3T23-00 DAMPER STAY 2
20 KHY-M3T24-00 DAMPER STOPPER 1
21
KHY-M3T26-20 CUTTER COVER,288 1 NG MFX0084-2009/11/25
KHY-M3T26-00 CUTTER COVER,288 1
22 KHY-M3T0A-01 SIDE BLOCK,L 1
23 KHY-M3T0A-11 SIDE BLOCK.R 1
24
KHY-M3T0B-04 FRONT STAY 1 NG MFX0139-2009/12/3
KHY-M3T0B-03 FRONT STAY 1 g.2 NG MF70173-2009/8/3
KHY-M3T0B-02 FRONT STAY 1 g.1
25
Delete MFX0081-2009/11/18
KHY-M3T0H-00 CYL. COVER,L 1
26
Delete MFX0081-2009/11/18
KHY-M3T0H-10 CYL. COVER,R 1
27
KHY-M3T0L-01 CYL. COLLAR 3 1 OK MF30061-2009/3/13
KHY-M3T0L-00 CYL. COLLAR 3 1
28 KHY-M3T0M-00 STAY,COVER M 1
29
KHY-M3T0N-10 COVER M 1 OK MFX0081-2009/11/18
KHY-M3T0N-00 COVER M 1
30 KHY-M3T0P-00 CYL. COVER 1 1
31 KHY-M3T0U-00 SENSOR STAY 1
32
KHY-M3T0V-01 DOG.,SENSOR 1 OK MFX0139-2009/12/3
KHY-M3T0V-00 DOG.,SENSOR 1
33 90K73-7L0130 LM RAIL 2
34 90K80-025L00 LM BLOCK,HSR25-L 2
35
KHY-M652U-00 SENSOR,F1CUT CL.ASSY 1 Front Left
KHY-M652U-10 SENSOR,F2CUT CL.ASSY 1 Front Right
36 91312-06030 BOLT HEX.SOCKET HEAD 4 M3X4
37 91312-04006 BOLT HEX.SOCKET HEAD 7 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 28 M4X8
39 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
40 91312-04016 BOLT HEX.SOCKET HEAD 2 M4X16
41 91312-04018 BOLT HEX.SOCKET HEAD 12 M4X18
42 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
43 91312-05018 BOLT HEX.SOCKET HEAD 4 M5X18
44 99480-04010 PIN PARALLEL: 4X10 4
45 91312-06014 BOLT HEX.SOCKET HEAD 18 M6X14
46 91312-06016 BOLT HEX.SOCKET HEAD 6 M6X16
47 91312-06020 BOLT HEX.SOCKET HEAD 5 M6X20
48 91312-06022 BOLT HEX.SOCKET HEAD 4 M6X22
49 91312-06025 BOLT HEX.SOCKET HEAD 3 M6X25
50 91312-08020 BOLT HEX.SOCKET HEAD 4 M8X20
51 98902-04008 SCREW BINDING HEAD 6
52 92902-04600 WASHER PLAIN 2
53 92B12-10035 SCREW,H.S.COUN. 1
54 98702-03006 SCREW FLAT HEAD 4
55 98902-03008 SCREW BINDING HEAD 2
56 $TL4-02 JOINT 2
6
10

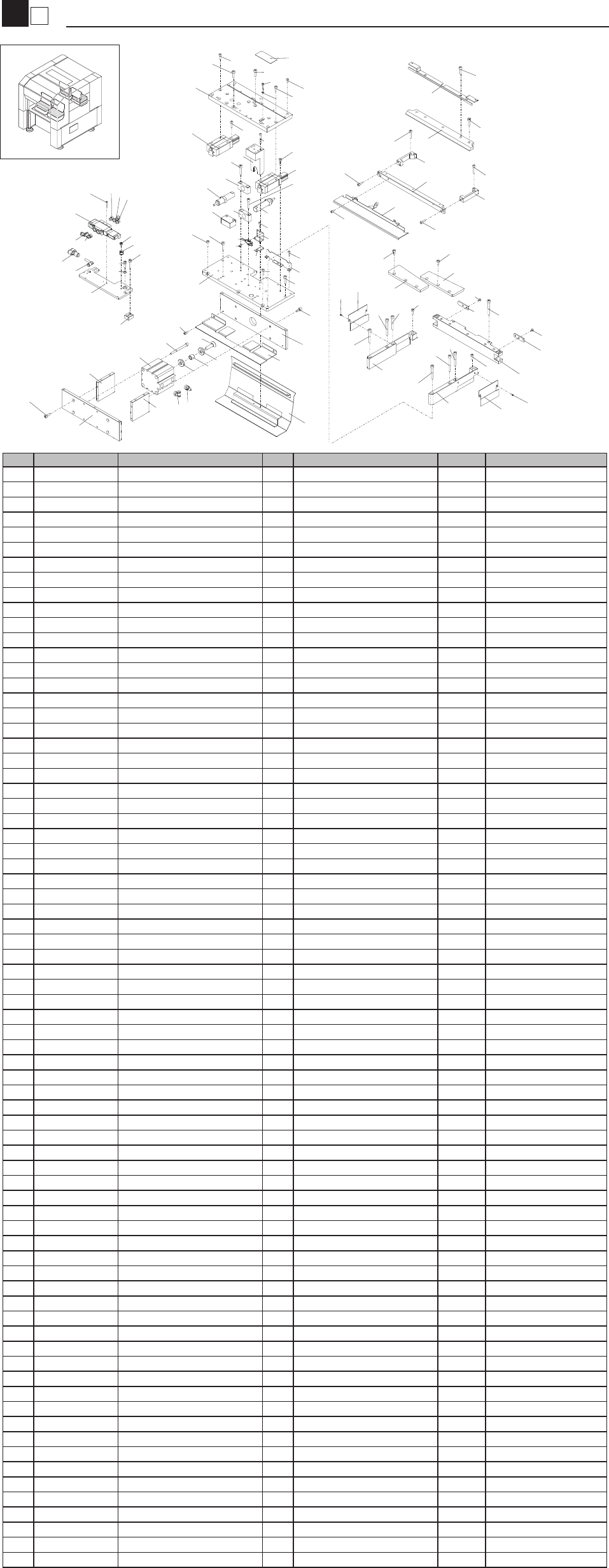

Main Cutter Assy 288 (After 2011 / Dec)
Tape Cutter
KKD/KKJ-1203
65
68
64
45
65
68
15
22
31
57
59
58
57
15
46
26
57
64
32
59
14
57
27
28
14
18
15
36
30
29
24
18
19
10
14
49
23
15
53
21
50
70
63
53
35
16
44
54
60
43
71
54
10
20
48
47
38
47
40
39
72,73
10
16
56
3
56
20
66
67
3
17
42
8
67
13
41
8
17
19
25
15
52
52
11
6
61
69
12
33
15
5
37
62
55
1
4
51
1
2
34
7
4
4
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $KM-10 MUFFLER 2
2 $NK-2N NYLON CLIP 1
3 $TL4-02 JOINT 2
4 $TL6-01M JOINT 3
5 $ULA6M JOINT 2
6 $UYD6-4 JOINT 2
7 90990-11J003 SCREW, PAN HEAD W/W 1
8 90K80-020L00 LM BLOCK SR20-L 2
9 91312-03020 BOLT HEX,SOCKET HEAD 2
10 91312-04008 BOLT HEX,SOCKET HEAD 8
11 91312-04010 BOLT HEX,SOCKET HEAD 3
12 91312-04014 BOLT HEX,SOCKET HEAD 2
13 91312-04035 BOLT HEX,SOCKET HEAD 2
14 91312-05010 BOLT HEX,SOCKET HEAD 8
15 91312-05014 BOLT HEX,SOCKET HEAD 16
16 91312-05016 BOLT HEX,SOCKET HEAD 3
17 91312-05018 BOLT HEX,SOCKET HEAD 4
18 91312-05025 BOLT HEX,SOCKET HEAD 4
19 91312-06014 BOLT HEX,SOCKET HEAD 8
20 KHY-M3T22-00 SHOCK ABSORBERS 2
21 KHY-M3T01-30 BASE PLATE 1 1
22 KHY-M3T02-30 BASE PLATE 2 1
23 KHY-M3T04-20 STAY 1
24 KHY-M3T05-40 CUTTER UPPER,288 1
25 KHY-M3T06-30 BASE PLATE 3 1
26 KHY-M3T07-60 CUTTER LOWER L,288 1
27 KHY-M3T07-70 CUTTER LOWER R,288 1
28 KHY-M3T08-30 BAR,L 1
29 KHY-M3T08-40 BAR,R 1
30 KHY-M3T09-30 PLATE 4,288 1
31 KHY-M3T0A-40 SIDE BLOCK,L 1
32 KHY-M3T0A-50 SIDE BLOCK,R 1
33 KHY-M3T0B-20 FRONT STAY 1
34 KHY-M3T0C-00 CUTTER VALVE 1
35 KHY-M3T0L-01 CYL. COLLAR 3 1
36 KHY-M3T0N-40 COVER M,24 1
37 90K41-000800 LABEL,ALERT 1
38 KHY-M3T0U-10 SENSOR STAY 1
39 KHY-M3T0V-01 DOG.,SENSOR 1
40 KHY-M3T10-10 TAPE CUTTER CYL. 2
41 KHY-M3T11-20 CYL. STAY 1 1
42 KHY-M3T12-11 CYL.BLOCK 1
43 KHY-M3T13-00 CYL. COLLAR 1 1
44 KHY-M3T14-02 CYL. COLLAR 2 1
45 KHY-M3T19-20 SIDE COVER,L 1
46 KHY-M3T19-30 SIDE COVER,R 1
47 KHY-M3T23-00 DAMPER STAY 2
48 KHY-M3T24-10 DAMPER STOPPER 1
49 KHY-M3T26-50 CUTTER COVER,288 1
50 KHY-M3T30-20 CYL. STAY 2 1
51 91312-06016 BOLT HEX,SOCKET HEAD 2
52 91312-06018 BOLT HEX,SOCKET HEAD 5
53 91312-06020 BOLT HEX,SOCKET HEAD 5
54 91312-06022 BOLT HEX,SOCKET HEAD 5
55 91312-06025 BOLT HEX,SOCKET HEAD 4
56 91312-06030 BOLT HEX,SOCKET HEAD 4
57 91312-06045 BOLT HEX,SOCKET HEAD 4
58 91312-06050 BOLT HEX,SOCKET HEAD 2
59 91312-06055 BOLT HEX,SOCKET HEAD 2
60 91312-06070 BOLT HEX,SOCKET HEAD 4
61 92902-04600 WASHER,PLAIN 2
62 92902-06600 WASHER,PLAIN 2
63 92B12-10035
SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP
1
64 98702-03006 SCREW,FLAT HEAD 4
65 98702-04008 SCREW,FLAT HEAD 4
66 98902-03008 SCREW BINDING HEAD 2
67 KHY-M3T31-10 CYL. STAY 3 2
68 KHY-M3T34-10 PLATE,GUIDE 2
69 KHY-M3T35-20 FRONT STAY,2 2
70 KHY-M3T39-00 COVER,UNDER 1
71 KHY-M3T69-10. COVER BLOCK 2
72 KHY-M652U-00 SENSOR,F1CUT CL.ASSY 1 F1
73 KHY-M652U-10 SENSOR,F2CUT CL.ASSY 1 F2
7
10

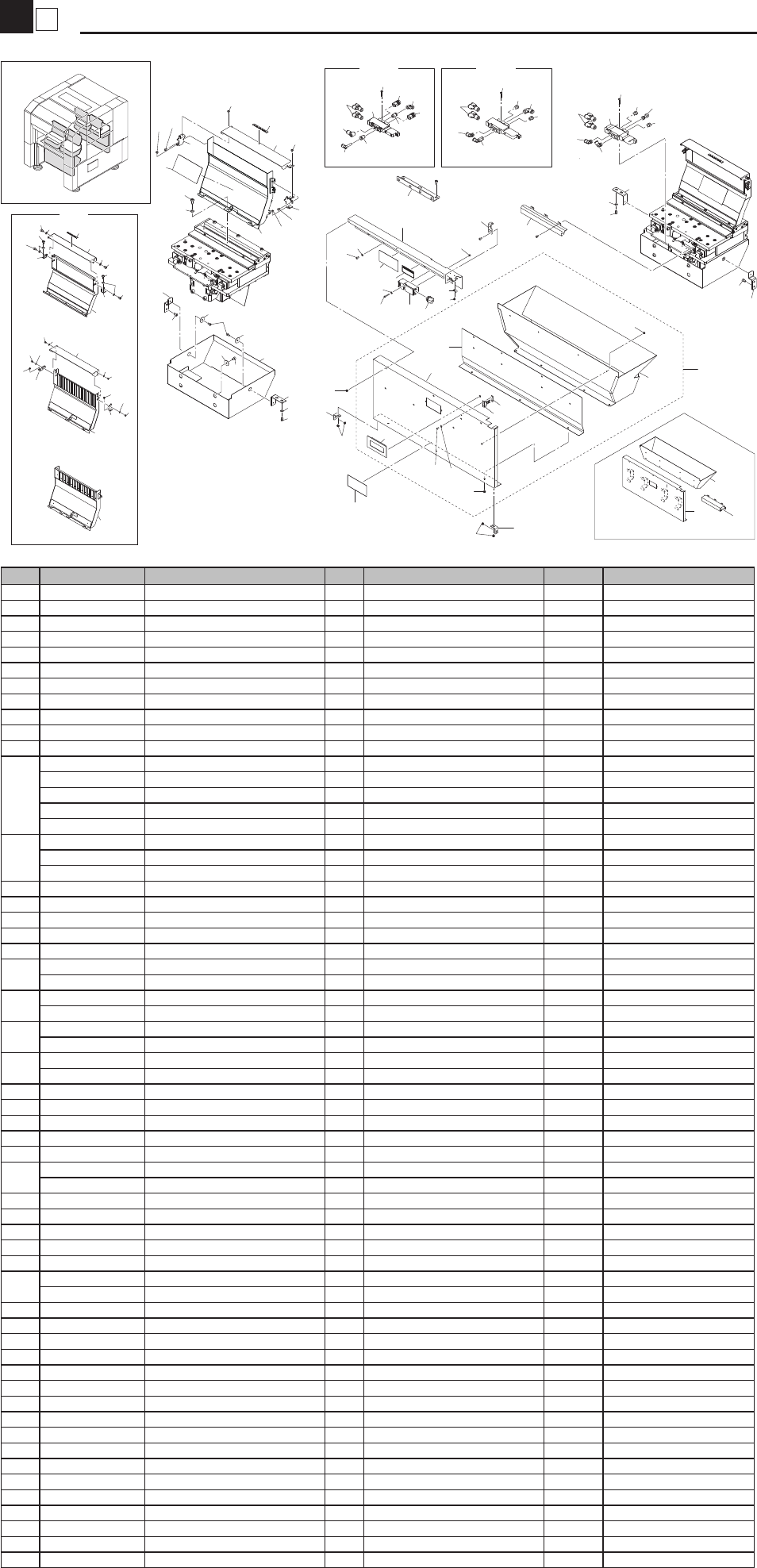

Cutter Valve/Slope/Safty Cover Assy (Befor 2011 / Dec)
Tape Cutter
KKD/KKJ-1002
Front RightFront Left
13
43
38
38
43
11
11
11
10
18
44
41
33
32
40
42
28
30
46
45
20
19
22
21
24
23
31
25
26
27
27
31
31
33
42
47
35
9
10
9
37
48
50
48
48
49
48
50
51
50
50
1
7
7
37
37
3
5
3
4
4
2
6
1
7
43
39
39
41
42
39
41
36
42
39
41
8
34
34
31
OLD
OLD-1 OLD-2
21
20
38
15
12
12
38
38
43
43
29
29
17
13
15
14
43
38
43
39
38
38
38
43
43
39
OLD
Fig 1
Fig 2
Fig 3
12
14
17
13
15
12
14
16
39
29
29
29
29
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T0C-00 CUTTER VALVE 1
2 $SLH6-01 JOINT 1
3 $KM-11 MUFFLER 2
4 $TSH6-01 JOINT 2
5 $UL6M JOINT 1
6 $ULA6M JOINT 1
7 $UYD6-4 JOINT 2
8 KHY-M11C1-01 DUCT 1 1
9 KHY-M11C3-00 BRKT.,DUCT 1
10 KHY-M11C4-00 BRKT.,DUCT 1
11 KHY-M11C5-00 WASHER 5
12
KHY-M3T53-02 UPPER COVER 1,288 1 Resin tape OK ML30057-2014/5/16
KHY-M3T53-01 UPPER COVER 1,288 1 Fig 3 OK MJ10035-2012/3/30
KHY-M3T53-00 UPPER COVER 1,288 1 Fig 3 NG MG90065-2011/1/25
KHY-M3T0E-40 UPPER COVER 1,288 1 Fig 2 NG MFX0084-2009/11/25
KHY-M3T0E-01 UPPER COVER 1,288 1 Fig 1
13
KHY-M3T51-00 UPPER COVER 2,288 1 NG MG90065-2011/1/25
KHY-M3T0S-20 UPPER COVER 2,288 1 Fig 2
NG
MFX0084-2009/11/25
KHY-M3T0S-01 UPPER COVER 2,288 1 Fig 1
14 KHY-M3T0R-00 STAY L 1
15 KHY-M3T0R-10 STAY R 1
16 90K41-000730 LABEL,ALERT 3
17 90K41-000240 SEAL,DON'T TOUCH 1
18 KHY-M1325-01 COVER 25 1
19
KHY-M11C6-A2 COVER 720,SUB ASSY 1 OK MF50125-2009/5/29
KHY-M11C6-A1 COVER 720,SUB ASSY 1
20
KHY-M11C2-42 DUCT 2 1 NG MF50125-2009/5/29
KHY-M11C2-41 DUCT 2,720 1
21
KHY-M11C6-02 COVER,TAPE CUTTER 1 NG MF50125-2009/5/29
KHY-M11C6-01 COVER,TAPE CUTTER 1
22
Delete MF50125-2009/5/29
KHY-M11C7-00 SLOPE,DUCT 1
23 KJJ-M11C9-00 PLATE,NUT 1
24 KJJ-M5127-00 SAFETY SWITCH KEY 1
25 KGS-M1360-00 BOLT 2
26 KHU-M1117-00 PULL 1
27 KJJ-M11C8-00 BRKT.,CUTTER COVER 2
28
KJJ-M5126-F0 SAFETY SW UNIT ASSY 1 OK MFX0093-2009/12/1
KJJ-M5126-00 SAFETY SWITCH 1
29 98902-04008 SCREW BINDING HEAD 8 MG90065-2011/1/25
30 KW7-M643A-00 SC LOCK 1
31 90990-12J001 SCREW BIN.HEAD W/W 10
32 90K41-000350 LABEL,ALERT 1
33 90K41-000730 LABEL,ALERT 2
34
KJJ-M3T25-11 VALVE COVER 2 1 NG MF70173-2009/8/3
KJJ-M3T25-10 VALVE COVER 2 1
35 KJJ-M11CA-00 STAY, HNS. 1
36 KHY-M3T40-00 STAY,HARNESS 1
37 91312-03020 BOLT HEX.SOCKET HEAD 2 M3X20
38 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
39 91312-04008 BOLT HEX.SOCKET HEAD 13 M4X8
40 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X24
41 91312-05008 BOLT HEX.SOCKET HEAD 10 M5X8
42 92902-04200 WASHER PLAIN 4
43 92902-04600 WASHER PLAIN 15
44 92902-05600 WASHER PLAIN 4
45 98902-04006 SCREW BINDING HEAD 8
46 97602-04308 SCREW,PAN HEAD W/W 4
47 $NK-3N NYLON CLIP 4
48 $KM-10 MUFFLER 2 NG MF30188-2009/3/30
49 $TL6-01 JOINT 1 NG MF30188-2009/3/30
50 $TL6-01M JOINT 3 NG MF30173-2009/8/3
51 $TLL6-01M JOINT 1 NG MF30188-2009/3/30
