KKD_KKJ_YS12P(F)_PL - 第48页
9 10 Non T ape Cutter (Old T ype) T ape Cutter KKD/KKJ-1 103 9 13 13 13 10 3 12 7 1 1 5 8 10 8 1 1 10 8 1 1 7 7 OLD 1 1 5 1 1 7 6 14 2 13 9 10 13 9 1 24 25 29 29 29 17 27 30 27 15 29 25 29 24 24 29 18 23 25 23 23 26 21 2…
8
10

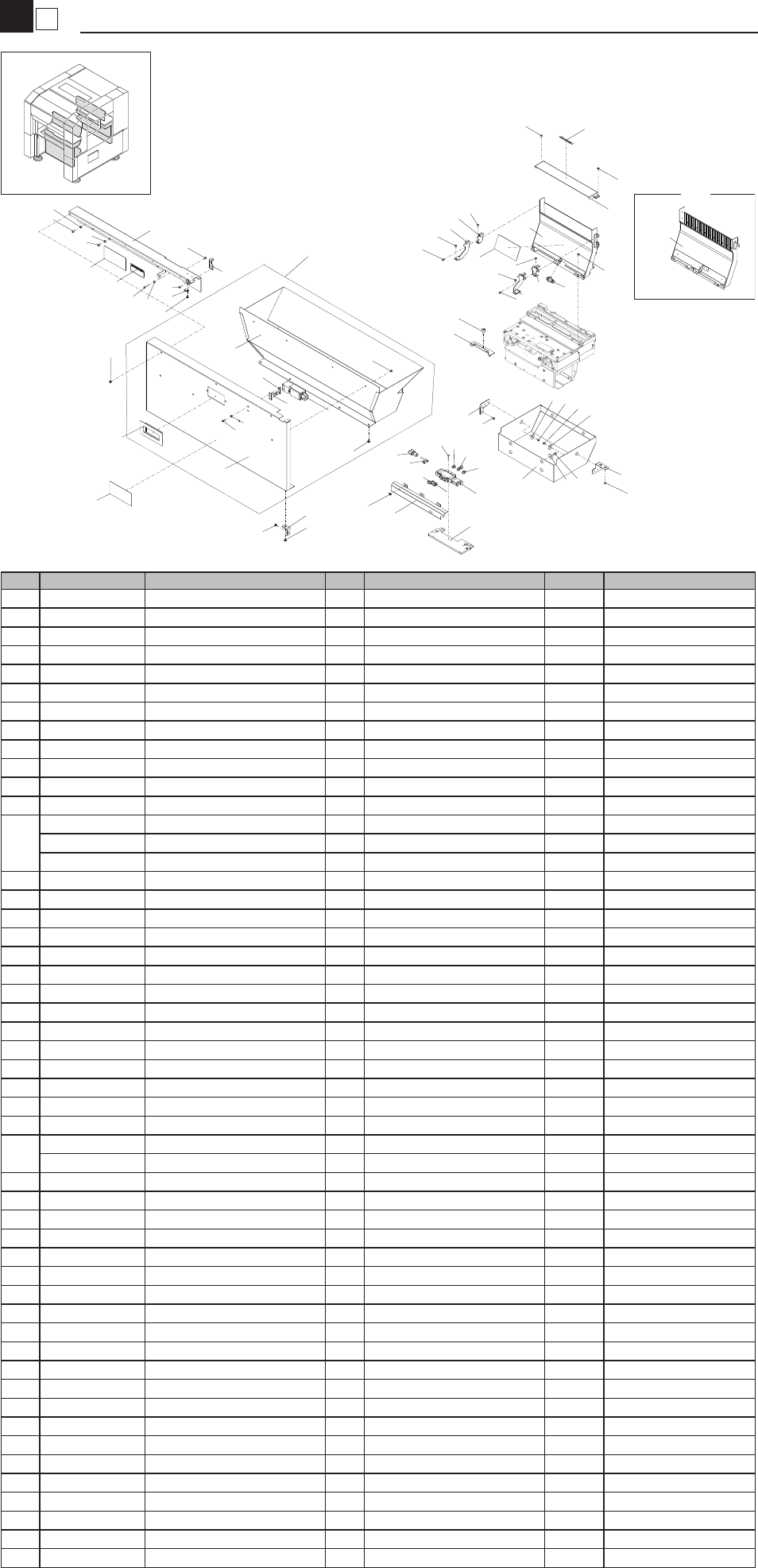

Cutter Valve/Slope/Safty Cover Assy (After 2011 / Dec)
Tape Cutter
KKD/KKJ-1204
25
25
23
23
41
32
21
18
43
26
19
24
35
22
30
21
20
27
45
8
20
20
33
31
44
20
34
7
36
7
49
44
5
17
44
41
14
24
7
29
2
46
6
13
1
7
7
9
7
11
41
7
28
4
42
7
10
7
12
7
4
15
48
37
47
38
37
38
39
40
38
3
16
13
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $UK6 JOINT 3
2 KGS-M1360-00 BOLT 2
3 90990-12J001 SCREW, BIN. HEAD W/W 2
4 91312-04006 BOLT HEX,SOCKET HEAD 2
5 91312-05010 BOLT HEX,SOCKET HEAD 3
6 91312-08012 BOLT HEX,SOCKET HEAD 1
7 98902-04006 SCREW BINDING HEAD 17
8 98902-05008 SCREW BINDING HEAD 2
9 KHY-M3T52-00 FES STAY,L 1
10 KHY-M3T52-10 FES STAY,R 1
11 KHY-M3T52-20 FIX STAY, L 1
12 KHY-M3T52-30 FIX STAY, R 1
13
KHY-M3T53-32 UPPER COVER 1,288 1 Resin tape OK ML20100-2014/3/13
KHY-M3T53-31 UPPER COVER 1,288 1 OK MJ10031-2012/1/18
KHY-M3T53-30 UPPER COVER 1,288 1
14 KHY-M3T40-00 STAY,HARNESS 1
15 KHY-M3T0B-20 FRONT STAY 1
16 KHY-M3T25-10 VALVE COVER 2 1
17 KHY-M11C1-30 DUCT 1 1
18 KHY-M11C6-A2 COVER 720,SUB ASSY 1
19 $NK-3N NYLON CLIP 2
20 90990-12J001 SCREW, BIN. HEAD W/W 11
21 91312-04006 BOLT HEX,SOCKET HEAD 4
22 91312-04025 BOLT HEX,SOCKET HEAD 2
23 91312-05008 BOLT HEX,SOCKET HEAD 4
24 92902-04200 WASHER,PLAIN 4
25 92902-05600 WASHER,PLAIN 4
26 97602-04308
SCREW PAN HEAD W/WASHER
2
27 98902-04006 SCREW BINDING HEAD 4
28
KHY-M3T51-01 UPPER COVER 2,288 1 Slope step OK MK90021-2013/10/16
KHY-M3T51-00 UPPER COVER 2,288 1
29 KHU-M1117-00 PULL 1
30 KHY-M11C2-42 DUCT 2 5
31 KHY-M11C6-02 COVER,TAPE CUTTER 5
32 KHY-M1325-02 COVER 25 1
33 KJJ-M11C8-00 BRKT. ,CUTTER COVER 2
34 KJJ-M11C9-00 PLATE, NUT 1
35 KJJ-M11CA-00 STAY,HNS. 1
36 KJJ-M5127-00 SAFETY SWITCH KEY 1
37 $KM-10 MUFFLER 2
38 $TL6-01M JOINT 3
39 91312-03020 BOLT HEX,SOCKET HEAD 2
40 KHY-M3T0C-00 CUTTER VALVE 1
41 90K41-000730 LABEL,ALERT 3
42 90K41-000240 SEAL DON'T TOUCH 1
43 90K41-000350 LABEL,ALERT 1
44 KHY-M11C5-00 WASHER 5
45 KHY-M11C3-01 BRKT.,DUCT 1
46 KHY-M11C4-01 BRKT.,DUCT 1
47 $ULA6M JOINT 1
48 $UYD6-4 JOINT 1
49 KJJ-M5126-F0 SAFETY SW UNIT ASSY 1

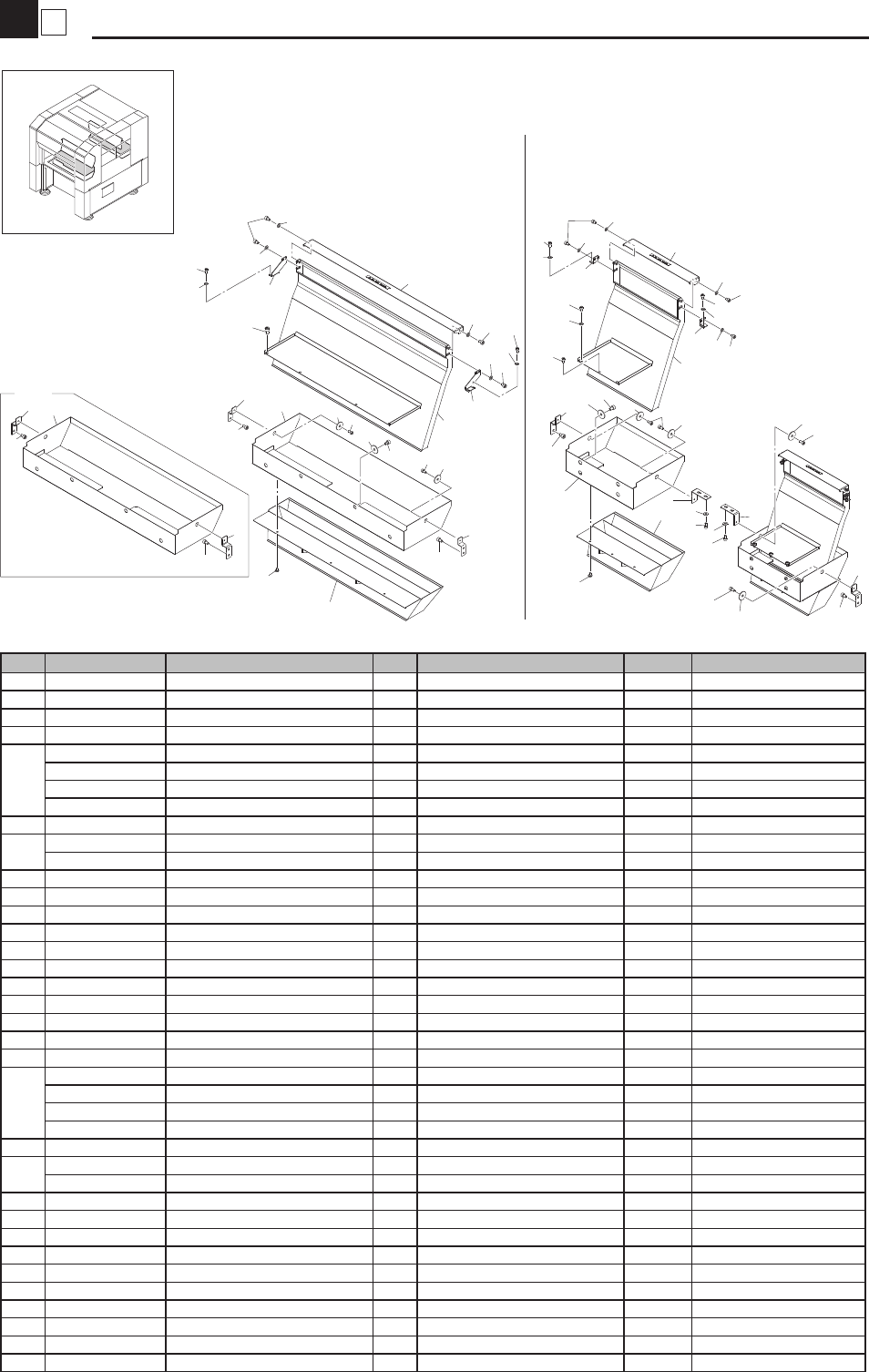

9
10
Non Tape Cutter (Old Type)
Tape Cutter
KKD/KKJ-1103
9
13
13
13
10
3
12
7
11
5
8
10
8
11
10
8
11
7
7
OLD
11
5
11
7
6
14
2
13
9
10
13
9
1
24
25
29
29
29
17
27
30
27
15
29
25
29
24
24
29
18
23
25
23
23
26
21
26
19
31
20
22
28
25
28
25
26
23
22
21
26
13
25
23
720 (60) Type
288 (24) Type
4
16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T0E-30 UPPER COVER 1,720 1
2 KHY-M3T0S-11 UPPER COVER 2,720 1
3 KHY-M3T0X-00 STAY L 1
4 KHY-M3T0X-10 STAY R 1
5
KHY-M11C1-15 DUCT 1 1 OK MF50061-2009/5/18
KHY-M11C1-14 DUCT 1 1 OK MF30092-2009/4/9
KHY-M11C1-13 DUCT 1 1 OK MF30136-2009/3/24
KHY-M11C1-12 DUCT 1 1
6 KHY-M11C2-30 DUCT 2 1
7
KHY-M11C3-01 BRKT.,DUCT 2 OK MG10080-2010/1/19
KHY-M11C3-00 BRKT.,DUCT 2
8 KHY-M11C5-00 WASHER 6
9 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
10 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
11 91312-05008 BOLT HEX.SOCKET HEAD 8 M5X8
12 91312-06010 BOLT HEX.SOCKET HEAD 4 M6X10
13 92902-04600 WASHER PLAIN 12
14 98902-04006 SCREW BINDING HEAD 3
15 KHY-M3T0E-21 UPPER COVER 1,284 1
16 KHY-M3T0S-01 UPPER COVER 2,288 1
17 KHY-M3T0R-00 STAY L 1
18 KHY-M3T0R-10 STAY R 1
19
KHY-M11C1-04 DUCT 1 1 OK MF50043-2009/5/18
KHY-M11C1-03 DUCT 1 1 OK MF30092-2009/4/9
KHY-M11C1-02 DUCT 1 1 OK MF30136-2009/3/4
KHY-M11C1-01 DUCT 1 1
20 KHY-M11C2-20 DUCT 2 1
21
KHY-M11C3-01 BRKT.,DUCT 1 OK MF10080-2009/1/19
KHY-M11C3-00 BRKT.,DUCT 1
22 KHY-M11C4-00 BRKT.,DUCT 1
23 KHY-M11C5-00 WASHER 5
24 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
25 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
26 91312-05008 BOLT HEX.SOCKET HEAD 5 M5X8
27 91312-06010 BOLT HEX.SOCKET HEAD 3 M6X10
28 92902-04200 WASHER PLAIN 2
29 92902-04600 WASHER PLAIN 10
30 92902-06600 WASHER PLAIN 2
31 98902-04006 SCREW BINDING HEAD 3
10
10

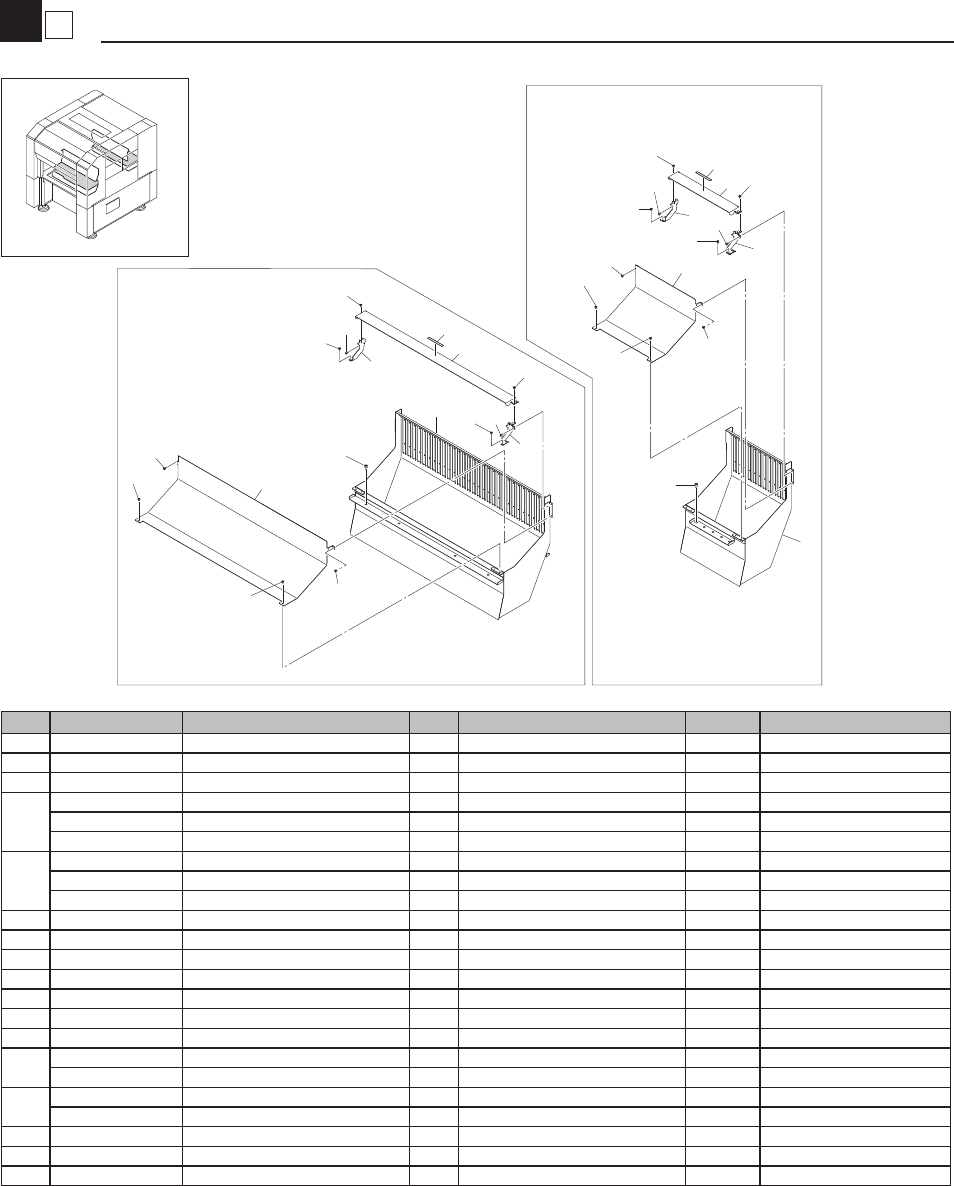

Non Tape Cutter (New Type)
Tape Cutter
KKD/KKJ-1204
1
17
7
17
7
10
17
16
16
17
17
12
13
17
17
17
9
8
17
17
17
15
15
4
17
17
17
17
17
5
16
16
60-FIX
24-FIX
14
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M3T51-00 UPPER COVER 2.288 2
2
3
4
KHY-M3U01-02 UPPER COVER 1.288 2 SET MJ30136-2012/3/28
KHY-M3U01-01 UPPER COVER 1.288 2 OK MH50098-2011/6/3
KHY-M3U01-00 UPPER COVER 1.288 2
5
KHY-M3U02-02 SLOPE COVER 288 2 SET MJ30136-2012/3/28
KHY-M3U02-01 SLOPE COVER 288 2 OK MH50098-2011/6/3
KHY-M3U02-00 SLOPE COVER 288 2
6
7 60K41-000240 SEAL DON’T TOUCH 2
8 KHY-M3T52-20 FIX STAY. L 2
9 KHY-M3T52-30 FIX STAY. R 2
10 KHY-M3T51-20 UPPER COVER 2.720 1
11 KHY-M3T52-40 FIX STAY. L 1
12 KHY-M3T52-50 FIX STAY. R 1
13
KHY-M3U01-21 UPPER COVER 1.720 2 OK MH50098-2011/6/3
KHY-M3U01-20 UPPER COVER 1.720 2
14
KHY-M3U02-21 SLOPE COVER 720 2 OK MH50098-2011/6/3
KHY-M3U02-20 SLOPE COVER 720 2
15 91312-06010 BOLT HEX. SOCKET HEAD 10 M6X10
16 91312-04006 BOLT HEX. SOCKET HEAD 16 M4X6
17 98902-04006 SCREW BINDING HEAD 38
