3 1 1 FDR Stand FDR KKD/KKJ-1002 10 12 10 12 10 6 9 1 1 10 6 10 6 10 6 4 9 9 9 3 1 7 9 9 2 7 5 8 5 8 5 8 5 8 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHJ-MK001-10 MAIN FRAME 1 2 KHJ-MK002-00 …
2
11

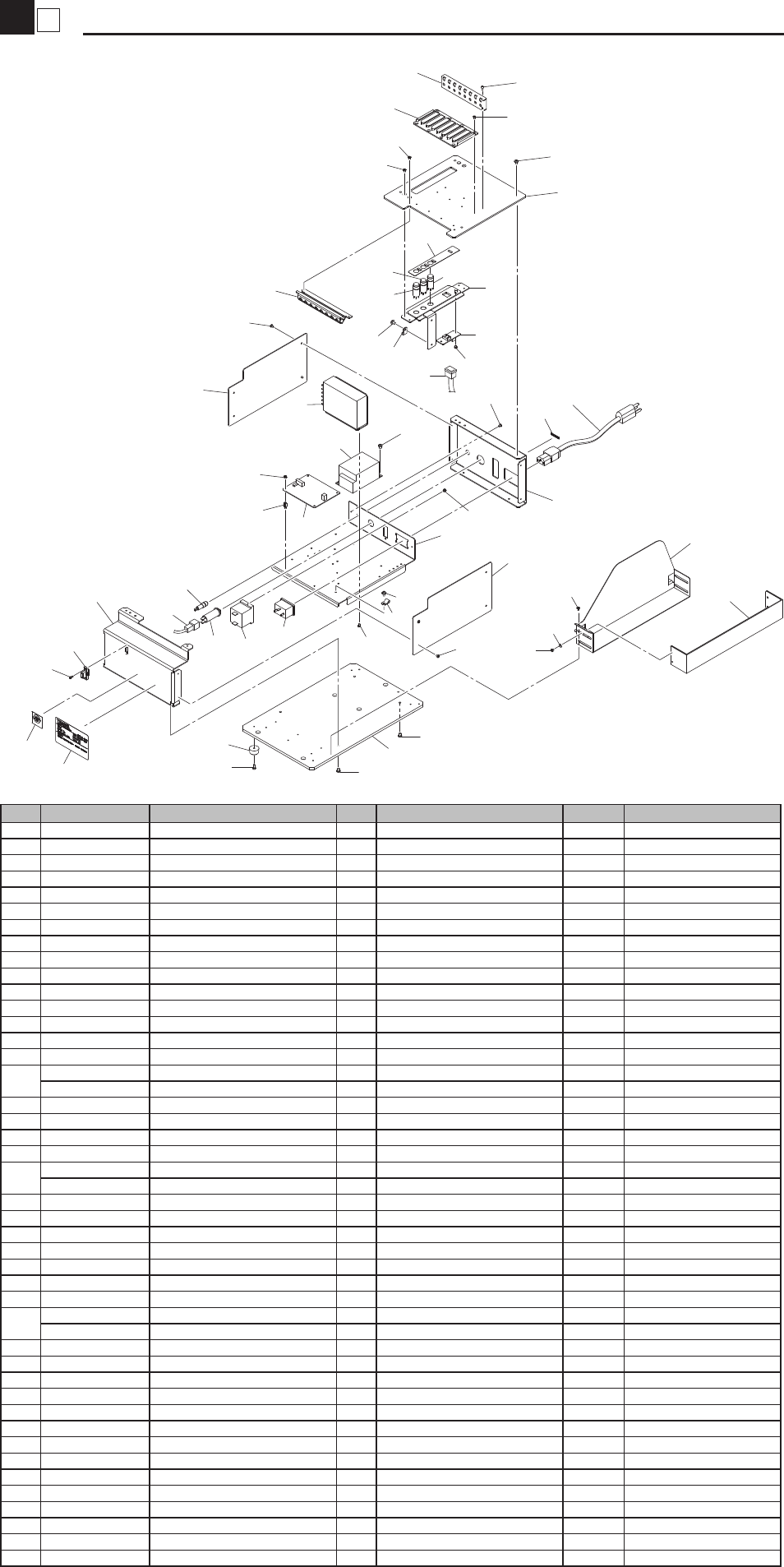

FDR Power ST
FDR
KKD/KKJ-1203
12
20
38
19
16
38
28
43
42
37
43
42
37
37
34
23
6
33
32
30
28
41
38
2
10
9
35
3
8
13
29
31
14
7
37
36
21
37
36
18
22
24
5
1
11
37
38
15
25
17
37
26
27
4
38
40
39
38
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KHJ-MD201-00 FEEDER PLATE
1
2 KHJ-MD202-00 SIDE PLATE, L 1
3 KHJ-MD203-00 SIDE PLATE, R 1
4 KHJ-MD204-00 CLAMP PLATE 1
5 KHJ-MD205-00 FEEDER STOPPER 1
6 KHJ-MD206-00 CONNECTOR PLATE 1
7 KHJ-MD207-00
UNDER COVER
1
8 KHJ-MD208-00 BACK COVER 1
9 KHJ-MD209-00 BASE PLATE 1
10 KHJ-MD210-00 FOOT 4
11 KJJ-M371R-000 RAIL GUIDE 16P 1
12 KHJ-MD212-00 BKT. SWITCH 1
13 KHJ-MD213-00 REEL HOLDER, FIX. 1
14 KHJ-MD214-00 REEL HOLDER, MOVE 1
15 KHJ-MD110-00 LABEL, PITCH 1
16
KHJ-M4484-02 FDR. ST. BOARD ASSY 1 OK MF30081-2009/3/16
KHJ-M4484-01 FDR. ST. BOARD ASSY 1
17 KHJ-M4486-00 PITCH LED BOARD ASSY 1
18 KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1
19 KHJ-M537A-00 NOISE FILTER 1
20 KHJ-M6561-10 POWER SUPPLY 1 1
21
KHJ-M661B-01 HNS, AC IN 2 1 OK ME90041-2008/9/17
KHJ-M661B-00 HNS, AC IN 2 1
22 KHJ-M662A-00 HNS, CP DC24V 1
23 KHJ-M662B-00 HNS, LAMP 1
24 KHJ-M662C-000 HNS,BRD.PWR 1
25 KHJ-M663C-00 HNS, PITCH UP 1
26 KHJ-M663D-00 HNS, PITCH DOWN 1
27 KHJ-M663E-00 HNS, PITCH SET 1
28 KHY-M66TE-00 HNS, F. CTRL-FDR. 1
29
KJ3-M662A-00 HNS, AC IN 1 1 Abroad parts
KJ3-M661A-00 HNS, AC IN 1 1 Domestis parts
30 KHJ-MD215-001 LABEL,SERIAL 1
31 KHA-M5184-11 SEAL,LABEL 1
32 KHG-M6417-00 SEAL,CE 1
33 KHY-M372M-00 SCREW,STAD 2
34 90563-03J100 SPACER BOLT 4
35 92902-03200 WASHER PLAIN 4
36 98902-03004 SCREW BINDING HEAD 4
37 98902-03005 SCREW BINDING HEAD 28
38 98902-04006 SCREW BINDING HEAD 10
39 98702-03006 SCREW FLAT HEAD 8
40 91312-03006 BOLT HEX.SOCKET HEAD 3 M3X8
41 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X7
42 90990-11J003 SCREW,PAN HEAD W/W 16
43 $NK-3N NYLON CLIP 12
3
11
FDR Stand
FDR
KKD/KKJ-1002
10
12
10
12
10
6
9
11
10
6
10
6
10
6
4
9
9
9
3
1
7
9
9
2
7
5
8
5
8
5
8
5
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHJ-MK001-10 MAIN FRAME 1
2 KHJ-MK002-00 FEEDER-48 PLATE (12) 3
3 KHJ-MK003-00 BRACKET, 1 3
4 KHJ-MK004-00 BRACKET, 2 3
5 KHY-M371R-00 RAIL GUIDE 12P 12
6 KM0-M3741-00 CASTER 63 2
7 92907-04200 WASHER, PLAIN 30
8 98707-03006 SCREW, FLAT HEAD 120
9 91317-04008 BOLT HEX. SOCKET HEAD 31 M4X8
10 91317-06008 BOLT HEX. SOCKET HEAD 24 M6X8
11
KHY-M373C-10 CHAIN 1
KHJ-MK006-00 CHAIN ASSY 1 OK MF10059-2009/3/5
12 KHJ-MK007-00 STOPPER 2
