KKD_KKJ_YS12P(F)_PL - 第56页
2 13 Exterior , etc 2 Exterior , etc KKD/KKJ-1203 1 2 21 10 1 1 9 20 19 3 14 18, 17 12 4,5 13 6 23 7 8 16 15 22 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KHY -M1384-01 BRACKET , P A T LIGHT 1 …
1
12

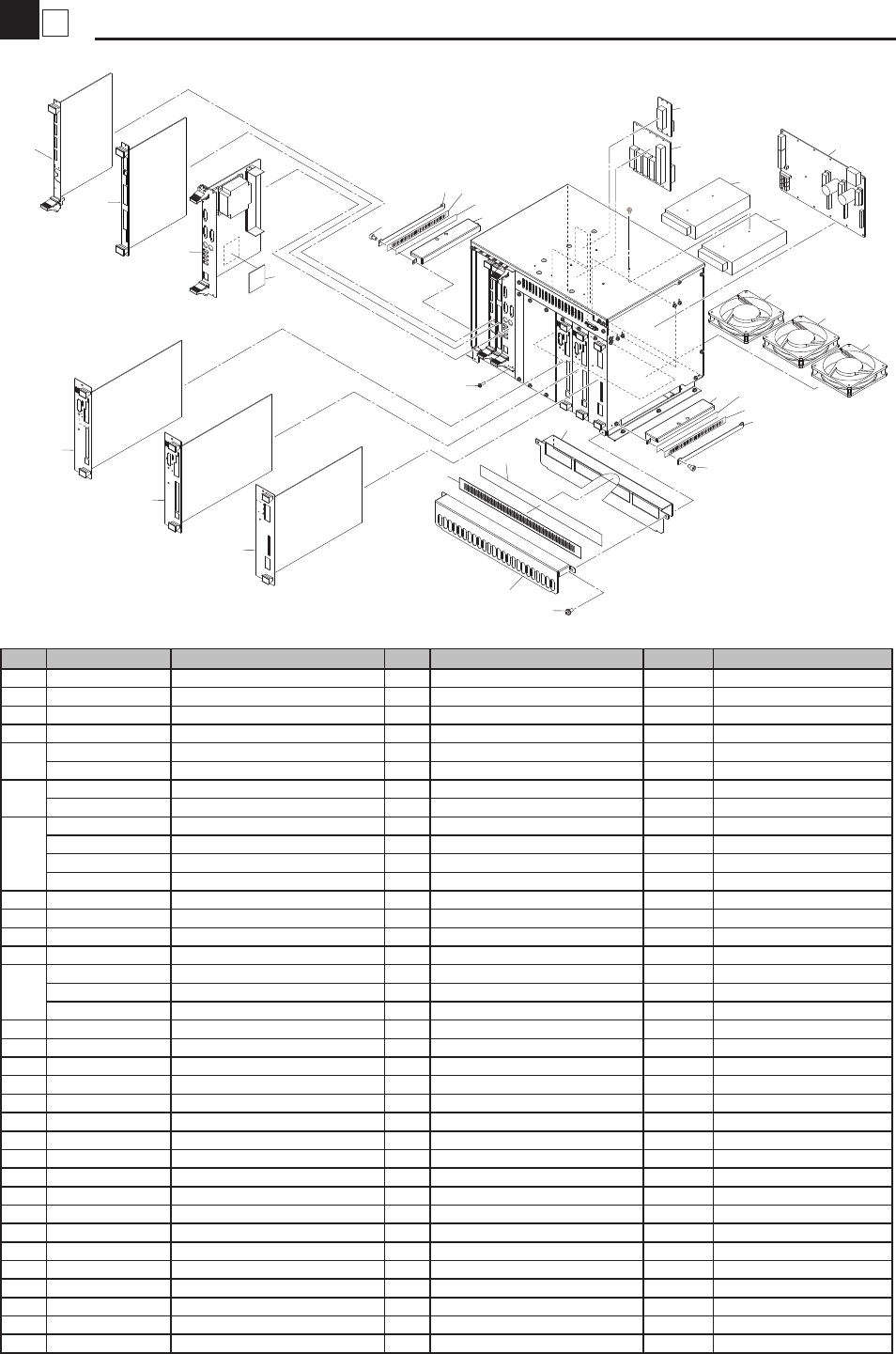

Control Box
Controller
KKD/KKJ-1203
16
14
15
17
18
5
19
2
2
1
25
23
1
25
23
21
26
28
13
20
24
22
26
3
4
27
7
6
12
8,9
10,11,
29,30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KJJ-M411B-00 BRACKET 2 2
2 KJJ-M411A-00 PLATE 2
3 KJJ-M4119-00 BRACKET 1 FILTER 1
4 KJJ-M4120-00 BRACKET 2 FILTER 1
5
KJJ-M4510-12 MOTHER BOARD ASSY 1 OK MF70129-2009/7/21
KJJ-M4510-11 MOTHER BOARD ASSY 1
6
KHN-M5840-02 SERVO BOARD ASSY 1 OK MG90117-2010/10/13
KHN-M5840-00 SERVO BOARD ASSY 1
7
KHN-M5840-52 SERVO BOARD ASSY 1 S.T.D OK MG90117-2010/10/13
KHN-M5840-50 SERVO BOARD ASSY 1 S.T.D
KHN-M5840-A2 SERVO BOARD ASSY 1 for ATS OK MG90117-2010/10/13
KHN-M5840-A0 SERVO BOARD ASSY 1 for ATS
8 KHL-M4209-01 SYSTEM UNIT ASSY 1 S.T.D
9 KHL-M4209-21 SYSTEM UNIT ASSY 1 IT Option
10 KHL-M441H-03 VISION BOARD ASSY 1 F/R Multi Camera (YS12F)
11 KHL-M441H-13 VISION BOARD ASSY 1 F Multi Camera+SCAN (YS12P)
12
KHN-M4530-55 REMOTE IF BOARD ASSY 1 OK MF70214-2009/7/29
KHN-M4530-54 REMOTE IF BOARD ASSY 1 OK MF50046-2009/5/19
KHN-M4530-03 REMOTE IF BOARD ASSY 1
13 KJJ-M5880-00 DRIVER POWER ASSY 1
14 KJJ-M4454-01 RAS BOARD ASSY 1
15 KJJ-M4250-00 BACKPLANE BOARD ASSY 1
16 KHL-M4255-00 FLASH DISK 1
17 KGS-M5303-00 SW POWER DC5 1
18 KGS-M5303-10 SW POWER DC12 1
19 KJJ-M4186-00 FAN MOTOR ASSY 1
20 KJJ-M4186-10 FAN MOTOR ASSY 1
21 KJJ-M4186-20 FAN MOTOR ASSY 1
22 KJJ-M53A9-10 FILTER 1
23 KJJ-M53A9-20 FILTER 2
24 KJJ-M53E9-10 TAPE 1
25 KJJ-M53E9-20 TAPE 2
26 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
27 90166-12JA10 SCREW,PAN HEAD 4
28 97602-04308 SCREW,PAN HEAD W/W 63
29 KHL-M441H-23 VISION BOARD ASSY 1 SCAN Camera Only (YS12P)
30 KHL-M441H-33 VISION BOARD ASSY 1 R Multi Camera (YS12F)
1
13

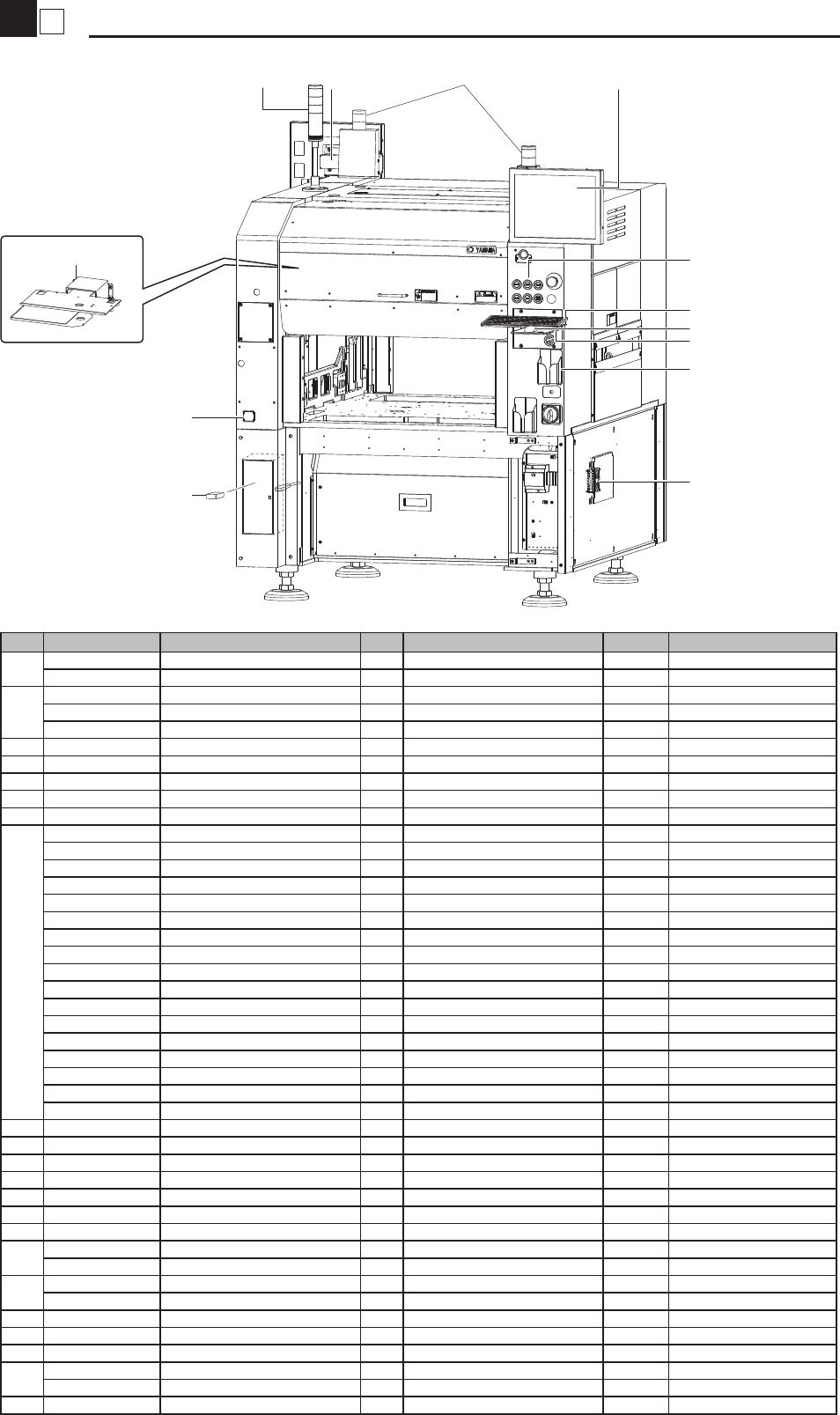

Exterior, etc 1
Exterior, etc
KKD/KKJ-1002
1, 221
22
11, 12
8
5
6
7
9, 10
3, 4
13, 14, 15, 16, 17, 18
19
20
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1
KGT-M5106-B0 SMT OPE.PANEL ASSY 1 DC12V (Compati.:KHW-M5106-10X) NG MJX0111-2012/11/22
KGT-M5106-02 15NORMAL LCD" 1 AC100V
2
KGT-M5119-03 SMT OPE.T.PANEL ASSY 1 Touch Panel OK MK20042-2013/2/25
KKE-M5119-00 15 TOUCH LCD ASSY" 1 with rubber damper Inquiry need. NG MF90148-2009/9/30
KGT-M5119-02 15 TOUCH LCD ASSY" 1
3 KW3-M5150-50 KEYBOARD J 1
4 KW3-M5150-60 KEYBOARD E 1
5 KW3-M5169-04 MOUSE 1
6 KHY-M13B1-B0 BRKT. KEYBOARD ASSY. 1
7 KGA-M13B5-00 MOUSE POCKET ASSY 1
8
KHY-M4899-00 LIGHT 1 ASSY (L=414) 1 1850 R.Y.G
KHY-M4899-10 LIGHT 1 ASSY (L=470) 1 1980 R.Y.G
KHY-M4899-20 LIGHT 1 ASSY (L=570) 1 2000 R.Y.G
KHY-M4899-30 LIGHT 1 ASSY (L=664) 1 2100 R.Y.G
KHY-M4899-40 LIGHT 1 ASSY (L=770) 1 2200 R.Y.G
KHY-M4899-50 LIGHT 1 ASSY (L=864) 1 2300 R.Y.G
KHY-M4899-60 LIGHT 1 ASSY (L=414) 1 1850 W.B.G
KHY-M4899-70 LIGHT 1 ASSY (L=470) 1 1980 W.B.G
KHY-M4899-80 LIGHT 1 ASSY (L=570) 1 2000 W.B.G
KHY-M4899-90 LIGHT 1 ASSY (L=664) 1 2100 W.B.G
KHY-M4899-A0 LIGHT 1 ASSY (L=770) 1 2200 W.B.G
KHY-M4899-B0 LIGHT 1 ASSY (L=864) 1 2300 W.B.G
KV7-M4887-00 LED UNIT,R-R 1 SPARE
KV7-M4887-10 LED UNIT,Y-Y 1 SPARE
KV7-M4887-20 LED UNIT,G-G 1 SPARE
KV7-M4887-30 LED UNIT,BL-BL 1 SPARE
KV7-M4887-40 LED UNIT,W-W 1 SPARE
9 KHN-M6185-10 FAN MOTOR ASSY 1
10 KGA-M4187-00 FAN GUARD 119MM 8
11 KGS-M4896-01 LIGHT,ERR ASSY 1 for STD
12 KHG-M4896-01 LIGHT,ERR ASSY 1 for CE
13 KGA-M669V-04 HNS,SWITCH ACTIVE 1
14 KGA-M669V-24 HNS,SWITCH START 1
15 KGA-M669V-54 HNS,SWITCH RESET 1
16
KGA-M669V-32 HNS,SWITCH STOP 1 for STD
KHA-M669V-03 HNS,SWITCH STOP 1 for CE
17
KGA-M669V-42 HNS,SWITCH ERR.CLR. 1 for STD
KHA-M669V-12 HNS,SWICTH ERR.CLR. 1 for CE
18 KGA-M669V-14 HNS,SWITCH READY 1
19 KHY-M8596-00 PRESSURE GAUGE 1
20 KGY-M4268-00 USB MEMORY 1
21
KKJ-M1390-01 R.LCD STAY ASSY. 1 OK MF90148-2009/9/30
KKJ-M1390-00 R.LCD STAY ASSY. 1
22 KKJ-M13B1-C0 BRKT. KEYBOARD ASSY. 1 MF70162-2009/7/23
2
13

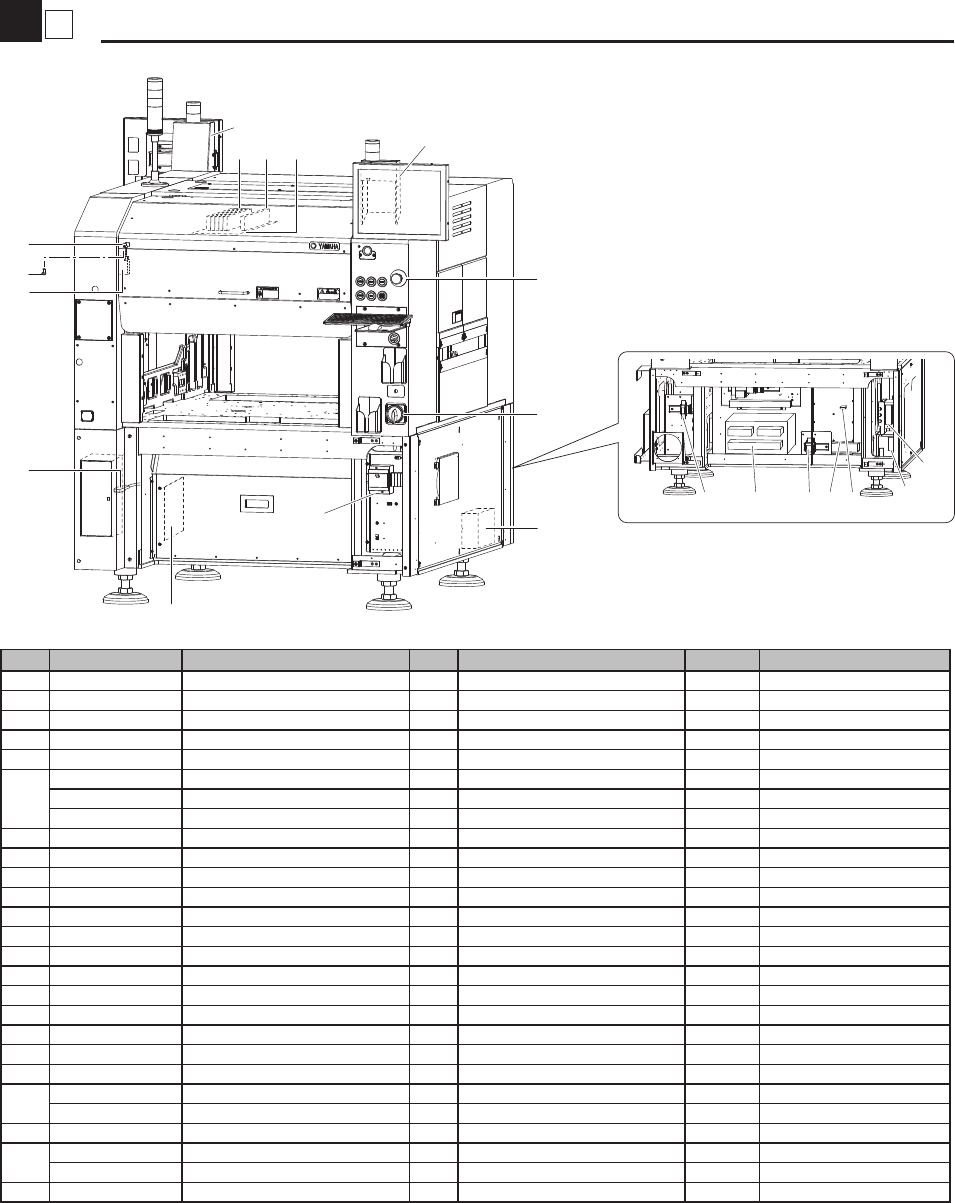

Exterior, etc 2
Exterior, etc
KKD/KKJ-1203
1
2
21
10 11 9
20
19
3
14
18, 17
12
4,5
13
6 23
7
8
16
15
22
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHY-M1384-01 BRACKET, PAT LIGHT 1
2 KHY-M1387-01 BRACKET, PAT LIGHT 1
3 KM5-M6554-10 MAIN SWITCH 1
4 KHM-M1397-00 BRACKET,FDD 3 1
5 KGK-M6680-20 HNS,USB-MEMORY 2M AS 1
6
KJJ-M4580-04 I/O CONV. BOARD ASSY 1 OK MG30022-2010/4/13
KJJ-M4580-03 I/O CONV. BOARD ASSY 1 OK MF30087-2009/3/19
KJJ-M4580-02 I/O CONVEYOR BOARD A 1
7 KHY-M6561-A0 POWER SUPPLY 1 ASSY 1 24V 600W
8 KHY-M6561-B0 POWER SUPPLY 1 ASSY 1 48V 600W
9 KHY-M4570-20 I/O HEAD BOARD ASSY 1
10 KHY-M5802-02 Z SERVO UNIT ASSY 2
11 KHY-M5802-22 Z/R SERVO UNIT ASSY 1
12 KGS-M6510-00 BREAKER ASSY 1
13 KHY-M6513-01 CIRCUIT PROTECTOR,1 1 MD5A 3P
14 KHN-M6513-01 CIRCUIT PROTECTOR 1 1 M10A 1P
15 KGK-M4590-01 I/O TF BOARD ASSY 1 S-ATS
16 KJJ-M5328-10 POWER TRANSFORMER 1
17 KGA-M5318-01 POWER TRANSFORMER 1 for STD
18 KJJ-M5318-10 POWER TRANSFORMER 1 for UPS
19 KGK-M5138-00 SWITCH EMG ASSY 2
20
KW7-M5126-H0 SAFETY SW UNIT ASSY 2 OK MFX0093-2009/12/1
KW7-M5126-00 SAFETY SWITCH 2
21 KW7-M5127-00 SAFETY SWITCH KEY 2
22
KGS-M5126-02 SCREW 2 OK ME70188-2008/7/25
KGS-M5126-01 SCREW 2
23 KGA-M6522-20 SPARE RELAY 1
