1-20
1
Part names and functions

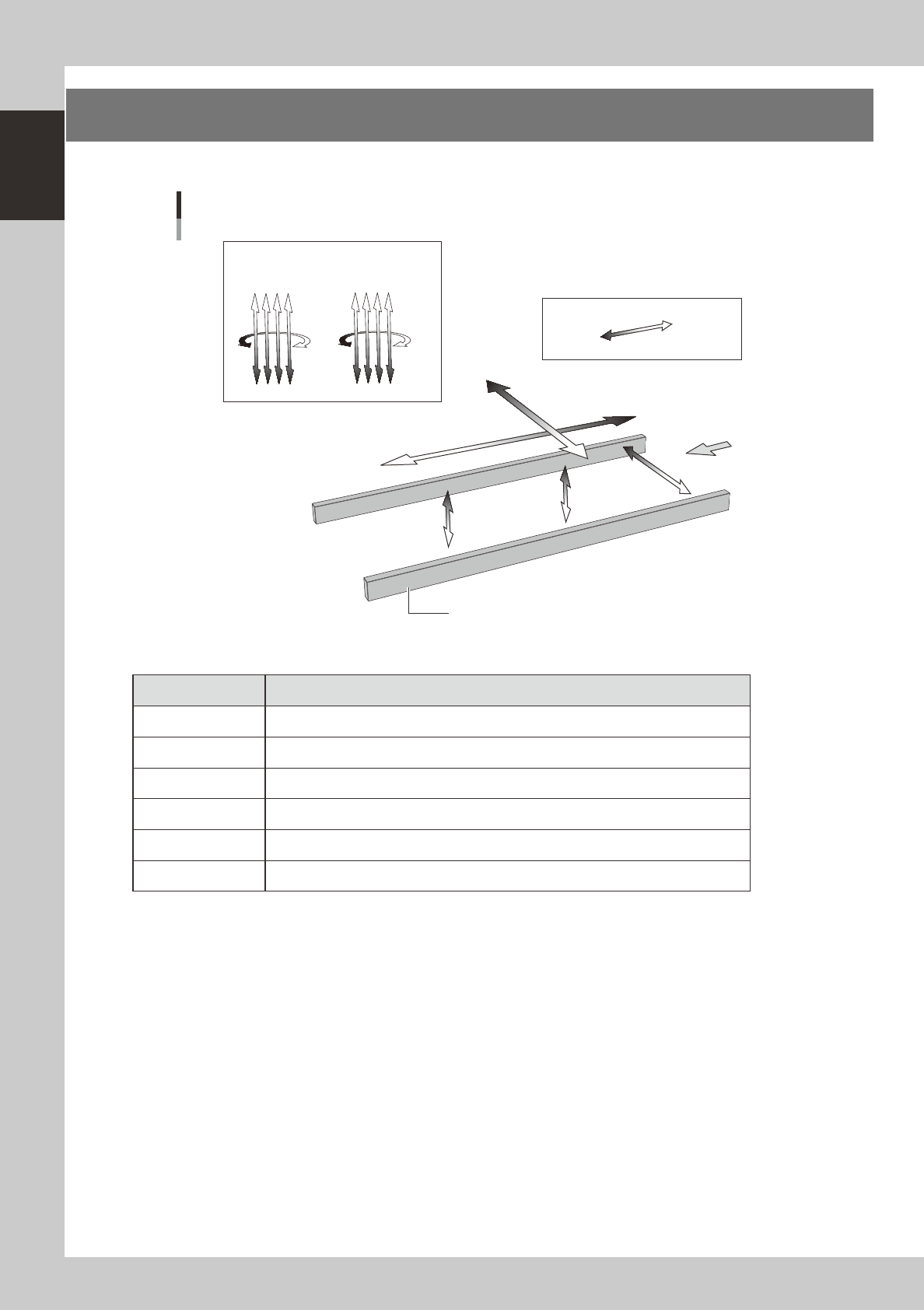

6. Axis configuration
The machine axis configuration and operation are shown in the drawing and table below.
Y axis
X axis
W axis
PU2 axis
(option)
PU1 axis
R2 axis R1 axis
Head
Axis configuration
Z1Z2Z3Z4
Z5Z6Z7Z8
Plus direction
Minus direction
Conveyor rail
Board
23111-M1-00
n
Function of each axis
Axis Function
X Moves the head assembly in parallel with the board flow.
Y Moves the head assembly perpendicular to the board flow.
Z1 to Z8 Controls the height of each head.
R1, R2 Rotates the nozzle shafts of each head.
W Changes the conveyor width.
PU1, PU2 (option) Moves the push-up plate vertically.
1-21
1
Part names and functions
7. Blow station
One blow station is installed in each stage. The blow station blows high-pressure air internally through the
nozzles and shafts to blow away dust and grit and clean the nozzles.
Blow station
Blow station
Sensor for detecting
nozzles left on blow station
23117-M1-00
1-22
1
Part names and functions
7.1 Performing a nozzle shaft blow
This section explains how to manually perform a nozzle shaft blow at any desired timing.
1
Open the [Unit] – [Head] tab screen.
2
Press the [Cleaning Blow] button.
A confirmation dialog box appears asking how you want to perform nozzle shaft blow, so press [Yes] or
[No]. (Press [Cancel] if you want to cancel nozzle blow.)
Pressing [Yes]:
Cleans all nozzles that are automatically changeable and set for cleaning blow.
Pressing [No]:
Makes a cleaning of nozzles that are currently attached to the head and set for cleaning blow.
Nozzle shaft blow
24100-M1-00
n
Safety checks
The nozzle shaft blow function also contains the following safety checks.
• Nozzle shaft blow interruption alarm
The head immediately rises if operation stops during nozzle shaft blow due to emergency stop or an interlock triggering.
If the head rises but the air blow still continues, then the nozzle might come loose from the head. To prevent this, a
confirmation dialog box appears if the machine operation stopped during nozzle shaft blow.
• Nozzle sensors to check whether a nozzle is left on the blow station
The nozzle shaft blow function forces high-pressure air through the nozzles during cleaning, so the nozzles might come
loose from the head if machine operation stops during nozzle blow. If a nozzle comes loose from the head and remains
on the blow station while the automatic operation still continues, then the nozzle left on the blow station might interfere
with other heads or with the multi-max unit. To prevent this, nozzle sensors are installed so that the machine constantly
monitors whether a nozzle is left on the blow station.
An “interlock error” is issued if any of these sensors detects a nozzle on the blow station at any time other than when the
head is lowered during nozzle blow. The machine operation is then disabled.
