2-13
2
Basic operation
n
Manual head operation
[Unit] – [Head] screen
1
2
3
4
5
6
7
24218-M1-00
Button name Function
1 Vacuum Turns the vacuum of each head on or off.
2 Blow Turns the air blow in each head on or off.
3 Nozzle STN Shutter Opens or closes the nozzle station shutter.
4 Nozzle Change
Opens the "Nozzle Change" dialog box.
Specify the head and nozzle type to
perform nozzle change.
5 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
6 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit]-
[Conveyor] screen.
7 Cleaning Blow Displays a confirmation dialog box for nozzle shaft blow.
2-14
2
Basic operation
n
Manual feeder operation
[Unit] – [Feeder] screen
3 4
1
2
24222-M0-00
Button name Function
1 Left/right arrows Scrolls through the drive valve number display.
2 Up/down arrows
Switches the drive valve number display between the front and rear
sides.
3 Drive valve Turns the feeder shutter drive valve on or off.
4 Reset Turns off all drive valves at a time.
2-15
2
Basic operation
n

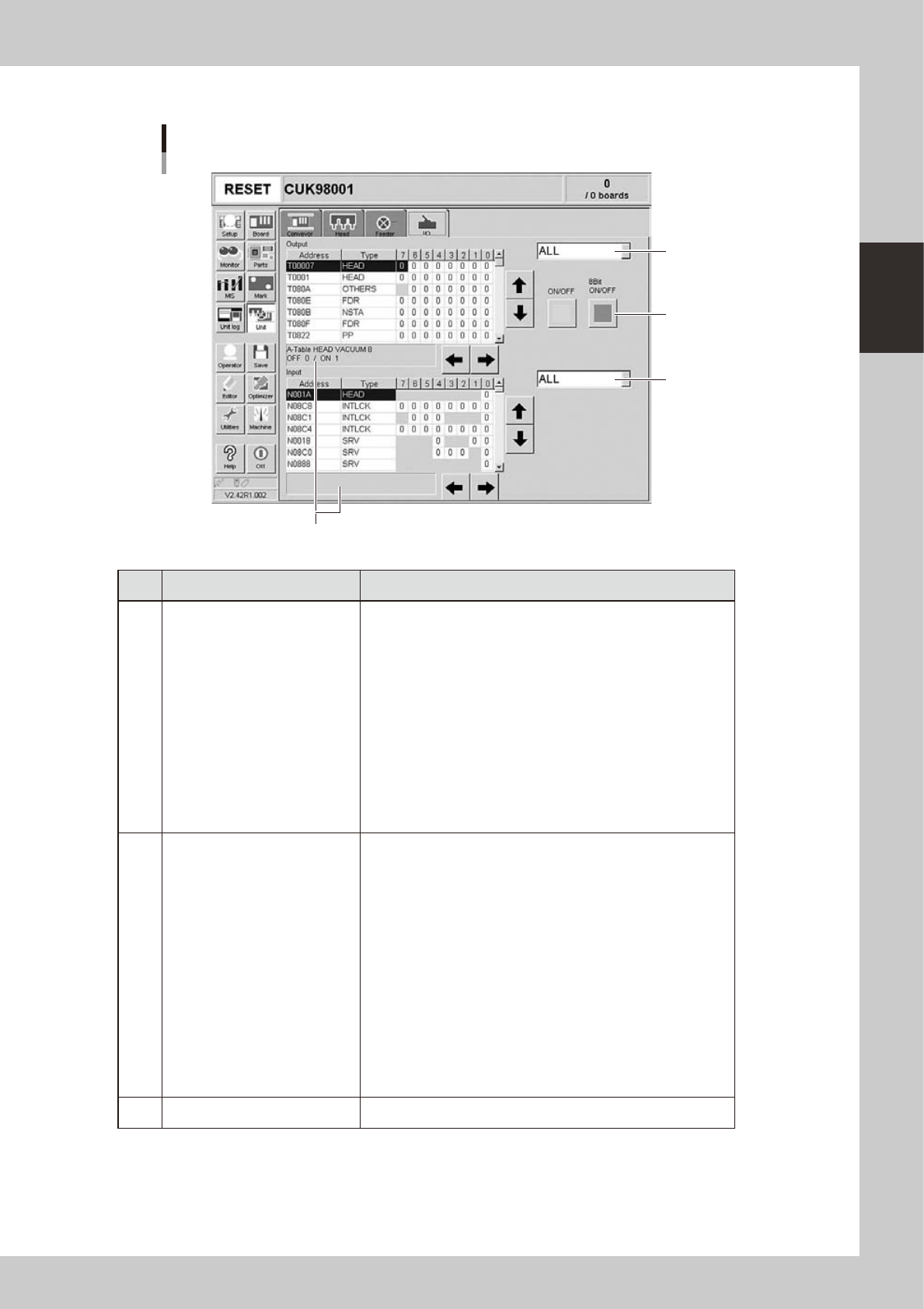

Manual I/O operation
[Unit] – [I/O] screen
1
2
3
Shows a description of the selected item.
24223-M0-00
Button name Function
1 Select output display group
Select the output group for display in the "Output" status list. The
following groups can be selected:
• ALL
• FDR (feeder)
• NSTA (nozzle station)
• PP (tray changer)
• LIGHT
• CONV (conveyor)
• HEAD
• WAFFLE (waffle tray)
• BSTA (blow station)
• ATS
• YTF
• OTHERS
2 Select input display group
Select the input group for display in the "Input" status list. The
following groups can be selected:
• ALL
• INTLCK (interlock)
• SRV (servo origin limit)
• ATS
• DSTA (dump station)
• FDR (feeder)
• NSTA (nozzle station)
• CONV (conveyor)
• LIGHT
• HEAD
• WAFFLE (waffle tray)
• SPARE
• YTF
• OTHERS
3 ON/OFF Turns the selected valve on or off.
