2-33
2
Basic operation
3. Setting the pallet in the magazine
1
Place the magazine on a flat and level surface.
2

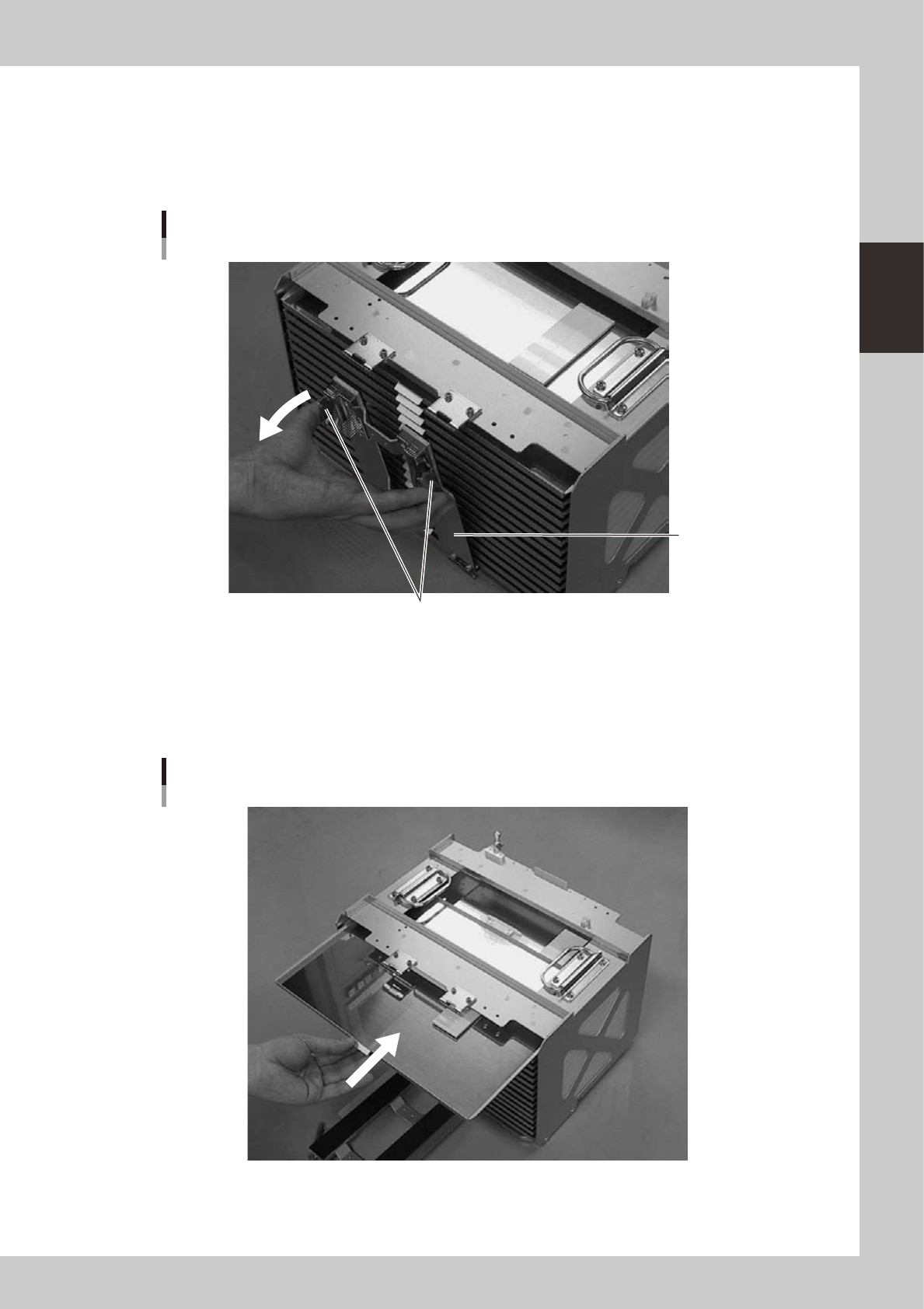

Open the pallet retainer door.
Open the pallet retainer door while depressing the latch levers.
Pallet retainer door
Latch levers
Pallet retainer door
23226-M0-00
3
Insert the pallet.
While keeping the pallet level, insert it into the correct magazine shelf. The pallet pullout piece should
be on the inner side. Insert it gently inwards until it contacts the pallet retainer rod on the opposite side.
(If replacing a pallet, first extract the previous (used) pallet from the magazine before inserting the new
pallet inside.)
Inserting the pallet
23227-M0-00
2-34
2
Basic operation
4
Insert all the required pallets into the correct magazine shelves.
n
NOTE
• Labels with black and silver numbers are affixed to both sides of the magazine to show the shelf number and
prevent inserting a pallet into the wrong position.
• Insert the pallet into the shelf that was set in the "Pallet No. Start" and "Pallet No. End" parameters in the [Parts] - [Tray]
information.
Pallet insertion shelf number
23228-M0-00
5
Close the pallet retainer door.
Close the door while depressing the latch levers.
2-35
2
Basic operation
4. Replacing a magazine or pallets during operation (dYTF)
The dYTF allows you to replace a magazine or pallets even when the mounter is operating. You can make setup for tray
components without decreasing the rate of production. (Magazine being used during operation cannot be replaced.)
This section explains how to replace a magazine or pallets.
1
Set the door switch for the magazine you want to replace to "OPEN".
The magazine door unlocks and the door switch lamp turns off.
Door switch
Door switch
23229-M0-00
2
Open the magazine door.
Pull down the handle to open the magazine door for the magazine you want to replace.
Opening the magazine door
Latch levers
23230-M0-00
3
Replace the pallets (when replacing pallets only).
Proceed to step 4 when replacing the magazine.
1. Open the pallet retainer door.
Open the pallet retainer door while depressing the latch levers.
2. Replace the pallets.
3. Return the pallet retainer door to the original position.
