2-34
2
Basic operation
4
Insert all the required pallets into the correct magazine shelves.
n
NOTE
• Labels with black and silver numbers are affixed to both sides of the magazine to show the shelf number and
prevent inserting a pallet into the wrong position.
• Insert the pallet into the shelf that was set in the "Pallet No. Start" and "Pallet No. End" parameters in the [Parts] - [Tray]
information.

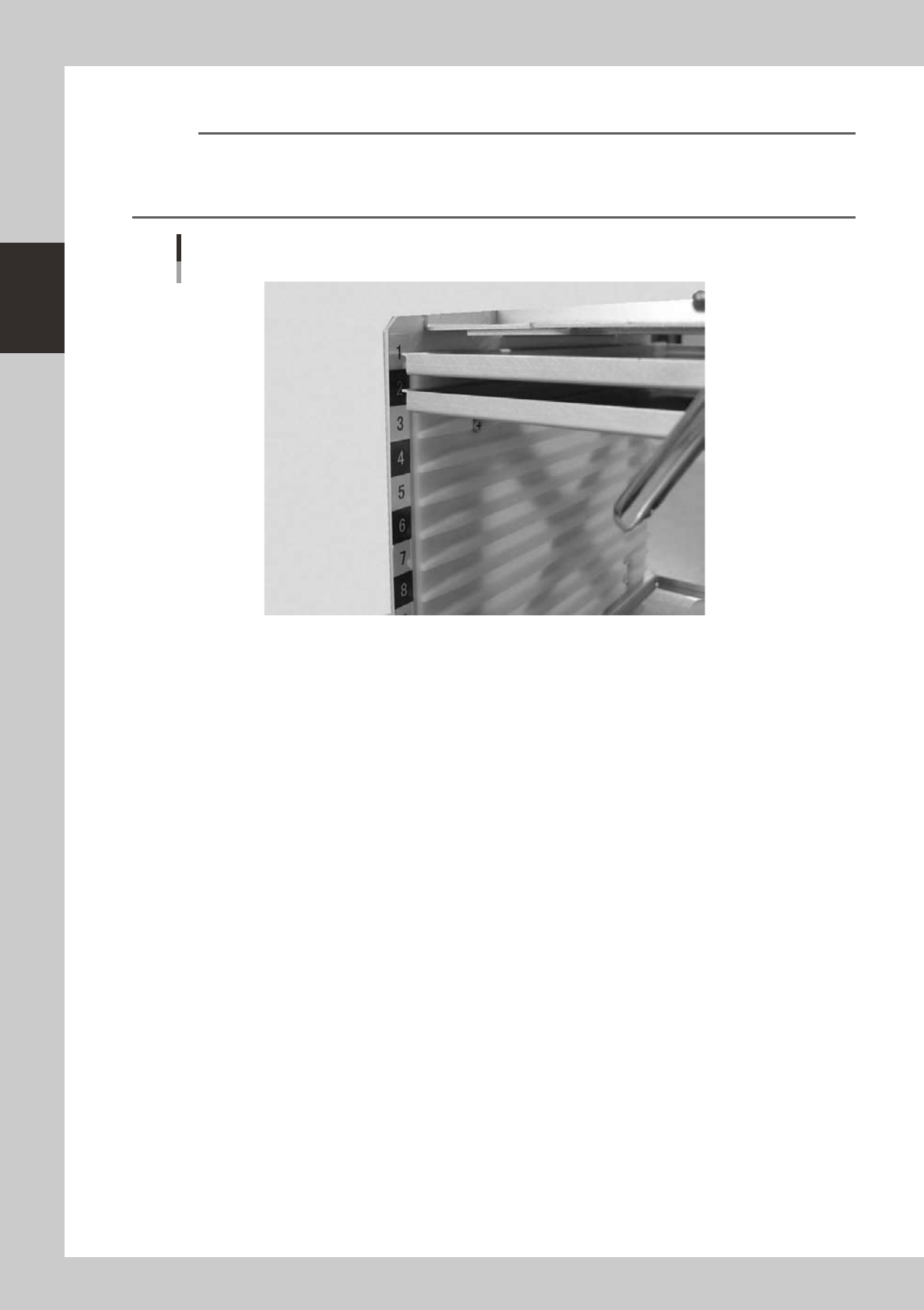

Pallet insertion shelf number
23228-M0-00
5
Close the pallet retainer door.
Close the door while depressing the latch levers.
2-35
2
Basic operation
4. Replacing a magazine or pallets during operation (dYTF)
The dYTF allows you to replace a magazine or pallets even when the mounter is operating. You can make setup for tray
components without decreasing the rate of production. (Magazine being used during operation cannot be replaced.)
This section explains how to replace a magazine or pallets.

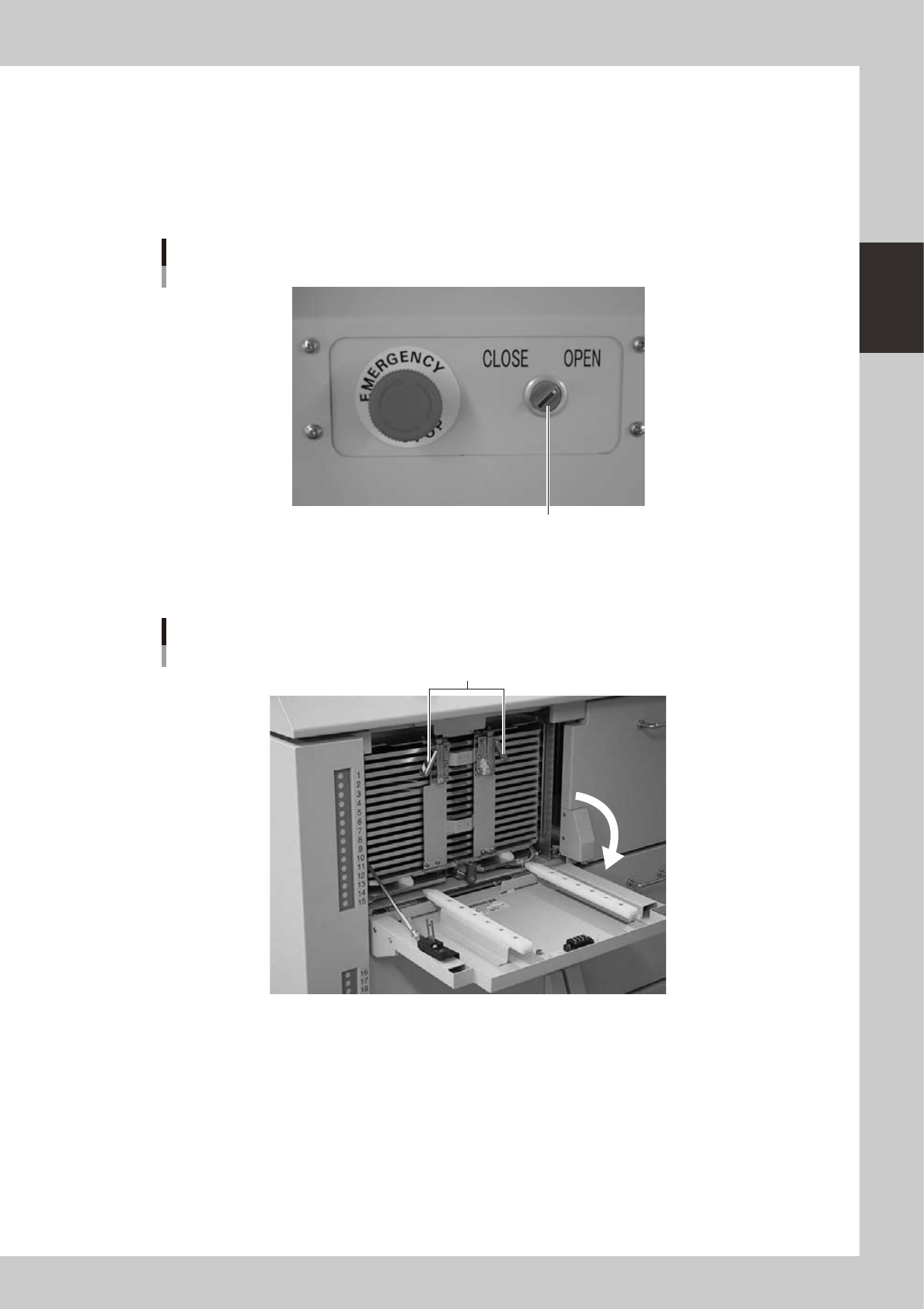

1
Set the door switch for the magazine you want to replace to "OPEN".
The magazine door unlocks and the door switch lamp turns off.
Door switch
Door switch
23229-M0-00
2
Open the magazine door.
Pull down the handle to open the magazine door for the magazine you want to replace.
Opening the magazine door
Latch levers
23230-M0-00
3
Replace the pallets (when replacing pallets only).
Proceed to step 4 when replacing the magazine.
1. Open the pallet retainer door.
Open the pallet retainer door while depressing the latch levers.
2. Replace the pallets.
3. Return the pallet retainer door to the original position.
2-36
2
Basic operation
4

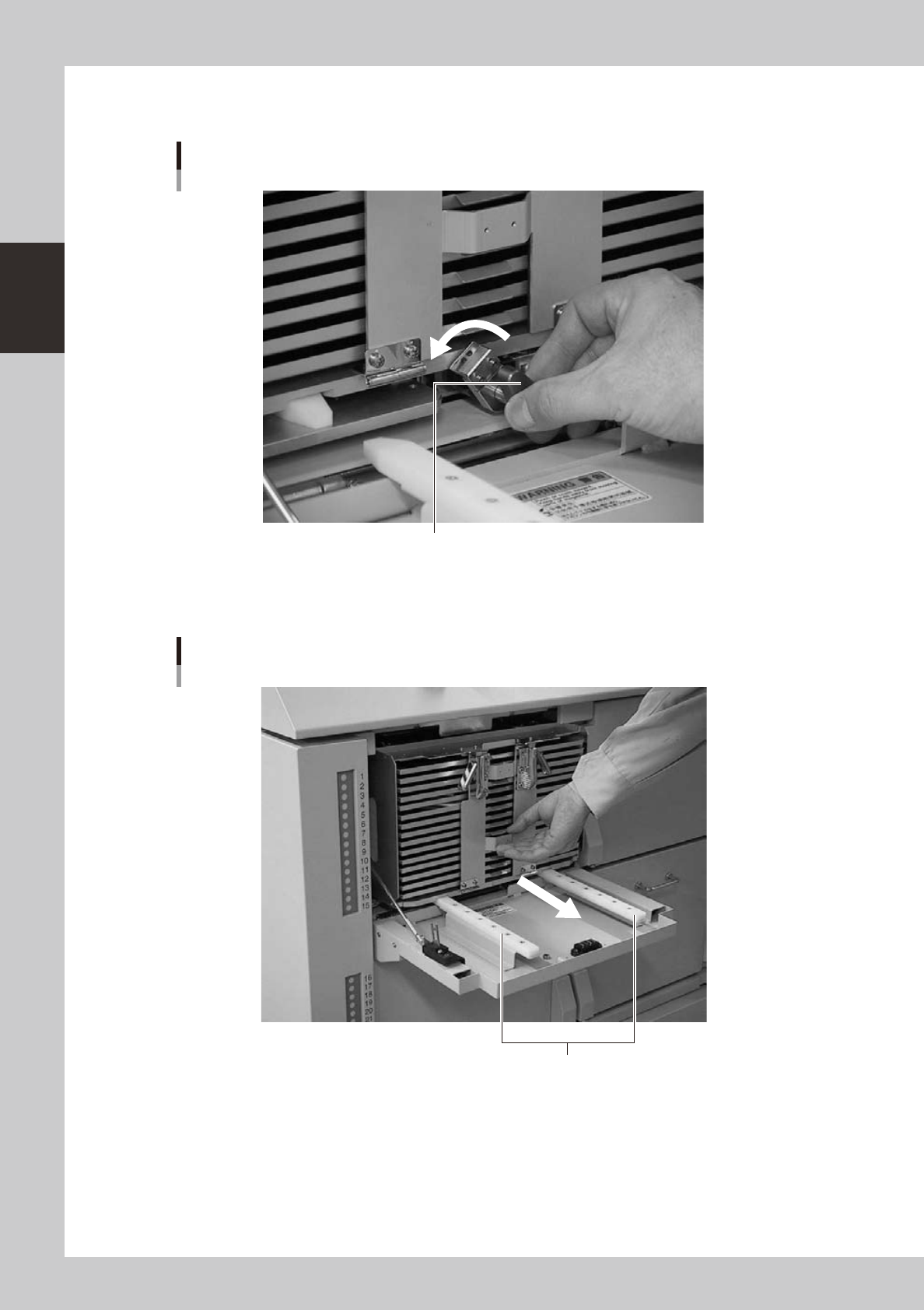

Unclamp the magazine.
Turn the clamp lever to the left while pulling it.
Magazine clamp
Turn the clamp lever to the left to unclamp the magazine.
23231-M0-00
5
Pull out the entire magazine.
Holding the handle on the pallet retainer door, slowly pull the magazine straight out.
Pulling out the magazine
Guide
23232-M0-00
