“Use of this machine:
This machine is designed and constructed to be used for placing electric and electronic components on PCB.
This machine shall be used for this purpose only.
It shall not be used for any other purpose.”

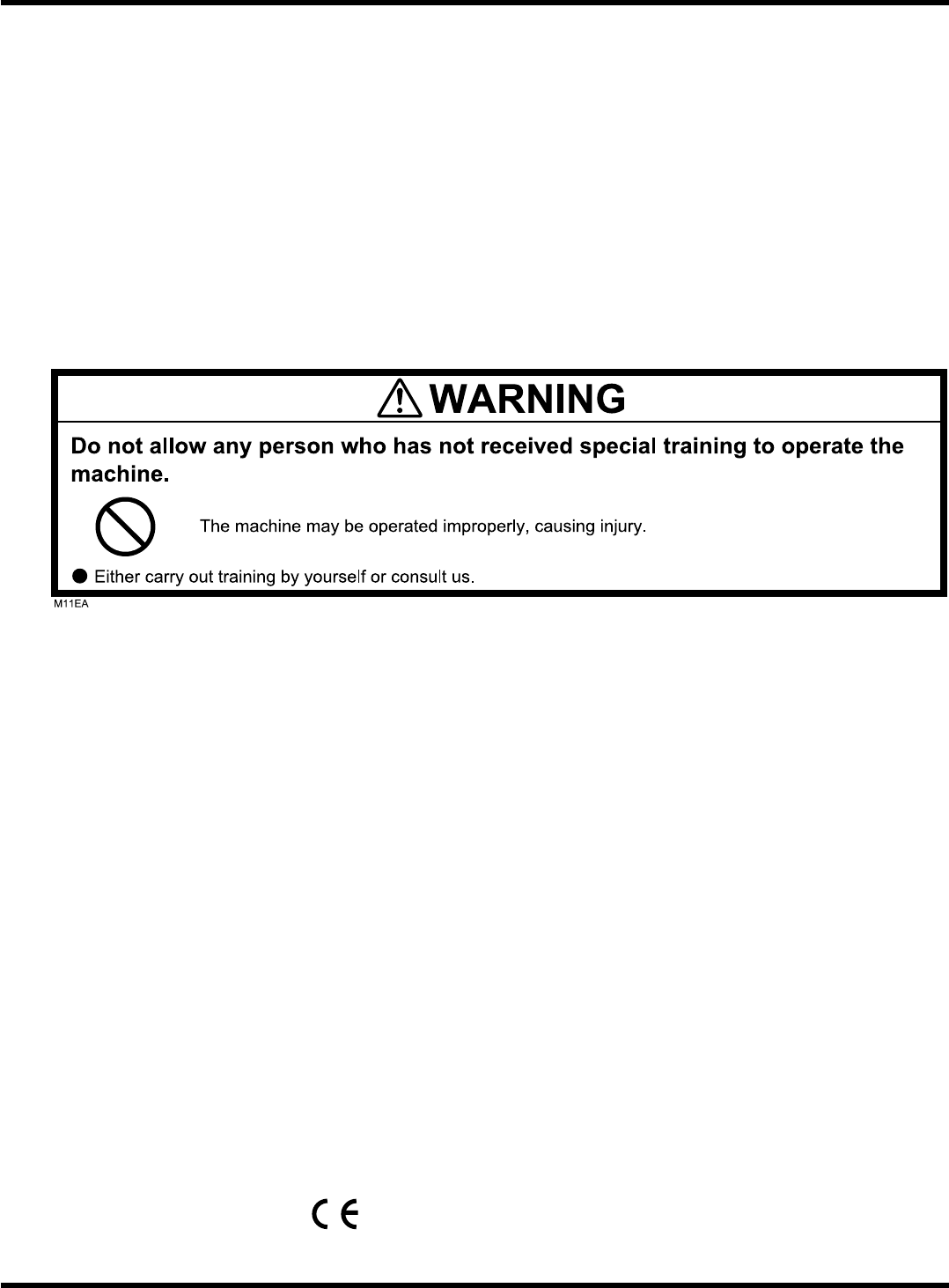

“Operation of this machine:
This machine shall be operated by professional, specially trained operators.
It shall not be operated by non-professional, not specially trained operators.
Regarding the training course, please contact Panasonic Factory Solutions Co., Ltd. or PFSE.”
Machine was manufactured by: Panasonic Factory Solutions Co., Ltd.
441-13, Nagahasu, Tateishi-machi, Tosu-city, Saga, Japan
Phone number:
81-942-84-2644
Fax number:
81-942-84-2636
For Service and Supply of Spares in Europe
you may contact Panasonic Europe:
Continental Europe
PFSE
Panasonic Factory Solutions Europe
Winsbergring 15
22525 Hamburg
Germany
Phone number:
0049-(0)40-85386-321
Fax number:
0049-(0)40-85386-332
United Kingdom
PFSE
Panasonic Factory Solutions Europe
Panasonic House,Willoughby Road
Bracknell, Berks. RG12 8 FP
Phone number:
0044-(0)1344-853267
Fax number:
0044-(0)1344-425970
Year: 2008
EJM6A-E-PLA00-A01-03
4
SPECIFICATIONS
Item
Specifications
Control system
Microcomputer system
External memory
Data is saved in PT
∗
4
.
(Approximately 1 MB is required for saving a piece of data,
depending on the hard disk space of PT.) One type per 3.5-inch floppy disk
Program data
∗
1
Point count: Max. 10000 points
Normal service
source:
Three-phase 200/220 VAC
±
10 VAC,
Three-phase 380/400/420/480 VAC
±
20 VAC
Machine body
Frequency: 50/60 Hz
Peak current
value during
operation
CM212-M: 17 A
Rated voltage 200 VAC: Measured based on our
aging data
Take this into account when choosing the primary
power supply AVR (the stabilized power supply) etc.
(The peak current value varies depending on the
operation data.)
Power source
Power supply
for HUB
∗
3
Single-phase 100 VAC to 240 VAC, Frequency: 50/60 Hz
Machine body
2.5 kVA
Rated capacity
Power supply
for HUB
∗
3
140 VA
Supply air pressure
0.5 MPa to 0.8 MPa (Working air pressure: 0.5 MPa to 0.55 MPa)
Supply air volume
150 L/min (A.N.R.)
Outside dimension
CM212-M: 2150 mm (W)
×
2460 mm (D)
×
1430 mm (H)
(When DT40S-20 is connected: 2150 mm (W)
×
2490 mm (D)
×
1430 mm (H))
∗
Three-color signal tower and color touch panels not included
Mass of main body
2500
kg
(Standard configuration)
Mass of reel holder (Option)
40
kg
(per unit)
Mass of collectively changing
truck (Option)
121
kg
(per unit)
Mass of DT40S-20 (Option)
185
kg
(per unit)
Mass
∗
2
Mass of standard configuration
(Type A)
2660
kg
(One main body and four reel holders)
Environmental
condition
Temperature: 10
°
C to 35
°
C
Transportation and
storage condition
Temperature:
−
20
°
C to 60
°
C
Humidity: 25% RH to 75% RH or below (No condensation)
Altitude
1000 m or less, above sea level
Noise
< 70 dB (A)
∗
1: The data is created by PT.
This machine can modify only some data.
∗
2: Mass of the main body excluding the optional units
∗
3: The power supply for HUB is an option.
This power supply is required when you wish to
communicate with PT while the main power supply is OFF.
∗
4:
PT (Programming Terminal Support System) creates and manages the production data.
EJM6A-E-PLA00-A01-00
