10 Placement heads SIPLACE MultiStar (CPP) SIPLACE MultiStar (CPP) with compo nent camera type 30 With component camera type 45 with component camer a type 33 (stationary camera) Component range a a) Please note that the…
9

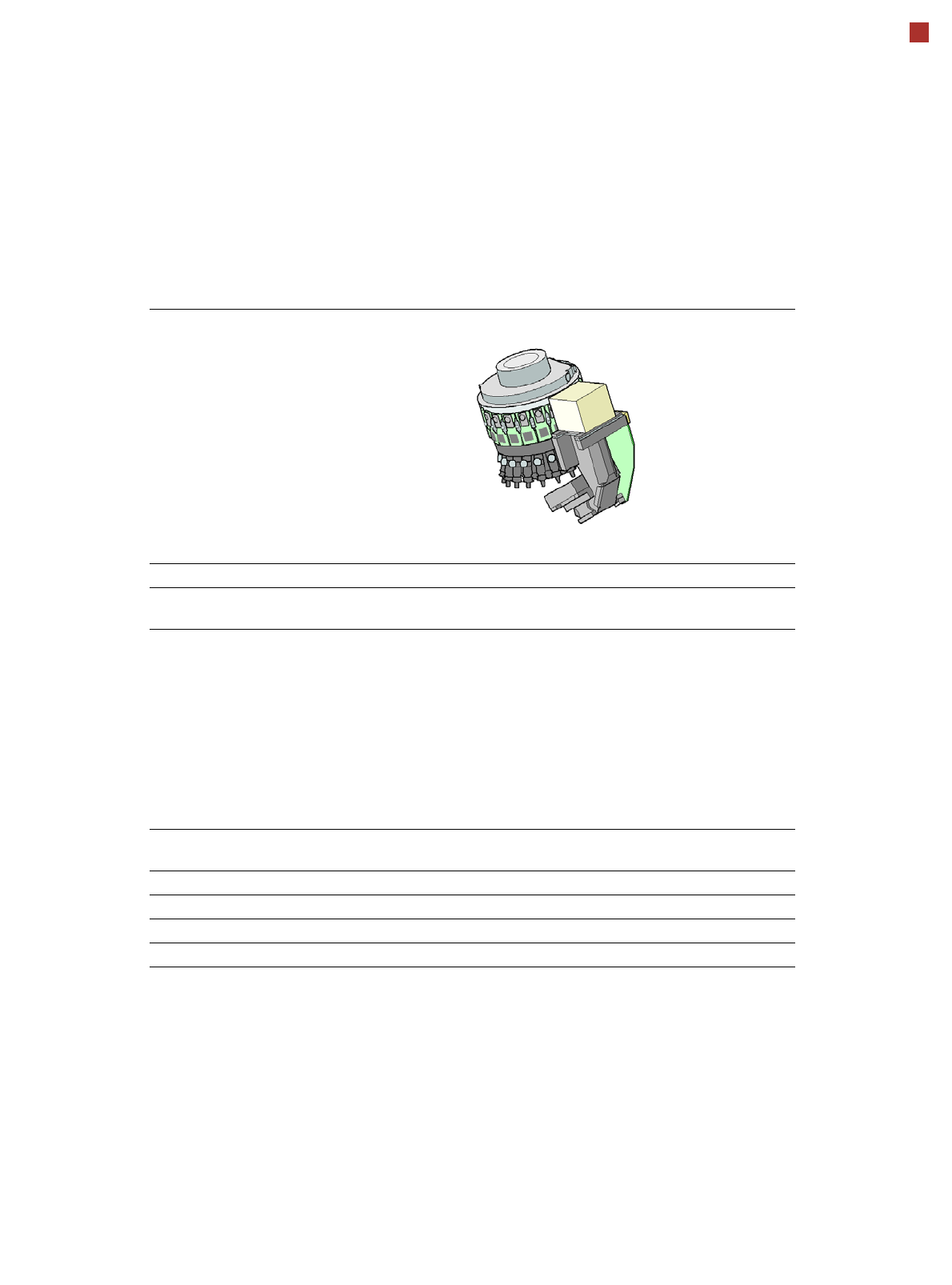

Placement heads
SIPLACE SpeedStar (C&P20 P2)
SIPLACE SpeedStar(C&P20 P2)
With component camera type 48
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-
specific standards, the component packaging tolerances and the component tolerances.
0.12 mm x 0.12 (0201 metric) to 2220, Melf, SOT, SOD, Bare-
Die, Flip-Chip
Component spec.
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
2 mm
b
/ 4 mm
70 µm
30 µm
100 µm
50 µm
0.12 mm x 0.12 mm
8.2 mm x 8.2 mm
1 g
b) Only 2 mm possible for SIPLACE TX2i.
Programmable set-down
force
Touchless Placement, 1.3 N ± 0.5N (standard value)
0.5 N - 4.5 N
Nozzle types 40xx/60xx
X/Y accuracy
c
c) The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
± 25 µm/3
Angular accuracy ± 0.5° / 3
Illumination level 5
10
Placement heads
SIPLACE MultiStar (CPP)
SIPLACE MultiStar (CPP)
with component camera
type 30
With component camera
type 45
with component camera
type 33
(stationary camera)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific stan-
dards, the component packaging tolerances and the component tolerances.
01005 to 27 mm x 27 mm 01005 to 15 mm x 15 mm 0402 to 50 mm x 40 mm
b
b) A diagonal of 69 mm is possible during multiple measurements (e.g. 64 mm x 10 mm).
Component spec.
Max height
c
Max. height
d
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
c) CPP head: in low installation position (stationary component camera not possible).
d) CPP head: in high installation position
4.0 mm
e
/ 6.0 mm
8.5 mm
250 µm
100 µm
f
/ 200 µm
g
250 µm
e
/ 350 µm
140 µm
e
/ 200 µm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
e) Only 4 mm possible for SIPLACE TX2i.
f) For components < 18 mm x 18 mm
g) For components ≥ 18 mm x18 mm
6.0 mm
8.5 mm
250 µm / 120 µm
h
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
h) Only possible for components which are within the camera focal area of ± 1.3 mm.
11.5 mm
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
50 mm x 40 mm
8 g
Programmable set-down
force
1.0 - 10 N
Nozzle types 20xx, 28xx 20xx, 28xx 20xx, 28xx
X/Y accuracy
i
i) The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
± 40 µm/3 ± 40 µm/3 ± 34 µm/3
Angular accuracy ± 0.20° / 3
j
, ± 0.38° / 3
k
± 0.25° / 4
h
, ± 0.50° / 4
i
j) Component dimensions between 6 mm x 6 mm and 27 mm x 27 mm.
k) Component dimensions smaller than 6 mm x 6 mm.
± 0.38° / 3 ± 0.14° / 3
± 0.18° / 4
Illumination level 5 5 6
11
Placement heads
SIPLACE TwinStar (TH)
SIPLACE TwinStar
with component camera type 33
(fine pitch camera)
with component camera type 25
(flip chip camera)
Component range
a
a) Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the
component packaging tolerances and the component tolerances.
0402 to SO, PLCC, QFP, BGA, special
components, bare dies, flip-chips
0201 to SO, PLCC, QFP, sockets, plugs, BGA,
special components, bare dies, flip-chips,
shields
Component specs
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
b
b) Component plus nozzle or gripper.
25 mm
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
55 mm x 45 mm (single measurement)
75 mm x 10 mm (multiple measure-
ment)
100 g
25 mm
250 µm
100 µm
140 µm
80 µm
0.6 mm x 0.3 mm
16 mm x 16 mm (single measurement)
100 g
Programmable set-down
force
1.0 N - 15 N 1.0 N - 15 N
Nozzle types 5xx (standard)
20xx / 28xx (with nozzle adapter 20xx/28xx on 5xx)
Special nozzles, gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
c
c) The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
± 28 µm/3 ± 22 µm/3
Angular accuracy ± 0.05° / 3 ± 0.05° / 3
Illumination level 6 6
Possible illumination level
settings
256
6
256
6
