Overview of technical data
Maximum values
Placement performance
Benchmark value
96,000 comp./h
Component range 0201 (metric) to 125 mm x 200 mm
Placement accuracy ± 22 µm (3)
Feeding capacity (component trolley) 80 SIPLACE SmartFeeder 8 mm X /Xi
Board format (length x width) 460 mm x 375 mm
Camera 6 illumination levels
Machine base: Telegray
(RAL 7047)
Covers: Pearl dark gray
(RAL 9023)
Covers: Telegray
(RAL 7047)

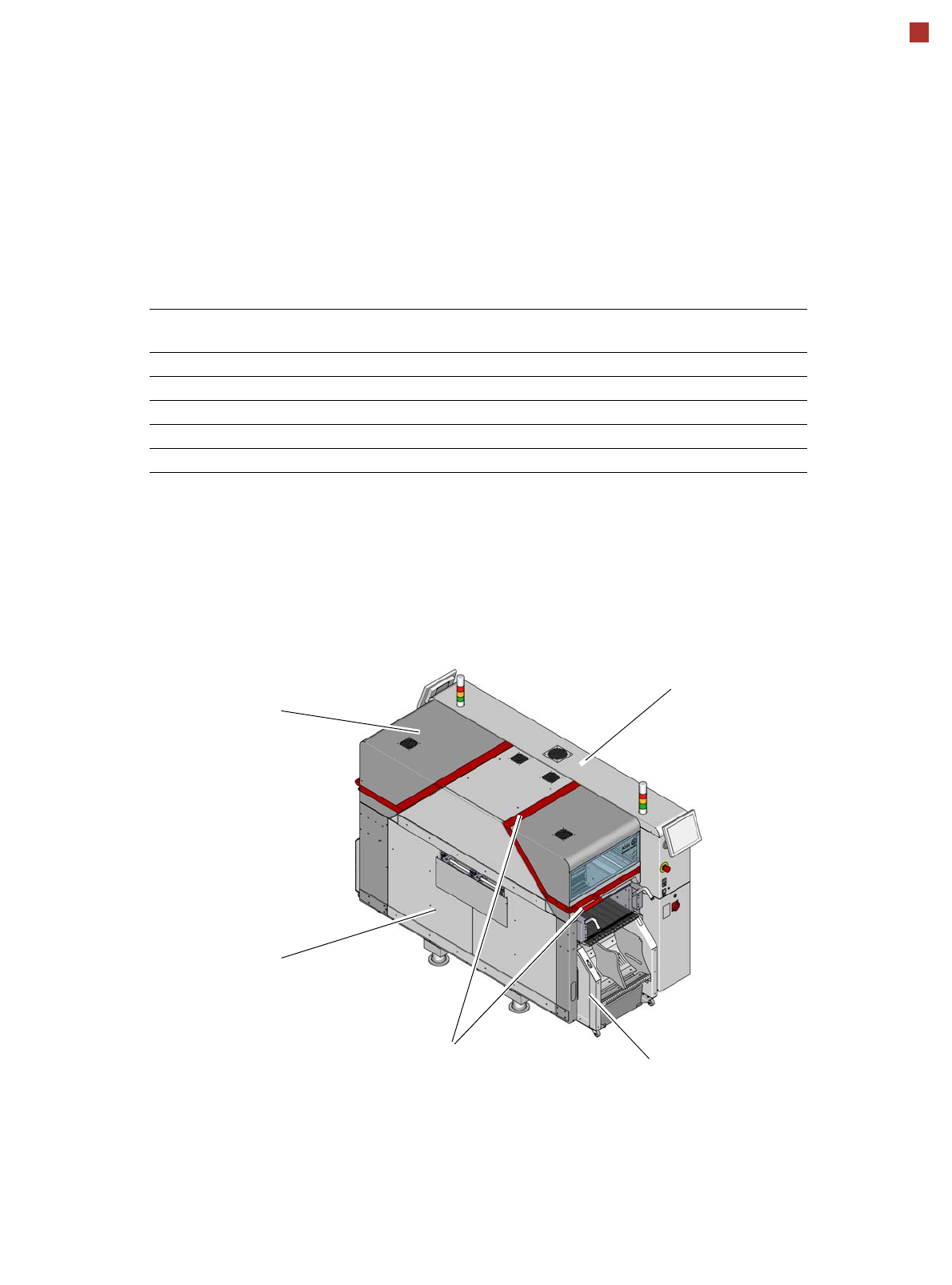

Machine colors SIPLACE TX
Component trolley: Pearl dark gray
(RAL 9023)
Handles/strips: Ruby red
(RAL 3003)
6
SIPLACE TX
Machine description
The latest generation of
SIPLACE placement mod-
ules set placement perfor-
mance, floorspace
performance and placement
accuracy records.
The innovative high-end
placement platform
SIPLACE TX achieves new
benchmarks in placement
performance and productivity
per area. The compact
design of the SIPLACE TX
supports precise scaling of
line performance in small
steps.
Furthermore, the new borrow
performance mode is a cut-
ting edge solution for boost-
ing line utilization efficiency.
The placement area with the
higher placement volume
can simply "borrow" spare
placement capacity from the
placement area opposite.
Borrow performance keeps
the balance between differ-
ent placement cycles in the
placement areas.
These placement machines
are available in three differ-
ent variants:
• SIPLACE TX1 (588301)
• SIPLACE TX2 (588302)
• SIPLACE TX2i (588300)
The numbers in the type
name indicate the number of
gantries used. Each gantry
has one placement head.
The SIPLACE TX covers the
entire range of common
components with only three
placement heads. The ideal
addition to the proven
SIPLACE TwinStar and the
high speed SIPLACE
SpeedStar is the new
SIPLACE Multistar place-
ment head.
The user enjoys a board
conveyor with flexible
SIPLACE dual conveyor.
7
Machine performance
Placement head types SIPLACE SpeedStar (C&P20 P2)
SIPLACE MultiStar (CPP)
SIPLACE TwinStar (TH)
Placement performance
The placement performance is influenced by the different head combinations and head positions, plus the con-
veyor configurations. Individual options and customized applications also influence the placement performance.
On request, ASM can calculate the actual performance of your product on your machine configuration.
IPC value [components/h]
Conducted with 0201 components, in accordance with the layout of the IPC 9850 standard of Association Con-
necting Electronics Industries.
SIPLACE benchmark value [components/h]
The SIPLACE benchmark value fulfills the requirements in the ASM scope of delivery and performance.
Theoretical maximum output value [components/h]
The theoretical maximum output value is calculated from the most favorable conditions for each machine type
and setting, and corresponds to the theoretical conditions normally used in the industry.
SIPLACE TX2i placement
machine
Placement area IPC value Benchmark value
C&P20 P2 / C&P20 P2 79,000 96,000
CPP_L/CPP_L 46,000 51,000
SIPLACE TX2 placement
machine
Placement area IPC value Benchmark value
C&P20 P2 / C&P20 P2 72,300 85,500
C&P20 P2 / CPP_L 57,800 66,600
CPP_L/CPP_L 43,300 47,700
CPP_H / CPP_H 40,800 44,700
TH / CPP_H 25,500 29,000
SIPLACE TX1 placement
machine
Placement area IPC value Benchmark value
C&P20 P2 36,100 44,000
CPP_H 20,500 22,500
TH 5,050 5,500
CPP_H = Multistar CPP in high assembly position
CPP_L = Multistar CPP in low assembly position
