Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 121 9084 HOLDER 1 648FC-21B-006 1CC2FC0507160
2 616 121 9077 HOLDER 1 648FC-21B-005 1CC2FC0507150
3 -1 630 060 4504 BLOCK A 1 648FC-21B-002
3 -2 630 060 4481 BLOCK A 1 648FC-21B-014
4 616 111 8790 BALL BEARING 4 648FC-21H-502 1CC2GF4000740
5 616 121 7813 WASHER 2 648FC-21H-508 1CC2SB0500390
6 616 121 9275 PIN 2 648FC-21H-507 1CC2SD0502220
7 616 121 9244 SHAFT 2 648FC-21H-504 1CC2GK0502391
8 616 121 9237 BALL BEARING 2 648FC-21H-503 1CC2GF4000741
9 616 121 9107 HOOK 2 648FC-21B-008 1CC2CC3500600
10 -1 630 060 4498 BLOCK B 1 648FC-21B-015
10 -2 630 060 4511 BLOCK B 1 648FC-21B-003
11 616 111 8790 BALL BEARING 4 648FC-21H-502 1CC2GF4000740
12 616 121 7813 WASHER 2 648FC-21H-508 1CC2SB0500390
13 616 121 9268 PIN 2 648FC-21H-506 1CC2SD0502210
14 616 121 9244 SHAFT 2 648FC-21H-504 1CC2GK0502391
15 616 121 9237 BALL BEARING 2 648FC-21H-503 1CC2GF4000741
16 616 121 9091 HOOK 2 648FC-21B-007 1CC2CC3500580
17 630 000 7527 BOLT,HEX-SCT 6 M3X10
18 616 121 9282 SPRING 2 648FC-21H-509 1CC2GM0504420
19 630 008 2296 SET SCREW 4 M4X4 SET
NOTE
8-4
9705-001
MODEL TIM-1100L

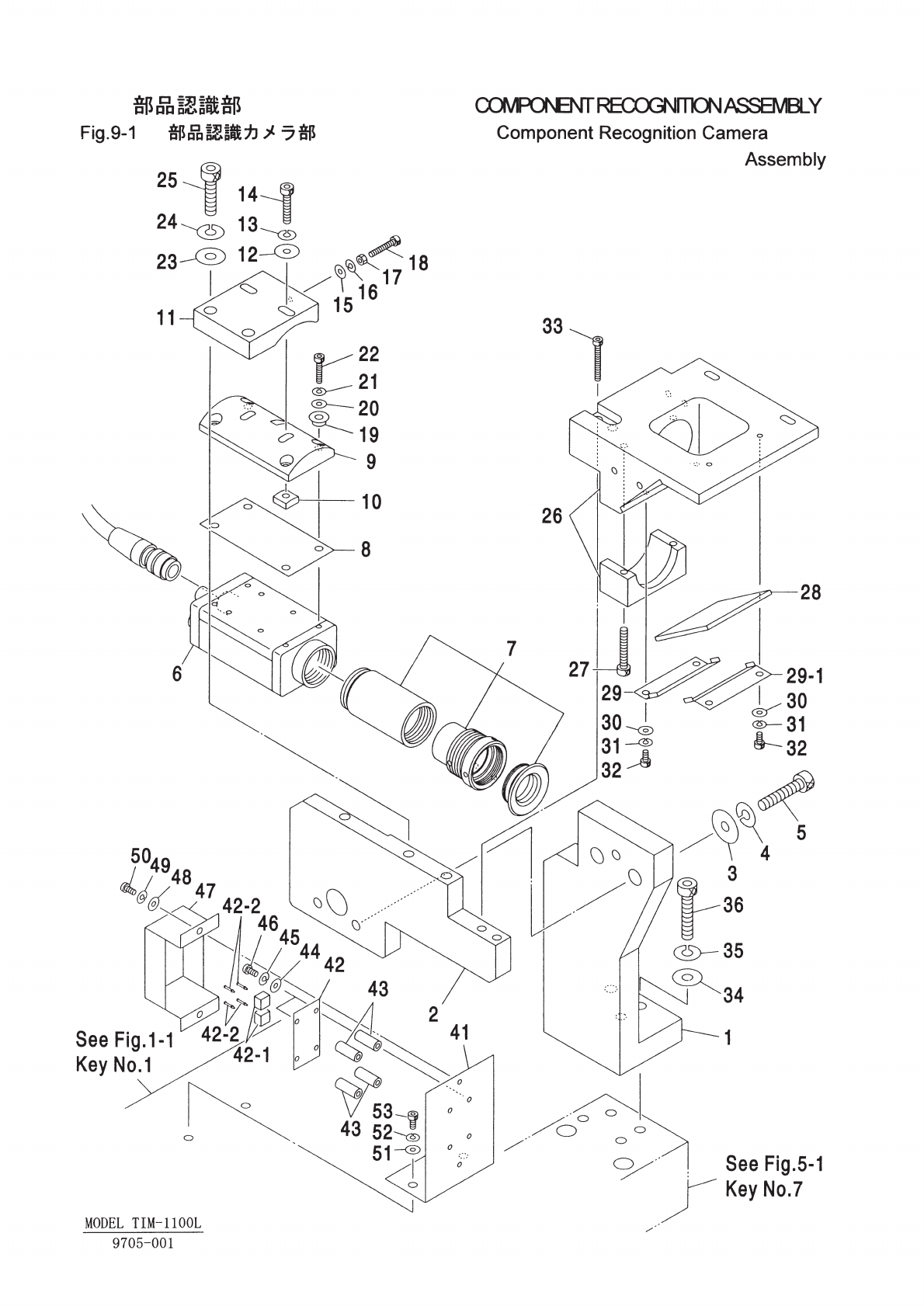

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8816 SADDLE 1 648CF-21B-004 1CC2FC2000292
2 616 125 8809 HOLDER 1 648CF-21B-003 1CC2FC0506993
3 630 001 0237 WASHER 2 BW6
4 411 141 3001 WASHER SPR 6 2 SW6
5 630 000 7916 BOLT,HEX-SCT 2 M6X30
6 630 059 1354 UNIT,CAMERA 1 648CF-21D-501
7 630 063 2781 SCOPE UNIT 1 648CF-21D-502
8 616 121 7400 INSULATOR 1 648CF-21B-009 1CC2CH1000040
9 616 125 8823 HOLDER 1 648CF-21B-008 1CC2FC0507631
10 616 111 9568 PLATE NUT 2 648CF-21B-007 1CC2SA1500820
11 616 121 7370 HOLDER 1 648CF-21B-006 1CC2FC0507620
12 630 001 0213 WASHER 2 BW4
13 411 141 2905 WASHER SPR 4 2 SW4
14 630 000 7664 BOLT,HEX-SCT 2 M4X20
15 411 141 3902 WASHER V 3X7X0.5 1 FW3
16 411 141 2806 WASHER SPR 3 1 SW3
17 411 140 9905 NUT HEX 3 1 M3
18 630 000 7572 BOLT,HEX-SCT 1 M3X25
19 616 121 7455 BUSH 4 648CF-21H-504 1CC4S60500220
20 411 141 3902 WASHER V 3X7X0.5 4 FW3
21 411 141 2806 WASHER SPR 3 4 SW3
22 630 000 7558 BOLT,HEX-SCT 4 M3X16
23 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
24 411 141 3001 WASHER SPR 6 2 SW6
25 630 000 7909 BOLT,HEX-SCT 2 M6X25
26 616 125 8793 BLOCK 1 648CF-21B-001 1CC2FB1002774
27 630 000 7671 BOLT,HEX-SCT 2 M4X25
28 616 112 1974 MIRROR 1 648CG-21H-502 1CC2FK3000010
29 616 125 7536 SADDLE 1 648CG-21B-110 1CC2FC2000210
29 -1 616 125 7529 SADDLE 1 648CG-21B-105 1CC2FC2000200
30 411 141 3902 WASHER V 3X7X0.5 4 FW3
31 411 141 2806 WASHER SPR 3 4 SW3
32 630 000 7503 BOLT,HEX-SCT 4 M3X6
33 630 000 7787 BOLT,HEX-SCT 2 M5X25
34 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
35 411 141 3001 WASHER SPR 6 2 SW6
36 630 000 7916 BOLT,HEX-SCT 2 M6X30
41 630 063 0206 BRACKET 1 648CG-21B-128
42 630 063 6673 P.C.BOARD 1 648CF-21D-504
42 -1 630 007 0460 RESISTOR,TRIMMER 2 648CF-21D-503
42 -2 630 063 6666 TEST PIN 4 648CF-21D-506
43 630 063 6680 ACCESSORY,P.C.B 4 648CF-21D-505
44 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
45 411 086 4408 WASHER SPR 3 4 SW3 F
46 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
47 630 063 0329 COVER 1 648CG-21B-129
48 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
49 411 086 4408 WASHER SPR 3 2 SW3 F
50 411 041 8908 SCR PAN 3X6 2 M3X6 PAN
51 411 141 4008 WASHER V 4X9X0.8 2 FW4
