Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 630 058 0983 ACCESSORY,LIGHT(1) 1 648CG-21B-051
2 630 061 3827 ACCESSORY,LIGHT 3 648CG-21V-501
2 -1 616 121 5062 L.E.D INDICATOR LIGHT 36 648JH-21D-501 1CC4T42700181
3 630 061 3834 ACCESSORY,LIGHT 1 648CG-21V-502
3 -1 616 121 5062 L.E.D INDICATOR LIGHT 12 648JH-21D-501 1CC4T42700181
4 630 058 1058 COVER(LED) 2 648CG-21B-058
5 630 059 8452 COVER(LED) 1 648CG-21B-060
6 630 011 1989 BOLT,HEX-SCT 8 M2.6X6
7 411 173 5202 SCR TRS 2X8 8 M2X8 TRS
8 630 058 0990 ACCESSORY,LIGHT(2) 1 648CG-21B-052
9 630 058 1003 SHEET(DIFFUSER) 4 648CG-21B-053
10 616 125 7451 PLATE 4 648CG-21B-012 1CC2FB0505450
11 411 141 3605 WASHER V 2X5X0.3 8 FW2 F
12 411 141 2509 WASHER SPR 2 8 SW2 F
13 411 125 5403 SCR PAN 2X4 8 M2X4 PAN
14 616 125 7543 COVER 8 648CG-21B-126 1CC2CA0503140
15 616 121 5086 PRINTED BOARD 8 648GL-11D-504 1CC4B18000050
15 -1 616 121 5062 L.E.D INDICATOR LIGHT 192 648GL-21D-501 1CC4T42700181
15 -2 401 007 0206 CARBON 100 JB 1/2W 32 648GL-11D-508 RDA1000JPCBNN
16 411 141 3704 WASHER V 2.5X6.5X0.5 16 FW2.5 F
17 411 141 2707 WASHER SPR 2.5 16 SW2.5 F
18 411 173 5400 SCR PAN 2.6X6 16 M2.6X6 PAN
20 630 066 9831 COVER(WINDOW) 2 648CG-21B-056
21 616 125 7505 PLATE 4 648CG-21B-024 1CC2FB0505470
22 616 125 7468 PLATE 4 648CG-21B-013 1CC2FB0505460
23 616 125 7451 PLATE 4 648CG-21B-012 1CC2FB0505450
24 411 141 3605 WASHER V 2X5X0.3 8 FW2 F
25 411 141 2509 WASHER SPR 2 8 SW2 F
26 411 125 5403 SCR PAN 2X4 8 M2X4 PAN
27 630 058 9481 STAY 4 648CG-21B-127
28 630 000 7657 BOLT,HEX-SCT 4 M4X16
29 630 000 7602 BOLT,HEX-SCT 4 M4X6
30 630 058 1010 COVER(LED 1) 3 648CG-21B-054
31 630 059 9893 COVER(LED 2) 1 648CG-21B-055
32 411 173 5301 SCR TRS 2X4 16 M2X4 TRS
NOTE
9-2
9705-001
MODEL TIM-1100L

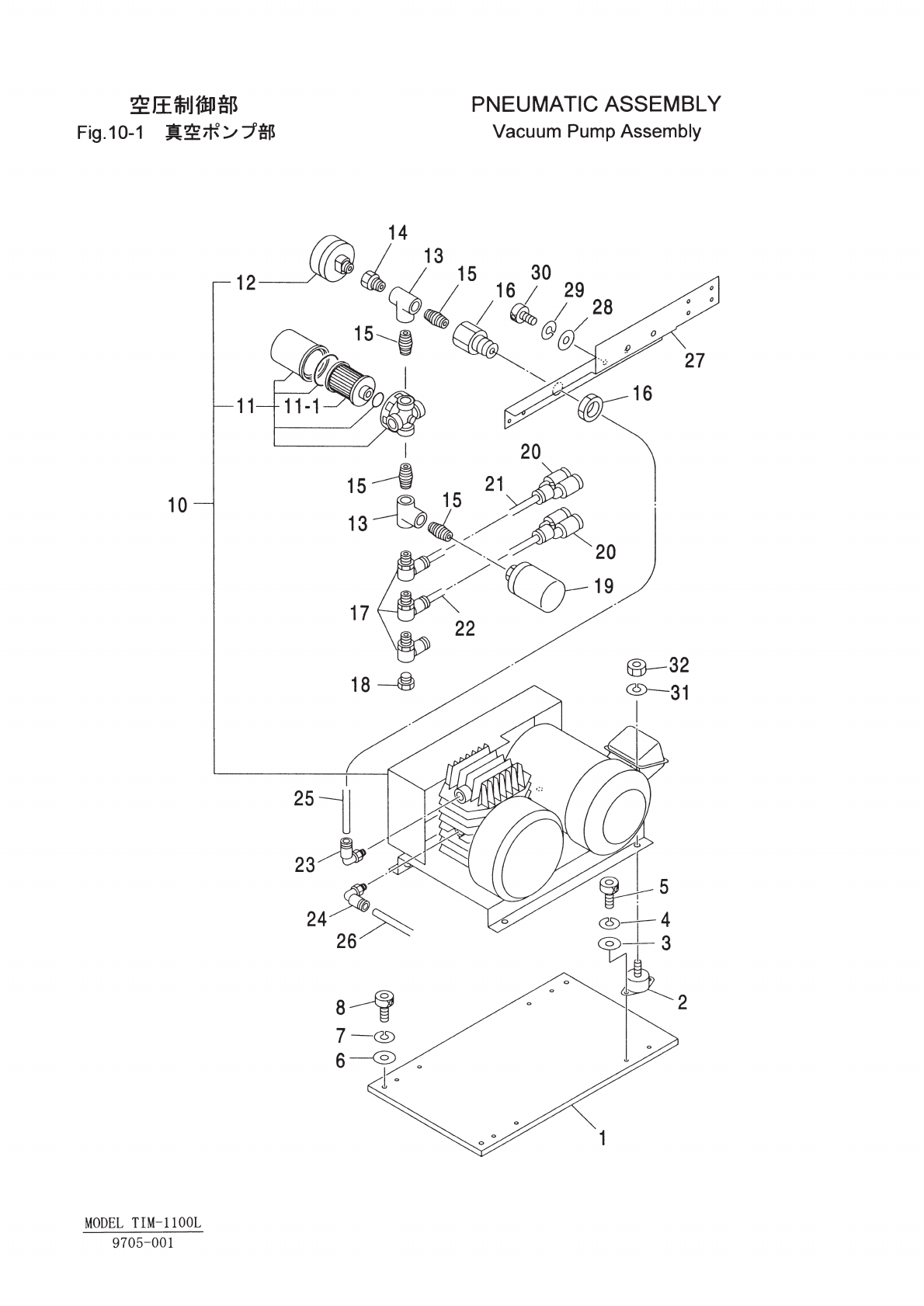

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.
1 616 125 8434 BASE 1 648BE-21B-013 1CC2FA1001831
2 616 121 7035 CUSHION 4 648BE-21H-508 1CC2FJ1500170
3 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
4 411 141 3001 WASHER SPR 6 8 SW6
5 630 000 7862 BOLT,HEX-SCT 8 M6X10
6 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
7 411 141 3001 WASHER SPR 6 3 SW6
8 630 000 7886 BOLT,HEX-SCT 3 M6X16
10 630 056 9070 VACUUM PUMP 1 648BE-21H-504
11 630 031 8593 AIR LINE EQPT(FILTER) 1
11 -1 630 012 1230 AIR LINE EQPT(FLT ELEM) 1
12 616 123 8665 MANOMETER 1 1CC2NA1000040
13 616 123 8634 TEE 2 1CC2BD4500010
14 616 111 7830 AIR BUSHING 1 648BE-21H-532 1CC2BD5500070
15 616 123 8627 NIPPLE 4 1CC2BD3500120
16 616 121 7226 UNION 1 648BE-21H-536 1CC2BD5000110
17 616 111 7854 ELBOW 3 648BE-21H-528 1CC2BD1000150
18 616 111 7861 PLUG 1 648BE-21H-521 1CC2BD4000040
19 616 111 7793 PRESSURE SWITCH 1 648BE-21H-503 1CC2BC5600020
20 616 123 8641 UNION 2 1CC2BD5000340
23 616 123 8610 ELBOW 1 1CC2BD1000810
24 616 123 8610 ELBOW 1 1CC2BD1000810
27 616 125 8403 HOLDER 1 648BE-21B-006 1CC2FC0506852
28 411 141 4107 WASHER V 5X10X1 2 FW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7749 BOLT,HEX-SCT 2 M5X10
31 411 141 3001 WASHER SPR 6 4 SW6
32 411 141 0703 NUT HEX 6 4 M6
NOTE
10-1
9705-001
MODEL TIM-1100L
