Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

99 411 119 1909 WASHER V 3X7X0.5 2 FW3 F

100 411 086 4408 WASHER SPR 3 2 SW3 F

101 411 042 0703 SCR PAN 3X8 2 M3X8 PAN

102 411 141 4008 WASHER V 4X9X0.8 2 FW4

103 411 141 2905 WASHER SPR 4 2 SW4

104 630 000 7626 BOLT,HEX-SCT 2 M4X10

105 630 001 0251 WASHER 4 BW10

106 411 141 3209 WASHER SPR 10 4 SW10

107 630 000 8128 BOLT,HEX-SCT 4 M10X25

110 630 040 1639 MECH PARTS(DUMPER) 1 648ED-21H-521

111 630 000 7497 BOLT,HEX-SCT 1 M3X4

NOTE

4-3

9705-001

MODEL TIM-1100L

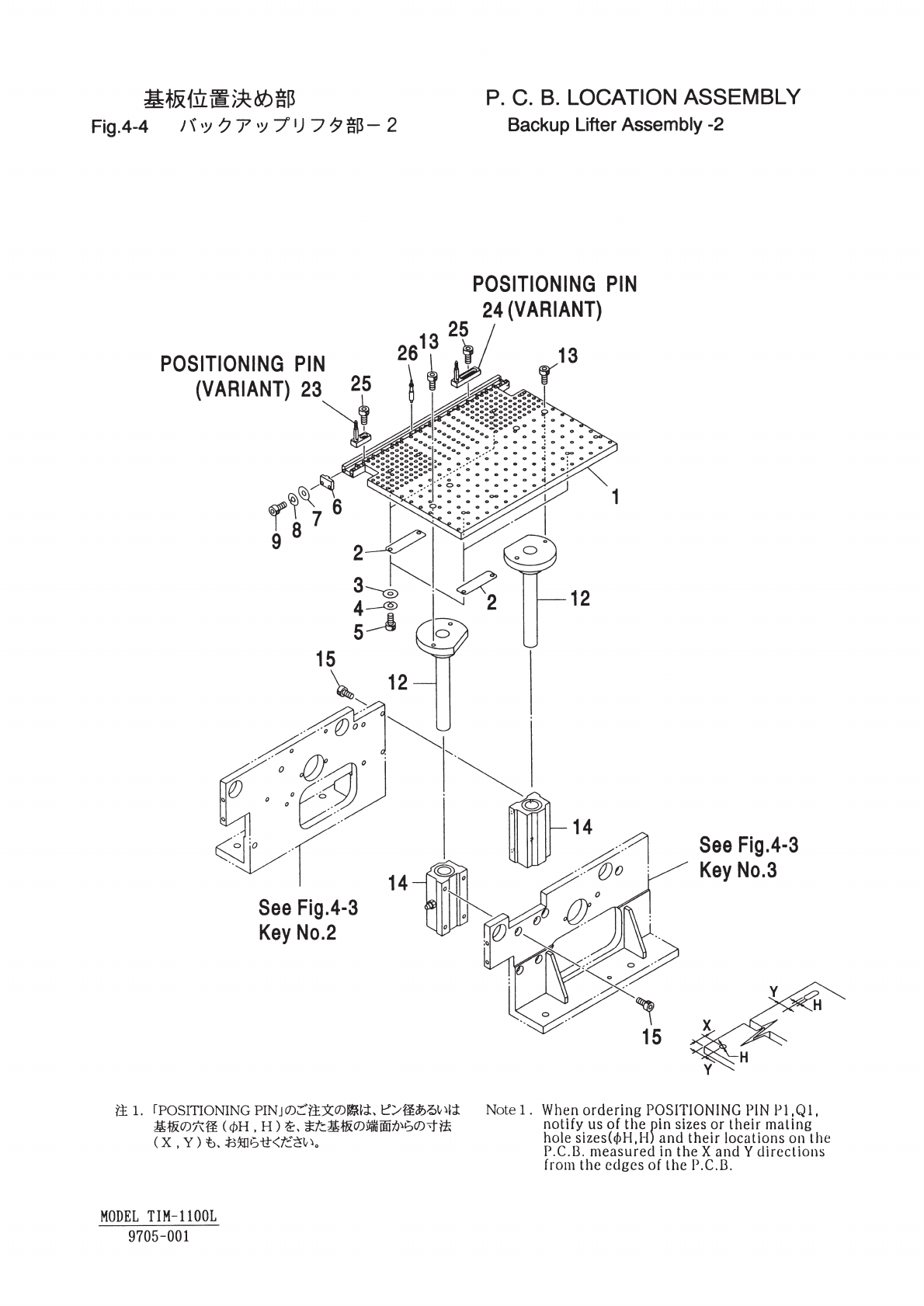

Key No. PART No. PART NAME Q'ty REMARKS REGISTERED No.

1 616 121 8445 PLATE 1 648ED-21B-015 1CC2FB0507082

2 616 121 8452 PLATE 4 648ED-21B-016 1CC2FB0507090

3 411 141 4008 WASHER V 4X9X0.8 8 FW4

4 411 141 2905 WASHER SPR 4 8 SW4

5 630 000 7626 BOLT,HEX-SCT 8 M4X10

6 630 058 2253 BLOCK(LOCATE) 1 648ED-21B-017

7 411 141 3902 WASHER V 3X7X0.5 2 FW3

8 411 141 2806 WASHER SPR 3 2 SW3

9 630 000 7527 BOLT,HEX-SCT 2 M3X10

12 616 121 8476 FLANGE 2 648ED-21B-018 1CC2FE1000400

13 630 000 7763 BOLT,HEX-SCT 4 M5X16

14 616 121 8698 BALL BUSH 2 648ED-21H-511 1CC2GG5001250

15 630 000 7886 BOLT,HEX-SCT 8 M6X16

25 630 000 7626 BOLT,HEX-SCT 2 M4X10

26 616 125 6577 PIN 10 648ED-21B-030 1CC2SD0501150

NOTE

4-4

9705-001

MODEL TIM-1100L
