VERSION: .1.01 E 15 / 52 When adjusting the arm, first rotate the locking handle counterclockwise to m ake the arm in a relaxe d state, then gently rotate the arm to the desired angle by hand, and rotate the locking hand…

100%1 / 52
VERSION: .1.01 E
14 / 52

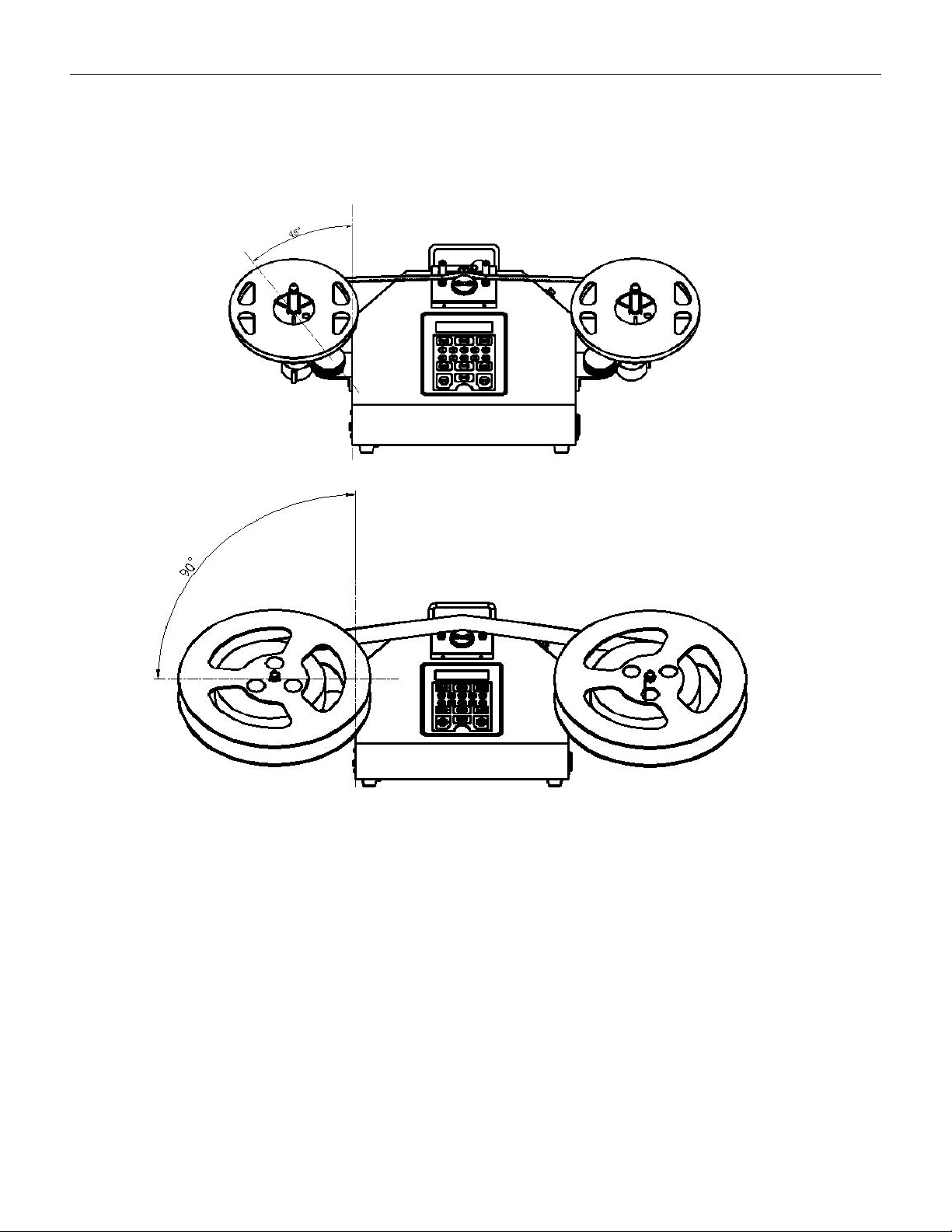

reel, place the arm at a 45 degree angle to the chassis; When using a 13 inch/330 cm or
larger reel, please place the arm at a 90 degree angle to the chassis, rotate the locking knob
clockwise, and lock the arm to the fixed bracket. We recommend fixing the arm angle at 45
degrees, which is compatible with both large and small material trays
7-inch/180cm reel --45°
13inch/330cm or larger --90°
VERSION: .1.01 E
15 / 52

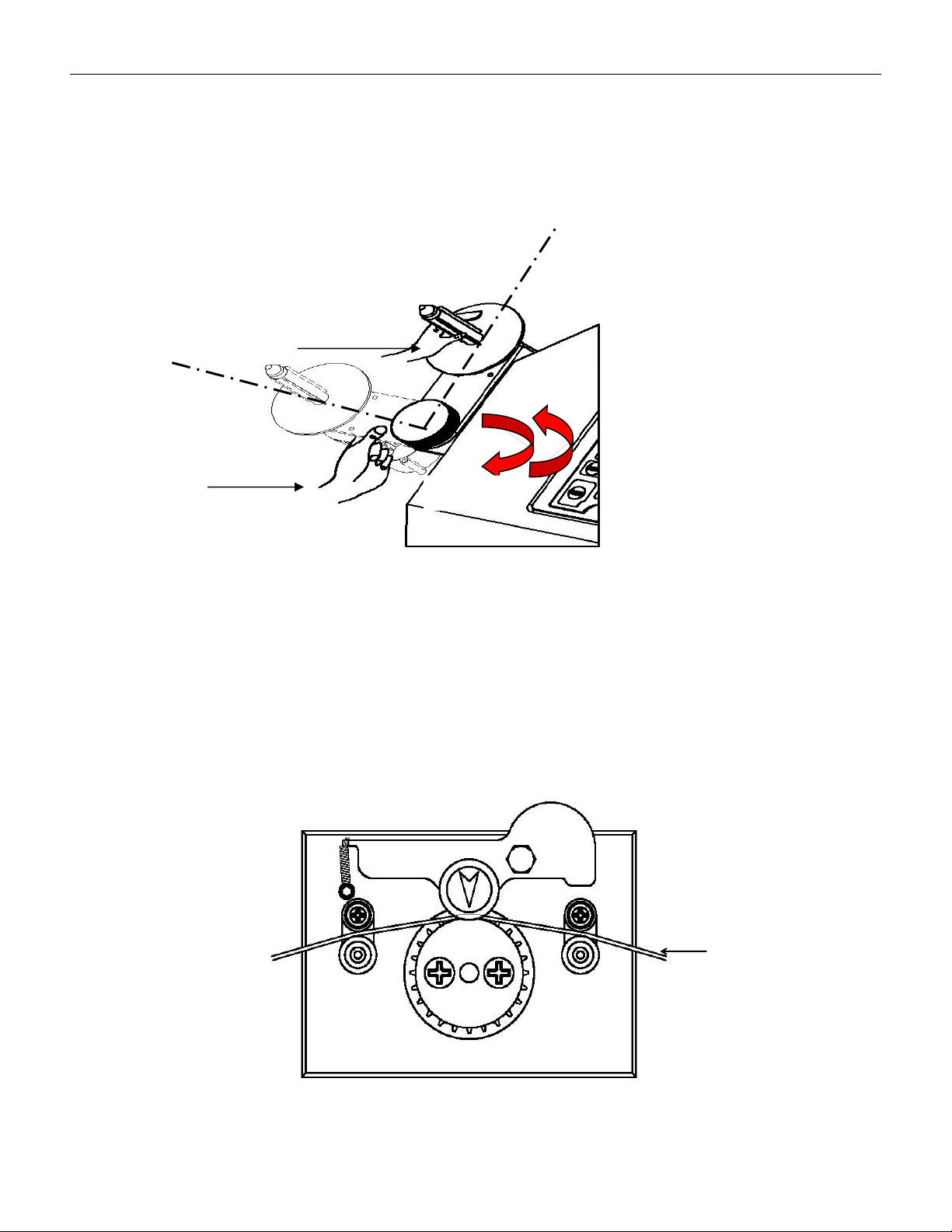

When adjusting the arm, first rotate the locking handle counterclockwise to make the arm
in a relaxed state, then gently rotate the arm to the desired angle by hand, and rotate the
locking handle clockwise to make the arm in a locked state; Please note that when rotating
the arm, do not use your hands to pull or push the belt shaft, as this may damage the
transmission. You can use your hands to gently apply force at the arm as shown in the
following diagram。
4.1.5 Set the reel onto the counter
Install the part reel to be counted onto reeling shaft on the left, so that the blades on
reeling shaft are locked to the reel; install temporary reels of corresponding widths on
the right; guide the starting part of the tape through the space between upper
guide pole and lower guide pole, press the guide pulley, and hang the tractive hole, namely,
D as below, of the reel onto counting gear.
Ree
l
Wrong
Correct
Tighten
Loose
VERSION: .1.01 E
16 / 52
pull the tape through the upper guiding pole and the lower guiding pole
4.1.6 According to item 4.1.3 mentioned above, please press the PITCH key to set the
corresponding pitch value.
4.1.7 Drag the tape by hands, align the first component with the arrow indicated on guide
pulley; press the CLEAR key to clear.

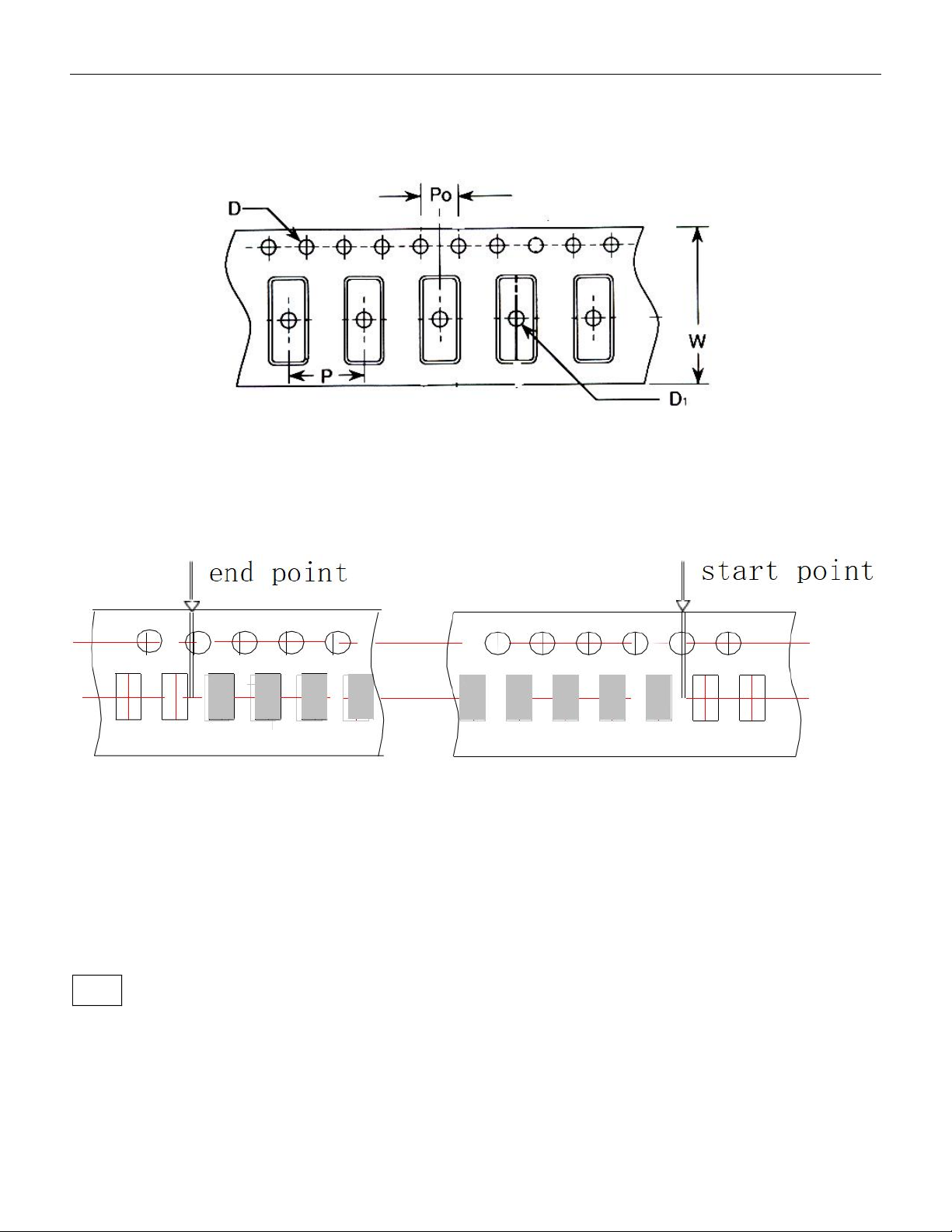

About the first and last component
4.1.8 Drag the tape and lead the tape into the temporary reel on the right and hang it to the
hub of reel. Now, the value is increasing.
4.1.9 Press START key, and the motor will drag the tape in the forward direction, and the
counting value will increase.
Note: whether in cases of manual or motor dragging of the tape, the counting value will be
increased in the forward direction, and decreased in the reverse direction. The counting will
be accurate only if the tape does not fall down from the counting gear.
4.1.10. If there is the preset value, the device will stop at the corresponding location, drag
