Setting up and Commissioning Preparatory Work 32 User Manual JTF-MW on SIPLACE E Replacing the Empty Tape Duct ► Remove the plug at the front cover (1) . ► Push the coupling th rough the opening in the front cover (2). ►…
Setting up and Commissioning
Preparatory Work
User Manual JTF-MW on SIPLACE E 31

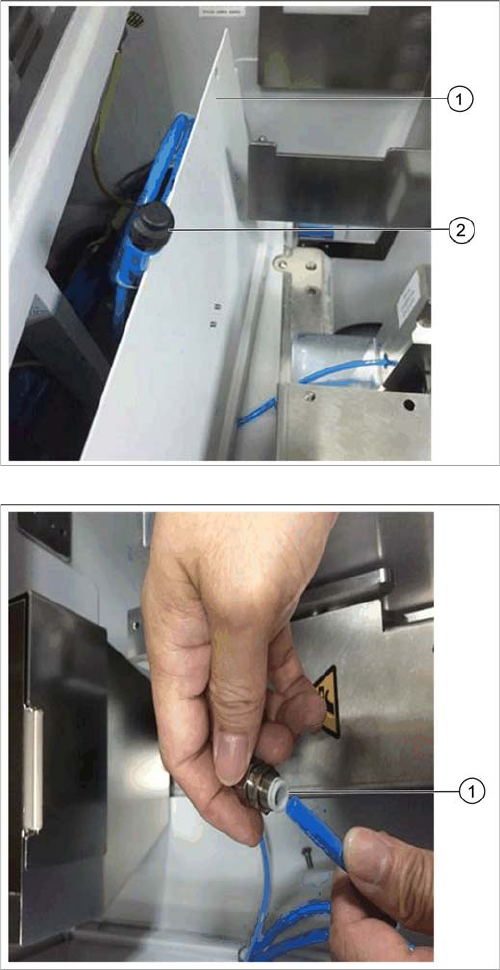

► Open the side cover (1).
► Locate the plug at the end of pneumatic tube (2).
► Replace the plug by the coupling [03117595-xx] (1)
from the retrofitting kit [03120613-xx].
Setting up and Commissioning
Preparatory Work
32 User Manual JTF-MW on SIPLACE E
Replacing the Empty Tape Duct

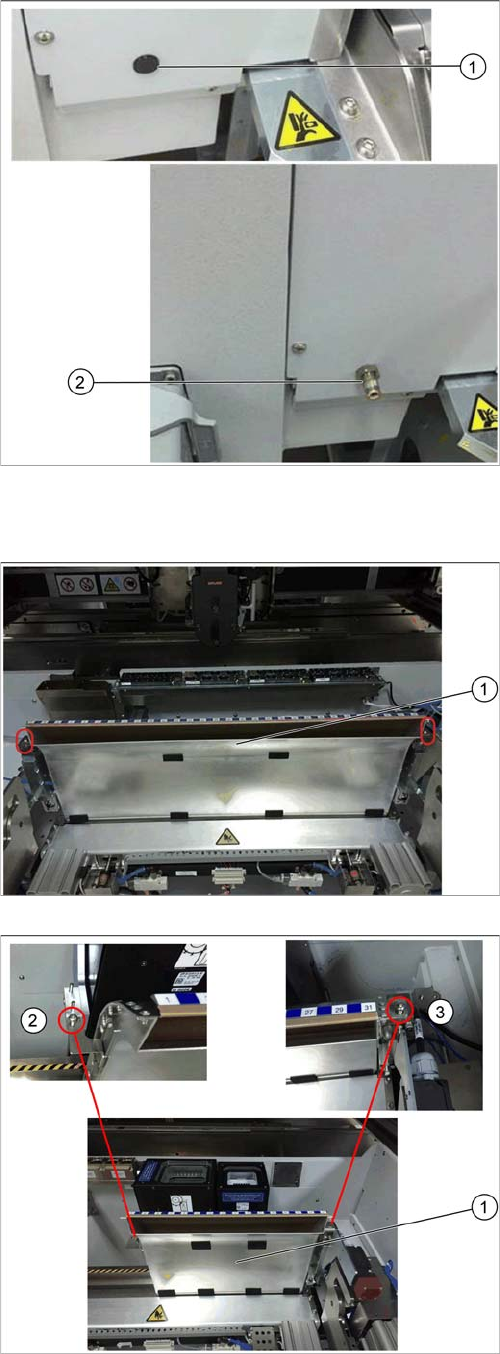

► Remove the plug at the front cover (1).
► Push the coupling through the opening in the front
cover (2).
► Fix it with a nut.
► Close the side cover inside the machine and fix it with
the three screws that you previously removed.
In the original state, the SIPLACE E machine is equipped
with a long empty tape duct (1).
► Remove the fastening screws on the left side and on
the right side of original empty tape duct.
► Lift the empty tape duct out of the machine.
► Install the empty tape duct 25 mm right (1).
► Fix the empty tape duct with two M5x10 screws on
the left (2) side and on the right side (3).
Setting up and Commissioning
Installation and Commissioning the SILPACE E
User Manual JTF-MW on SIPLACE E 33
Installing the Frame Kit
The frame kit acts as a stop and prevents the JTF-MW from tilting.
4.6
4.6 Installation and Commissioning the SILPACE E
Installation and Commissioning the SILPACE E
4.6.1
4.6.1 Installing the JTF-MW in the Machine
Installing the JTF-MW in the Machine

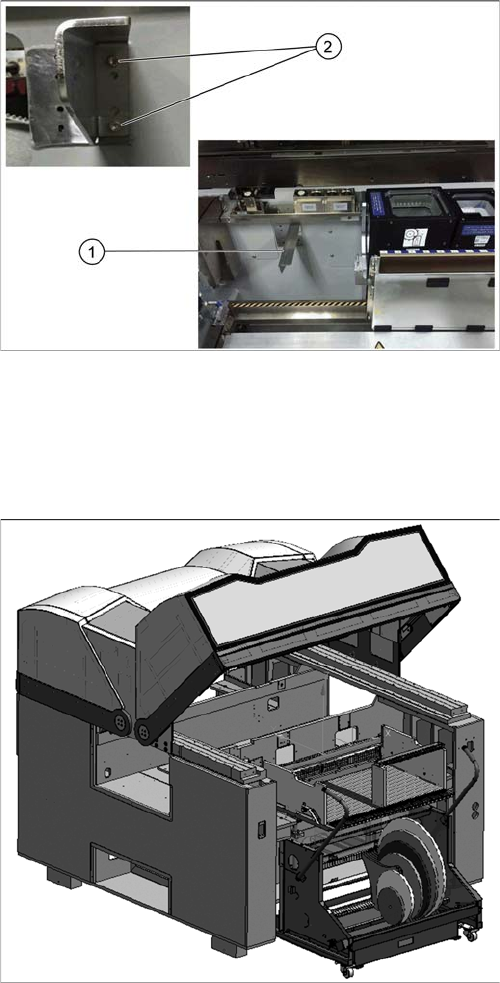

► Install the frame kit (1) at its installation position on
the left of the empty tape duct.
► Fix it at the two fixation points (2).
COT in loading position
► Move the COT table to the loading position so that the
table is in a fixed position when installing the
JTF-MW.
