Chapter 4 Using the advanced functions

Using the advanced functions

4 -1

1. Board parameters

1.1 Using the badmark functions

The badmark function permits the machine to cancel component mounting if the machine

detects a badmark affixed to the specified position on a PCB.

The machine mounts components when no badmarks are detected.

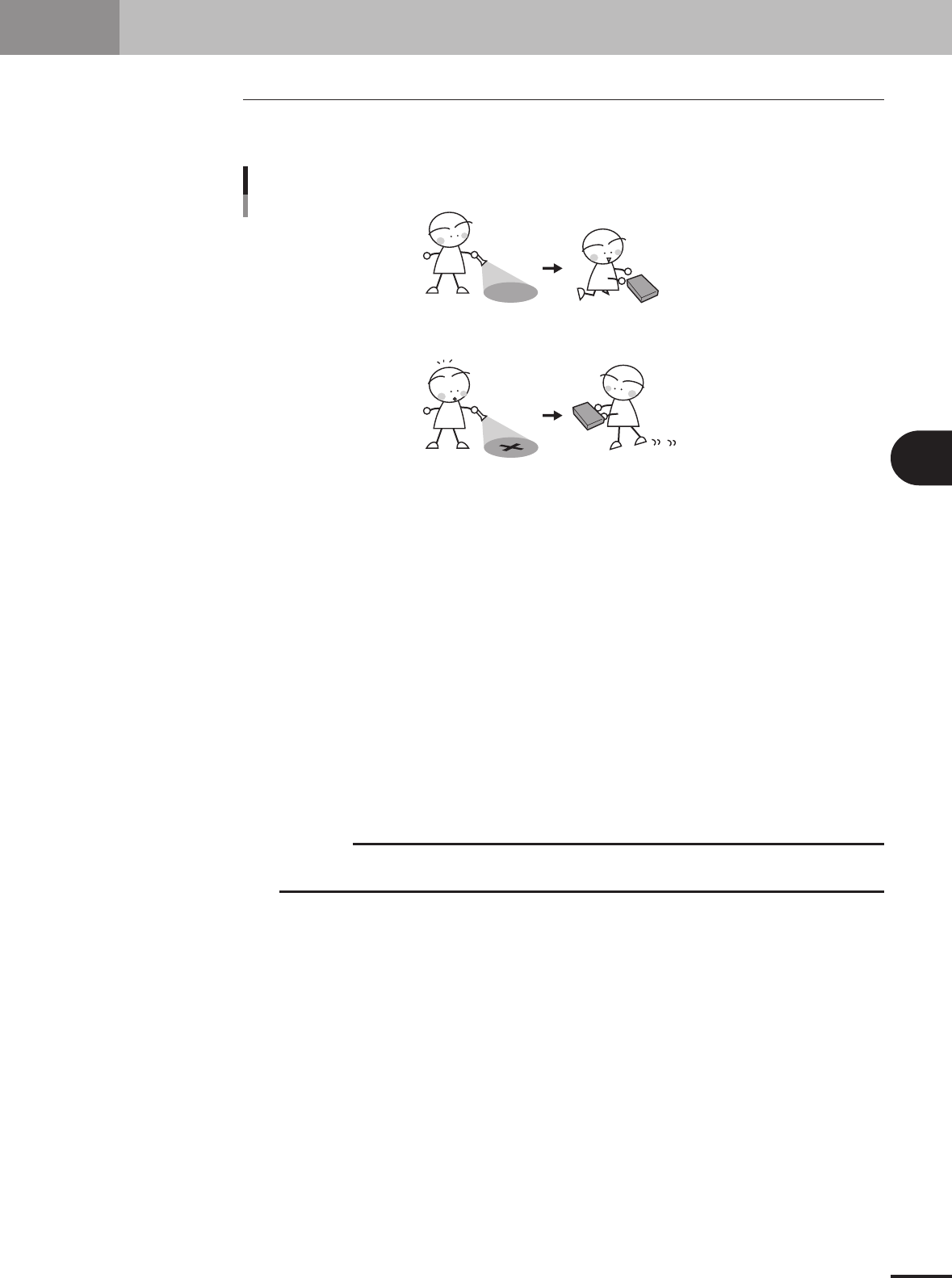

Badmark function

The machine skips mounting components when a badmark is detected.

23414-5E-20

Badmarks are broadly classified into two types: one is specified for the PCB data and the

other is for the mount data. These badmarks are further divided by their functions into

"Board badmark", "Block badmark" and "Local badmark".

Board badmark

A board badmark is affixed on a PCB and used to determine whether or not the machine searches for

block badmarks on the PCB. For example, when a multi-block PCB with no faulty blocks (no block

badmarks) is fed to the machine, it is a loss of time to search for block badmarks on that PCB. The

PCB badmark function permits the machine to search for block badmarks only when the PCB

badmark is detected. If no PCB badmark is detected, the machine mounts components on all blocks

of the PCB without searching for block badmarks.

Block badmark

A block bad mark is affixed to each block which is defective. The machine mounts components only

on blocks with no badmark affixed. For example, if Block B is defective in a multi-block PCB

consisting of 4 blocks (A, B, C and D), affix a block badmark on Block B so that the block badmark

function allows the machine to skip mounting on Block B. Components will be mounted only on

Blocks A, C and D.

CAUTION

The block badmark function can only be used for multi-block PCB data with "block offset"

specified on the Offset tab screen.

Local badmark

The local badmark function cancels component mounting by recognizing a badmark specified at a

mounting point.
