5 -11
5
Editing the PCB data
1. Using the Editor
8.Select the direction of search.
Select "Top of Documents" to start the search from the current position towards the
top of the data lines, or select "End of Documents" to start the search towards the
end of the data lines.
9.Start the search and replace.
To start the search and replace while checking each matching item, click the [Find
Next] button. When the specified item is found, the cursor moves there and high-
lights it. Click the [Replace Find Next] button and repeat the same operation.
When all the matching items have been replaced or no matching item is found, the
message box appears. Click the [OK] button to close the message box.
n
NOTE
If you want replace all the matching items at a time, click the [Replace all ] button. The message box appears
after the replace is complete. Click the [OK] button to close the message box.
4
Close the "Replace" dialog box.
Click the [Cancel] button (or click the Close button in the upper right corner) to close
the "Find" dialog box.
5 -12
5
Editing the PCB data
1. Using the Editor

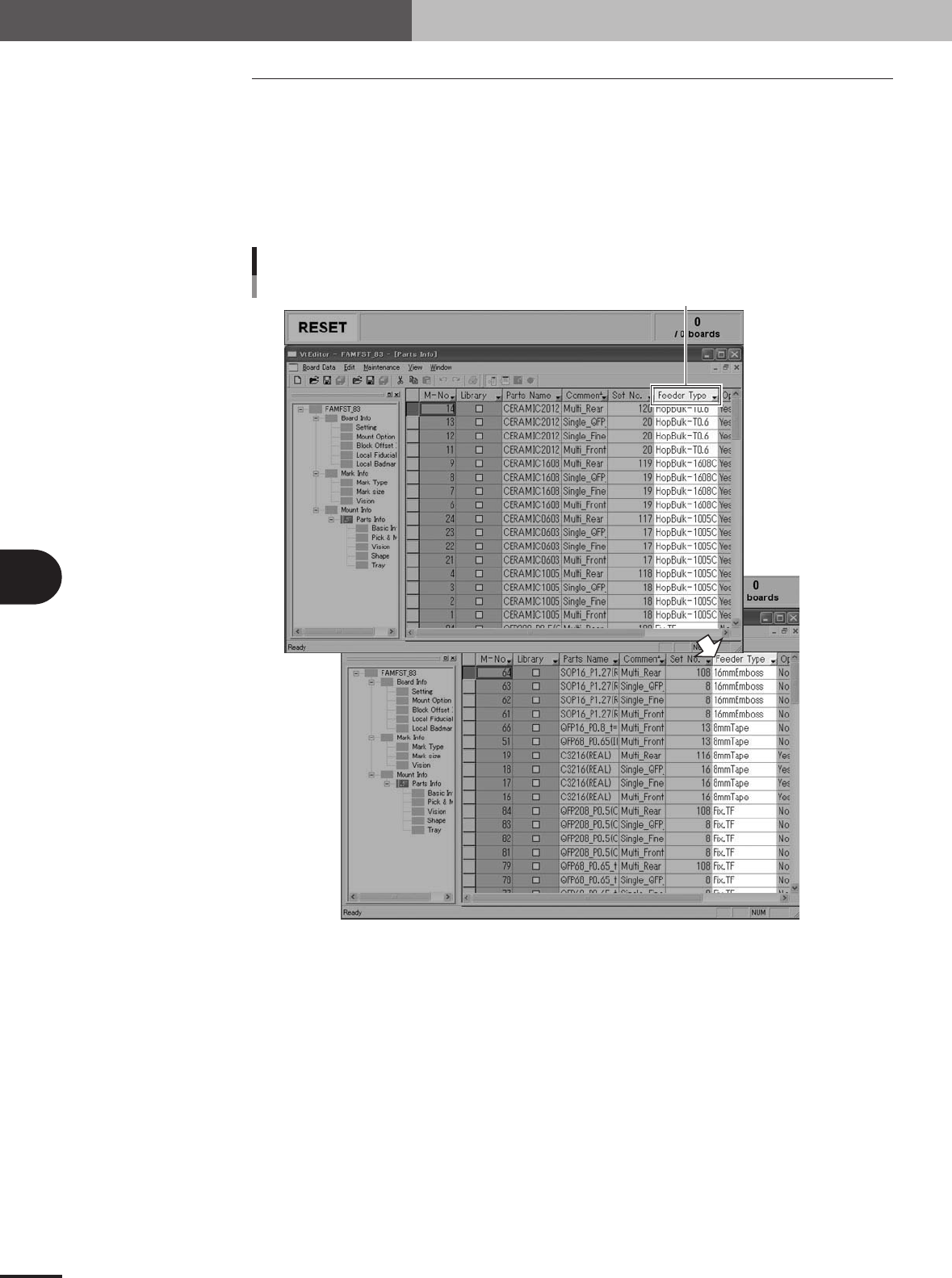

1.4 Sort
On the main view window, the data can be arranged into ascending or descending order
by a desired data item.
1
Display the data grid in which you want to arrange the data.
2
Click on the column label by which you want to arrange the data.
All the data is arranged in ascending order by the selected column. Clicking again
rearranges all the data in descending order by the selected column.
Click here.
Sorting
27519-5E-20
5 -13
5
Editing the PCB data
1. Using the Editor
1.5 Multiplying the Component Data
This function allows component data to multiply into two or more units of the same data.
This means that the multiplied data can be supplied from multiple feeders. When a large
amount of the same components are used for one PCB, this function shortens the time
required to produce a PCB
1
Display the "Parts Info" data table.
Click the "Parts Info" icon in the work space.
2
Select the data line of the component to be multiplied.
"Multiply Parts" command
27520-5E-20
3
Multiply the selected component.
1.Select "Component Information Support" - "Multiply Parts" from the Edit menu.
The "Multiply Parts" dialog box appears.
2.In the "Multiply No." box, set the desired number you want to obtain.
3.Check the "Select Alternative Part" checkbox if the component is used as an
alternative component.
Enter or select the number to multiply data.
"Multiply Parts" dialog box
27521-5E-20
4.Click the [OK] button.
Component multiplication is performed.
5.When the dialog box appears indicating the component multiplication has been
completed, click the [OK] button. The dialog box closes.
