A - 3 A Specifications 1. Specifications 1.2.1 PREVIOUS INTERFACE connector Signals 1. Signal output 1 during PCB carry-in (relay contact) 2. Signal output 2 during PCB carry-in (relay contact) A PCB is carried in when t…

100%1 / 267
A -2
A
Specifications
1. Specifications
1.2 Connection between machines
The mounter ejects the finished PCB when it receives a signal from the machine in the
next process, and then sends a signal to the machine in the preceding process to request
another PCB. The "NEXT INTERFACE" connector connects to the machine in the next
process, and the "PREVIOUS INTERFACE" connector connects to the machine in the
preceding process. Both connectors are located inside the front panel of the machine.
Controller
PREVIOUS
INTERFACE
NEXT
INTERFACE
NEXT and PREVIOUS INTERFACE connectors
3
1 2
2
1 3
AMP 2-178802-3
3-pin panel type
keying Y
AMP 2-178802-3
3-pin panel type
keying X
23121-5E-20
c
CAUTION
A dedicated cable is separately required when the machine in the preceding process is not M
cube / M cube plus. (Refer to the specification sheet for details.)
A -3
A
Specifications
1. Specifications
1.2.1 PREVIOUS INTERFACE connector
Signals
1. Signal output 1 during PCB carry-in (relay contact)
2. Signal output 2 during PCB carry-in (relay contact)
A PCB is carried in when the machine is ready for the next operation and the above two points (1 and
2) is connected (closed) as a PCB request signal.
1
2
3
This machine
Upstream machine
+24V
BUSY OUT
(T19043)
Cable
PREVIOUS INTERFACE circuit
23122-5E-20
1.2.2 NEXT INTERFACE connector
Signals
1. DC 24V
3. Signal input of PCB carry-out request
When the above two points (1 and 3) is connected (closed), the machine judges that a PCB carry-out
request is issued and carries out the PCB when component mount is complete.
+24V
5V
10.5kΩ
0.1µ
BUSY IN
(N1A047)
Downstream machine
This machine
Cable
NEXT INTERFACE circuit
1
3
2
23123-5E-20
1
2
3
Relay contact (zero voltage) output
Relay contact (zero voltage) output
Signal input of PCB
carry-out request
BUSY OUT
BUSY OUT
NC
Signal name
PREVIOUS INTERFACE (From this machine to upstream machine)
NEXT INTERFACE (From this machine to downstream machine)
PCB transfer signal specifications
I/O specifications Signal specificationsPin No.
1
2
3
+24V
PNP input
Signal output to request
PCB carry-out
BUSY IN (+24V)
NC
BUSY IN (N1A047)
Signal name I/O specifications Signal specificationsPin No.
25109-5E-20
A -4
A
Specifications
1. Specifications

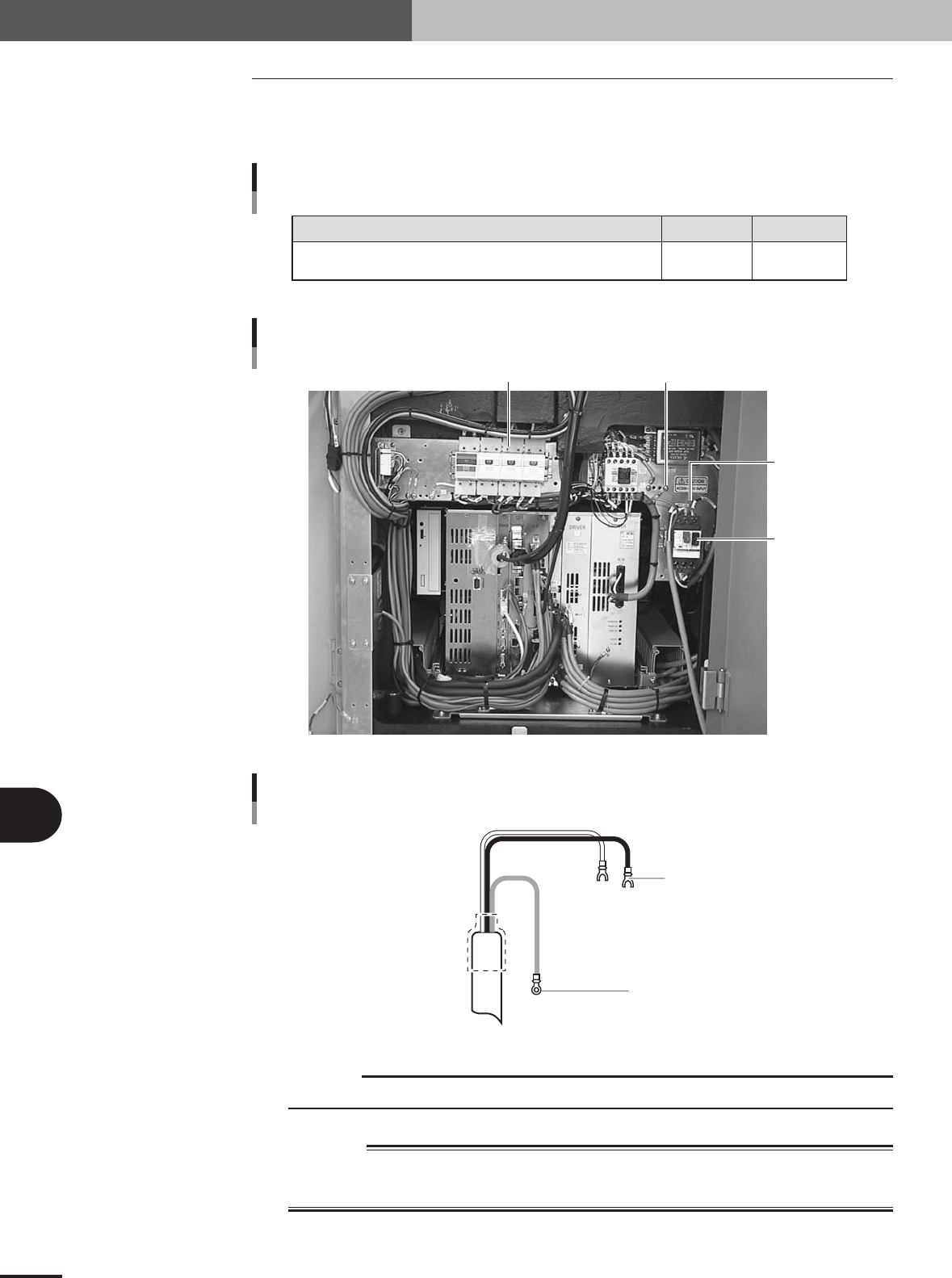

1.3 Power connection terminals
The power connection terminals are located inside the lower left panel on the rear of the
machine. Connect the power cable leads as shown below to the primary terminals L1 and
L2 on the main breaker and the ground terminal on the main unit chassis.
Power
Power supply specifications
Frequency Power capacity
Single phase AC 200 to 240V -10%, +6% 50/60Hz 2.8kVA
25111-5E-20
Power input terminal
Ground terminal
Main breaker
Power connection terminals
Breaker
23126-5E-20
Earth
Green
L=350mm
L=350mm
Round crimp terminal
Crimp terminal with insulation tube
L1
L2
Power cable example
23127-5E-20
c
CAUTION
Use a power cable that uses conductor wire having a cross section of at least 3.5mm
2
(AWG13).
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE POWER SOURCE IS
OFF BEFORE CONNECTING THE POWER CABLE. ALSO MAKE SURE THAT THE GROUND
CABLE IS SECURELY CONNECTED TO THE MACHINE.
