B -12
B
Alignment Type glossary
2. Alignment Type glossary
2. Algorithm: Special 1 (Components with 1 shape)
Component center and tilt are detected utilizing several lines.
The overall center-of-gravity and tilt of the component are found as a feature amount. Lines 1 and
2 are set based on this feature amount and the edge positions P1 to P4 found on those lines. The tilt
of line 3 connecting the center points of P3 and P4 and the center points of P1 and P2 is taken as
the component tilt. Lines 5, 6, 7 and 8 are set in parallel with line 3 and edge positions P5 to P8
found. The component center is found by taking the average of these points.
P1
P7
P8
P5
P6
P2
G
P3
P4
Line 3
Line 4
Line 1
Line 2
Line 7
Line 8
Line 5
Line 6
Mark: Special 1
23B03-5E-20
■ Special components (Special: AsMark)
Alignment Group Special
Alignment Type Special
Comp. Threshold Set the binary level. (If set to 0, the binary level is set
automatically.)
Comp. Tolerance Specify the shape dimension tolerance.
Search Area Set the detection range.
Body Size X Set the component size.
Body Size Y Set the component size.
Body Size Z Set the component thickness.
Algorithm Special 1
Base Alignment AsMark
Vision Option 1 Set the detection direction. 0: Auto, 1: Left side/upper side
only, 2: Right side/lower side only, 3: Both sides
When set to 0 (Auto), the component is not detected in the
direction where it crosses the frame of the search window.
Vision Option 2 Set to 0.
Vision Option 3 Set to 0.
Vision Option 4 Specify a numeric value representing the Cut Inner Noise
and Cut Outer Noise levels, and also the sequence to
execute them. For example, when the Cut Outer Noise
level is set as n1 and the Cut Inner Noise level is set as n2,
set a value of "n2 × 8 + n1" here. When executing in the
sequence from Cut Outer Noise to Cut Inner Noise, set a
value obtained by subtracting 128 from "n2 × 8 + n1".
Lead Group W When this parameter is set to 0 or 10, a line 1 is
automatically set at a position 1/4th of the detection length
from the center-of-gravity. Lines 7 and 8 are set at a
position 1/4th of the detection width.
Lead Number W1 (mm) Set to 0.
ReflectLL W1 (mm) Set to 0.
Lead Width W1 (mm) Set to 0.
Lead Pitch W1 (mm) Set to 0.
Find PosX W1 (mm) Enter a numeric value to set the detection position. When
Lead Group is 1, line 1 is set to a position offset by this
value from the edge position.
Find PosY W1 (mm) Enter a numeric value to set the detection positions. When
Lead Group is 1, lines 7 and 8 are set to positions offset by
this value from line 3.
B -13
B
Alignment Type glossary
2. Alignment Type glossary
Lead Group E When this parameter is set to 0 or 10, a line 1 is
automatically set at a position 1/4th of the detection length
from the center-of-gravity. Lines 5 and 6 are set at a
position 1/4th of the detection width.
Lead Number E1 (mm) Set to 0.
ReflectLL E1 (mm) Set to 0.
Lead Width E1 (mm) Set to 0.
Lead Pitch E1 (mm) Set to 0.
Find PosX E1 (mm) Enter a numeric value to set the detection position. When
Lead Group is 1, line 2 is set to a position offset by this
value from the edge position.
Find PosY E1 (mm) Enter a numeric value to set the detection positions. When
Lead Group is 1, lines 5 and 6 are set to positions offset by
this value from line 3.
B -14
B
Alignment Type glossary
2. Alignment Type glossary
3. Algorithm: Special 2 (Component with shape consisting of 2 sec-
tions)

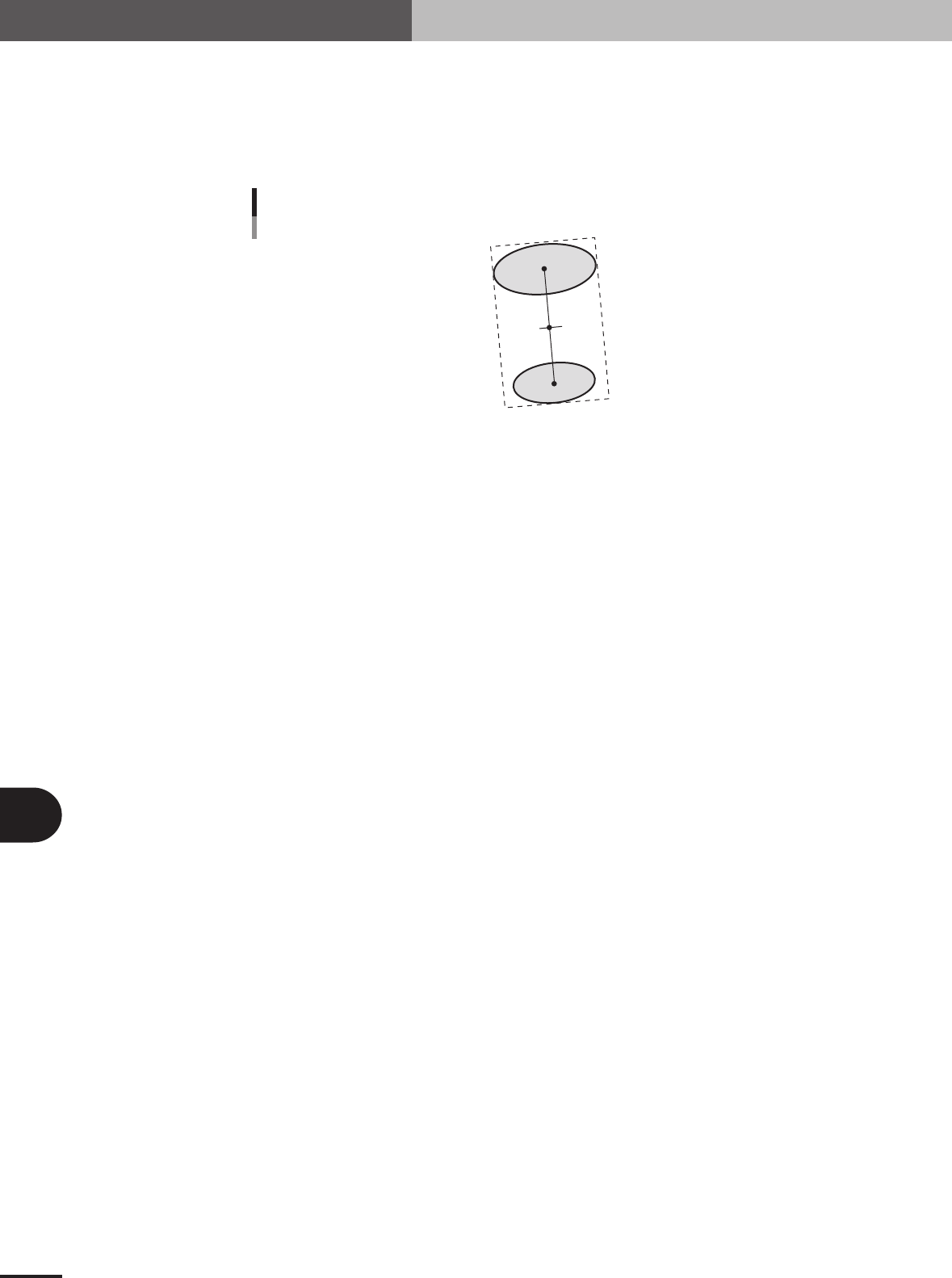

This is useful when the component is divided into 2 sections as shown below.
The center position is an average of center-of-gravity of each section. The tilt is found from the tilt
of the direct line joining the center-of-gravity positions of the 2 sections.
C1
C2
Alignment Type : Mark
23B04-5E-20
■ Component shape consisting of 2 sections (AsMark)
Alignment Group Special
Alignment Type Special
Comp. Threshold Set the binary level. (If set to 0, the binary level is set
automatically.)
Comp. Tolerance Set the shape dimension tolerance.
Search Area Set the detection range.
Body Size X Set the component size.
Body Size Y Set the component size.
Body Size Z Set the component thickness.
Surface Type Select "Reflect" (reflective surface) or "NonReflect" (mat
surface).
Algorithm Special 2
Base Alignment AsMark
Vision Option 1 Set to 0.
Vision Option 2 Set to 0.
Vision Option 3 Set to 0.
Vision Option 4 Specify a numeric value representing the Cut Inner Noise
and Cut Outer Noise levels, and also the sequence to
execute them. For example, when the Cut Outer Noise
level is set as n1 and the Cut Inner Noise level is set as n2,
set a value of "n2 × 8 + n1" here. When executing in the
sequence from Cut Outer Noise to Cut Inner Noise, set a
value obtained by subtracting 128 from "n2 × 8 + n1".
Lead Group N Set to 1.
Lead Number N1 Set to 1.
ReflectLL N1, Lead Width N1 Set the size (surface area) of the upper section. If a
rectangle, specify a value of the lead length multiplied by
the lead width. If a circle, specify the diameter of the circle
with the lead width and a lead length equal to 0.
Lead Pitch N1 Set to 0.
Find PosX N1, Find PosY N1 Set the center-of-gravity position of the upper section.
Lead Group S Set to 1.
Lead Number S1 Set to 1.
ReflectLL S1, Lead Width S1 Set the size (surface area) of the lower section. If a
rectangle, specify a value of the lead length multiplied by
the lead width. If a circle, specify the diameter of the circle
with the lead width and a lead length equal to 0.
Lead Pitch S1 Set to 0.
Find PosX S1, Find PosY S1 Set the center-of-gravity position of the lower section.
Others Set to 0.
