1 -3
1
Part names and functions

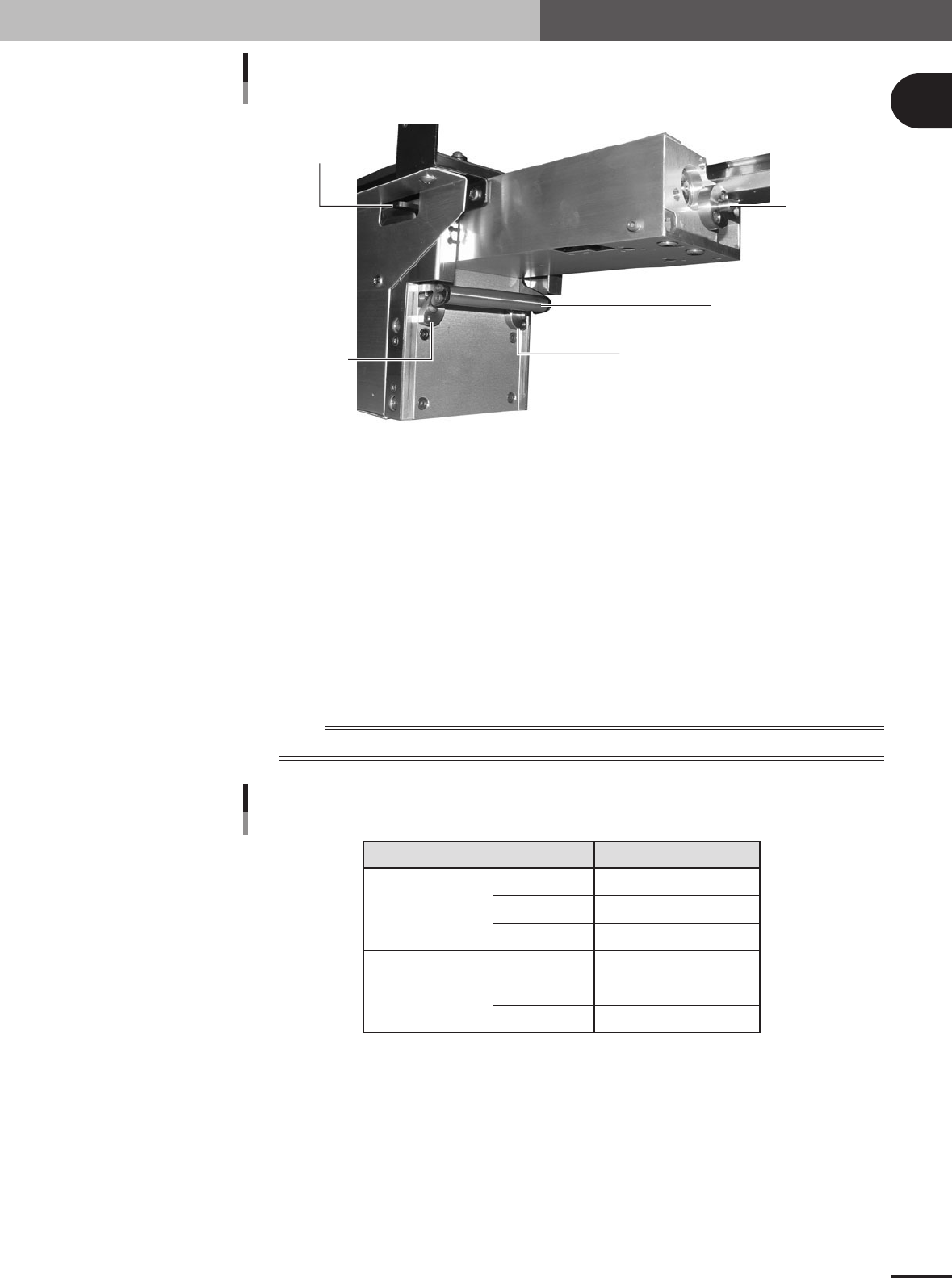

TSF1 main body 3
Clamp release lever
Positioning pin C
Clamp
Positioning pin L
Positioning pin R
73102-5V-00
Clamp release lever
Use this lever to release the "Clamp".
Clamp
Clamps the TSF1 on the feeder plate of the mounter (M CUBE PLUS).
Positioning pin L
Insert this pin into the positioning hole on the feeder plate.
Positioning pin C
Insert this pin into the positioning hole on the feeder plate.
Positioning pin R
Insert this pin into the positioning hole on the feeder plate.
n
NOTE
The positioning pins must be inserted into the specified positions as shown in the table below.
Positioning pin insertion position
Position 1
Position 2
TSF1 position Positioning pin
L
C
R
L
C
R
1
3
5
8
10
12
Feeder plate No.
75103-5V-00
1 -4
1
Part names and functions

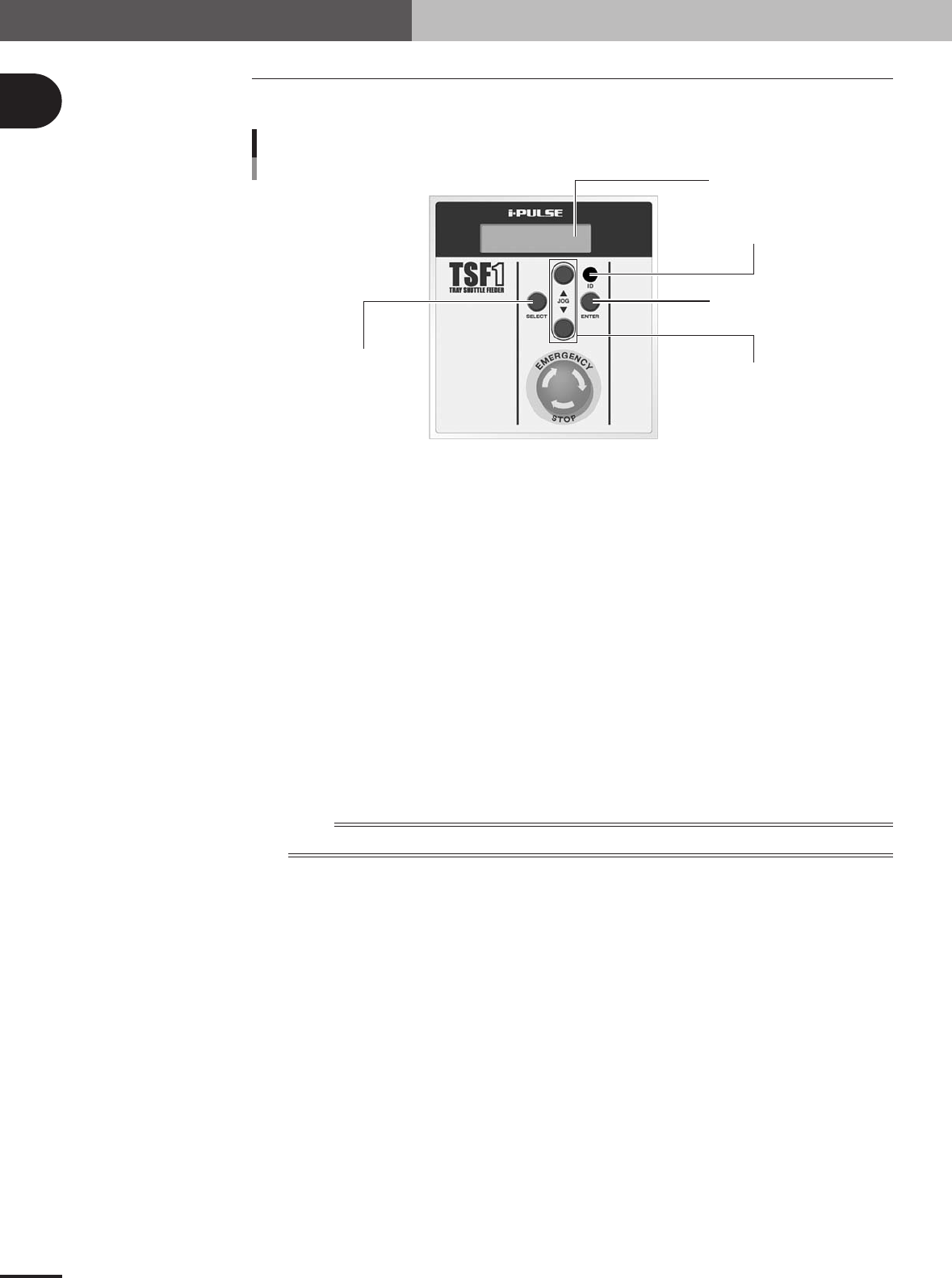

1.2 Operation switch description
The following explains how to use the TSF1 operation panel switches.
ENTER button
ID setting dial
JOG button
SELECT button
LCD (Liquid crystal display)
Operation switch panel
73104-5V-00
SELECT button
Use this button to select the manual operation (movement to tray replacement position or return to
origin operation).
ENTER button
Press this button to perform the manual operation selected with the SELECT button.
ID setting dial
Select the position on the feeder plate where the TSF1 is installed. (Select "1" when installing the
TSF1 in position 1, and select "2" when installing it in position 2.)
JOG buttons
Use these buttons to move the shuttle in JOG mode.
Pressing the [▲] button moves the shuttle toward the work position (mounter side).
Pressing the [▼] button moves the shuttle toward the tray replacement position (TSF1 operation
switch panel side).
LCD (Liquid crystal display)
Shows the TSF1 status.
n
NOTE
For more details on how to operate the TSF1, see section 2.4, "Manual operations".
2
How to handle and operate the TSF1
2 -1
2. How to handle and operate the TSF1
This section explains how to install the TSF1 to the mounter and remove it from the mounter, as well
as setups for tray components.
2.1 Installing the TSF1
n
NOTE
Up to two TSF1 units can be installed in two positions (positions 1 and 2) on the feeder plate of the mounter (M
CUBE PLUS). However, each TSF1 unit is shipped with the single use setups. Therefore, when using two TSF1
units, you must change the setups (safety cover and magnet catch attachment methods) and also remove the
feeder plate safety hoods and tape guide plates of the mounter. (For details on how to change the TSF1 and
mounter setups, see Chapter 3, "Setup". When only one TSF1 is used, it must be installed in position 1. (For
safety reasons, the TSF1 cannot be installed only in position 2.)
w
WARNING
ALWAYS TURN OFF THE MOUNTER POWER SWITCH BEFORE INSTALLING OR REMOVING
THE TSF1. INSTALLING OR REMOVING THE TSF1 WHILE THE POWER IS TURNED ON MIGHT
CAUSE THE TSF1 TO MALFUNCTION.
1
Install the TSF1 on the feeder plate.
Carefully install the TSF1 on the feeder plate by simultaneously inserting the three
positioning pins into the specified positioning holes and by pushing the TFS1 body
until it is automatically locked by the clamp.
Positioning pin insertion position
Position 1
Position 2
TSF1 position Positioning pin
L
C
R
L
C
R
1
3
5
8
10
12
Feeder plate No.
75103-5V-00
w
WARNING
DO NOT APPLY EXCESSIVE FORCE TO THE SHUTTLE DRIVE PARTS SUCH AS THE LINEAR
GUIDE. APPLYING EXCESSIVE FORCE TO THE DRIVE PARTS MIGHT CAUSE THE TSF1 TO
MALFUNCTION.
