3 -3
3
Setup
3

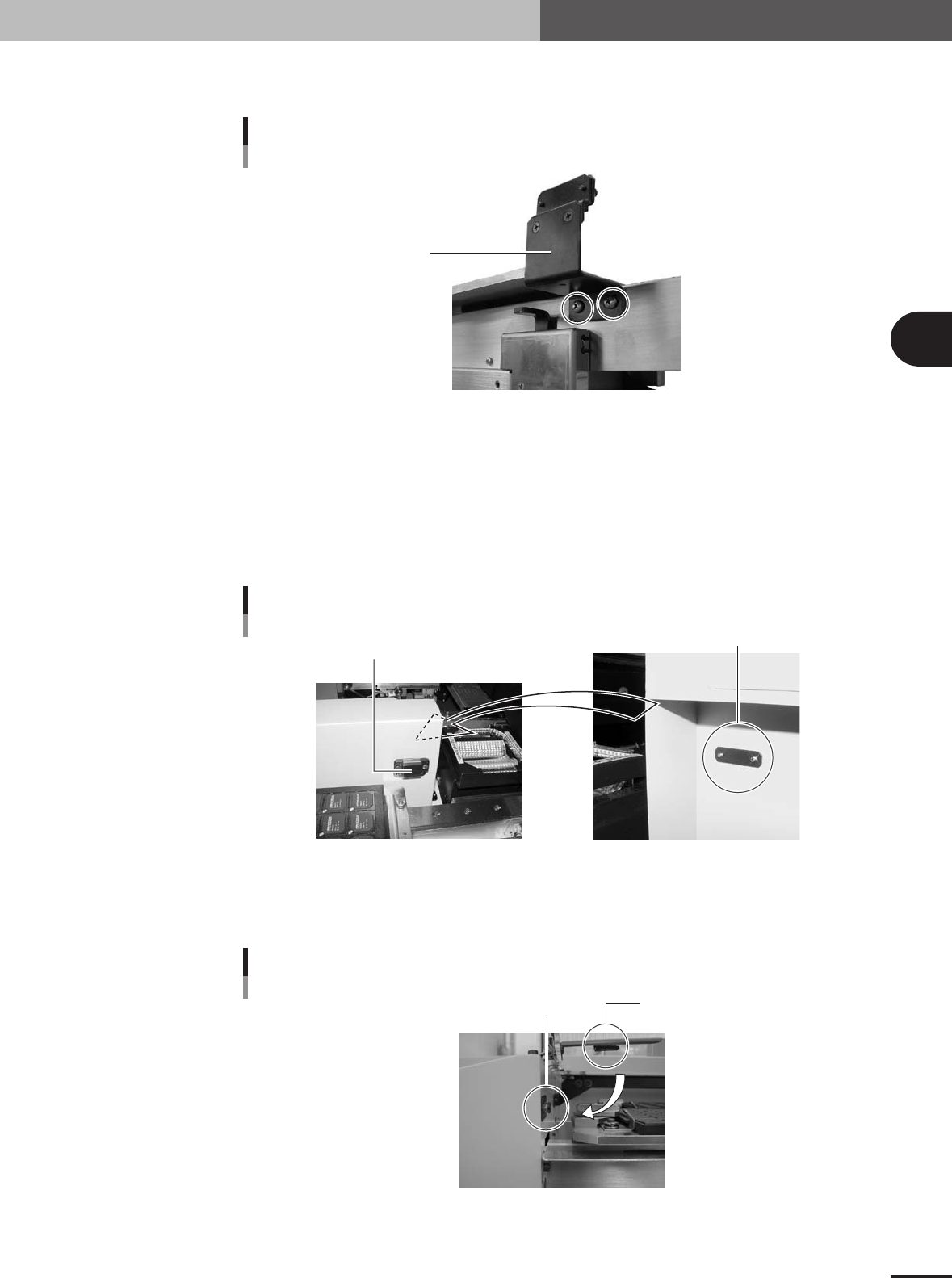

Detach the magnet catch assembly.
Remove the two screws and detach the magnet catch assembly.
Magnet catch 1
Magnet catch assembly
(standard position)
73303-5V-00
4
Install the TSF1 on the feeder plate.
While holding the TSF1 body carefully with the upper safety cover fully opened,
install it in position 1 on the feeder plate.
5
Attach the magnet catch assembly to the mounter.
Take the magnet catch assembly apart and then attach the magnet catch with the
screw catch plate and two screws (supplied) to the side of the conveyor cover of the
mounter.
Magnet catch 2
Magnet catch assembly
(conveyor cover position)
Screw catch plate
73304-5V-00
6
Check the open/close movement of the upper safety cover.
Open and close the upper safety cover a few times and check that the safety switch
push plate securely pushes the cover safety switch.
Cover safety switch
Cover safety switch
Safety switch push plate
73305-5V-00
3 -4
3
Setup

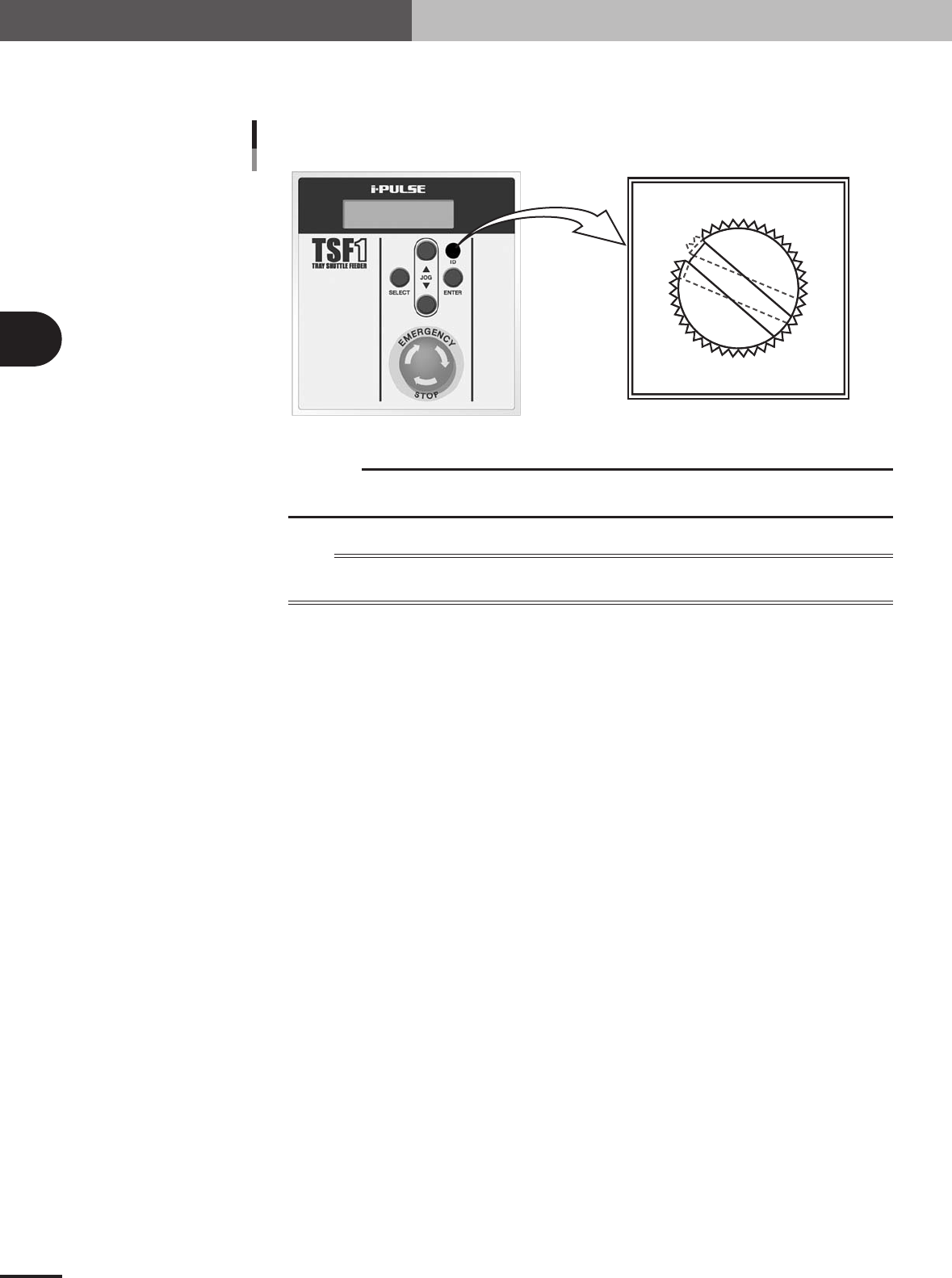

3.1.2 Changing the setups: from specifications A to C
Use a slotted screwdriver to change the ID setting from "ID 1" to "ID 2".
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ID dial position (when set to ID 2)
Details of ID dial
73306-5V-00
c
CAUTION
Use the slotted screwdriver that fits the ID dial slot. (A 4-mm blade width would be the best.) If
you use a screwdriver that does not match the ID dial slot, the ID dial might be damaged.
n
NOTE
The ID information on the TSF1 is recognized by the mounter when it starts up. When you have changed the ID
number, check it on the LCD display of the TSF1 after the mounter has started.
3 -5
3
Setup

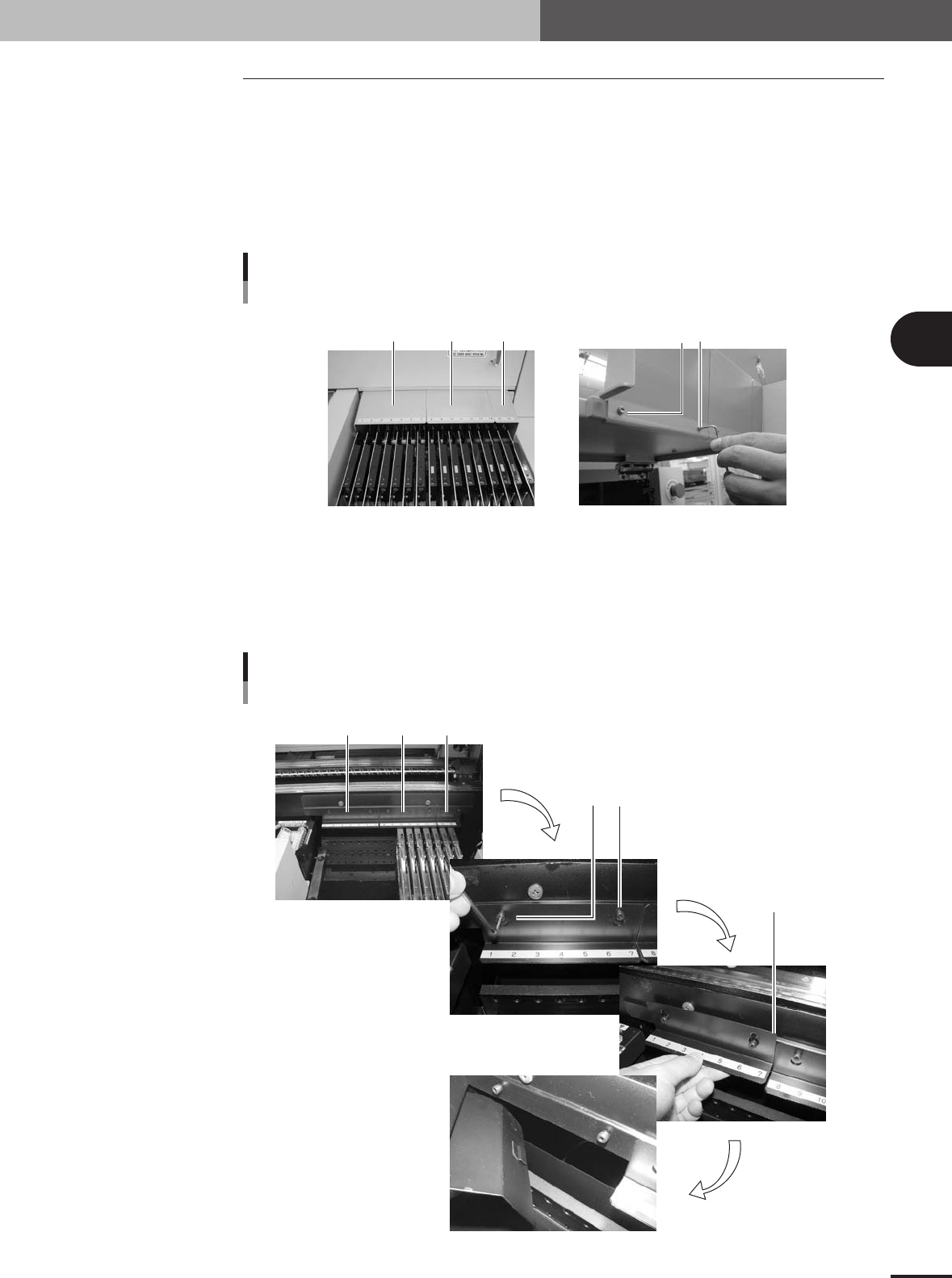

3.2 Changing the mounter setups
3.2.1 Changing the setups to use one or two TSF1
1
Remove the feeder plate safety hoods of the mounter.
Remove the safety hood No. 1 when using one TSF1 unit or remove the safety hoods
No. 1 and 2 when using two TSF1 units. To remove the safety hood, open the
mounter safety cover and loosen the two screws that hold the safety food from the
inner side.
Changing the mounter setup 1
Feeder plate safety hoods
Loosen the two screws
(inner side of mounter safety cover)
to remove the safety hood.
No.1 No. 2 No. 3
73307-5V-00
2
Remove the tape guide plates.
Remove the tape guide plates No. 1 when using one TSF1 unit or remove the tape
guide plates No. 1 and 2 when using two TSF1 units. To remove the tape guide plate,
loosen the two screws that hold the tape guide plate and then lift it up. Fasten the
removed screws into the screw holes in the mounter to avoid losing them.
Changing the mounter setup 2
Ta pe guide plate
To remove the plate, lift it up
and pull toward you.
Loosen the two set screws.
No.1 No. 2 No. 3
73308-5V-00
