Inspection and maintenance work
4.3.3 Supplementary description of the overrun sensors and origin
sensor
Visually check whether the overrun sensors (+/-) and origin sensor get dirty as explained
below.
1. Press the emergency stop button on the TSF1.
2. Open the TSF1 upper safety cover.
3. Move the shuttle by hand to the axis end on the operation switch panel side.
4. Check that the overrun sensor (+) works correctly.
5. Move the shuttle by hand to the axis end on the mounter side.
6. Check that the overrun sensor(-) and the origin sensor works correctly.
n
NOTE
If the sensor does not work correctly due to dust deposition on the sensor, then wipe clean the sensor with a
cotton swab stick.

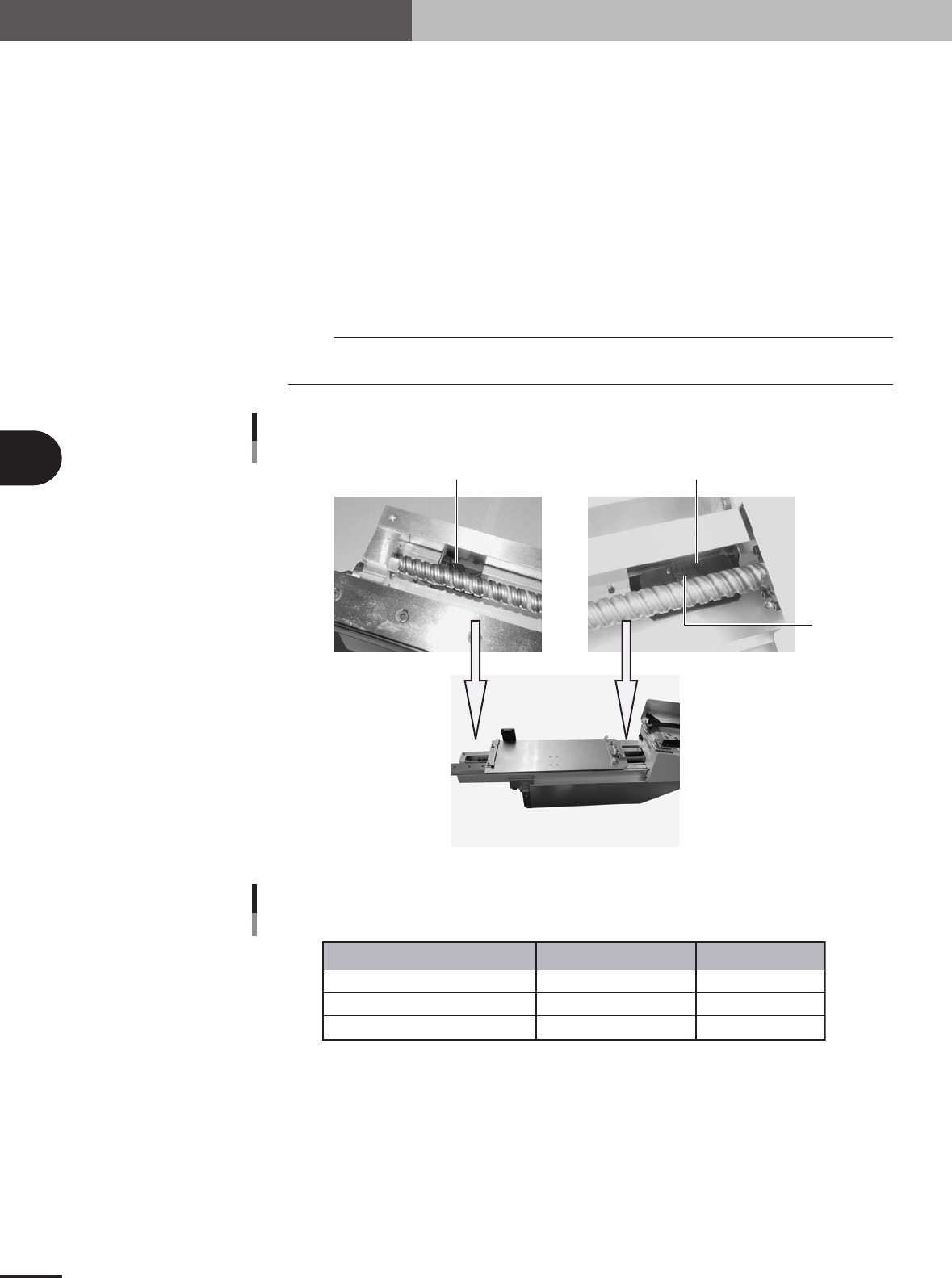

Sensor position
Origin sensor
Overrun sensor (-)
Overrun sensor (+)
73402-5V-00
Sensor list
Name Part name Part No.
Overrun sensor (+)
Overrun sensor (-)
Origin sensor
SENSOR,1 Assy
SENSOR,2 Assy
HNS,PB MOTOR PI
LC2-M5 1F4-00X
LC2-M5 1F5-00X
LC2-M5 1FA-00X
75403-5V-00
