Maintenance Maintenance Instr uctions F 6 Maintenance work every week 03/2003 US E dition 26 6
Maintenance Instructions F Maintenance
03/2003 US Edition 6 Maintenance work every week
25
Clean the X/Y scales 6
a Use a lint-free cloth dipped in ethyl alcohol to clean the incremental scales for the X and Y
axes.
6
Dirty scales can cause counting errors on the X and Y axes, and thus lead to incorrect or inaccu-
rate placing. 6
6
6
6
Change the nozzle changer magazines 6
: Use the "Single Functions" menu to return the nozzles of the Collect&Place head to the nozzle
changers.
s Remove the nozzle changer magazines and replace them with magazines with cleaned ce-
ramic nozzles or new nozzles.
: Use the Single Functions menu to pick up the nozzles of the Collect & Place head.
6
6
: Empty the nozzle reject bin.
: Repeat the job at the other location.
6
6
6
6
6
6
6
6
6
6
Maintenance Maintenance Instructions F
6 Maintenance work every week 03/2003 US Edition
26
6
Maintenance Instructions F Maintenance
03/2003 US Edition 6 Maintenance work every week
27

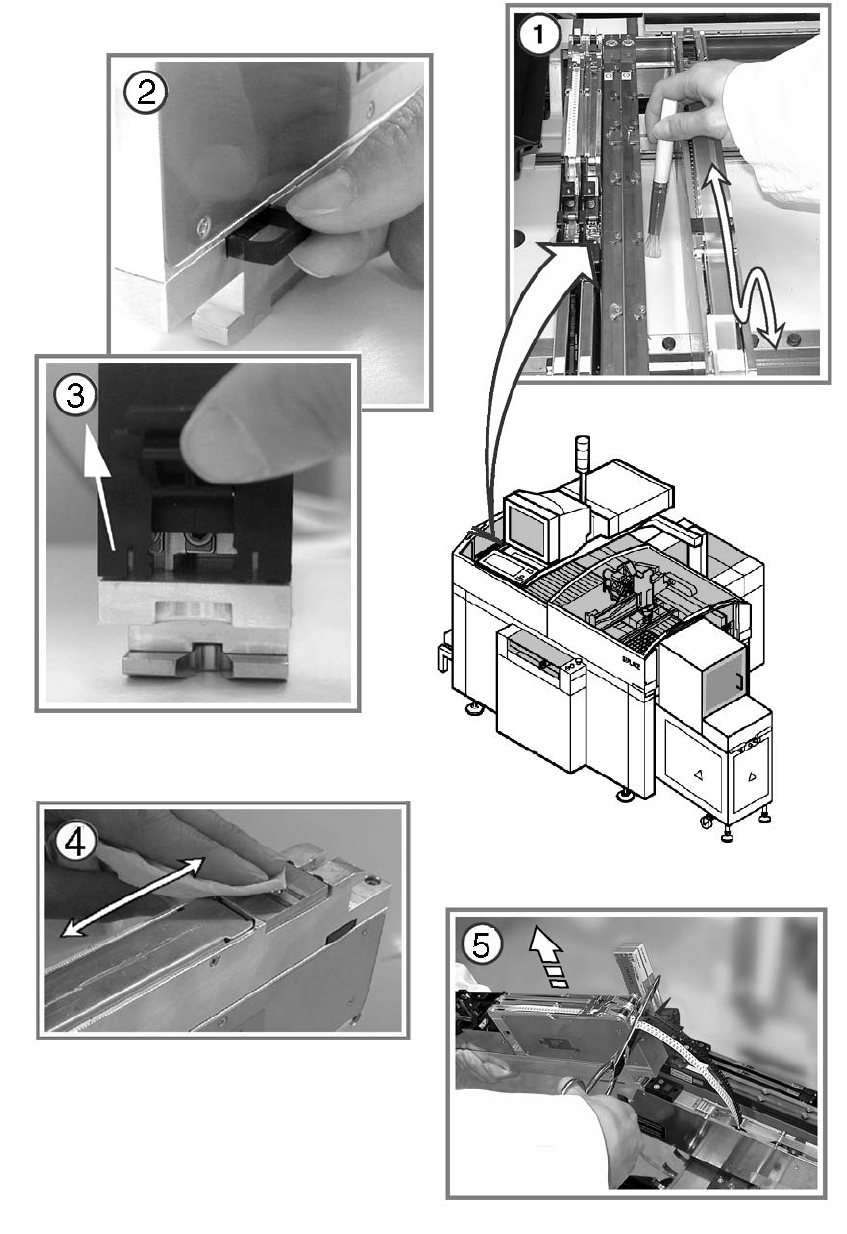

Empty the component drawer or flap of the 8 mm S feeder 6
: Unplug the 8 mm S conveyor and lift it off the changeover table.
6
a Use a brush or the vacuum cleaner to remove loose components from the changeover table.
6
s Empty the component drawer of the 2x8 mm S conveyor (if present).
6
d Open the flap of the 3x8 mm S conveyor (if present) and remove the components.
6
f Wipe the base of the feeder to remove any dirt.
6
g Cut off the empty tape flush with the feeder.
6
: Return the feeders to their original (correct) locations.
6
Make sure that the feeder is placed firmly on the changeover table and is inserted in the correct
position. 6
6
6
6
: Repeat these tasks at both feeder areas.
: Close the protective hood.
: Select “Block manually” (status open) on the station computer and click on OK (for dual con-
veyor track 1 / track 2).
