a Raise the changeover table until it is flush with the top edge of the lateral anti-slip guard.
: Pull it out of the machine.
7
: Switch the placement system off at the main switch.
7
7
Replace the sleeves and valve plungers 7
The sleeves can be replaced at the same time as the clean ceramic nozzles. The procedure is as
follows: 7
s Use the Single Functions menu to return the nozzles of the Collect & Place head to the nozzle
changer.
: Open the protective hood.
Do not hold the sleeves or nozzles in your bare hands. Wear laboratory gloves when carrying out
any maintenance work on the sleeve.
7
In this way you will avoid dirtying the glass disk and friction wheel unnecessarily, which could
cause malfunctions (counting errors and overshoot). 7
7

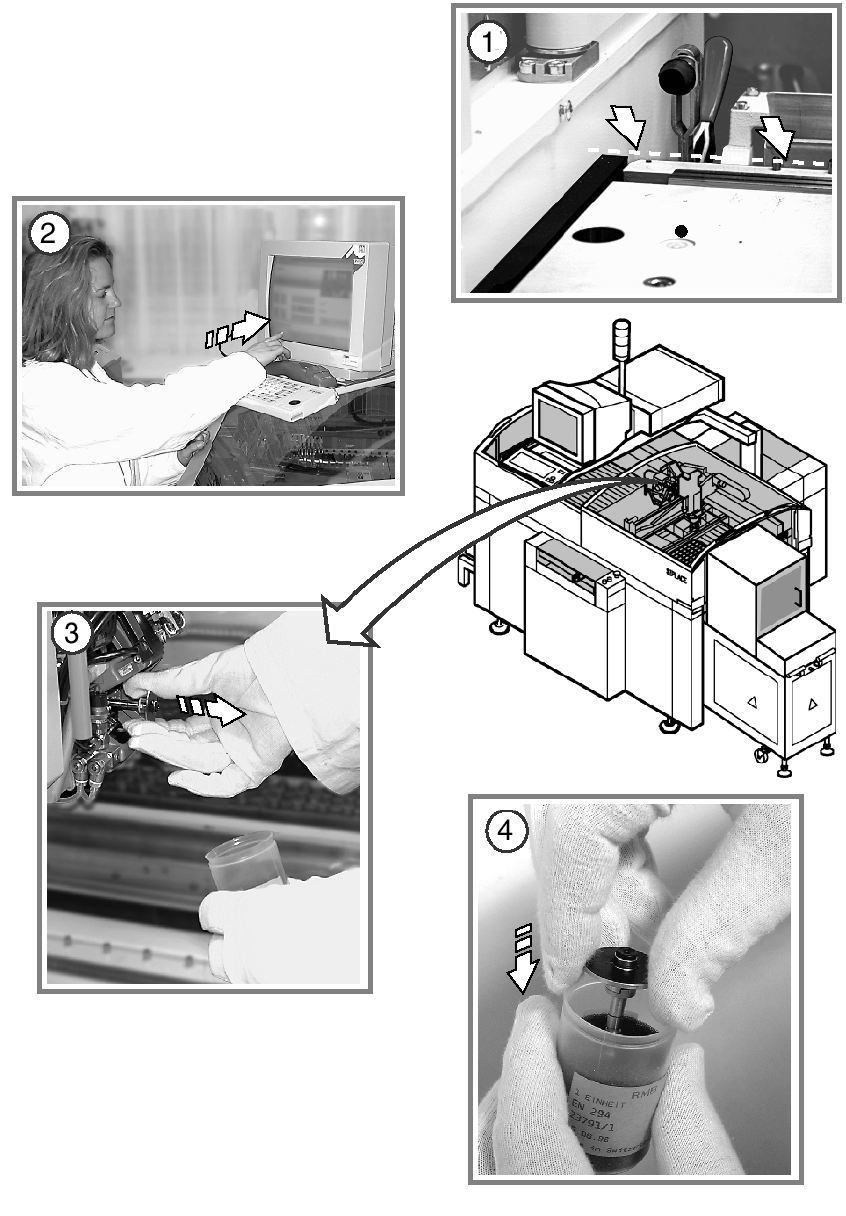

d Remove the sleeves from the head.
Pull the sleeves out as shown in the diagram. 7
7
7
7
f Place them in the containers provided.
Use the “Single Functions” menu to step the star.
