Maintenance Maintenance Instructions F
9 4-monthly maintenance jobs 03/2003 US Edition
58
9 4-monthly maintenance jobs
Structure of the 12-segment revolver head / DLM1 9
9

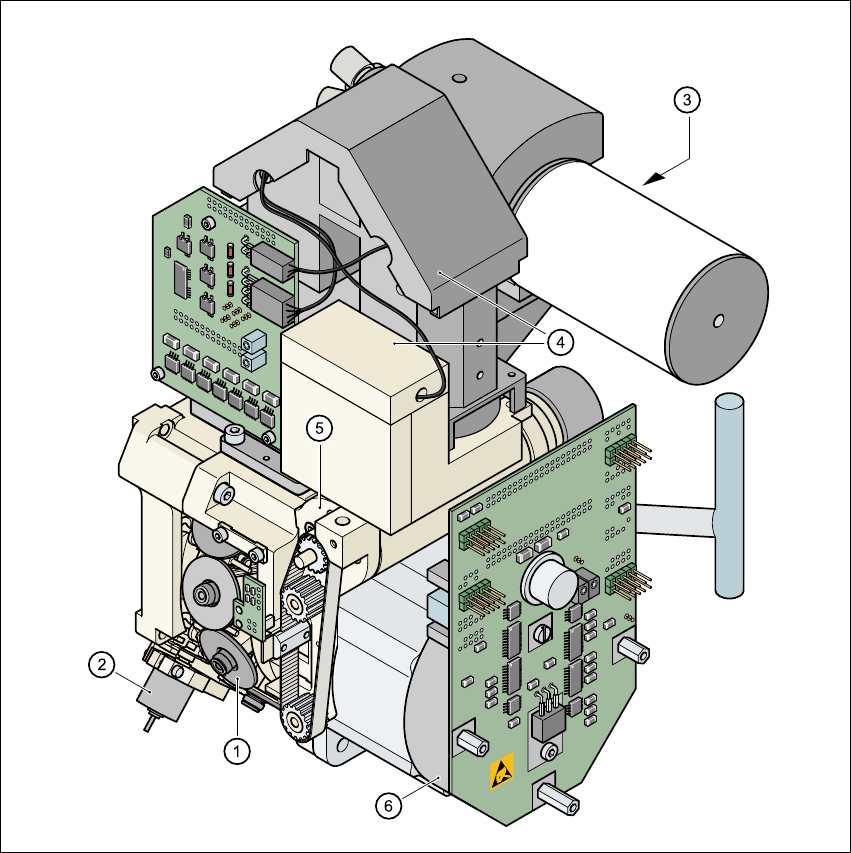

Fig. 9.0 - 1 Structure of the 12-segment revolver head / 12-segment revolver head DLM1
9
9
(1) Star with 12 sleeves (2) Motor, "Reject" valve adjustment drive
(3) Turning station (4) Component vision module
(5) Z axis drive (6) Star motor
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
59
9
You will need the following tools, equipment and consumables for the 4-monthly maintenance. 9
– Pliers in the service box (article no.: 00346929-01)
– Short-bristled brush
– Set of hexagon socket spanners
– Lint-free cottonwool buds (article no.: 00352931-02)
– Ethyl alcohol
– Lint-free cloths
– ISOFLEX TOPAS NCA52 grease (article no. 1 kg can, 00328369-01, 50g tube, 00330850-01)
– Unisilkon L250L (article no.: 00310259-01)
– Oil dispenser with Structovis GHD (article no.: 00367071-01)
– Set of clean sleeves
– Set of clean valve plungers
– New Z-toothed belt, if required (article no.: 00334936-01)
– New distributor, if required (article no.: 00319827-02)
– New O-ring for the turning station, if required (article no.: 00320043-01)
– New toothed belt for the turning station, if required (article no.: 00320041-01).
9
9.1 Fitted placement heads
Placement machines from the F family can have the following placement heads: 9
9
SIPLACE 8000 10000 DLM 1 IC CAN bus
F4 x (1x) x (1x)
F4-6 x (1x) x (1x)
F5 x (1x) x (1x)
F5 HM x x x (1x)
