Maintenance Inst ructions F Maintenance 03/2003 US Edition 9 4-monthly m aintenance jobs 71 V alv e adjustme nt drives 9 a Wipe the thr ee valv e adju stment dr ives usi ng a dry , lint-free c loth. : Clean the pla te an…
Maintenance Maintenance Instructions F
9 4-monthly maintenance jobs 03/2003 US Edition
70
9
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
71

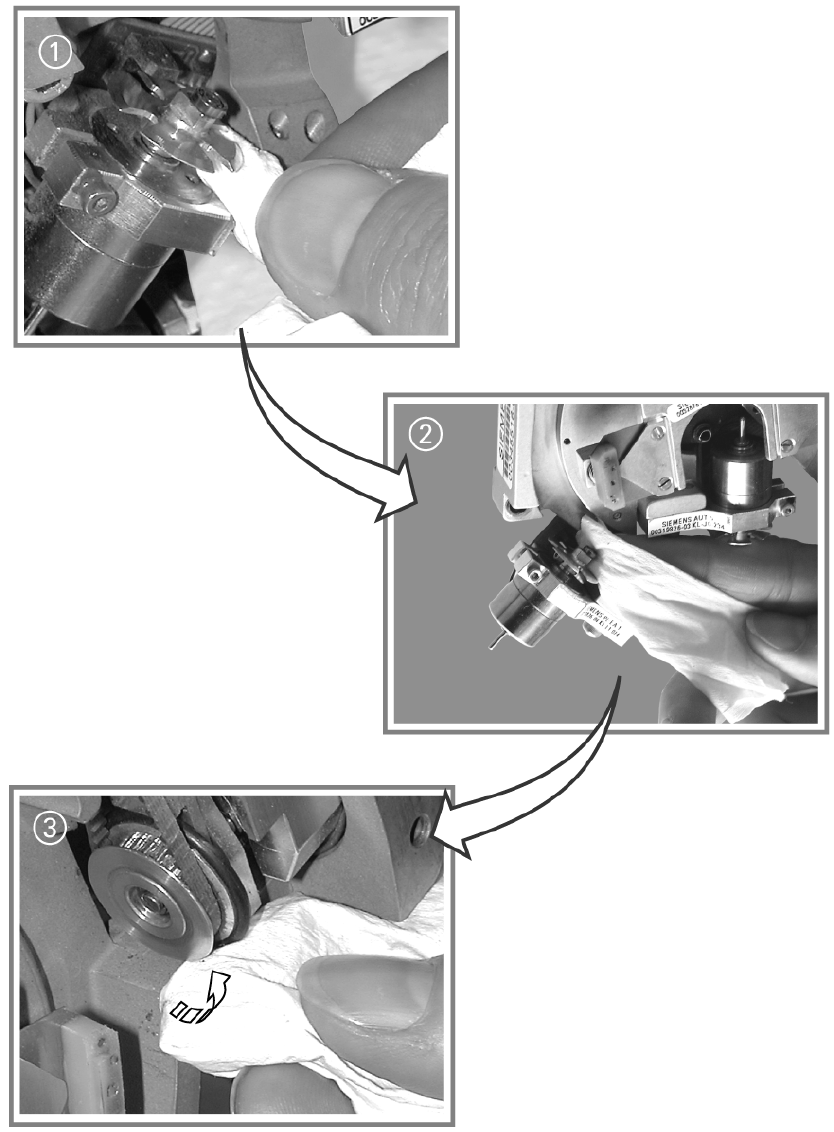

Valve adjustment drives 9
a Wipe the three valve adjustment drives using a dry, lint-free cloth.
: Clean the plate and the gap between the plate and the motor bracket.
9
s Clean the ball bearing with a dry lint-free cloth.
: Check that the ball bearing is working correctly.
: Remove any visible dirt.
9
Turning station 9
d Wipe the black O-ring of the turning station with a lint-free cloth moistened with ethyl alcohol.
: Check the O-ring for damage. Replace, if necessary.
9
: Check the toothed belt for damage, Replace, if necessary.
9
The turning station can be cleaned while still installed using a cottonwool bud moistened with ethyl
alcohol. 9
9
9
9
9
