Maintenance Maintenance Instr uctions F 9 4-monthly maintenance jobs 03/2003 US Edition 72 9
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
71
Valve adjustment drives 9
a Wipe the three valve adjustment drives using a dry, lint-free cloth.
: Clean the plate and the gap between the plate and the motor bracket.
9
s Clean the ball bearing with a dry lint-free cloth.
: Check that the ball bearing is working correctly.
: Remove any visible dirt.
9
Turning station 9
d Wipe the black O-ring of the turning station with a lint-free cloth moistened with ethyl alcohol.
: Check the O-ring for damage. Replace, if necessary.
9
: Check the toothed belt for damage, Replace, if necessary.
9
The turning station can be cleaned while still installed using a cottonwool bud moistened with ethyl
alcohol. 9
9
9
9
9
Maintenance Maintenance Instructions F
9 4-monthly maintenance jobs 03/2003 US Edition
72
9
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
73
Assembly 9
: Insert the two O-rings into the back part of head.
: Carefully insert the distributor into its seat.
9
The small O-ring may be damaged if it is seated on the distributor. 9
9
9

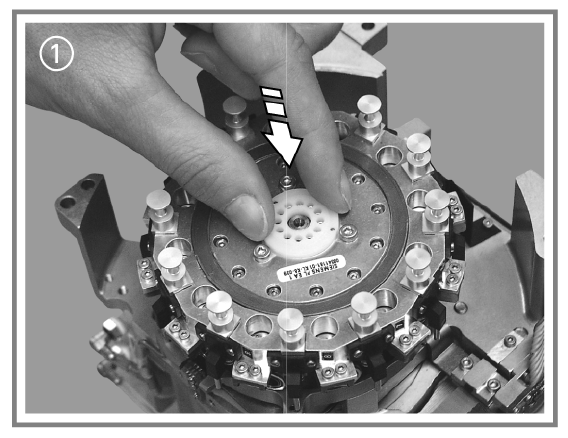

a Insert the distributor plate into its seat.
9
Make sure that the distributor plate is seated correctly. The flat side must lie on the star. The side
with the step points towards the distributor. 9
9
9
: Fit the front part of head and screw it tight.
9
: Attach the ribbon cables to the appropriate connectors.
: Connect the compressed air hose.
