Maintenance Maintenance Instr uctions F 9 4-monthly maintenance jobs 03/2003 US Edition 74 9
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
73
Assembly 9
: Insert the two O-rings into the back part of head.
: Carefully insert the distributor into its seat.
9
The small O-ring may be damaged if it is seated on the distributor. 9
9
9
a Insert the distributor plate into its seat.
9
Make sure that the distributor plate is seated correctly. The flat side must lie on the star. The side
with the step points towards the distributor. 9
9
9
: Fit the front part of head and screw it tight.
9
: Attach the ribbon cables to the appropriate connectors.
: Connect the compressed air hose.
Maintenance Maintenance Instructions F
9 4-monthly maintenance jobs 03/2003 US Edition
74
9
Maintenance Instructions F Maintenance
03/2003 US Edition 9 4-monthly maintenance jobs
75

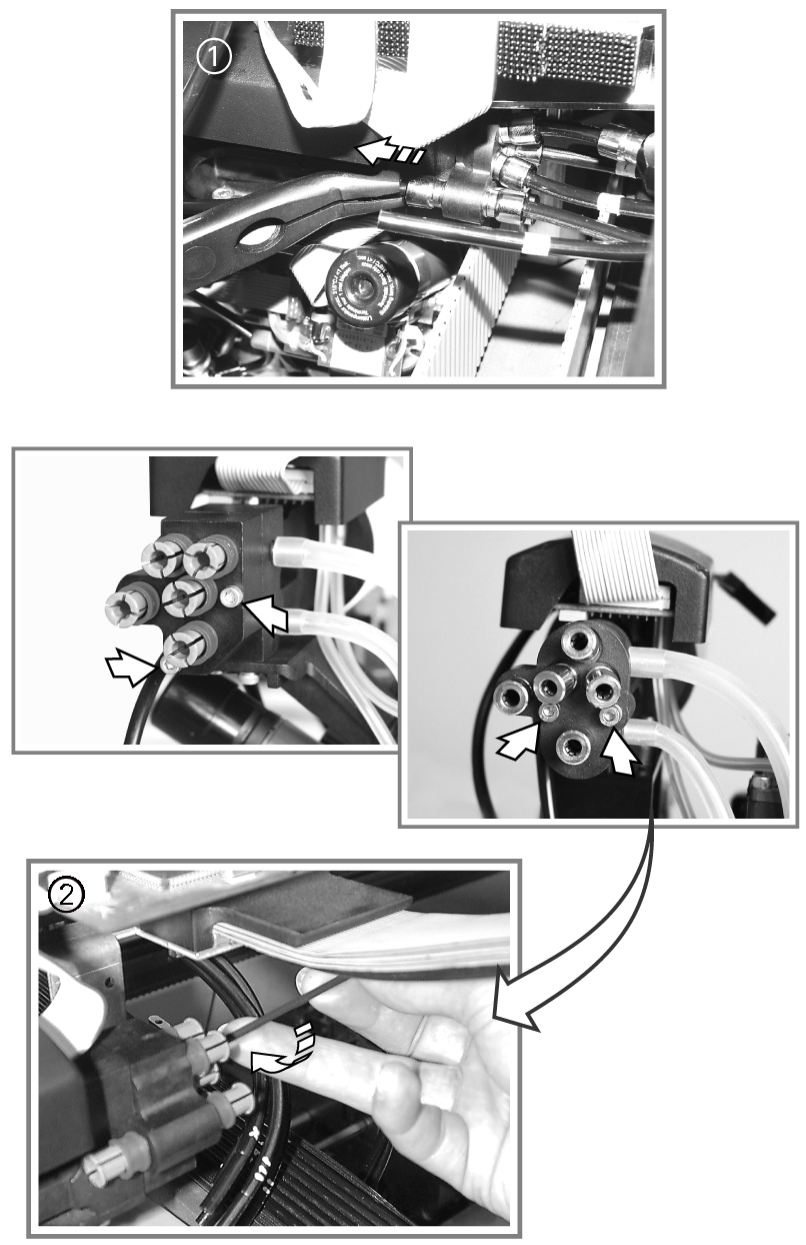

Vacuum generator 9
a Detach the vacuum generator hoses.
To do this, use the pliers from the service box for the DLM 1 and DLM1-6 heads. 9
9
9
9
9
We recommend that you label or otherwise mark the compressed air hoses before you remove
them. 9
On the DLM1 heads, the hoses are already labeled and have a fixed assignment. 9
9
s Unscrew the block with the 2 Venturi nozzles using a 2.5 mm hexagon socket spanner.
