Vacuum generator 9

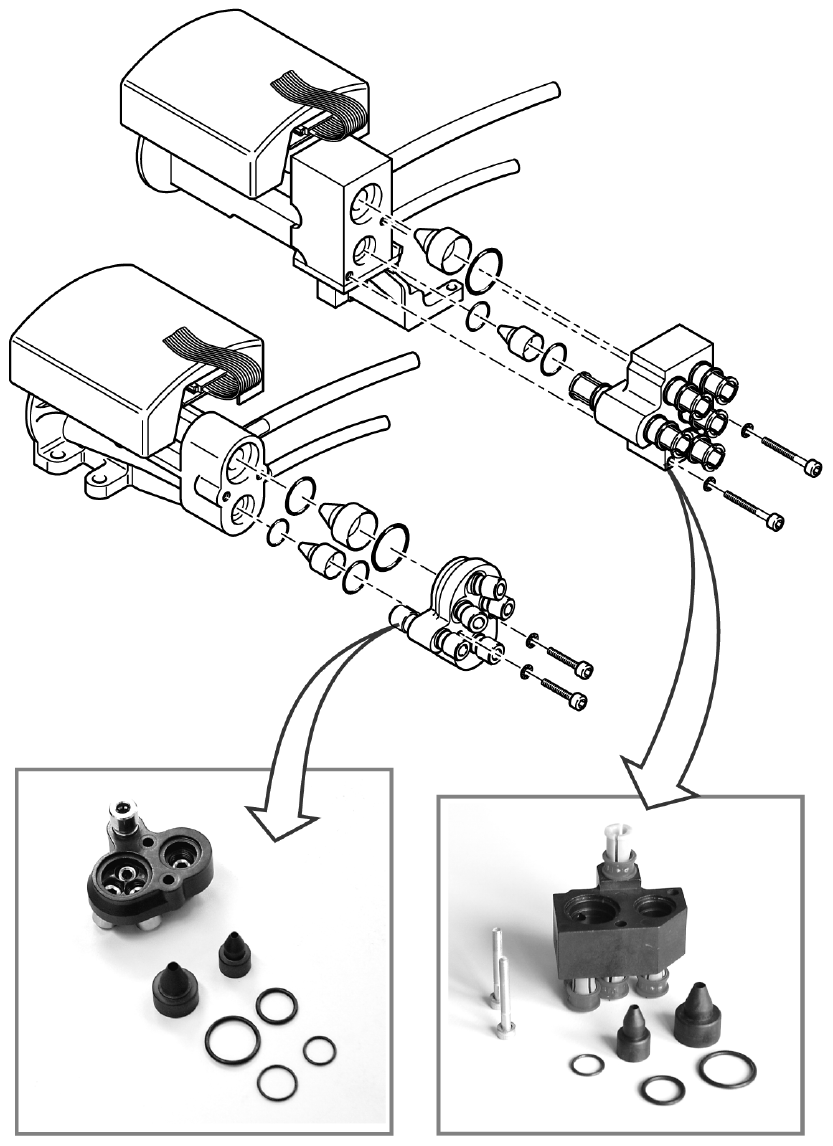

a Detach the vacuum generator hoses.
To do this, use the pliers from the service box for the DLM 1 and DLM1-6 heads. 9
9
9
9
9
We recommend that you label or otherwise mark the compressed air hoses before you remove
them. 9
On the DLM1 heads, the hoses are already labeled and have a fixed assignment. 9
9
s Unscrew the block with the 2 Venturi nozzles using a 2.5 mm hexagon socket spanner.
