Maintenance Inst ructions F Maintenance 03/2003 US Edition 10 Annual maintenance work 83 Check th e used tape cutter 10 10 a Undo the 2 sc rews of t he used tape chan nel. s T ake off the used tape channel . : Check that…
Maintenance Maintenance Instructions F
10 Annual maintenance work 03/2003 US Edition
82
10
Maintenance Instructions F Maintenance
03/2003 US Edition 10 Annual maintenance work
83
Check the used tape cutter 10
10

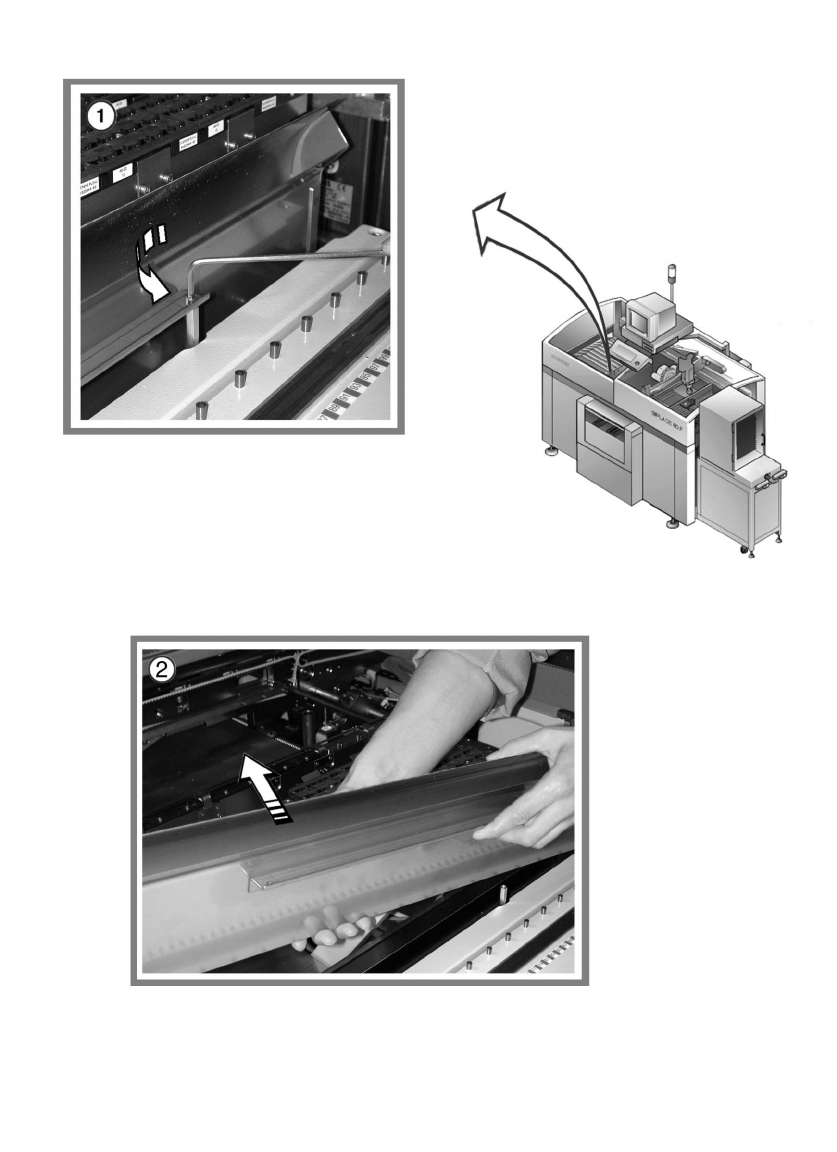

a Undo the 2 screws of the used tape channel.
s Take off the used tape channel.
: Check that the cutting blade is cutting correctly.
Turn the cutting blade if there are any irregularities on the cutting surfaces. A cutting blade
must be replaced if it has already been turned once.
Contact SIPLACE Service.
10
: Reverse the above sequence to fit the used tape channel.
10
: Select “Block manually” (status open) on the station computer and click on OK (for dual con-
veyor track 1 / track 2).
10
10
: Repeat these tasks at every placement machine on the line.

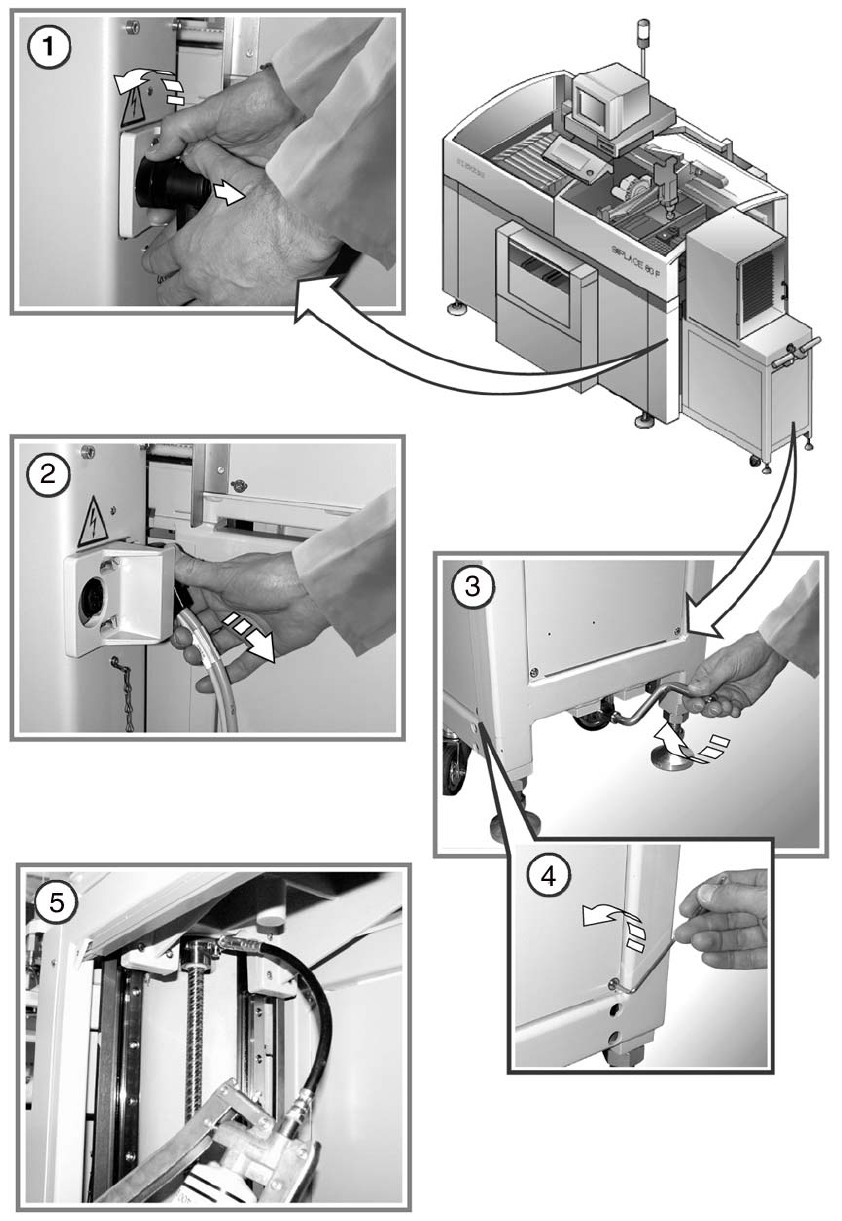

: Switch the placement system on again at the main switch.
: Repeat these tasks on both sides of the machines on the placement line.
10
10
10
10
10
10
