Maintenance Inst ructions F Maintenance 03/2003 US Edition 10 Annual maintenance work 87 a Loosen the 2 screws on the co ver pla te over the c onveyor a rea and r emove th e cover . s Loosen the 4 screws on acryl ic glas…
Maintenance Maintenance Instructions F
10 Annual maintenance work 03/2003 US Edition
86
10
Maintenance Instructions F Maintenance
03/2003 US Edition 10 Annual maintenance work
87

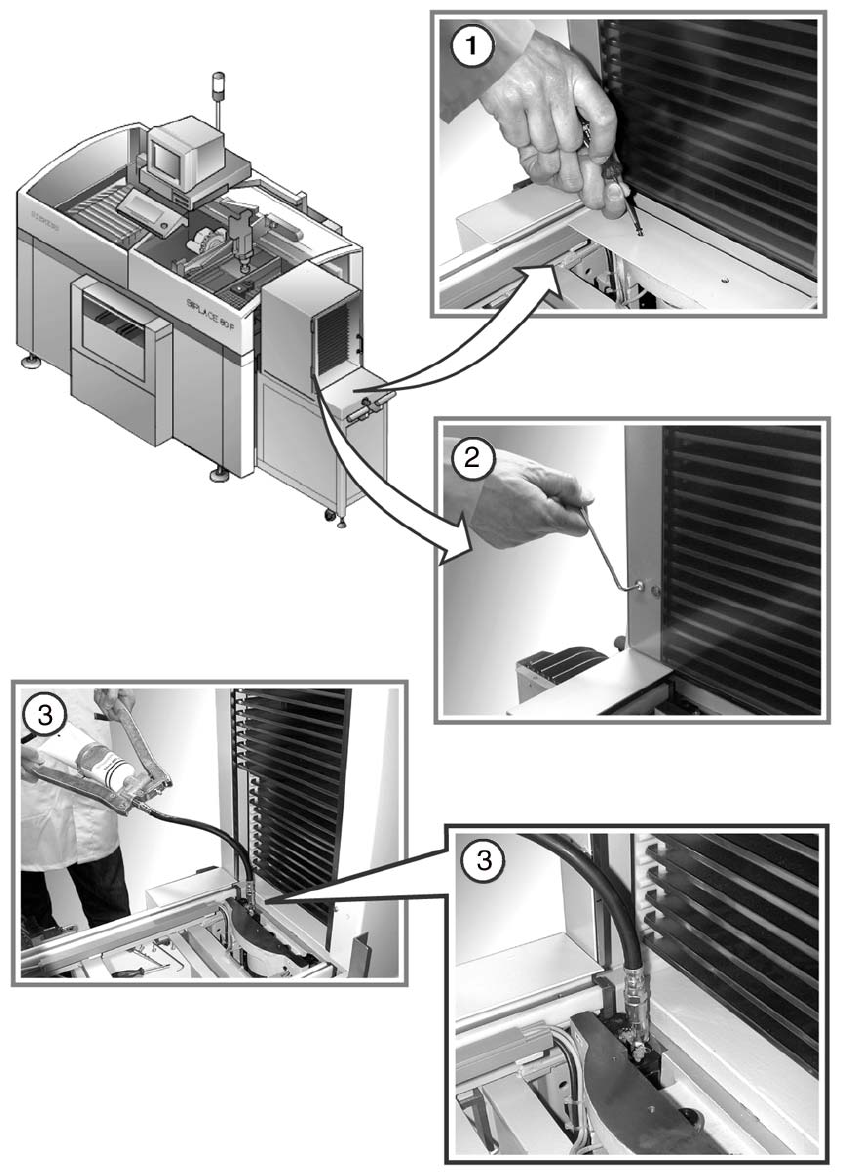

a Loosen the 2 screws on the cover plate over the conveyor area and remove the cover.
s Loosen the 4 screws on acrylic glass cover and remove the cover.
10
10
d Fill both grease nipples with grease from the grease gun.
10
10
: Reverse the above sequence to fit the WPC.
: Dock the WPC into the machine once more.
10
: Repeat these tasks at every WPC on the line.
10
: Close the protective covers for the placement machines.
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Maintenance Maintenance Instructions F
11 Maintain the sleeves 03/2003 US Edition
88

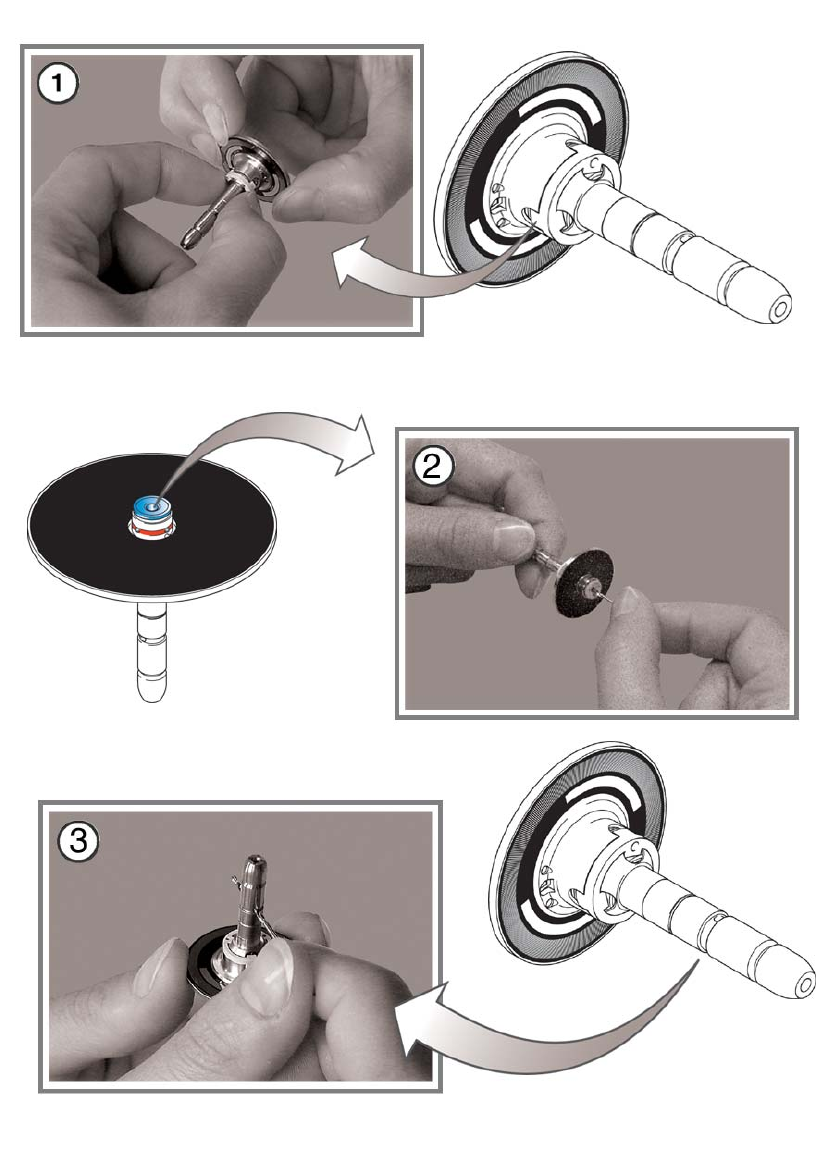

11 Maintain the sleeves
