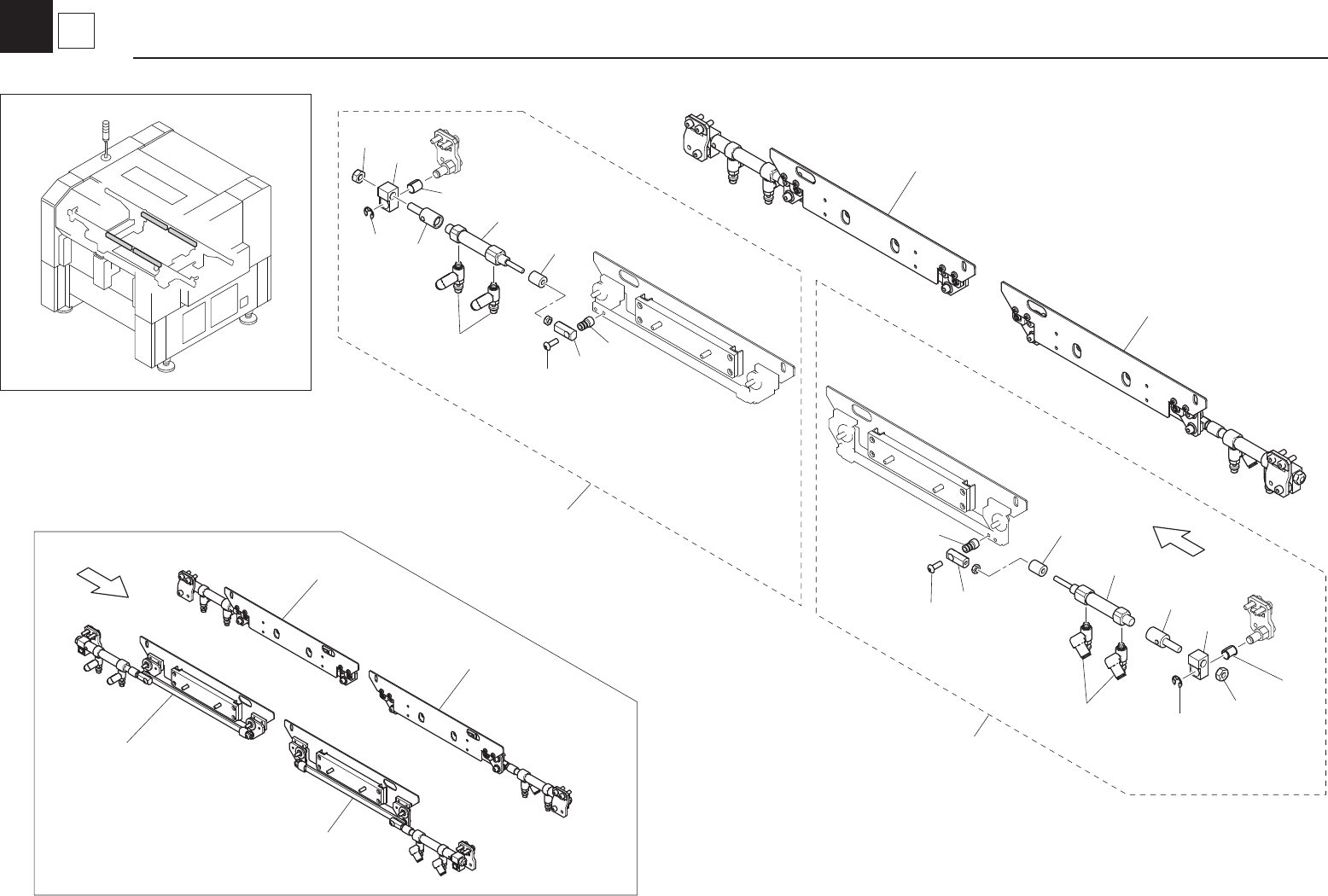

KJJ/KJH-101 1 9 6 Clamp Board (Double) Conveyor Unit The component in the list is the same. 1 1 1 1 4 6 6 5 5 10 10 1 1 3 3 8 8 9 12 12 13 13 14 14 15 15 2 7 9 2 7 4 (L>R) (R>L)

100%1 / 78
KJJ/KJH-1011
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHW-M9263-00 CYLINDER 2 B
Í
39
2 KHV-M926B-00 COLLAR, JOINT 2 /
Í
40
3 KHW-M9285-00 SPEED CONTROLLER 4 /
Í
41
4 KHW-M9167-00 BRKT., CYL. 2 /
Í
42
5 KHW-M916D-00 JOINT, CYL.BRKT 2 /
Í
43
6 KHW-M916E-00 BUSH 2 /
Í
44
7
KHW-M916H-00
JOINT, CYL. 2
/
Í
45
8
KV7-M926C-01 STOPPER, CYLNDER
1
/
Í
46
9
92012-04016 BOLT BUTTON HEAD
2
47
10 90440-10J050 CIRCLIP 2 48
11 95302-06600 NUT HEXAGON 2 49
12 KHV-M9260-01 CLAMP BOARD SUB ASSY 1
/
Í
50
13 KHV-M9260-11 CLAMP BOARD SUB ASSY 1
/
Í
51
14 52
15 53
16 54
17 55
18
56
19
57
20
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
9
5
Clamp Board (Single)
Conveyor Unit
KJJ/KJH-1011
9
6
Clamp Board (Double)
Conveyor Unit
The component in the list is the same.
11
11
4
6
6
5
5
10
10
1
1
3
3
8
8
9
12
12
13
13
14
14
15
15
2
7
9
2
7
4
(L>R)
(R>L)
KJJ/KJH-1011
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHW-M9263-00 CYLINDER 1 B
Í
39
2 KHV-M926B-00 COLLAR, JOINT 1 /
Í
40
3 KHW-M9285-00 SPEED CONTROLLER 2 /
Í
41
4 KHW-M9167-00 BRKT., CYL. 1 /
Í
42
5 KHW-M916D-00 JOINT,CYL.BRKT 1 /
Í
43
6
KHW-M916E-00 BUSH 1 /
Í
44
7 KHW-M916H-00
JOINT, CYL.
1
/
Í
45
8 KV7-M926C-01
STOPPER, CYLNDER
1
/
Í
46
9 92012-04016
BOLT BUTTON HEAD
1
47
10 90440-10J050 CIRCLIP 1 48
11 95302-06600 NUT HEXAGON 1 49
12 KHV-M9260-21 CLAMP BOARD SUB ASSY 1
50
13 KHV-M9260-31 CLAMP BOARD SUB ASSY 1
51
14 KHV-M9260-41 CLAMP BOARD SUB ASSY 1
52
15 KHV-M9260-51 CLAMP BOARD SUB ASSY 1
53
16 54
17 55
18
56
19
57
20
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
9
6
Clamp Board (Double)
Conveyor Unit
