YG200L_mpl_e - 第27页
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level 1 KV8-M7125-00X FLANGE, MOTOR 1 / × 39 2 KGB-M7137-00X BEL T , R MOTOR 1 A × 40 3 KGB-M7139-00X PULLEY , MOTOR 1 / ×…
23
25
3
2
1
4
8
6
25
5
9
10
12
13
13
24
12
7
15
20
18
19
20
11
14
16
22
17
21
KHM-081116
5
3

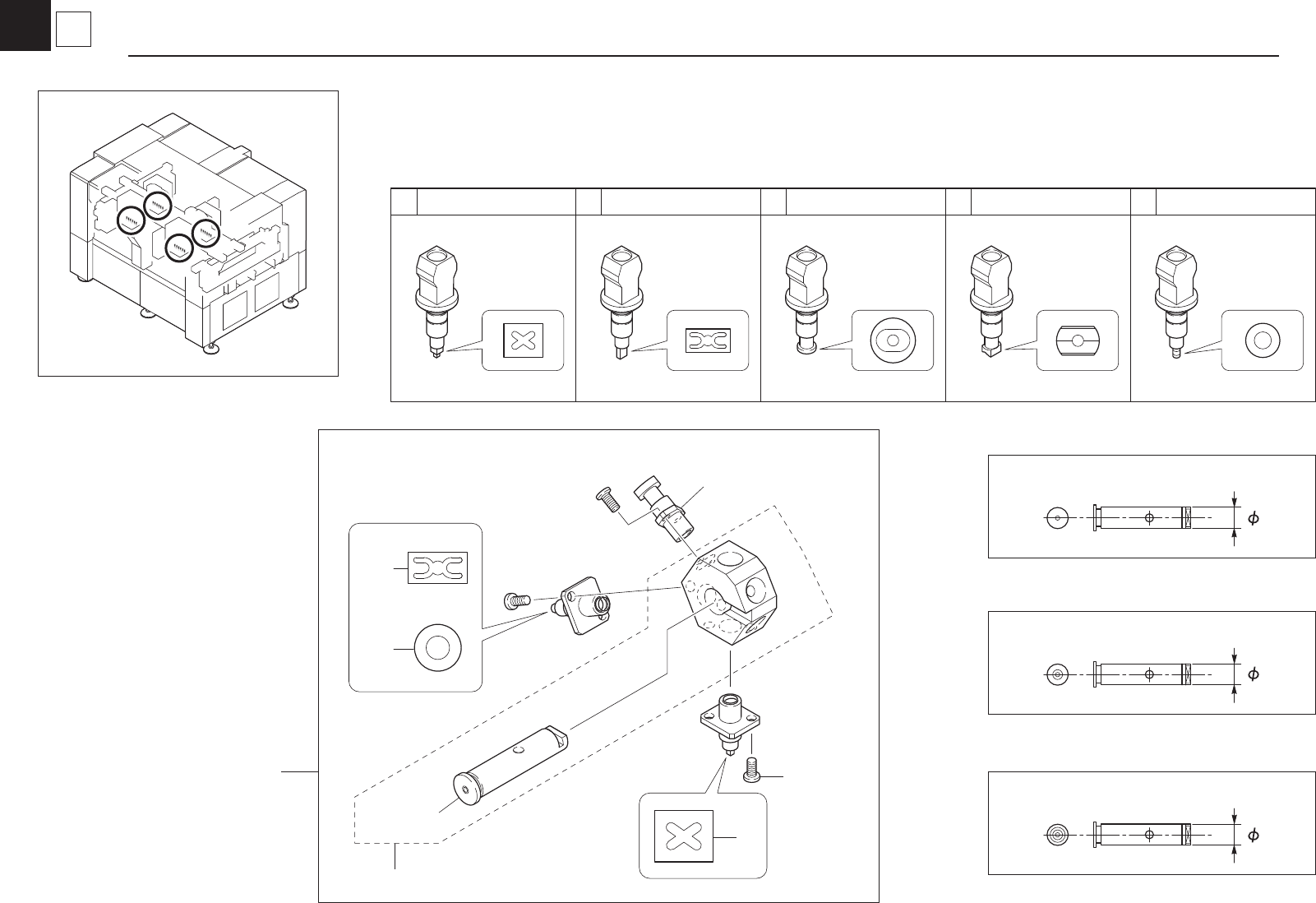

Head Combination
Head
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KV8-M7125-00X FLANGE, MOTOR 1 /
×
39
2 KGB-M7137-00X BELT, R MOTOR 1 A
×
40
3 KGB-M7139-00X PULLEY, MOTOR 1 /
×
41
4 90K63-001305 AC SERVO MOTOR R 1 B
×
42
5 KU4-M7120-00X COUPLING 1 B
×
43
6 90K63-001409 AC SERVO MOTOR R 1 B
×
44
7 KGT-M71W1-00X PLATE, I/O BOARD 1 /
×
45
8 KGA-M7210-01X
CCD CAMERA 1
B
×
46
9
KV7-M7211-00X LENS 095
1
B
×
47
10 KGT-M71WJ-00X
COVER, I/O BOARD
1
/
48
11 KGT-M71WK-00X GUIDE, CABLE 1 B
×
49
12 90562-03J060 SPACER BOLT 2 /
×
50
13 90562-03J180 SPACER BOLT 4
/ ×
51
14 KGS-M7176-00X VALVE 1 B
×
52
15 KHM-M7186-00X MANIFOLD 1 /
53
16 $TSH4-M5M JOINT 1 /
54
17 $TL4-M5M JOINT 1 /
55
18 $TL4-M3M JOINT 1 /
56
19
$BF4BU-M3
JOINT 6
/
57
20
$PF-M3 PLUG
2
/
58
21 $UTD6-4M JOINT 1 /
59
22 $KM-05 MUFFLER 1 /
60
23 KGA-M66F4-00X C. CABLE ASSY: L1.7M 1 B
×
61
24 KGT-M71ST-00X STICKER, HEAD 1 /
62
25 91317-03010 BOLT HEX, SOCKET HEAD 8 63
26 64
27 65
28
66
29
67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37
75
38 76
KHM-081126
5
3
Head Combination
Head
4
4
4
9
16
10,11
7
12,13,14
6,15
12
13
14
1
NOZZLE 201A ASSY
2
NOZZLE 202A ASSY
3
NOZZLE 203A ASSY
4
NOZZLE 206A ASSY
5
NOZZLE 209A ASSY
8
17
KHM-081116
6
1
Nozzle Selection
Nozzle
