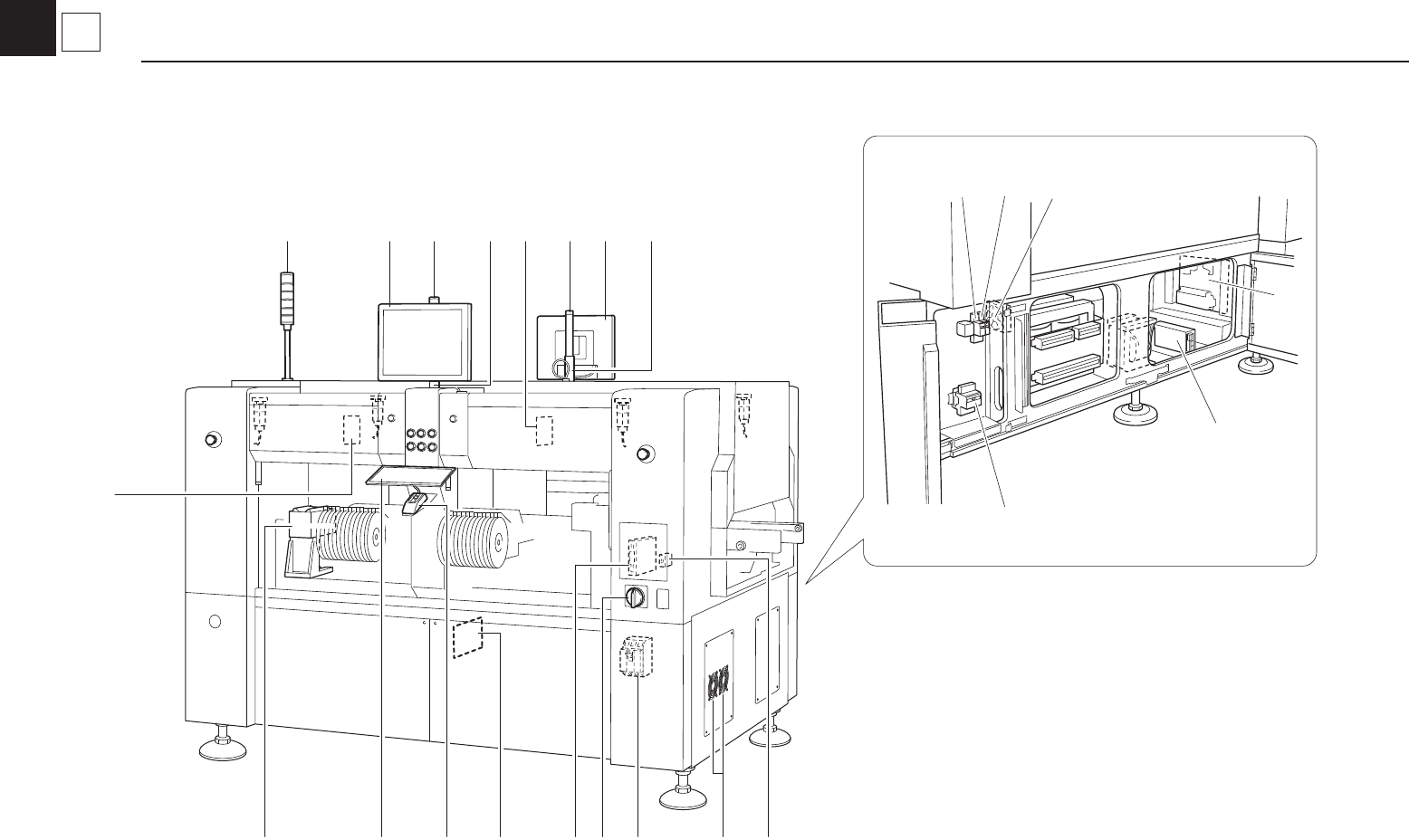

No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level 1 KGK-M4510-00X MOTHER BOARD ASSY 1 B × 39 2 KGN-M5840-02X SER VO BOARD ASSY 3 B r 40 3 KGK-M4209-C0X SYSTEM UNIT AS…
1
10
8
4
4
5
2
3
6
7
9
11
KHM-081116
9
1
Control Box
Control Box
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KGK-M4510-00X MOTHER BOARD ASSY 1 B
×
39
2 KGN-M5840-02X SERVO BOARD ASSY 3 B
r
40
3 KGK-M4209-C0X SYSTEM UNIT ASSY 1 B
r
41
4 KGK-M5810-11X DRIVER BOARD ASSY 2 B
r
42
5 KGN-M5810-10X DRIVER BOARD ASSY 1 B
r
43
6 KGJ-M441H-03X VISION BOARD ASSY 2 B
r
44
7 KGR-M4530-01X INTERFACE BOARD ASSY 1 B
r
45
8 KGN-M5880-00X
D. POWER BOARD ASSY 1
B
r
46
9
KGK-M4136-10X PANEL NO VISION
1
B
r
47
10 KW3-M4256-00X
CD-ROM DRIVE
1
B
48
11 KGK-M4255-20X FLASH DISK 1 B
×
49
12 50
13 51
14 52
15 53
16 54
17 55
18 56
19
57
20
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28
66
29
67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37
75
38 76
KHM-081126
